Congestion Control

1

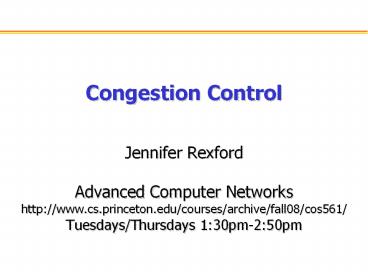

Congestion Control

• Jennifer Rexford
• Advanced Computer Networks
• http//www.cs.princeton.edu/courses/archive/fall08
  /cos561/
• Tuesdays/Thursdays 130pm-250pm

2
Goals For Todays Class

• TCP reliable delivery
• Detecting loss and retransmitting data
• TCP congestion control
• Additive increase, multiplicative decrease
• Slow start at beginning and after a timeout
• Inefficiency of TCP, and new TCP variants
• Discussion of congestion control
• What should be the goals?
• What support should the network provide?
• How to be robust to greedy and malicious users?

3
TCP Reliable Delivery

• Detect missing data sequence number
• Used to detect a gap in the stream of bytes
• ... and for putting the data back in order
• Detect bit errors checksum
• Used to detect corrupted data at the receiver
• leading the receiver to drop the packet
• Recover from lost data retransmission
• Sender retransmits lost or corrupted data
• Two main ways to detect lost packets
• Retransmission timeout and fast retransmission

4
TCP Congestion Control Van Jacobson Paper

• Conservation of packets
• For a connection in equilibrium
• A new packet should enter only as old one leaves
• New mechanisms in TCP
• Slow start for new connections
• Starting with a small congestion window
• Accurate round-trip time estimation
• Including RTT variance when setting timeout
  values
• Exponentially back off for repeated
  retransmissions
• Congestion avoidance by adaptive window sizing
• Additive increase, and multiplicative decrease

5
Automatic Repeat reQuest (ARQ)

• Automatic Repeat reQuest
• Receiver sends acknowledgment (ACK) when it
  receives packet
• Sender waits for ACK and timeouts if it does not
  arrive within some time period
• Simplest ARQ protocol
• Stop and wait
• Send a packet, stop and wait until ACK arrives

Sender
Receiver
Timeout
Time
6
Reasons for Retransmission
Timeout
Timeout
Timeout
Packet
Timeout
Timeout
Timeout
ACK lost DUPLICATE PACKET
Early timeout DUPLICATEPACKETS
Packet lost
7
How Long Should Sender Wait?

• Sender sets a timeout to wait for an ACK
• Too short wasted retransmissions
• Too long excessive delays when packet lost
• TCP sets timeout as a function of the RTT
• Expect ACK to arrive after an round-trip time
• plus a fudge factor to account for queuing
• But, how does the sender know the RTT?
• Can estimate the RTT by watching the ACKs
• Smooth estimate keep a running average of the
  RTT
• EstimatedRTT a EstimatedRTT (1 a )
  SampleRTT
• Compute timeout TimeOut 2 EstimatedRTT

8
A Flaw in This Approach

• An ACK doesnt really acknowledge a transmission
• Rather, it acknowledges receipt of the data
• Consider a retransmission of a lost packet
• If you assume the ACK goes with the 1st
  transmission
• the SampleRTT comes out way too large
• Consider a duplicate packet
• If you assume the ACK goes with the 2nd
  transmission
• the Sample RTT comes out way too small
• Simple solution in the Karn/Partridge algorithm
• Only collect samples for segments sent one single
  time

9
Example RTT Estimation
10
Fast Retransmission

• Better solution possible under sliding window
• Although packet n might have been lost
• packets n1, n2, and so on might get through
• Idea have the receiver send ACK packets
• ACK says that receiver is still awaiting nth
  packet
• And repeated ACKs suggest later packets have
  arrived
• Sender can view the duplicate ACKs as an early
  hint
• that the nth packet must have been lost
• and perform the retransmission early
• Fast retransmission
• Sender retransmits data after the triple
  duplicate ACK

11
TCP Congestion Control
12
Congestion is Unavoidable in IP

• Best-effort delivery
• Let everybody send
• Try to deliver what you can
• and just drop the rest
• If many packets arrive in short period of time
• The node cannot keep up with the arriving traffic
• and the buffer may eventually overflow

13
The Problem of Congestion

• What is congestion?
• Load is higher than capacity
• What do IP routers do?
• Drop the excess packets
• Why is this bad?
• Wasted bandwidth for retransmissions

congestion collapse
Increase in load that results in a decrease in
useful work done.
Goodput
Load
14
Inferring From Implicit Feedback
?

• What does the end host see?
• Round-trip loss
• Round-trip delay

15
Host Adapts Sending Rate Over Time

• Congestion window
• Maximum number of bytes to have in transit
• I.e., of bytes still awaiting acknowledgments
• Upon detecting congestion
• Decrease the window size (e.g., divide in half)
• End host does its part to alleviate the
  congestion
• Upon not detecting congestion
• Increase the window size, a little at a time
• And see if the packets are successfully delivered
• End host learns whether conditions have changed

16
Leads to the TCP Sawtooth
Window size
Loss
halved
Time
17
Receiver Window vs. Congestion Window

• Flow control
• Keep a fast sender from overwhelming a slow
  receiver
• Congestion control
• Keep a set of senders from overloading the
  network
• Different concepts, but similar mechanisms
• TCP flow control receiver window
• TCP congestion control congestion window
• TCP window mincongestion window, receiver
  window

18
How Should a New Flow Start
Need to start with a small CWND to avoid
overloading the network.
Window
But, could take a long time to get started!
t
19
Slow Start Phase

• Start with a small congestion window
• Initially, CWND is 1 Max Segment Size (MSS)
• So, initial sending rate is MSS/RTT
• That could be pretty wasteful
• Might be much less than the actual bandwidth
• Linear increase takes a long time to accelerate
• Slow-start phase
• Sender starts at a slow rate (hence the name)
• but increases the rate exponentially
• until the first loss event

20
Slow Start and the TCP Sawtooth
Window
Loss
t
Exponential slow start
Why is it called slow-start? Because TCP
originally had no congestion control mechanism.
The source would just start by sending a whole
receiver windows worth of data.
21
Two Kinds of Loss in TCP

• Timeout
• Packet n is lost and detected via a timeout
• E.g., because all packets in flight were lost
• After timeout, blasting away for the entire CWND
  would trigger a very large burst in traffic
• So, better to start over with a low CWND
• Triple duplicate ACK
• Packet n is lost, but packets n1, n2, etc.
  arrive
• Receiver sends duplicate acknowledgments
• And the sender retransmits packet n quickly
• Do a multiplicative decrease and keep going

22
Repeating Slow Start After Timeout
Window
timeout
Slow start in operation until it reaches half of
previous cwnd.
t
Slow-start restart Go back to CWND of 1, but
take advantage of knowing the previous value of
CWND.
23
TCP Achieves Some Notion of Fairness

• Effective utilization is not the only goal
• We also want to be fair to the various flows
• but what the heck does that mean?
• Simple definition equal shares of the bandwidth
• N flows that each get 1/N of the bandwidth?
• But, what if the flows traverse different paths?
• E.g., bandwidth shared in proportion to the RTT

24
Limitations on TCP Performance

• Round-trip time
• Throughput proportional to 1/RTT
• Receiver window
• Throughput is limited by window/RTT
• Slow start and additive increase
• Certain number of RTTs needed to send the data,
  even in the absence of any congestion
• Packet loss and congestion window decreases
• Throughput proportional to 1/sqrt(loss)
• Duplicate ACKs dont happen for short transfers
  and bursty loss, and timeout losses are expensive

25
Questions About Congestion Control

• What should be the goal?
• Efficient use of network resources?
• Fair division of the network resources across
  flows? (With or without consideration of RTTs?)
• Minimizing the time for flows to complete?
• How should sources infer congestion?
• Packet loss (as in TCP Reno)?
• Packet delay (as in TCP Vegas and FAST TCP)?
• Probing to measure available bandwidth?
• How should sources adapt sending rates?
• Additive increase, multiplicative decrease?
• Explicit instruction from the network?

26
Questions About Router Support

• Should routers help sources infer congestion?
• Only implicitly by dropping and delaying packets?
• Dropping packets early to warn of congestion?
• Should routers give explicit feedback?
• Marking packets early to warn of congestion?
• Multiple bits to signal the level of congestion?
• Should routers help in adapting sending rates?
• Explicit assignment of sending rates to sources?
• Should routers schedule packets at the flow
  level?
• From FIFO queuing to weighted fair queuing?
• Should routers move traffic to other paths?
• Load-sensitive routing to alleviate congestion?

27
Measurement and Modeling of TCP

• Rich area of research
• Measurement of congestion control in the wild
• Simulation of variants of TCP congestion control
• Modeling of throughput as a function of loss
• Reverse engineering and design using optimization
  theory and control theory
• Models of fairness from the economics literature
• Some examples
• http//conferences.sigcomm.org/sigcomm/1998/tp/abs
  _25.html
• http//ccr.sigcomm.org/archive/1997/jul97/ccr-9707
  -mathis.html
• http//www.statslab.cam.ac.uk/frank/rate.pdf
• http//netlab.caltech.edu/publications/fast-networ
  k05.pdf
• http//netlab.caltech.edu/publications/FAST-ToN-fi
  nal-060209-2007.pdf
• http//www.ana.lcs.mit.edu/dina/XCP/
• http//yuba.stanford.edu/rcp/

28
What About Cheating?

• Some folks are more fair than others
• Running multiple TCP connections in parallel
• Modifying the TCP implementation in the OS
• Use the User Datagram Protocol (UDP)
• Using WAN accelerators

ACK
Appliance
Internet
Appliance
29
What to Do About Cheating?

• What is the impact
• Good guys slow down to make room for others
• Bad guys get an unfair share of the bandwidth
• Possible solutions?
• Routers detect cheating and drop excess packets?
• Peer pressure (accountability framework)?
• Pricing, so heavy users have to pay more?
• Move congestion control to the network?
• Let senders battle it out (decongestion control)?
• Move to a resource reservation model?
