A 50-Gb/s IP Router

1

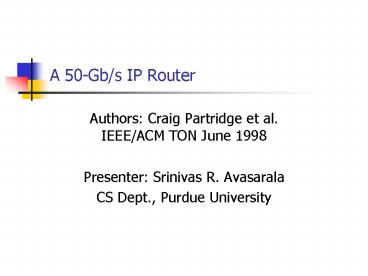

A 50-Gb/s IP Router

• Authors Craig Partridge et al. IEEE/ACM TON June
  1998
• Presenter Srinivas R. Avasarala
• CS Dept., Purdue University

2
Why a Gigabit Router?

• Transmission link bandwidths are improving at
  very fast rates
• Network usage is expanding
• Host Adapters, OS, switches and MUX also need to
  get faster for improved network performance
• The goal of the work is to show routers can keep
  pace with other technologies

3
Goals of a Multi-Gigabit Router (MGR)

• Enough internal bandwidth to move packets between
  its interfaces at gigabit rates
• Enough packet processing power to forward several
  million packets per second (MPPS)
• Conformance to protocol standards
• MGR achieves up to 32 MPPS forwarding rates with
• 50 Gb/s of full duplex backplane capacity

4
Router Architecture

• Multiple line cards, each with one or more
  network interfaces
• Forwarding Engine cards (FEs), to make packet
  forwarding decisions
• High speed switch
• Network processor

5
Router Architecture
6
Major Innovations

1. Each FE has a complete set of the routing tables
2. A switched fabric is used instead of the
   traditional shared bus
3. FEs are on boards distinct from the line cards
4. Use of an abstract link layer header
5. Include QoS processing in the router

7
The Forwarding Engine Processor

• A 415-MHz DEC Alpha 21164 processor
• 64bit 32 register super scalar RISC processor
• 2 Integer logic units E0, E1
• 2 Floating point logic units FA, FM
• Each cycle schedules one instruction to each
  logic unit, processing 4 instructions (quad) in a
  group

8
Forwarding Engines Caches

• 3 internal caches
• First level instruction cache (Icache) 8kB
• First-level data cache (Dcache) 8kB
• An on-chip secondary cache (Scache) 96kB used as
  a cache of recent routes. Can store 12000 routes
  approx. with 64b per route
• An external tertiary cache (Bcache) 16 MB
• Divided into two 8MB banks
• One bank stores entire forwarding table
• Other is updated by NW processor via PCI bus

9
Forwarding Engine Hardware

• Headers are placed in a request FIFO queue
• Alpha reads from queue head, examines header,
  makes route decision and informs inbound card
• Header includes 24/56B of packet 8B abstract
  link layer header and alpha reads a min of 32B
• Alpha writes out the updated header indicating
  the outbound interface to use (dispatching info)
• Updated header contains the outbound link layer
  address and a flow id used for packet scheduling
• Unique approach to ARP !!

10
Forwarding Engine Software

• A few 100 lines of code
• 85 instructions in the common case taking a
  minimum of 42 cycles.
• This gives a peak forwarding rate of 9.8MPPS
• 415 MHz/42 cycles 9.8MPPS
• Fast path of the code is in 3 stages, each with
  about 20-30 instructions (10-15 cycles)

11
Fast path of the code

• Stage 1
• Basic error checking to see if header is from a
  IP datagram
• Confirm packet/header lengths are reasonable
• Confirm that IP header has no options
• Compute hash offset into route cache and load the
  route
• Start loading of next header

12
Fast path of the code

• Stage 2
• Check if cached route matches destination of the
  datagram
• If not then do an extended lookup in the route
  table in Bcache
• Update TTL and CHECKSUM fields
• Stage 3
• Put updated ttl, checksum and the route
  information into IP hdr along with link layer
  info from the forwarding table

13
An exception !!

• IP HDR checksum is not verified but only updated
• The incremental update algorithm is safe because
  if the checksum is bad, it remains bad
• Reason Checksum verification is expensive and is
  a large penalty to pay for a rare error that can
  be caught end-to-end
• Requires 17 instructions with min of 14 cycles,
  increasing forwarding time by 21
• IPv6 does not include a header checksum too!!

14
Some datagrams not handled in fast path

• Headers whose destination misses in the cache
• Headers with errors
• Headers with IP options
• Datagrams that require fragmentation
• Multicast datagrams
• Requires multicast routing which is based on
  source address and inbound link as well
• Requires multiple copies of header to be sent to
  different line cards

15
Instruction set

• 27 of them do bit, byte or word manipulation due
  to extraction of various fields from headers
• The above instructions can only be done in E0,
  resulting in contention (checksum verifying)
• Floating point instructions account for 12 but
  do not have any impact on performance as they
  only set SNMP values and can be interleaved
• There is a minimum of loads(6) and stores(4)

16
Issues in forwarding design

• Why not use an ASIC in place of the engine ?
• Since IP protocol is stable, why not do it ?
• Answer depends on where the router will be
  deployed corporate LAN or ISPs backbone?
• How effective is a route cache ?
• A full route lookup is 5 times more expensive
  than a cache hit. So we need modest hit rates.
• And modest hit rates seem to be assured because
  of packet trains

17
Abstract link layer header

• Designed to keep the forwarding engine and its
  code simple

18
The Switched bus

• Instead of the conventional shared bus, MGR uses
  a 15-port point-to-point switch
• Limitation of a point-to-point switch is that it
  does not support one to many transfers
• The switch has 2 interfaces to each function card
• Data Interface 75 input, 75 output pins clocked
  at 51.84 MHz
• Allocation Interface 2 request pins, 2 inhibit
  pins, 1 input status pin and 1 output status pin
  clocked at 25.92 MHz

19
Data transfer in the switch

• An epoch is 16 ticks of data clock (8 allocation
  clk)
• Up to 15 simultaneous transfers in an epoch
• Each transfer is 1024 bits of data 176
  auxiliary bits for parity and control
• Aggregate data bandwidth is 49.77 Gb/s. 58.32
  Gb/s including the auxiliary bits. 3.3 Gb/s per
  line card
• The 1024 bits are sent in two 64B blocks
• Function cards are expected to wait several
  epochs for another 64B block to fill the transfer

20
Scheduling of the switch

• Minimum of 4 epochs to schedule and complete a
  transfer but scheduling is pipelined.
• Epoch1 source card signals that it has data to
  send to the destination card
• Epoch2 switch allocator schedules transfer
• Epoch3 source and destination cards are notified
  and told to configure themselves
• Epoch4 transfer takes place
• Flow control through inhibit pins

21
The Switch Allocator card

• Takes connection requests from function cards
• Takes inhibit requests from destination cards
• Computes a transfer configuration for each epoch
• 15X15 225 possible pairings with 15! Patterns
• Disadvantages of the simple allocator
• Unfair there is a preference for low-numbered
  sources
• Requires evaluating 225 positions per epoch,
  which is too fast for an FPGA

22
The Switch Allocator Card
23
The Switch Allocator

• Solution to unfairness problem Random shuffling
  of sources and destinations
• Solution to timing problem Parallel evaluation
  of multiple locations
• Priority to requests from forwarding engines over
  line cards to avoid header contention on line
  cards

24
Line Card Design

• A line card in MGR can have up to 16 interfaces
  on it, all of the same type
• Total bandwidth of all interfaces on a card must
  not exceed 2.5 Gb/s. The difference between 2.5
  and 3.3 Gb/s is to allow for transfer of headers
  to and from forwarding engines
• Can support
• 1 OC-48c 2.4 Gb/s SONET interface
• 4 OC-12c 622 Mb/s SONET interfaces
• 3 HIPPI 800 Mb/s interfaces
• 16 100Mb/s Ethernet or FDDI interfaces

25
Line card Inbound packet processing

• Assigns a packet id and breaks data into a chain
  of 64B
• The first page is sent to the FE to get routing
  info
• 2 Complications
• Multicasting FE sends multiple copies of updated
  first pages for a single packet
• ATM Cells are 53b. So we need SAR. OAM cells
  between interfaces on the same card must be sent
  directly in a single page.

26
Line card Outbound packet processing

• Receives pages of a packet from the switch
• Assembles them in a list
• Creates a packet record pointing to the list
• Passes the packet record QoS processor (an FPGA)
  which does scheduling based on flow ids
• Any link layer scheduling is done separately later

27
Network processor, Routing tables

• 233-MHz 21064 Alpha processor
• Access to line cards through a PCI bridge
• Runs 1.1 NetBSD UNIX
• All routing protocols run on the NW processor
• FEs have only small tables with minimal info
• NW processor periodically downloads new tables
  into FEs
• FEs then switch memory banks and invalidate the
  route cache

28
Conclusions

• Makes 2 important contributions
• Emphasizes on examining every header improves
  robustness and security
• Shows it is feasible to build routers that can
  serve in emerging high-speed networks
• In all, an excellent paper providing complete and
  intricate details about high speed router design
