SE 468 Software MeasurementProject Estimation

1

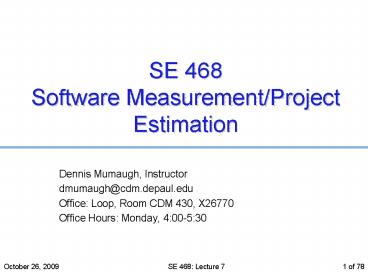

SE 468 Software Measurement/Project Estimation

• Dennis Mumaugh, Instructor
• dmumaugh_at_cdm.depaul.edu
• Office Loop, Room CDM 430, X26770
• Office Hours Monday, 400-530

2
Administrivia

• Comments and feedback
• New references in reading list
• General Establishing a Measurement Program
• Lecture 6 Implementing Phase Containment
  Effectiveness Metrics at Motorola

3
Midterm Exam

• Midterm Exam results

4
SE 468 Class 7

• Topics
• Software Metrics
• In-Process Metrics for Testing
• The Fagan Inspection Process
• Software Design Quality
• Complexity Metrics and Models
• Other metrics
• Exploiting Measures Part I
• Reading
• Kan chapters 10-11, pp. 106-110
• Articles on the Class Page

5
Assignment 4

• Defect removal analysis
• Consider the data listed in the following matrix
  for a product of size 45KLOC
• Calculate the defect removal rate, defect
  injection rate, and the defect escape rate for
  every phase
• Which phase is the most effective in removing
  defects?
• Calculate the overall defect removal
  effectiveness.
• Do you think reviews and inspections were
  effective? Explain.
• Look at the references. Especially the paper
• Implementing Phase Containment Effectiveness
  Metrics at Motorola
• Due November 2, 2009.

6
Thought for the Day

• .. there is no particular reason why your friend
  and colleague cannot also be your sternest
  critic.
• Jerry Weinberg
• One good test result is worth one thousand
  expert opinions.
• Wernher von Braun

7
Static and dynamic verification

• Software testing. Concerned with exercising and
  observing product behavior
• The system is executed with test data and its
  operational behavior is observed
• Software inspections. Concerned with analysis of
  the static system representation to discover
  problems (static verification)
• May be supplemented by tool-based document and
  code analysis

8
In-process Metrics for Testing
9
In-Process Metrics for Software Testing

• Test Progress (S Curve)
• Planned progress over time (test cases completed
  successfully per unit time)
• Number of test cases attempted
• Number of test cases completed successfully
• Product Size Over Time
• Lines of code, etc.
• Fully tested and functional (released)
• Use to look for scope creep
• CPU Utilization During Test
• Measurement of system stress
• Testing Defect Arrivals Over Time
• Testing Defect Backlog Over Time Fix backlog
  and Backlog Management Index (BMI)
• Number of problems closed divided by Number of
  problem arrivals

10
In-Process Metrics for Software Testing

• Fix response time and Fix responsiveness
• Mean time to fix
• Percent delinquent fixes
• Fixes exceeding response time divided by fixes
  delivered on time
• Fix quality
• Percentage of defective fixes
• System Crashes and Hangs
• Stress and stability measure
• Mean Time to Unplanned IPL (or reboot) MTTF
• Software reliability measure

11
In-Process Metrics for Software Testing

• Critical Problems Show Stoppers
• Number of critical problems over time
• Types of problems and resolution
• In-Process Metrics and Quality Management
• Use calendar time
• Use ship date as reference and week as unit of
  time
• Indicate good and bad for metrics
• Some metrics require immediate management
  attention
• Metrics drive improvement

12
In-Process Metrics for Software Testing

• Possible Metrics for Acceptance Testing to
  Evaluate Vendor-Developed Software
• Percentage of test cases attempted
• Number of defects per test case
• Number of failing test cases without defect
  records
• Success rate
• Persistent failure rate
• Defect injection rate
• Code completeness
• How Do You Know Your Product Is Good Enough to
  Ship
• System stability
• Defect volume
• Outstanding critical problems
• Feedback from early customers (Beta testing and
  controlled release)
• Other quality factors

13
Design and Code Reviews

• By doing design and code reviews, you will see
  more improvement in the quality and productivity
  of your work than you will see from any other
  single change you make to your personal software
  process. (Watts Humphrey)

14
Software inspections

• The systematic study of a product artifact (e.g.,
  specification document, design document, source
  program) for the purpose of discovering flaws in
  it.
• These involve people examining the source
  representation with the aim of discovering
  anomalies and defects.
• Inspections do not require execution of a system
  so may be used before implementation.
• They may be applied to any representation of the
  system (requirements, design, configuration data,
  test data, etc.).
• They have been shown to be an effective technique
  for discovering program errors.

15
Inspections Reviews

• Benefits of Inspection
• Inspection is more cost effective than testing
• Types of Inspection
• How to conduct an inspection
• who to invite
• how to structure it
• Some tips and thoughts

16
Inspections

• Many studies have shown that
• Finding errors early in a project costs less to
  fix than finding errors later in a project.
• The factors of 1 time unit for a specification
  error, 10 time units for a design error, 100 time
  units for a coding error, to 1000 time units for
  an integration testing error.
• These numbers have not been formally validated,
  but the basic principle that later errors are
  harder to fix seems to be sound.
• All of the techniques are based on the principle
  that thinking about an artifact results in better
  results than simply random testing of the
  artifact.

17
Software Inspections (code reviews)

• gt60 of program errors can be detected in code
  review Fagan86
• gt90 if more formal approach used (e.g. Clean
  room process) Mills87

18
Benefits of formal inspection

• For applications programming
• Most reviewed programs run correctly first time
• Compare 10-50 attempts for test/debug approach
• Data from large projects
• Data from Bell-Northern Research
• Inspection cost 1 hour per defect.
• Testing cost 2-4 hours per defect.
• Post-release cost 33 hours per defect.
• Error reduction by a factor of 5 (10 in some
  reported cases)
• Improvement in productivity 14 to 25
• Percentage of errors found by inspection 58 to
  82
• Cost reduction of 50-80 for VV (even including
  cost of inspection)

19
Benefits of formal inspection

• Effects on staff competence
• Increased morale, reduced turnover
• Better estimation and scheduling (more knowledge
  about defect profiles)
• Better management recognition of staff ability

20
Inspection success

• Why are reviews more effective for finding
  defects in systems/subsystems (i.e., before
  acceptance testing)?
• Many different defects may be discovered in a
  single inspection. In testing, one defect may
  mask another so several executions are required.
• They leverage domain/programming knowledge (reuse
  domain and programming knowledge) so reviewers
  are likely to have seen the types of error that
  commonly arise.
• Inspectors are skilled programmers
• Preparing a product for peer review induces the
  author to carefully review the code. Many
  errors/defects are found before the inspection as
  a result.
• Common practice code reviews and then acceptance
  testing
• Reviews can also help with development of tests

21
Reviews, Inspections, Walkthroughs

• Note these terms are not widely agreed
• Formality
• Informal from meetings over coffee, to regular
  team meetings
• Formal scheduled meetings, prepared
  participants, defined agenda, specific format,
  documented output
• Management reviews
• e.g. Preliminary design review (PDR), critical
  design review (CDR),
• Used to provide confidence that the design is
  sound
• Attended by management and sponsors (customers)
• Usually a dog-and-pony show
• Walkthroughs
• Developer technique (usually informal)
• Used by development teams to improve quality of
  product
• Focus is on finding defects

22
Reviews, Inspections, Walkthroughs

• Note these terms are not widely agreed
• (Fagan) Inspections
• A process management tool (always formal)
• Used to improve quality of the development
  process
• Collect defect data to analyze the quality of the
  process
• Written output is important
• Major role in training junior staff and
  transferring expertise
• Personal reviews where you examine your own
  products
• Done by the engineer before a formal technical
  review (or inspection)
• You examine your own products
• Objective is to find and fix as many errors as
  possible before you implement, inspect, compile,
  or test the program
• As PSP data will show, a little time spent
  carefully reviewing your code can save the much
  longer amount of time that would have been spent
  debugging and fixing the program during compile
  and test

23
Reading technologies

• All of the following techniques are an
  improvement over simply testing a program
  however, some are more effective than others.
  Several related concepts
• Walkthroughs The developer of the artifact
  describes its structure at a meeting. Attendees
  look for flaws in the structure. Weakness
  reviewers do not understand deep structure so
  error finding is weak.
• Code reviews An individual who is not the
  developer of the artifact reads the text of the
  artifact looking for errors and defects in
  structure. Quite effective since reader does not
  have the same preconceived notion of what the
  artifact does.
• Review A meeting to discuss an artifact less
  formal than an inspection. A traditional
  checkpoint in software development

24
(Fagan) Inspections

• Developed by Michael Fagan at IBM in 1972.
• Two approaches toward inspections
• Part of development process used to identify
  problems
• Part of quality assurance process used to find
  unresolved issues in a finished product
• Fagan inspections are the former type. Goal is
  to find defects A defect is an instance in
  which a requirement is not satisfied.

25
Inspection process

• Planning Author gives moderator an artifact to
  be inspected. Materials, attendees, and schedule
  for inspection meeting must be set. High level
  documentation given to attendees in addition to
  artifact.
• Overview Moderator assigns inspection roles to
  participants.
• Preparation Artifact given to participants
  before meeting to allow for study. Participants
  spend significant time studying artifact.
• Inspection A defect logging meeting for finding
  defects (Dont fix them at meeting Dont assign
  blame Dont have managers present )
• Rework The author reworks all defects.

26
Observations about inspections

• Costly Participants need many hours to prepare
• Intensive Limit inspections to no more than 2
  hours
• No personnel evaluation limits honesty in
  finding defects
• Cannot inspect too much perhaps 250
  non-commented source lines/hour. More than that
  causes discovery rate to drop and the need for
  further inspections to increase.
• Up to 80 of errors found during testing could
  have been found during an inspection.
• ATT/Lucent study more defects found in
  preparing for the inspection meeting than found
  in meeting.

27
Inspection pre-conditions

• A precise specification must be available.
• Team members must be familiar with the
  organizations standards.
• Syntactically correct code or other system
  representations must be available.
• An error checklist should be prepared.
• Management must accept that inspection will
  increase costs early in the software process.
• Management should not use inspections for staff
  appraisal e.g., finding out who makes mistakes.

28
Constraints

• Size
• Enough people so that all the relevant expertise
  is available
• Min 3 (4 if author is present)
• Max 7 (less if leader is inexperienced)
• Duration
• Never more than 2 hours
• Concentration will flag if longer

• Outputs
• All reviewers must agree on the result
• Accept or re-work or re-inspect
• All findings should be documented
• Summary report (for management)
• Detailed list of issues

29
Constraints

• Scope
• Focus on small part of a design,
• Not the whole thing
• Fagan recommends rates
• 130-150 SLOC per hour

• Timing
• Examine a product once its author has finished it
• Not too soon
• Product not ready - find problems the author is
  already aware of
• Not too late
• Product in use - errors are now very costly to
  fix

30
Choosing Reviewers

• Possibilities
• Specialists in reviewing (e.g. QA people)
• People from the same team as the author
• People invited for specialist expertise
• People with an interest in the product
• Visitors who have something to contribute
• People from other parts of the organization
• Exclude
• Anyone responsible for reviewing the author
• i.e. Line manager, appraiser, etc.
• Anyone with known personality clashes with
  other reviewers
• Anyone who is not qualified to contribute
• All management
• Anyone whose presence creates a conflict of
  interest

31
Roles

• Formal Walkthrough
• Review leader
• Chairs the meeting
• Ensures preparation is done
• Keeps review focused
• Reports the results
• Recorder
• Keeps track of issues raised
• Reader
• Summarizes the product piece by piece during
  the review
• Author
• Should actively participate (may be the reader)
• Other reviewers
• Task is to find and report issues

32
Guidelines

• Prior to the review
• Schedule Formal Reviews into the project
  planning
• Train all reviewers
• Ensure all attendees prepare in advance
• During the review
• Review the product, not its author
• Keep comments constructive, professional and
  task-focused
• Stick to the agenda
• Leader must prevent drift
• Limit debate and rebuttal
• Record issues for later discussion/resolution
• Identify problems but dont try to solve them
• Take written notes
• After the review
• Review the review process

33
Opening Moments

• Dont start until everyone is present
• Leader announces
• We are here to review product X for purpose Y
• Leader introduces the reviewers, and explains the
  recording technique
• Leader briefly reviews the materials
• check that everyone received them
• check that everyone prepared
• Leader explains the type of review
• Note The review should not go ahead if
• some reviewers are missing
• some reviewers didnt receive the materials
• some reviewers didnt prepare

34
Structuring the inspection

• Checklist
• Uses a checklist of questions/issues
• Review is structured by issue on the list
• Walkthrough
• One person presents the product step-by-step
• Review is structured by the product
• Round robin
• Each reviewer in turn gets to raise an issue
• Review is structured by the review team
• Speed review
• Each reviewer gets 3 minutes to review a chunk,
  then passes to the next person
• Good for assessing comprehensibility!

35
Roles

• Fagan Inspection
• Moderator
• Must be a competent programmer
• Should be specially trained
• Could be from another project
• Designer
• Programmer who produced the design being
  inspected
• Coder/implementor
• Programmer responsible for translating the design
  to code
• Tester
• Person responsible for writing/executing test
  cases

36
Fagan Inspection Process

• Overview
• Communicate and educate about product
• Circulate materials
• Rate 500 SLOC per hour
• Preparation
• All participants perform individually
• Review materials to detect defects
• Rate 100-125 SLOC per hour
• Inspection
• A reader paraphrases the design
• Identify and note problems (dont solve them)
• Rate 130-150 SLOC per hour

• Rework
• All errors/problems addressed by author
• Rate 16-20 hours per 1000 SLOC
• Follow-up
• Moderator ensures all errors have been corrected
• If more than 5 reworked, product is re-inspected
  by original inspection team

37
Tactics for problematic review meetings

• Bebugging
• Put some deliberate errors in before the review
• With prizes for finding them!
• Control meeting
• Use talking stick
• Money bowl
• If a reviewer speaks out of turn, he/she puts 25c
  into the kitty
• Alarm
• Use a timer to limit speechifying
• Issues blackboard
• Appoint someone to keep an issues list, to be
  written up after the review
• Stand-up review
• No tables or chairs!

38
Phased Inspections

• Phased inspections proposed by Parnas Weiss and
  Knight Meyers involve conducting several brief
  reviews rather than one large review
• Depending on the product, these approaches could
  improve the front-end defect removal
  effectiveness
• People like them because they give the
  sub-conscious a chance to work on the problem

39
Review Measures

• Four explicit review measures are
• Size of the program being reviewed use LOC for
  code and number of pages for design
• Review time in minutes
• Number of defects found
• Number of defects that were found later
• From these basic measures, you can derive several
  other useful ones

40
Derived Measures

• Review yield of total defects found during
  the review
• Defects found per KLOC or page
• Review rate LOC or page per hour
• Phase Containment Effectiveness of total
  defects found in phase
• The middle two are instant measures that can be
  used to immediately judge the quality of the
  review
• The other two are long term effectiveness
  measures that cant be determined until later
  defects are known

41
Automated static analysis

• Static analyzers are software tools for source
  text processing.
• They parse the program text and try to discover
  potentially erroneous conditions and bring these
  to the attention of the team.
• They are very effective as an aid to inspections
  - they are a supplement to but not a replacement
  for inspections.
• They may show where to look, e.g. code with a
  high complexity measure.

42
Static analysis checks

• Fault class Static analysis check
• Data faults Variables used before
  initialization
• Variables declared but never used
• Variables assigned twice but never
  used between assignments
• Possible array bound violations
• Undeclared variables
• Control faults Unreachable code
• Unconditional branches into loops
• Input/output faults Variables output twice
  with no intervening assignment
• Interface faults Parameter type mismatches
• Parameter number mismatches
• Non-usage of the results of functions
• Uncalled functions and procedures
• Storage management faults Unassigned pointers
• Pointer arithmetic

43
Stages of static analysis

• Control flow analysis Checks for loops with
  multiple exit or entry points, finds unreachable
  code, etc.
• Data use analysis Detects uninitialized
  variables, variables written twice without an
  intervening assignment, variables which are
  declared but never used, etc.
• Interface analysis Checks the consistency of
  routine and procedure declarations and their use
• Information flow analysis Identifies the
  dependencies of output variables. Does not detect
  anomalies itself but highlights information for
  code inspection or review
• Path analysis Identifies paths through the
  program and sets out the statements executed in
  that path. Again, potentially useful in the
  review process
• Both the above stages generate vast amounts of
  information. They must be used with care.

44
Use of static analysis

• Particularly valuable when a language such as C
  or C is used that has weak typing and hence
  many errors are undetected by the compiler. That
  is why lint was invented.
• Less cost-effective for languages like Java that
  have strong type checking and can therefore
  detect many errors during compilation.

45
Code Reviews More Efficient

• In contrast, debugging is quite different
• You start with some unexpected behavior and have
  to find the cause
• In one operating system example, 3 experienced
  engineers worked for 3 months to find a subtle
  system defect that was causing persistent
  customer problems
• At the same time they found this defect, as an
  experiment, the same code was being inspected by
  a different team of five engineers
• Within two hours, this inspection team not only
  found this defect, but also 71 others

46
Personal Reviews

• You examine your own products
• Objective is to find and fix as many errors as
  possible before you implement, inspect, compile,
  or test the program
• As PSP data will show, a little time spent
  carefully reviewing your code can save the much
  longer amount of time that would have been spent
  debugging and fixing the program during compile
  and test

47
Personal Reviews

• Engineers who regularly produce programs that run
  correctly the first time, take pride in the
  quality of their product
• They carefully review their programs before they
  compile or test them because they want a quality
  product
• Recognize that you must spend the time to
  personally review it, and rework it until
  satisfied with its quality BEFORE compiling and
  testing
• Contrast this with the more common approach where
  once the program is coded, the engineer
  immediately tries to compile it.

48
Personal Reviews

• Your PSP reviews will net you a greater return
  than any other single thing you can do
• Learn to produce something you would be proud to
  publish
• The three basic principles of personal reviews
  are to establish review goals, follow a
  disciplined process, and measure and improve the
  process
• Develop a personal review checklist
• Decide whether to review your code before or
  after compile Humphrey recommends before
• Its essential to find current or instant
  measures that correlate with long term yield so
  you have data to improve the quality of your
  reviews
• Measures like LOC per hour and defects found per
  hour are most useful

49
Key Points

• Program inspections are very effective in
  discovering errors.
• Program code in inspections is systematically
  checked by a small team to locate software
  faults.
• The purpose of reviews and inspections is to
  ensure the programs you produce are of the
  highest quality
• Principal reviews are inspections, walk-throughs,
  and personal reviews
• Design and code reviews are much more efficient
  ways to find and fix defects than testing
• Static analysis tools can discover program
  anomalies which may be an indication of faults in
  the code.
• Software metrics can be used to indicate areas of
  the code that might need special attention during
  code inspection or review.

50
Software Design Quality

• How to tell if a design is a good design.

51
Software Design Quality

• What is software quality?
• How can it be measured?
• How can it be measured before the software is
  delivered?
• Some key quality factors
• Some measurable indicators of software quality

52
Measurable Predictors of Quality

• Simplicity
• The design meets its objectives and has no extra
  embellishments
• Can be measured by looking for its converse,
  complexity
• Control flow complexity (number of paths through
  the program)
• Information flow complexity (number of data items
  shared)
• Name space complexity (number of different
  identifiers and operators)
• Modularity
• Different concerns within the design have been
  separated
• Can be measured by looking at
• Cohesion (how well components of a module go
  together)
• Coupling (how much different modules have to
  communicate)

53
Software Size

• One of the basic complexity measures of a
  system is its size. This is usually used to
  estimate the build effort.
• Measures of software size include length,
  functionality and complexity.
• Length is LOC or KLOC
• Problem The variation in developers code
  compactness which can be around 51 in
  difference. Some standards alleviate this
  problem.
• Function Points measure the functionality of
  software. They were devised by Albrecht (1979)
  and are language independent.
• A full specification is needed to estimate
  function points and criticism shows that FP
  counts can vary by up to 2000 depending on how
  one attributes weights.
• Functionality and complexity measures are
• Cyclomatic complexity
• Fan-In/Fan-Out
• Span (of control) and Span (of variables)

54
Halsteads Software Science

• Halstead (1977) attempted to understand the
  complexity of a system, and part of this measured
  system length.
• n1 unique operators
• n2 unique operands
• N1 operators
• N2 operands
• Length (N) N1 N2
• Estimated Length (?) n1 log n1 n2 log n2
• The higher the Length, the larger the
  maintenance.

55
Software Complexity
56
Cyclomatic Complexity

• Based upon the concept that the number of test
  cases is based upon the number of linearly
  independent circuits in a program, McCabe
  suggested that the cyclomatic number might be a
  good approximation of the complexity of a program
  from the point of view of test effort.
• The cyclomatic number, V(G), of a graph G with n
  vertices and e edges, and p connected components
  is
• V(G) e - n 2xp
• For a program, this is equivalent to the number
  of predicates 1
• In a strongly connected graph G, the cyclomatic
  number is equal to the maximum number of linearly
  independent circuits (paths). Thus if we view a
  program as a graph which represents its control
  structure, the cyclomatic complexity of a program
  is equal to the cyclomatic number of the graph
  representing its control flow.
• McCabe states that the CC determines the number
  of test cases required to cover the code, or
  execute all code edges.

57
Cyclomatic Complexity

• if (( A gt 1) and (B 0)) then X X/A
• if (( A 2) or (X gt 1)) then X X 1

a
Pr 1
St 1
b
c
St 2
Pr 2
d
58
Cyclomatic Complexity

• The code segment has 2 compound predicates, so CC
  3
• Possible paths are
• abcd
• bcd
• abd
• bd
• CC tells us that choosing 3 out of the 4 will
  give us code
• (statement) coverage because
• 1 2 3 4 or 1 4 2 3 etc.
• That is, the sub paths are basis sets of paths.

59
Problems with CC

• It is based on graph theory! Basis sets do not
  equal path execution. You cant exercise some
  sub-paths and remove other sub-paths.
• Problems with nesting
• repeat until x gt100
• if ( end) then abort
• and
• while (xgt y)
• while (x gt z)
• Each have a CC of 3.
• If nesting is a problem so is recursion. A call
  to a recursive function would only count as a CC
  of 1.

60
Problems with CC

• The predicates themselves need to be expanded out

• if (( A gt 1) and (B 0)) then X X/A
• if (( A 2) or (X gt 1)) then X X 1
• really has a CC of 5
• if ( A gt 1) then if (B 0 ) then X X/A
• if (A 2) then X X1
• if (X gt 1) then X X1

61
Cyclomatic Complexity

• How to use Cyclomatic Complexity?
• Conjecture is that modules with high complexity
  have more defects and are harder to maintain.
• Calculate the CC for each function or method
• Numbers greater than 10 are suspect a modified
  scatter chart is useful for this
• Switches have large CC
• Examine the code for modules with high CC to
  determine why the number is so high.
• Candidate for refactoring
• May even need new design

62
Module Tasking

• Card and Agresti (1988) suggested that there are
  more factors in assessing the work of a piece of
  code.
• They used a count of the module inputs and
  outputs to give a measure of the task of a module
  as well as the number of called (server) modules.
• S size of a module
• V sum of I/O
• F modules called
• S V/(F 1)
• S is biased towards larger modules and all I/O is
  considered equal.

63
Chidamber and Kemerer

• Chidamber and Kemerer gave a set of six OO design
  metrics in the 1990s to compare system complexity

• Depth of Inheritance Tree (DIT)
• Number of Children (NOC)
• Coupling Between Classes (CBO)
• Response for a Class (RFC)
• Weighted Methods per Class (WMC)
• Lack of Cohesion Metric (LCOM)
• These metrics have altered definitions depending
  on which paper you read!
• We will discuss this more next time.

64
Span of Control

• The number of modules invoked by a module defines
  its span of control.
• Modules with large spans of control cost more to
  develop and maintain and generally give rise to
  more faults.
• Coupling is an indication of the interconnections
  between modules, functions or classes. High
  coupling indicates higher interdependence (shared
  variables, calls)
• Loose coupling is when components act
  independently of each other.

65
Fan-In and Fan-Out

• Constantine and Yourdon(1979) measure the
  coupling of a system using the fan-in and fan-out
  (FIFO). FIFO is effectively the number of lines
  into and out of a module at the design level.
• Fan-In is a measure of module dependencies, those
  modules to which the one investigated is a
  server.
• A high Fan-In suggests re-use.
• Fan-Out suggests that the module investigated
  requires many servers and devolves its work
  elsewhere.
• Complexity Length (Fan-in Fan-out)2

66
FIFO problems

• At what design level is FIFO investigated?
• It is difficult to be comparative between systems
  when some developers use FIFO at a higher level
  of granularity than others. That is, at high
  level design or low level design (CRC level).

67
FIFO
Module FI FO FIFO a 0 3 0 b 1 3 3 c 2 2 4
d 1 0 0 e 2 1 2 f 3 2 6 g 2 0 0
68
Ripple Analysis

• FIFO should show up poor or problematic design.
  Sinks and sources have zero FIFO.
• If a module is altered, the effect of that
  change, its Span of control can be assessed
  through a cumulative FIFO.
• The ripple effect is the name given to the effect
  of code changes on other parts of a system. In
  the previous diagram a change to module B may
  affect module C because B writes to module F
  which writes to C.
• Measures of this data flow are Information Flow
  metrics.

69
Information Flow

• A module can have many data flows into and out of
  it.
• The greater the number of flows between modules,
  they higher they are coupled. Flows may be
  through parameter passing or use of globals or
  shared files.
• Local Information Flows occur when a module
  passes a parameter to another module. Here A
  passes x to B.
• ltA,x,Bgt

x
A
B
70
Information Flows

• If module B returns a result y back to A, the
  local Information flow is ltB,y,Agt.

y
A
B
C
DS
Global Flows occur when a module writes to a
global data structure and another reads from it.
ltA,DS,Cgt states that A writes to the data
structure, C reads from it.
71
Example
ltA,x,Bgt ltA,y,Cgt
ltA,z,Dgt ltB,xx,Egt ltC,yy,Bgt
ltC,yy,Dgt ltD,zz,Agt ltE,File,Bgt
ltE,File,Agt
72
Information Flow Calculation

• Fan-In and Fan-Out does not distinguish between
  local and global flows. The IF4 metric is a
  summation of all data flows.
• To calculate the information flow, calculate FIFO
  as before and then compute IF4 as ?(FixFo) 2
• Module Fi Fo FIFO IF4
• A 2 3 6 36
• B 3 1 3 9
• C 1 2 2 4
• D 2 1 2 4
• E 1 1 1 1
• Total IF4 54

73
Variable Span

• A (variable) SPAN is the number of statements
  between two textual references to the same
  identifier (variable)
• X Y
• Z Y
• X Y
• X-span
  Y-span
• SPAN (X) count of statements between first
  and last statements (assuming no intervening
  references to X) Y has two spans
• For n appearances of an identifier in the source
  text , n - 1 spans are measured
• All appearances are counted except those in
  declare statements
• If SPAN gt 100 statements, then one new item of
  information must be remembered for 100 statements
  till read again

74
Variable Span

• COMPLEXITY
• SPANS at any point (take max, average,
  median)
• OR
• Statements a variable must be remembered (on
  the average) average span
• VARIATION
• Do a live/dead variable analysis compiler
  technique
• Complexity proportional to variables alive at
  any statement
• Complexity measure of module M is
• Where ni spans of size S(ni ) and N is the
  number of statements

75
Variable Span

• Variable span has been shown to be a reasonable
  measure of complexity.
• In a study performed by Elshoff, variable span
  has been shown to be a reasonable measure of
  complexity. For commercial PL/1 programs, he
  showed that a programmer must remember
  approximately 16 items of information when
  reading a program. This argues for the difficulty
  of program understanding.

76
Key points

• Program inspections are very effective in
  discovering errors.
• Program code in inspections is systematically
  checked by a small team to locate software
  faults.
• Static analysis tools can discover program
  anomalies which may be an indication of faults in
  the code.
• Software metrics can be used to indicate areas of
  the code that might need special attention during
  code inspection.

77
Next Class

• Topic
• Object Oriented Metrics
• OO Metrics
• Lessons Learned for O-O Projects
• Availability Metrics
• Exploiting Measures Part II
• Reading
• Kan chapters 12-13, pp. 334,
• Articles on the Class Page
• Assignment 4 Defect Removal Effectiveness
• Due Monday November 2, 2009

78
Journal Exercises

• A criticism of the cyclomatic complexity measure
  is that a nested loop has the same complexity as
  two sequential loops. Comment.
• Can you think of any additional complexity
  measures?

79
Exploiting Measures

• Exploiting Measures Part I
