Final

1

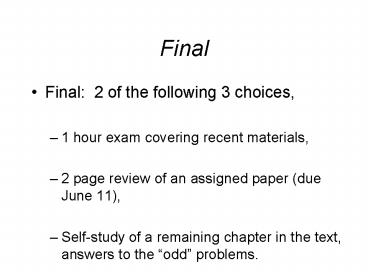

Final

• Final 2 of the following 3 choices,
• 1 hour exam covering recent materials,
• 2 page review of an assigned paper (due June 11),
• Self-study of a remaining chapter in the text,
  answers to the odd problems.

2
How are we different?at the DNA level.
3
Southern Analysis

• DNA hybridizing to DNA,

4
DNA Polymorphisms

• a DNA locus that has two or more sequence
  variations, each present at a frequency of 1 or
  more in a population,
• 1 in 700 frequency common in most species,
• less than 1 million loci in humans (1 in 3000).
• five classes of polymorphisms.

5
Polymorphisms

• Single Base Pair Differences,
• Microsatellites (short sequence repeats),
• Minisatellites (long sequence repeats),
• Deletions,
• Duplications.

6
Single Base Differences
5-------G-A-A-T-T-C--------3
3-------C-T-T-A-A-G--------5
5-------G-A-G-T-T-C--------3
3-------C-T-C-A-A-G--------5
point mutations, 98 of all mutations (1 in 200
bp).
7
Point Mutations

• Chemical Mutagens,
• UV-light,
• other natural and synthetic causes.

8
Detecting Point Mutations

• Direct DNA Sequencing,
• RFLP analysis,
• Alleles Specific Oligonucleotides...

9
Allele-Specific Oligonucleotides

• short synthetic DNA probes able to differentiate
  between sequences differing by as little as 1
  base pair,

--AGTAGCTGTAGCT-- --TCATCGACATCGA--
Probe with fluorescent or radioactive
CTPs. Complementary, binding.
10
Hybridization

• the process of joining two complementary strands
  of DNA together,
• ...or one DNA strand to an RNA strand,
• molecular probes are hybridized to complementary
  strands,
• probe/target complexes are made visible by
  fluorescence or radioactivity.

11
ASO and PCR

• subject gene is amplified using PCR,
• bound to a solid substrate,
• probed with ASOs.

12
Put DNA on filter, probe with the ASO.
13
Microsattelites

• DNA element composed of 15-100 tandem repeats of
  one-, two- or three base sequences,

AAAAAAAAAAAAAAAAAAAAAAAAAAA
CACACACACACACACACACACACACACA
CATCATCATCATCATCATCATCATCATCAT
14
Microsattelite Details

• ...also termed simple sequence repeats (SSRs),
• 1 in 30,000 bp,
• 100,000 microsattelites in humans,
• new alleles arise at an average rate of 10-3 per
  locus,
• higher than background mutation rate (10 -5),
• at 1/1000, doesnt occur too often.

15
DNA Polymerase Slippage
replication incorporates repeats...
16
Minisattelites

• DNA element composed of longer (10-80 bp) tandem
  repeating units of identical sequence,
• variable number of tandem repeats (VNTRs),
• often result in polymorphic region ranging from 1
  to 15 kb in length,
• ...approximately 1000 per human genome.

17
Unequal Crossing Over
...minisattelite mutation frequency, 10-3.
18
Deletions, Duplications, etc.

• single base pair up to many megabase deletions
  or duplications,
• cause by mutagens, or unequal crossing over,
• extremely rare, infrequent in the genome.

19
Detecting Polymorphisms

• RFLPs Classical restriction fragment length
  polymorphisms,
• Advantage dont need sequence information,
• Disadvantage need lots of DNA and radioactive
  detection, labor and time dependent,
• Major Use genotyping in absence of sequence
  info.

20
Detecting Polymorphisms

• RFLPs PCR restriction fragment length
  polymorphisms,
• Advantage dont need lots of DNA or
  radioactivity,
• Disadvantage labor, time dependent,
• Major Use genotyping.

21
Detecting Polymorphisms

• ASOs allele specific oligonucleotides,
• Advantage can detect single base pair changes,
  not dependent on specific palindromic sequences,
• Disadvantage must know wild-type sequence, and
  sequence of alternative alleles,
• Major Use genotyping.

22
Microsattelite Detection

• one-, two- or three- base pair repeats,
• need sequence information from both sides of the
  microsattelite to make PCR primers,
• gel electrophoresis distinguishes differences in
  DNA length as small as two base pairs.

23
(No Transcript)
24
(No Transcript)
25
Minisattelite Detection

• DNA element composed of longer (10-80 bp) tandem
  repeating units of identical sequence,
• often result in polymorphic region ranging from 1
  to 15 kb in length,
• PCR now routinely amplifies templates up to 30
  kb,
• analysis of minisattelites is similar to that of
  microsattelites.

26
Use of multiple loci provides a definite DNA
fingerprint.
27
Micro-, Minisattelites

• Advantages
• provide detailed DNA fingerprints for genotyping,
• specifically useful for differentiating family
  members and forensic work,
• Disadvantages
• requires sequence information and sophisticated
  statistical analysis.

28
RAPDs

• random amplification of polymorphic DNA
• ...the use of non-specific DNA sequences to
  describe a specific genome.

29
RAPD Premise

• short oligos of any sequence will find
  complementary sequences in some part of the
  genome,
• if two of these target sequences are correctly
  oriented and close enough together for PCR, a
  fragment will be produced.

30
RAPD Primers

• Short in length, usually 10-mers, randomly
  selected, for example...
• 5 - agtcacgcag - 3 occurs approximately every
  1,000,000 base pairs, so in the human genome
  should bind at gt3000 loci.

31
Random Distribution
this experiment would generate three PCR
products.
32
(No Transcript)
33
RAPDs

• Advantages
• no requirement for sequence information,
• great for genomes that are not well
  characterized,
• can sequence bands directly, gaining insight into
  polymorphic regions of uncharacterized species,
• Disadvantages
• provides information for random loci only.

34
Deletions, Duplications

• rare events,
• karyotyping,
• SSCPs,
• PCR (look for product size differences),
• direct sequencing of DNA,
• etc.

35
SSCPs

• ...Single-Strand Conformation Polymorphisms
• ...gel electrophoresis detection of nucleotide
  differences in single stranded DNA molecules,
• ... folding of single stranded DNA differs when
  there are base pair differences,
• single stranded DNA migration through gel is
  partially dependent on the molecules
  conformation.

36
(No Transcript)
37
SSCPs

• Advantages
• can screen large numbers of individuals for
  mutated genes without direct sequencing,
• can detect differences between wild-type and
  mutant genes at all base pairs,
• dont need to know sequence of mutant alleles,
• Disadvantage
• 90 maximum detection rate.

38
Genetic Disease Detection

• RFLPs,
• ASOs,
• other PCR protocols,
• determine genotypes that result in diseases
  directly,

39
ASO Pave Way for DNA-Chips

• the next big thing, huge arrays of DNA for
  complex genotype and phenotype analysis,
• B-Chip (Before chips),
• A-Chips (After chips.

40
DNA Arrays

• DNA systematically arrayed at high density,
• virtual genomes for expression studies,
• RNA hybridization to DNA for expression studies,
• comparative genomics,
• DNA hybridization to DNA,
• inter- and intra-species comparisons, etc.
• potential yet to be developed.

41
Arrays
42
Probes/Targets

• ...Probes are the tethered nucleic acids with
  known sequence,
• the DNA on the chip,
• ...Target is the free nucleic acid sample whose
  identity/abundance is being detected,
• the labeled nucleic acid that is washed over the
  chip.

43
DNA-Probes

• cDNA arrays, DNA arrays,
• DNA Microarrays,
• oligonucleotide arrays,
• DNA chips.

44
DNA Chips

• oligonucleotides systematically synthesized in
  situ at high density.

Affymetrix DNA Chip
45
Allele-Specific Oligonucleotides(DNA Chips)

• allele specific oligonucleotides (ASOs)
  recognize single base pair differences in DNA
  sequences.

46
Ordered Array of ASOs
...over a million ASOs and controls can be
gridded per cm2.
47
Photolithography

• the process of using an optical image and a
  photosensitive substrate to produce a pattern,

• oligonucleotide synthesis can be inhibited by a
  protection group molecule,
• the protection group can be linked by a
  photosensitive bond, and thus cleaved by light.

48
(No Transcript)
49
(No Transcript)
50
Targets

• ...fluorescent targets,
• genomic DNA,
• cDNA, mRNA or cRNA for expression studies,

targets are washed over the chip for
hybridization.
51
cDNA Microarrays

• ...denatured, double stranded DNA (500 - 5000 bp)
  is dotted, or sprayed on a glass or nylon
  substrate,
• ...up to tens of thousands of spots per array,

52
Hybridization Detection

• fluorescent images are read by an optical
  scanner, and intensities are compared using
  algorithms to differentiate artifacts.

53
DNA Chip
DNA Microarray
Probe?
Oligos
Probe?
cDNAs
Target?
mRNA Transcripts Under Two Conditions.
54
Screening for Genetic Disease

• Cystic fibrosis 75 of mutations are at the
  D508 deletion site,
• 8 are in three additional specific locations in
  the gene, the rest are spread across the length
  of the gene,
• Pre-Array tests yielded only an 83 chance of
  detecting a mutation.

55
Cystic fibrosis Detection

• Create a DNA chip with ASOs for wild-type Cystic
  fibrosis gene,
• approximately 4.5 kb of the 250 kb gene codes for
  the structural portion of the gene,
• 225 20-mers span 4.5 kb,
• 20 mismatches per 20-mer requires 4500 ASOs, or
  grids, plus controls.

56
Creating the Mask

• computer algorithms are used to design the mask,
• creation of mask is now the limiting process,
  requires months to accomplish, and about 100,000
  per mask,
• masks have limited lifetimes, each array costs
  about 100 currently.

57
Cystic fibrosis Chip

• using photlithography, create a chip with ASOs
  to identify any difference from wild-type DNA,
• match results with mutations at know deleterious
  loci,
• catalog new deleterious loci.

58
1 Gene of Many

• with controls, the Cystic fibrosis gene may
  require up to 20,000 grids,
• new chips can accommodate up to 1 million grids,
• can look at 50 similarly sized genes on one
  chip.

59
4000 Genetic Diseases

• as genes are linked to diseases, quick,
  inexpensive tests can be performed to determine
  who carries specific mutations,
• computer analysis will provide genome profiles
  that predict a variety of traits.

60
(No Transcript)
61
Genome Profiling

• with 1500 SNPs now, and up to thousands
  available, genetic profiles can be made,
• choose SNPs in or near genes involved in traits
  or diseases,
• compare profiles over large populations.

62
How are we different?at the RNA level.
63
Northern Analysis

• DNA hybridizing to DNA,

64
DNA Arrays and Expression

• grid gene-specific ASOs onto the DNA chip, or
  cDNAs onto microarrays,
• probe with labeled cDNA, genes that are
  expressed at a specific time, place or under a
  specific condition will bind to the chip for
  display.

65
(No Transcript)
66
Genes and Targets

• once the Human Genome Project is done, all of the
  genes can be gridded,
• presently, several completely sequenced genomes
  have been gridded,
• yeast,
• E. coli,
• various bacteria,
• drug identification, fundamental research, etc.,

67
(No Transcript)
68
(No Transcript)
69
Applications

• Monitor expression patterns under the
  experimental conditions of your choosing to
  determine the function of the thousands genes,
• Common expression patterns can be used to
  identify genes that are members of the same
  pathway,
• Explore expression of candidate/unknown genes.

70
Gene/Drug Discovery

• genes involved in cancer and other diseases have
  been identified through a variety of techniques,
• genome expression analysis provides a means of
  discovering other genes that are concomitantly
  expressed.

71
(No Transcript)
72
Applications

• Can study the role of more than 1700 cancer
  related genes in association with the (rest) of
  the genome,
• Define interactions and describe pathways,
• Measure drug response,
• Build databases for use in molecular tumor
  classifications,
• benign vs. cancerous, slow vs. aggressive

73
Extended Applications

• Water quality testing (4 hours vs. 4 days),
• Environmental watchdogs,
• Fundamental research on non-human subjects,
• Direct sequencing of related species for
  evolutionary studies,
• etc.

74
Friday

• Intra- and Interspecies Variation in Primate Gene
  Expression Patterns
• Background Review of DNA Arrays
