Plate Tectonics

1

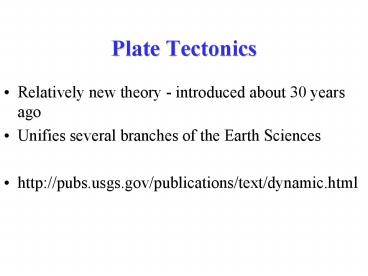

Plate Tectonics

• Relatively new theory - introduced about 30 years
  ago
• Unifies several branches of the Earth Sciences
• http//pubs.usgs.gov/publications/text/dynamic.htm
  l

2
(No Transcript)
3
In 1858, geographer Antonio Snider-Pellegrini
made these two maps showing his version of how
the American and African continents may once
have fit together, then later separated.
4
Alfred Lothar Wegener

• Developed the Theory of Continental Drift
• Published Die Entstehung der Kontinente und
  Ozeane in 1915

5
(No Transcript)
6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
BUT -

• NO MECHANISM !!!

10
(No Transcript)
11
Mid-Ocean Ridges
12
Seafloor Spreading
13
Paleomagnetism
14
Magnetic Striping
15
(No Transcript)
16
(No Transcript)
17
Continental Drift Seafloor Spreading A
few refinements PLATE TECTONICS
18
(No Transcript)
19
All Plates are surrounded bya combination of
three differenttypes of boundaries

• Divergent
• Convergent
• Transform

20
(No Transcript)
21
Divergent Boundary
22
Mid-Ocean Ridges
23
Continental Rift Systems
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
Convergent Boundary

• Three Types
• Ocean-Ocean Collision
• Continent-Ocean Collision
• Continent-Continent Collision

29
Ocean-Ocean Collision
30
(No Transcript)
31
Ocean-Continent Collision
32
(No Transcript)
33
Continent-Continent Collision
34
Transform Boundry
35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
Satellite measurements of plate movement
39
(No Transcript)
40
(No Transcript)
41
Formation and Differentiation of the Earth
42
Hadean and Archean Eons
43
Archean (until 2.5 BYA)

• Atmosphere composed of methane, ammonia, hydrogen
  and very little oxygen
• Very primitive life bacteria and stromatolites
  (3.4 3.5 billion years ago)
• - prokaryotes
• Cratons of significant
• size begin to form
• approximately
• 3 billion years ago

44
Prokaryotes

• individuals (not colonial)
• single celled
• no nucleus
• no partitions
• Originally
• heterotrophic
• (ate others)

45

• Autotrophs (organisms capable of creating their
  own food i.e. photosynthesis) appeared about 2
  bya.
• Originally referred to
• as blue-green algae they
• are actually closer to
• bacteria and are
• photosynthetic
• prokaryotes

46
stromatolites
47

• Proterozoic
• EON
• Moderate levels of
• oxygen in the atmosphere
• were reached about
• 2 billion years ago
• Oldest multicellular life
• 1.3 bya
• Stable continents form

48
Eukaryotic Organisms

• evolved 1.7 bya
• have nucleus and internal chambers called
  organelles w/ specific functions
• unicellular, colonial or multicellular
• Introduction of Sexual Reproduction !
• Multicellular animal life evolved 670 Mya

49
Pangaea I ??
Rodinia was a supercontinent formed about 1100
million years ago (that's 1,100,000,000 years)
situated about the South Pole. 750 million years
ago, Rodinia broke into three pieces that drifted
apart as a new ocean formed between the pieces.
50
The landmasses would collide again 650 Ma to form
Pannotia which would remain a supercontinent
until the very end of the Precambrian when it
started to break apart.
51
Carbonate Bank
52

• Most famous examples of early animal life are the
  Ediacara Hills Fossils - actually impressions in
  sandstone with no hardparts
• 670 Mya
• All softbodied organisms
• segmented worms
• pre-arthropods
• jellyfish
• shell-less mollusks

53
Ediacara Fossils
54
Phanerozoic Eon - Palozoic Era

• Cambrian Period - 570 million years ago
• Explosion of life in the sea
• No life on land or in the deep sea
• Exoskeletons develop

55
550 million years ago
56
ArchaeocyathidsStromatolites
Reef Builders
57
Tommotion Fauna - oldest diverse skeletonized
58
Burgess Shale 530 Mya
59
(No Transcript)
60
(No Transcript)
61
Wiwaxia
62
Anomalocaris canadensis
63
Pikaia gracilens first chordate ?
64
Chordates

• Notochord - a stiff rod or chord
• Dorsal hollow nerve cord
• bilateral symmetry
• encephalization - complex central nervous and
  neural material structure brain

65
(No Transcript)
66
(No Transcript)
67
Vertebrates

• characterized chiefly by a vertebral column
• Earliest known was the conodont
• Fish also evolved during the Cambrian

68
Life
Trilobites
Conodonts
69
Virtually all of the major landmasses lie on or
near the equator, warm temperatures, lots of
evaporation
70
550 million years ago
71
520 million years ago
72
505 million years ago
73
Cambrian Ended with a Mass Extinction505
million years agoOrdovician started
74
Laurentia (still missing Europe) located on the
equator in tropical to sub-tropical zone -
widespread flooding of cratons
75
(No Transcript)
76
Ordovician Life
Crinoids
77
Brachiopods
78
(No Transcript)
79
Predators
80
Ordovician ends withanother mass
extinctionclimate gets much colder438 million
years agoSilurian Starts
81
(No Transcript)
82
Silurian Life
83
(No Transcript)
84
Rugose Corals and Bryozoansnew reef builders
85
(No Transcript)
86
Eurypterids
87
Gnathostomata

• true jaws

88
Plants start to colonize the land
Plants use SPORES to reproduce Are confined to
very moist areas near sources of water
89
Silurian Period

• Oceans high - most land flooded - partial glacial
  melting in Gondwanaland

90
Silurian ends without a big mass extinctionand
408 million years agoDevonian Starts
91
(No Transcript)
92
Devonian Life
93
(No Transcript)
94
Armored fish appear
95
(No Transcript)
96
Seed Plants Develop !
97
Fish

• Chondrichthyes - cartilage fish (sharks)
• Osteichthyes - bone fish
• Actinopterygii - ray finned fish (look in a fish
  tank)
• Sarcopterygii - lobe-finned fish (lungfish,
  coelocanths and eventually tetrapods !

98

• The oldest known skeletal remains of terrestrial
  vertebrates were found in the Upper/Late Devonian

99
Devonian Ends with Laurentia attached to
Baltica360 million years agoCarboniferous
Starts
100
(No Transcript)
101
(No Transcript)
102

• Tetrapods originated no later than the
  Mississippian (about 350 million years ago), the
  period from which the oldest known relatives of
  living amphibians are known.
• The oldest Amniotes currently known date from
  the Middle Pennsylvanian

103
Tetrapods

• four feet
• modified vertebrae (processes etc)
• limbs all have single upper bone and lower paired
  bones
• the general body plan that we discussed last
  week

104
Amniota

• The amniotic egg possesses a unique set of
  membranes amnion, chorion, and allantois. The
  amnion surrounds the embryo and creates a
  fluid-filled cavity in which the embryo develops.
  The chorion forms a protective membrane around
  the egg. The allantois is closely applied against
  the chorion, where it performs gas exchange and
  stores metabolic wastes (and becomes the urinary
  bladder in the adult). As in other vertebrates,
  nutrients for the developing embryo are stored in
  the yolk sac, which is much larger in amniotes
  than in vertebrates generally.

105
Amniotic egg
106
Carboniferous Life
107
The move onto land !
Amphibians
108
(No Transcript)
109
360 - 320 million years ago
110
Land plants
111
Coal Swamp
112
(No Transcript)
113
320 Ma to 288 Ma
114
Great Split

• Between 310 and 320 million years ago the
  Amniotes split into two groups characterized by
  skull morphology
• Synapsida
• Reptillia

115
Anapsida
primitive condition - solid cheek bones
116
Synapsida

• skull roof has developed a low opening (fenestra)
  behind the eye - the lower temporal fenestra

117
Dimetrodon
118
Permian 286 - 245 mya

• Pangaea fully formed - southeast Asia attached
  too
• World wide sea-level drop continues
• Global cooling
• Synapsids radiating over terrestrial plane
• (ancestors to mammals)

119
(No Transcript)
120
288 Ma
121
250 Ma
122
Triassic 220 million years ago
123
Triassic

• Synapsida dominant terrestrial vertebrate
• The other branch of the Amniotes is Reptilia
• Anapsid
• Diapsida
• Lepidosauromorpha (lizards and snakes)
• Archosauria (crocodiles, dinosaurs, pterosaurs,
  birds)

124
(No Transcript)
125
Late Triassic

• All Continents still together in Pangaea
• No Polar Ice Caps
• Warm and generally stable climate
• Might have been highly monsoonal
• Dinosaurs first appear as do mammals, turtles,
  and pterosaurs
• Shallow warm seas
• Land plants seed ferns, conifers, ginkgoes
• Gymnosperms

126
Late Triassic - Beginning of the Age of Dinosaurs
127
Early/Middle Jurassic

• 208 - 157 Ma
• Dinosaurs became the largest, most successful
  terrestrial group
• Pangaea was breaking apart
• Huge deserts in parts of Pangaea
• still gymnosperms - seed ferns gone
• Large amphibians gone

128
Early Jurassic
129
Middle Jurassic
190 million years ago
130
Late Jurassic

• Golden Age of Dinosaurs
• largest dinosaurs
• Laurasia and Gondwana totally separated by Tethys
  Sea
• warmer and wetter climate

131
(No Transcript)
132
Early Cretaceous

• 145 - 100 Ma
• profound change
• world wide sea level rise
• flowering plants appear - angiosperms
• Gondwana breaks up
• temperate - low gradient

133
(No Transcript)
134
136 million years ago
135
Middle to Late Cretaceous

• 100 - 65 Ma
• Gondwana is split and Laurasia is breaking up
• sea-level at a high
• temperate - wall to wall Jamaica
• hot and wet greenhouse
• flowering plants dominate land
• very different dinosaurs

136
65 million years ago
137
Present
