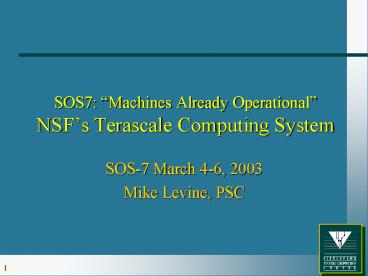

SOS7 Machines Already OperationalNSFs
Terascale Computing System

• SOS-7 March 4-6, 2003
• Mike Levine, PSC

2
Outline

• Overview of TCS, the US-NSFs Terascale Computing
  System.
• Answering 3 questions
• Is your machine living up to performance
  expectations?
• What is the MTBI?
• What is the primary complaint, if any, from
  users?
• See also PSC web pages Rolfs info.

3
Q1 Performance

• Computational and communications performance is
  very good!
• Alpha processors ES45 servers very good
• Quadrics bw latency very good.
• 74 of peak on Linpack gt76 on LSMS
• More work on disk IO.
• This has been a very ease port for most users.
• Easier than some Cray ? Cray upgrades.

4
Q2 MTBI (Monthly Average)

• Compare with theoretical prediction of 12 hrs.
• Expect further improvement (fixing systematic
  problems).

5
Time Lost to Unscheduled Events

• Purple nodes requiring cleanup
• Worst case is 3

6
Q3 Complaints

• 1 I need more time (not a complaint about
  performance)
• Actual usage gt80 of wall clock
• Some structural improvements still in progress.
• Not a whole lot more is possible!
• Work needed on
• Rogue OS activity. recall Prof. Kales comment
• MPI global reduction libraries. ditto
• System debugging and fragility.
• IO performance.
• We have delayed full disk deployment to avoid
  data corruption instabilities.
• Node cleanup
• We detect hold out problem nodes until staff
  clean.
• All in all, the users have been VERY pleased.
  ditto

7
Full Machine Job

• This system is capable of doing big science

8
TCS (Terascale Computing System) ETF

• Sponsored by the U.S. National Science Foundation
• Serving the very high end for US academic
  computational science and engineering
• Designed to be used, as a whole, on single
  problems. (recall full machine job)
• Full range of scientific and engineering
  applications.
• Compaq AlphaServer SC hardware and software
  technology
• In general production since April, 2002
• 6 in Top 500 (largest open facility in the
  world Nov 2001)
• TCS-1 in general production since April, 2002
• Integrated into the PACI program (Partnerships
  for Academic Computing Infrastructure)
• DTF project to build and integrate multiple
  systems
• NCSA, SDSC, Caltech, Argonne. Multi-lamba,
  transcontinental interconnect
• ETF aka Teratrid (Extensible Terascale Facility)
  integrating TCS with DTF forming
• A heterogeneous, extensible scientific/engineering
  cyberinfrastructure Grid

9
Infrastructure PSC - TCS machine room ( _at_
Westinghouse)(Not require a new building just a
pipe wire upgrade not maxed out)

• 8k ft2
• Use 2.5k
• Existingroom.
• (16 yrs old.)

10
Floor Layout
Full System Physical Structure

• Geometrical constraints invariant twixt US Japan

11
Terascale Computing System
Compute Nodes

• 750 ES45 4-CPU servers
• 13 inline spares
• (2 login nodes)
• 4 - EV68s /node
• 1 GHz 2.Gf 6 Tf
• 4 GB memory 3.0 TB
• 318.2 GB disk 41 TB
• System
• User temporary
• Fast snapshots
• 90 GB/s
• Tru64 Unix

Compute Nodes
12

• ES45 nodes
• 5 nodes per cabinet
• 3 local disks /node

13
Terascale Computing System
Quadrics
Quadrics Network

• 2 rails
• Higher bandwidth
• (250 MB/s/rail)
• Lower latency
• 2.5 ?s put latency
• 1 NIC/node/rail
• Federated switch (/rail)
• Fat-tree (bbw 0.2 TB/s)

Compute Nodes

• User virtual memory mapped
• Hardware retry
• Heterogeneous
• (Alpha Tru64 Linux, Intel Linux)

14
Central Switch Assembly

• 20 cabinetsin center
• Minimize max internode distance
• 3 out of 4 rows shown
• 21st LL switch, outside (not shown)

15
Quadrics wiring overhead (view towards ceiling)
16
Terascale Computing System
Quadrics
Management Control
Control

• Quadrics switch control
• Internal SBC Ethernet
• Insight Manager on PCs
• Dedicated systems
• Cluster/node monitoring control
• RMS database
• Ethernet
• Serial Link

LAN
Compute Nodes
17
Terascale Computing System
Quadrics
Interactive Nodes
Control

• Dedicated 2ES45
• 8 on compute nodes
• Shared function nodes
• User access
• Gigabit Ethernet to WAN
• Quadrics connected
• /usr indexed store (ISMS)

LAN
Compute Nodes
/usr
WAN/LAN
18
Terascale Computing System
Quadrics
File Servers
Control

• 64, on compute nodes
• 0.47 TB/server 30 TB
• 500 MB/s 32 GB/s
• Temporary user storage
• Direct IO
• /tmp
• Each server has
• 24 disks on
• 8 SCSI chains on
• 4 controllers
• sustain full drive bw.

LAN
Compute Nodes
File Servers
/tmp
/usr
WAN/LAN
19
Terascale Computing System
Summary

• 750 ES45 Compute Nodes
• 3000 EV68 CPUs _at_ 1 GHz
• 6 Tf
• 3. TB memory
• 41 TB node disk, 90GB/s
• Multi-rail fat-tree network
• Redundant monitor/ctrl
• WAN/LAN accessible
• File servers 30TB, 32 GB/s
• Buffer disk store, 150 TB
• Parallel visualization
• Mass store, 1 TB/hr, gt 1 PB
• ETF coupled (hetero)

Quadrics
Control
LAN
Compute Nodes
File Servers
/tmp
/usr
WAN/LAN
20
Terascale Computing System
Visualization

• Intel/Linux
• Newest software
• 16 nodes
• Parallel rendering
• HW/SW compositing
• Quadrics connected
• Image output
• ? Web pages

TCS
340 GB/s (1520Q)
Quadrics
4.5 GB/s (20Q)
3.6 GB/s (16Q)
3.6 GB/s (16Q)
ApplicationGateways
Viz
Buffer Disk
WAN coupled
21
Buffer Disk HSM
Terascale Computing System

• Quadrics coupled (225 MB/s/link)
• Intermediate between TCS HSM
• Independently managed.
• Private transport from TCS.

TCS
340 GB/s (1520Q)
Quadrics
4.5 GB/s (20Q)
3.6 GB/s (16Q)
3.6 GB/s (16Q)
gt360 MB/s to tape
HSM - LSCi
ApplicationGateways
Viz
Buffer Disk
WAN/LAN SDSC
22
Application Gateways
Terascale Computing System

• Quadrics coupled (225 MB/s/link)
• Coupled to ETF backbone by GigE
• 30 Gb/s

TCS
340 GB/s (1520Q)
Quadrics
4.5 GB/s (20Q)
3.6 GB/s (16Q)
3.6 GB/s (16Q)
ApplicationGateways
Viz
Buffer Disk
Multi GigE to ETF Backbone _at_
30 Gb/s
23
The Front Row

• Yes, those are Pittsburgh sports colors.
