ArcGIS: Introduction to ArcView 9

1

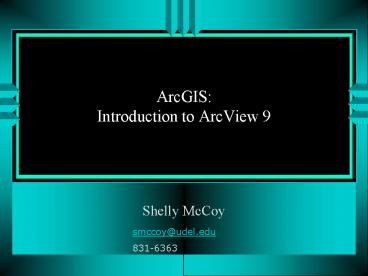

ArcGIS Introduction to ArcView 9

• Shelly McCoy

smccoy_at_udel.edu 831-6363
2
Workshop Topics

• What is GIS?
• Data used in ArcGIS
• Performing basic operations in ArcGIS
• Looking at table data
• Changing Symbology
• Making queries
• Making a layout
• Campus Resources

3

• The amount of information you can
• get from a paper map is limited to what is shown

Agriculture Map of Georgia
4
A geographic information system (GIS) is a
computer-based tool for mapping AND analyzing
things that exist and events that happen on Earth.
5

• These abilities distinguish GIS from other
  information systems and make it valuable to a
  wide range of public and private enterprises for
  explaining events, predicting outcomes, and
  planning strategies.

6
With digital mapping technology, maps can be used
to help

• A water department find the valves to isolate a
  ruptured water main
• An engineering department monitor the conditions
  of roads and bridges and produces planning maps
  for natural disasters
• A business evaluate locations for new retail
  outlets by considerations concentrations of
  nearby customers

• A transit department produce maps of bicycle
  paths for commuters
• A hydrologist monitor water quality to protect
  public health
• A biologist study the impact of construction
  plans on a watershed.

7
Major Companies Using GIS

• Federal Agencies
• Chase Manhattan
• Sears Roebuck Co.
• Dominos Pizza
• Realtor.com
• MBNA
• Metropolitan Life
• Police and Fire Depts

• Ace Hardware
• Golds Gym
• US Postal Service
• Minolta Corp.
• Conectiv
• UPS
• AAA
• State/Local Govt

8
Simply said

• Geographic maps
• Information data
• System digital
• A GIS links information to geographic location
  (connects the what to the where), allowing you to
  seek patterns and relationships that may not
  otherwise be apparent.

9
What GIS Can Do for You

• Explore see and interpret spatial relationships
• Analyze create new information and find hidden
  patterns
• Present results ready your maps for output

10
GIS uses more than just geographic data

• Start with geographic data, such as a county
• Attribute data that has a relationship to this
  county can include
• mean monthly humidity
• average rainfall
• average acres of crops
• population and demographics
• zip codes, census tracts, etc.

By mapping more than one county that has these
attributes, a new map can be produced to show the
comparison between the attribute data.
11

• So, each layer contains 2 kinds of information
• Spatial information location and shape of the
  geographic features
• Attribute information other characteristics of
  the features

12
Geographic Data
13
Descriptive Data
Chris Buhi 1757 Millbrook Ln 28226 Y
2 Christian Carlson 1761 Millbrook Ln 28226 Y
1 Chris McGuire 1765 Millbrook Ln 28226 Y
2 Dale Loberger 1776 Millbrook Ln 28226 N
6 Donna Buccini 1780 Millbrook Ln 28226 Y
2 Doug Ruppel 1537 Sandberry Dr 28226 Y
1 Gary Waters 1541 Sandberry Dr 28226 Y
3 Holly Williams 1200 Yamasee Dr 28210 Y
4 Jim Wojcik 980 Harrowfield Rd 28226 N
1 Jo-Ann Brown 1812 Millbrook Ln 28226 N
2 Joe Rubisch 1090 Overhill Dr 28112 Y
4 Larry Young 1108 Kings Canyon Dr 28226 Y
3 Lee Ross 1605 Bosham Ln 28226 Y 2 Marcia
Austin 1429 Quail Wood Dr 28226 Y 2 Mary Jo
Fraley 1432 Quail Wood Dr 28226 Y 1 Mike
Dyer 1430 Quail Wood Dr 28226 Y 3 Mike
Rhoades 1332 Cameron Forest Dr 28173 Y 3 Mike
Sweeney 1327 Red Hickory Ln 28173 Y 2 Paul
Gallimore 1429 Buckeye Ct 28173 Y 2
14
Geographic Information
N 6
Donna Buccini 1780 Millbrook Ln Y 2
.ancaster
Jo-Ann Bro 1812 Millbr Y 2
Millbrook Lane
Christian Carlson 1761 Millbrook Ln Y 1
Chris McGuire 1765 Millbrook Ln Y
15
(No Transcript)
16
(No Transcript)
17

• The current trend in GIS is on web-based
  mapping. This capability can allow users to view
  an already created map or create maps, based on
  their own specifications, on their personal
  computers. Web-based mapping is expected to
  widely expand the use of GIS in the workplace, in
  schools, and in homes.
• Sometimes a nice geographic map is enough.
• For example

18
http//www.ciaonet.org/special_section/iraq_review
/pi_map/pi_map_02.html
19
D a t a

• Possibly the most important
• component of a GIS is the data.
• A GIS will integrate spatial data with other data
  resources
• A GIS provides the path to the data, which are
  shown in the software as layers

20
A bit about layers

• Layers can be features or surfaces

Polygons
Lines
Points
Raster
21
Where do you get this data?

• GIS
• CD-ROMs/DVD-ROMs
• Morris Library, RDMS, or commercially
• Internet
• Colleagues
• YOU provide it!

22
Data Formats in ArcGIS

• Shapefile
• Coverage
• Geodatabase
• ArcIMS Feature Services
• ArcIMS Map Services
• Geography Network
• Text files (.TXT)
• OLE DB tables
• PMF

• Rasters
• ESRI GRID
• ERDAS Imagine (.IMG)
• Windows Bitmap (.BMP)
• ER Mapper (.ERS)
• Graphic Interchange Format, GIF (.GIF)
• ADRG Image (.IMG)
• JPEG File Interchange Format, JIFF (.JPG)
• Portable Network Graphics (.PNG)
• LizardTech MrSID (.SID)
• Tagged Image File Format, TIFF (.TIF)

23
ArcView 9 has a two part interface

• ArcCatalog for navigating spatial data
• ArcMap for creating, viewing, querying,
  editing, composing, and publishing maps

24
GIS Educational Opportunities at the University
of Delaware

• Site license for the ESRI software ArcView is
  free for full-time UD faculty/staff
• About 10 for-credit courses directly involving
  GIS instruction
• IT/User Services Technical Workshops such as
  Intro to ArcGIS
• ESRI Virtual Campus
• Unlimited registrations for UD personnel for
  nearly all GIS Technology classes

25
UD GIS Resources

• GIS_at_UD Website (http//www.udel.edu/gis)
• Morris Library Digital Mapping Station
• UD-GIS listserv
• Contact John Callahan diodata_at_udel.edu if you
  would like a copy of the software

26

• http//www.gismaps.fema.gov/2004graphics/storms/iv
  an/threefloodpotential.pdf
