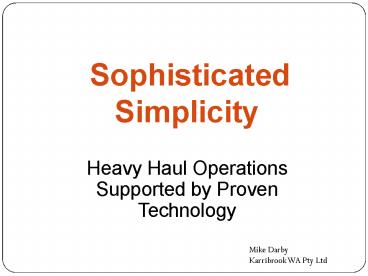

Sophisticated Simplicity

1
Sophisticated Simplicity

• Heavy Haul Operations Supported by Proven
  Technology

Mike Darby Karribrook WA Pty Ltd
2
Presentation Overview

• What is Sophisticated Simplicity?
• BHP Billitons Railway NW Australia
• BHPBs use of technology
• Example of Sophisticated Simplicity in a Heavy
  Haul Railway Operations supported by proven
  technology

1/17/2014
2
3
What is Sophisticated Simplicity?
Traditional Approach
Simple System
Proven Technologies
4
BHP Billiton Ltd

• Is the worlds largest diversified resources
  company (gtUS100 billion)
• Global resource development company
• BHP Billiton Iron Ore located in Northern
  Australia
• Developed a Fit for Purpose Railway
• Operates in a harsh and isolated environment
• Operates the heaviest axle loads/trains in the
  world

5
Operations in Cyclone Alley
6
BHP Billiton Iron Ore Railway
7
History of the BHP Billiton Railway

• Mt Whaleback was the largest single iron ore
  deposit in the world (gt1 billion tonnes)
• Historically Iron Ore deposits in Western
  Australia seen as too far (400 km) from tidewater
  prior to heavy haul railways
• Heavy haul rail line built in 1969 by North
  American contractor
• In 1970 Oroville Dam Project cars and dumpers
  brought from California to Australia / evolved as
  a North American Railroad
• Regulated by Mines Department not DOT

8
BHP Billiton Iron Ore Railway
Operating Philosophies

• Good Safety Is Good Business
• Continuous Improvement
• Use Assets to Their Full Potential
• Research and Development

9
Proven Technologies

• High axle load issues
• Hot bearing-Hot/Cold Wheel Detectors
• Wheel Impact Monitor
• Weigh-in-Motion Weighbridges
• Acoustic Bearing Detection
• Instrumented ore cars
• Auto Locomotive Downloads
• Video Imaging
• Workshop Initiatives

10
Axle Load Evolution
Axle Loading
40 tonnes
35.0 tonnes
32.5 tonnes
30.0 tonnes
28.5 tonnes
Wet tonnes per wagon
1970
1974
1986
1996
2005
11
Issues with 40 tonne Axle Load

• Thermit Welds/Flash Butt Welds
• 6000 Thermit welds 2 failure/annum
• 35000 flash butt welds - .008 failure/annum
• Program in place to replace thermit welds
• Rail Grinding Program
• Wheel/Rail Interface
• Weekly Rail Ultra Sonic Inspection

12
Thermit/Flash Butt Welds
13
Stress Free Temperature (SFT)

• Incorrect SFT leads to
• Track buckles when hot
• Rail Breaks when cold
• 1,000 meters rail _at_ 60C is 999.386meters _at_ 5C
• 25C change causes 92 tonnes of tensile force
• Thermit welds
• Sensitive to SFT lateral loading
• Concrete SFT 33 - 38C
• Timber Steel SFT 35 - 40

14
Painting Welds
Reduce lateral loading
15
Hot/Cold Wheel/Bearing Detection

• 18 hot bearing wheel detectors
• 1 cold wheel detector
• Automated and site activated

16
Impact Detection Weigh-In Motion

• 1 impact load detector
• 4 weigh-in motion scales

17
Acoustic Bearing Detection

• Following faults are detected
• Cone Faults
• Roller Faults
• Audible Wheel Flats
• Cup Faults
• Looseness / fretting
• Noisy Wheel sets (flanging)

18
Consequence of System Breakdown
19
Result of System Breakdown
20
Instrumented Ore Cars (IOC)

• 4 IOCs in service
• Vertical suspension travel (ride quality)
• Wheel-rail acceleration (rail condition)
• In-train forces
• Lateral stability (hunting)
• Longitudinal acceleration
• Car body/draft gear pocket strains
• Temperature
• Brake pipe pressure

21
Auto Locomotive Downloads

• The Black-Box is downloaded at each arrival at
  port
• Driver education/incident management
• Fuel utilization
• Data for automated train operation
• All operating parameters

22
Video Imaging

• Measures
• Flange Height
• Flange Width
• Vertical Flange
• Hollowing Depth
• Rim Thickness
• Wheel Diameter

23
Workshop Initiatives

• Component Tracking
• Ultra-Sonic Wheel Testing
• Super Clean Wheel Specs
• Bearing Quality Assurance
• H Class Bearings
• 40 tonne trucks
• Side Wall Thickness Tracking
• Asset Protection Information Integration

24
Ultrasonic Wheel Inspection
25
Shop Facilities
26
37 Traceable Components for each Ore Cars
Component Tracking
27
Coupler Inspection

• Developed in UK, for in-situe inspection
• Uses ultrasonic probe inserted through the drain
  hole
• Detect lower pulling lug cracks which are the
  primary mode of failure for fixed rotary
  couplers

28
BHP Iron Ore Railroad
Productivity Results

• Ore Car Wheel Life
• 1980 2006
• million km million km Life extension
• 0.34 1.95 6.5 fold
  increase
• Rail Life (Tangent Track)
• 1980 2006
• million gross million gross
• metric tonnes metric tonnes Life extension
• 350 1,200 3.4 fold
  increase

RD into the rail/wheel interface allows for the
useful life of assets to be extended
29
Employee Productivity Tripled in the last 10 years
(000s tonnes per employee /yr)
30
(No Transcript)
31
Heavy Haul Railways of the Future

• KIS Keep it simple
• Train operation designed with minimum interfaces
• Implicit safe operation
• Design the operation to avoid train movements
• Intense capital utilization
• Use assets to the fullest
• Integrated knowledge process implementation
• Proven technology to protect assets

32
The Knowledge Process
Integrated data collection
information
knowledge
implementation
System management
33
Whats in the Future ?

• Continued safety focus
• Human resource efficiency
• Higher axle loads
• Evolution of Cruise Control
• Automated trains
• Electric brakes

34
Electric Brakes

• Handbrakes on grades can be managed
• Ease of train handling
• all brakes on and off simultaneously within 7
  seconds
• graduated release
• Faster brake charging time
• Reduced in train coupler forces and less brake
  shoe wear
• Distributed power (no radio based locotrol)
• End of train monitoring
• Brake system charges while brakes are applied
• Load / empty features not required

35
Advantages cont.

• Faster train cycle time
• Faster accelerations brakes release sooner
• May be able to increase speed of loaded trains
• Graduated release of train brakes
• Individual wagon brake status monitoring
• Fault finding i.e. train break location
• Faster train brake charging times (uses less air)
• Fuel savings as brakes release faster
• Increased wheel life
• No sticking brakes / hot wheels
• Even wearing brake shoes

36
Highway for future Developments

• Derailment detection
• Hot bearing / hot wheel detection
• Hand brake status
• GPS train braking
• (individual brakes graduated as loads traverse
  undulation)
• Car weights linked to load out facilities
• (ensures each car is loaded to maximum)
• Automated trains platform

37
Objective
Move 6 million tonnes of product per annum a
distance of 100 km
38
Simple Approach
Traditional Approach

• 250 cars/wagons
• 7 locomotives
• Rotary/Bottom dump wagons
• Rotary or bottom dump station
• 80 employees
• Extensive track/yard system
• Cost for plant gtUS100 million
• High maintenance costs

• 80 cars/wagons
• 3 locomotives (Push/Pull)
• Side dump cars/wagons
• Flat unloading platform
• 35 employees
• Simple track/yard system
• Cost for plant ltUS30 million
• Less plant to maintain
• Supported by proven technology

39
The End Result
