Title: Measurement Projects Overview


1

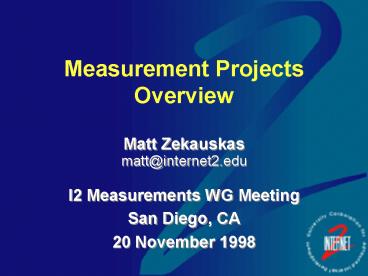

Measurement Projects Overview
  • Matt Zekauskas
  • matt_at_internet2.edu
  • I2 Measurements WG Meeting
  • San Diego, CA
  • 20 November 1998

2
Outline
  • Classification
  • Broad project organizations
  • Specific projects

3
Caveats
  • My personal expertise active measurements, IETF
    IPPM
  • Not exhaustive
  • Research/education focus
  • If you see something left out,speak up!

4
Classification
  • Active measurements
  • Passive measurements
  • Utilization usually SNMP
  • Routing usually BGP/traceroute

5
Broad Organizations
  • IETF
  • IP Performance Metrics (IPPM)
  • Realtime Traffic Flow Measurement (RTFM)
  • NLANR
  • Measurement Operations Analysis Team
  • National Center for Network Engineering
  • CAIDA

6
IPPM Scope
  • Develop metrics that measure
  • Quality
  • Performance
  • Reliability
  • of Internet data delivery services
  • Quantitative measures
  • not a value judgement

7
IPPM Metrics
  • Framework RFC2330
  • Connectivity
  • One-way delay and loss
  • Round-trip delay and loss
  • Flow capacity/Bulk transfer capacity
  • Delay variation (jitter)http//www.advanced.org/I
    PPM/

8
RTFM
  • Measure network flows through passive measurments
  • Standards for
  • architecture metrics for traffic flows
  • language to describe flows
  • MIB to control meter gather measurements
  • Origin in accounting

9
RTFM
  • Philosophy aggregate on meter,accurately count
    everything
  • Bytes/link, bytes/port, bytes/flow
  • Rule-based production system
  • Look at header only
  • http//www.auckland.ac.nz/net/Internet/rtfm

10
Projects
  • IPMA
  • Surveyor
  • RIPE Test Traffic
  • pingER
  • NIMI
  • NLANR/MOAT NAIcorresponding CAIDA deployment?

11
IPMA
  • Routing history
  • tool development (like NLANR/CAIDA)
  • Decentralized infrastructure
  • MRT, RouteTrackerd, Salamander
  • ASExplorer, FlapGraph, RouteTracker, ...
  • http//www.merit.edu/ipma

12
Surveyor RIPE TT
  • Implementations of IPPM one-way metrics active
    measurements
  • also routing via traceroute
  • Surveyor O(40) machines, mostly US and Canada,
    now getting some European Pacific Target
    O(100)
  • RIPE O(15) machines, European focus

13
PingER
  • ESNET / physics community(also XIWT)
  • Long-term ping measurements
  • Set of cooperating measurementsites -- not just
    random hosts
  • http//www.slac.stanford.edu/xorg/icfa/ntf/home.ht
    ml
  • http//www.slac.stanford.edu/xorg/icfa/ntf/tool.ht
    ml

14
NIMI
  • Emphasis on the I - Infrastructure
  • Platform for network experiments
  • Outgrowth of Verns npd project
  • Emphasis on active measurements
  • Currently traceroute, Treno, PoIP
  • Should be able to roll your own
  • General (beta) release imminent

15
NIMI Structure
  • Uniform platform (hw, os, nimid)
  • Owners control CPOCaccess lists crypto for
    security
  • Researchers schedule experimentsMPOC
  • nimid handles resource scheduling
  • Plans for synchronized time source (not yet)
  • http//www.ncne.org/

16
Network Analysis Infrastructure
  • HPNSP focus
  • Passive measurement infrastructure
  • Keep headers for research
  • Adding performance data (active)
  • Also SNMP data (vBNS today)
  • Also BGP data (from Oregon RA)

17
Tools Platform
  • NIMI
  • Windmill
  • UofM/MERIT
  • Passive experimentation focus
  • Listen to selective protocol messages, and replay
    locally to understand endpoint state
  • Example snooping BGP peering session
  • Not released SIGCOMM98

18
Tools Routing
  • Traceroute servers
  • IPMA tools (based on BGP peering)
  • Skitter tomography (CAIDA)

19
Tools Active performance
  • Treno
  • mping (windowed ping) invasive
  • pathchar estimate router Qsbottleneck bandwidth
  • traditional ping, ftp, ttcp, netperf

20
Tools Passive
  • NeTraMet Nevil Brownlees RTFM
  • IBM Researchs RTFM
  • tcpdump
  • OCxMON passive optical
  • Coral
  • Ciscos NetFlow, and
  • cflowd (CAIDA/ANS)

21
Tools Utilization
  • Mainly commercial? Network management tools
    (e.g., OpenView)
  • MRTG
  • NetScarf?

22
Parting Thoughts
  • Integration with network management? (They want
    measurement results for operations!)
  • Dont neglect commercial tools
