Considerations for Choosing the Right Dosing Pump

1
Considerations for Choosing the Right Dosing Pump

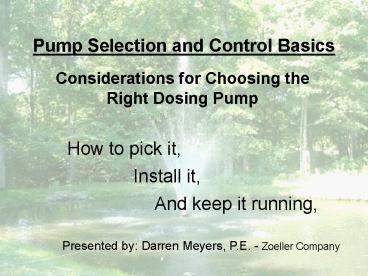

Pump Selection and Control Basics

• How to pick it,

Install it,
And keep it running,
Presented by Darren Meyers, P.E. - Zoeller
Company
2
Why Pump

• Necessity
• Pressure Dosing
• Enhanced Flow
• Hilly Site Profile
• Enhancement
• More Control
• More Options
• Aesthetic Reasons

3
Separating the Good from the Bad

• Pumps are available everywhere
• Truth
• Junk components make a Junky System
• (You really do get what you pay for)
• What to look for

4
Part What Makes a Pump Good?

• Quality Design
• solid engineering
• 2. Quality Construction
• superior materials
• sound workmanship
• Proper Application
• right pump for the right job

5
Manufacturers

• Many good options
• Myers, Zoeller, Goulds, Barnes, Sta-Rite, etc.
• Also many poor options
• Look For
• Track Record in the industry
• Commitment to quality
• Product Selection
• Industry involvement (SSPMA, etc.)

6
Overall Pump Design

• Solids Capability
• Internal clearances
• Inlet restrictions
• Oil filled vs. Air filled
• Oil runs cooler
• Air is potentially cleaner
• Switches
• In dosing applications, adjustable switches are
  better than preset

7
Part Three Keys to a Good System

• Proper Pump Selection
• Picking the right pump for the job
• 2. Correct Installation
• Clean, safe, organized
• 3. Adequate Maintenance
• Keeping a pump in top shape

8
Key 1 Pump SelectionThe most critical step for
long pump life

• Right Type for the Application
• Sump / Effluent
• Little or no small solids
• Sewage Ejectors
• Varying solids passing capabilities
• Specialty (Grinders, etc.)
• Right Size for the Conditions
• Size pumps based on curve, not horsepower
• A bigger pump isnt necessarily a better pump!

9
Pump Sizing in Three Slides!

• Establish the Flowrate (GPM)
• Most septic (enhanced flow) systems 30gpm
• too little inadequate scouring velocity
• too much potential flooding or erosion
• LPP or Drip applications Consult designer
• Establish the Head Required (TDH)

10
Elements of Total Dynamic Head

• Static Head Actual elevation change
• Friction Head Loss due to frictional resistance
  between water and pipe
• Operating Head Pressure required in some
  systems (LPP, Pressure Dist., etc.)

Static Head Friction Head Operating Head
Total Dynamic Head (TDH)
11
Size Based On Pump Curve
Pump Curves are easily accessible for any pump on
the market.
Find where the calculated TDH and the desired
flow intersect on the graph. Select a curve
which crosses close to but above this point.
Always try to stay toward the middle of the
curve, as this is where the pump is most
efficient.
12
Key 2 Pump Installation

• Installing the right components, in the right
  places, the right way matters.
• Important components to consider

• Weep Holes
• Necessary for priming
• Prevent dead-heading
• Locate below check valve
• Check valves
• Guard against impeller backspin
• Prevent short cycling

• Correct Float Settings
• Ensure clearance between float and basin wall
• Adequate distance or tether prevents short
  cycling
• Elevation
• Raise a pump off the floor to avoid grit

13
Watertightness

• Keep water in where you want it
• and out of where you dont.

• Water and Electricity dont
• play nice!
• _________________________
• Junction boxes are notorious for failing to seal
  out moisture.
• If cord ends are exposed to wetness, they will
  wick water into the pump housing. The result is
  pump failure.

• Basin lids and risers must be sealed to not leak.
• _______________________
• Leaky containers force a pump to do more work
  than necessary and drainfields to bear additional
  load.
• Infiltration brings unnecessary grit and dirt
  into a system.

14
Controls Without Panel
Tether Length 6-18 inches

• Wide angle pump switch receives full current and
  voltage.
• Tether length determines pump range.

Pumping Range
Wide Angle
15
Controls With Panel

• Narrow angle control switch receives reduced
  voltage and current.
• Used in pairs to determine pump range.

16
Duplex
LAG/ALARM
3 Float Operation
START
STOP
Zoeller
PUMP 1
PUMP 2
17
Duplex
LAG/ALARM
3 Float Operation
START
STOP
Zoeller
PUMP 1
PUMP 2
18
Duplex
LAG/ALARM
3 Float Operation
START
STOP
Zoeller
RUN PUMP 1
PUMP 2
19
Duplex
LAG/ALARM
START
STOP
Zoeller
RUN PUMP 1
PUMP 2
20
Duplex
LAG/ALARM
3 Float Operation
START
STOP
Zoeller
PUMP 1
PUMP 2
21
Duplex
LAG/ALARM
3 Float Operation
START
STOP
Zoeller
PUMP 1
PUMP 2
22
Duplex
LAG/ALARM
3 Float Operation
START
STOP
Zoeller
RUN PUMP 2
PUMP 1
23
Duplex
LAG/ALARM
3 Float Operation
START
STOP
Zoeller
RUN PUMP 2
PUMP 1
24
Duplex
LAG/ALARM
3 Float Operation
START
STOP
Zoeller
PUMP 1
PUMP 2
25
Duplex
LAG/ALARM
3 Float Operation
START
STOP
Zoeller
PUMP 1
PUMP 2
26
Duplex
LAG/ALARM
3 Float Operation
START
STOP
Zoeller
RUN PUMP 1
PUMP 2
27
Duplex
LAG/ALARM
3 Float Operation
START
STOP
Zoeller
RUN PUMP 1
RUN PUMP 2
28
Duplex
LAG/ALARM
3 Float Operation
START
STOP
Zoeller
RUN PUMP 1
RUN PUMP 2
29
Duplex
LAG/ALARM
3 Float Operation
START
STOP
Zoeller
RUN PUMP 1
RUN PUMP 2
30
Duplex
LAG/ALARM
3 Float Operation
START
STOP
Zoeller
PUMP 1
PUMP 2
31
Duplex
ALARM
4 Float Operation
LAG
START
STOP
Zoeller
PUMP 1
PUMP 2
32
Very Good Installation!
33
Very, Very Bad Installation!!
34
Yet Another Bad Installation.
35
Key 3 Pump Maintenance
Pump maintenance and system maintenance are one
and the same. One will always affect the other.

• On average, a wastewater pump system should be
  inspected once every 6 months.
• Develop a maintenance plan or routine.
• Instruct the owner of what to do (who to call) in
  the event of a problem.

36
Six Month Maintenance

• Listen to pump
• Detect abnormal or irregular noises
• Scraping, buzzing, rattling
• Clear obstructions from pump inlet
• Ensure the weep hole is not blocked
• Inspect check valve
• Open j-box for wetness
• Check floats for clearance
• Open control panel
• Detect strange sewer or burnt odors
• Check time meters and counters

37
Annual Maintenance

• Clean pump

• Inspect impeller for wear

• Inspect impeller cavity for buildup

38
Two Year Maintenance

• Check oil in the motor cavity
• Note the following symptoms
• Burnt appearance or smell
• Pump has overheated Check motor resistance
• Milky look to the oil
• Shaft seal has failed Refill cavity with new
  appropriate replacement oil and check motor
  resistance
• Oil is clear and clean
• No problems Replace and secure oil plugs

39
Major Service

• Problems listed below require attention from an
  authorized service station
• Inspection or poor performance reveals
  excessively worn impeller
• Poor performance and resistance testing indicates
  bad stator
• Sensors reveal a seal failure around the shaft
• Noisy operation reveals a bearing failure

40
Effluent Turbine Pumps

• Turbine pumps are designed and built very
  differently than centrifugals.

• These pumps have no solids handling capabilities.
• Units consist of a motor end and an impeller end.
• Replacement ends, motor or impeller, are
  typically available and simple to change out.

41
Troubleshooting

• Operational inspection checks
• Pump does not operate open circuit, take to
  service station
• Circuit breaker open short circuit, pump likely
  has water in cap or has badly overheated
• Pump motor hums debris in pump housing
  restricting impeller
• Pump runs constantly air locked or closed
  valve.
• Pump short cycles broken (or missing) check
  valve or float setup is incorrect

42
Troubleshooting

• Common system problems
• Floats set incorrectly
• Vent hole clogged or weep hole not drilled
• Extension cord being used
• Undersized pit is too small for application
• Low voltage
• Running backwards or incorrect wiring on 3 phase
  units

43
Troubleshooting

• Common system problems
• Total dynamic head below 5 ft or approaching
  shutoff
• High temperature liquid being pumped
• Continuous operation
• Incorrect wiring between pump controls

44
Safety

• Always remember
• Dealing with pumps, potentially contaminated
  water, and electricity is dangerous.
• The primary goal of every day is not to make a
  buck, but to make it home healthy and in one
  piece!

45
