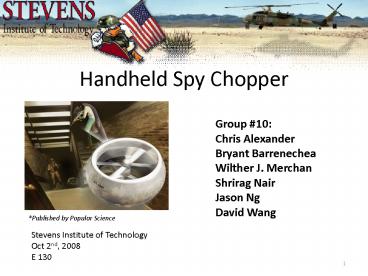

Handheld Spy Chopper

1
Handheld Spy Chopper
Group 10 Chris Alexander Bryant
Barrenechea Wilther J. Merchan Shrirag Nair Jason
Ng David Wang
Published by Popular Science
Stevens Institute of Technology Oct 2nd, 2008 E
130
2
Past Panel Concerns

• Material Selection
• Carbon Fiber
• Expensive
• Molding Issues
• Previous Project
• Reasons for Failure
• New improvements?

3
Issues with Last Years Design

• Restricted airflow-shell design
• Weight-roughly 2 lbs
• Similar RC helicopters with that motor weigh 7 oz
• Uniform Design
• Landing
• Lifting off
• Not enough thrust
• Controlling direction

4
Weight Past and Present

• Past
• Batteries 5oz.
• Non-uniform fiberglass shell wood frame
• Motor gt ½ lb.
• Total wt. is an estimated 2 lb.
• Present
• Battery 1.52 oz
• Alternative shell/frame material
• Motor lt 4 oz.
• Total wt. will approximately be 8 oz!

5
Battery Past and Present

• Past
• Flight Power Lithium Polymer (LiPo) 11.1 V,
  800mAh x 2
• Cost 33.99 each (67.98 total)
• 2.50 oz x 2 (5.00 oz total)
• 3.77 x 0.94 x 0.47
• 15 minutes flight time
• Present
• E-Flite LiPo 7.4V, 800mAh
• Cost 27.99
• 1.52 oz
• Size 2.7 x 1.18 x 0.573
• 15 minutes flight time

6
Design Past and Present

• Past
• 14 diameter fiberglass shell
• gt2lb mass concentrated in center
• Two batteries
• Propeller size incorrect
• Restrictive air flow
• Stabilizer issues
• Present
• 4 x 3 tombstone shape foam shell
• 8 oz total weight
• 1 battery
• Larger Diameter propeller
• Open Air Design
• Address stabilizing issues early

7
Theory Counter-Rotating Rotors

• Issues Counter rotating rotors address
• conservation of angular momentum
• the blades apply equal yet opposite torque to the
  body, causing the body to gain spin angular
  momentum in the other direction
• spinning in the opposite direction to that of the
  rotors
• dissymmetry of lift
• One side of the rotor blade travels fast
• One side of the rotor travels much slower
• Can enter a stall condition and fail to produce
  lift and flight instability.
• Size / Space
• Easier to balance
• Occupy less space

8
Theory - Lift

• The lift of a wing is proportional to the amount
  of air diverted down times the downward velocity
  of that air.
• To increase lift
• Divert more airmass by increase foil size
• Increase downward airmass velocity by increasing
  angle of attack or increase speed of wing
• Restrictions
• Lift begins to decrease at an angle of attack of
  about 15 degrees.
• Force needed to bend the air gt Air viscosity, so
  airflow separates from wing

9
Concept Matrix
10
Material Decisions

• Past
• Fiberglass Shell
• Wooden Support Frame
• Composite Center Shaft and Blades
• Present
• Styrofoam Nose Cone
• Composite Frame
• Composite Center Shaft and Blades
• Decided against the use of carbon fiber due to
  the inability to easily mold shape

11
Material Decisions Cont.
Pros Lightweight, Low Density, High Compressive
Strength, Fits in our Temperature Range
12
Camera

• SPECIFICATIONS
• Camera and transmitter weight only 9 grams!
• Camera and transmitter size 15mm x 22mm x 32mm
  (5/8" x 7/8" x 1 1/4")
• Camera Lux lt3 _at_ f1.2
• Camera Auto Electronic Exposure of 1/60 to
  1/15000 sec. w/ Auto Gain White Balance
• Camera Signal to Noise Ratio gt48dB
• 365K (PAL) or 250K (NTSC) camera pixel resolution

• Wireless Transmission Range 150M (450 FEET),
  Line-Of-Sight
• Transmitter RF Output Power EC RTTE Compliant
• Receiver Video Input/Output 1Vp-p/75 ohm

13
Audio

• Audio capabilities of the UAV have been abandoned
• Suitable device hard to find
• Short range lt100 ft
• Too large (Parabolic Microphone)
• Motor noise interference
• Wind interference
• Additional battery draw
• Needs additional channel

14
Preliminary Design Specs

• Controller 2.4GHz DSM Radio Control
• At least 5 channel transmitter
• 2-cell 7.4V 800mAh Li-Po Battery
• 2 -180 Motor
• Coaxial, counter-rotating rotor blades
• Two Micro Servos
• 4-in-1 control unit - CCA
• Main Motor Proportional Mix
• Allows adjustment of mixing between main motors
• Aerodynamic Shell

15
Design Whole Model
16
Design Different Views
Side View
Front View
16
Top View
17
Design Counter-Rotating Propellers
18
Design Swash Plate

• Known as cyclic pitch
• Allows the helicopter rotor to provide selective
  lift in any direction
• One fixed plate (bottom plate)
• Connected to 2 oscillating servos
• Adjusts the orientation of top plate
• Rotating Plate
• Connector to rotor
• Transfers the fixed plate changes to the
  propellers

19
Calculations - Lift
20
Calculations - Drag
21
Drag Calculations Assumptions

• Air Density at 70 degrees F
• Chose rounded body for least drag
• Velocity determined from information on current
  RC helicopters

22
Calculations - Thrust

• Momentum Theory is applied to calculate the
  expected thrust from the system.
• Drag component
• Non-uniform inflow is ignored (ideal)
• Tip losses
• Figures of merits reflect hover conditions.
• Suitable alternative to Blade Element Theory.

? density of air R rotor blade radius v
induced velocity T Thrust P Power required
23
Thrust vs. Coaxial Rotor Blade Size
24
Thrust produced via rotor

• Fixed pitch coaxial rotor
• RPM has control over altitude

25
Phase 3 Preparations

• Revise and update budget
• More accurate pricing
• Cheaper cost due to design changes
• Analysis
• Airfoil
• Pitch
• Propeller diameter
• Weight Distribution
• Finalize Part Selection
• Controller, Motor, Battery, Servos, Propeller,
  Camera
• Vendor Selection
