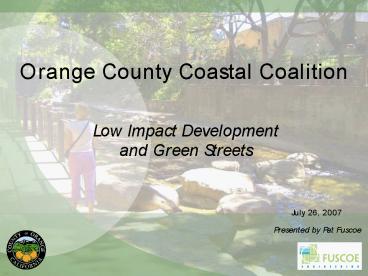

Orange County Coastal Coalition

1
Orange County Coastal Coalition

• Low Impact Development
• and Green Streets

July 26, 2007
Presented by Pat Fuscoe
2

• All things on earth are connected,
• each a part of the web of life.
• What we do, as human beings
• and designers, affects
• each strand in the web.
• ...and water is the source of life.

3
(No Transcript)
4
(No Transcript)
5
Why are we doing it?

• Government Agency Requirements
• State/Federal (Regional Water Quality Board)
• Change in Societys Values
• General Commitment to Environmental Protection
• Advancements in Technology
• Economic Neutrality
• Equal Function
• City Policy

6
Additional Influences

• City Sponsored Sustainable Goals for El Toro
  and the RDA
• Leadership in Energy Environmental Design
  (LEED)
• US Green Building Council (USGBC)
• Push the envelope of LID, sustainable design and
  technological advances

7
Project Location
8
(No Transcript)
9
Orange County Great ParkFramework Overlay Plan
10
City of Irvine Redevelopment Area
11
Green Team
12
Guiding Principles

• Make plans that inspire and excite people
• Continually consider the property as a single
  site
• Master plan as a living document
• Incorporate flexible transportation systems
• Incorporate pedestrian friendly design
• Incorporate sustainability principles
• Adopt metrics that track the OCGP communitys
  progress in implementing the sustainability
  vision
• Promote energy efficiency throughout the parks
  infrastructure
• Create alternatives to private vehicles
• Minimize light pollution maximize energy
  efficiency
• Establish a connection between park habitats
  regional ecosystems
• Prescribe operational principles that minimize
  overhead costs financial risk
• Minimize demand for resources maximize the
  opportunities for on-site supply of resources
• Create a sense of place

13
Green Streets Committee Make-Up

• Private Sector
• Property Owners
• Low Impact Development Experts
• Planners
• Technical Experts

• Public Sector
• City of Irvine
• Redevelopment Agency
• Transportation
• City Engineer
• Building Safety
• Planning
• Public Works
• Public Safety
• Water Quality
• Master Planning
• Technical
• IRWD
• OCFA

14
Great ParkSustainability Highlights
15
Great Park / Heritage FieldsCommitment to
Sustainability, LEED, and LID Design

• Air Quality Conservation
• An INTRA Great Park community transit system
  serving Heritage Fields communities and the
  Great Park
• Biological Resource Conservation/Biodiversity
• Golf course facilities designed to form an
  enhanced open space connection between the Great
  Park and the Wildlife Refuge
• Energy Conservation
• All buildings within the private sector areas of
  the Great Park communities to be LEED certifiable
  (commercial buildings) or conform to the City of
  Irvine Green Building standards
• Agriculture
• Permanent agricultural lands relocated adjacent
  to the Great Park to create/expand an
  agricultural Heritage Park component

16
Great Park / Heritage FieldsCommitment to
Sustainability, LEED, and LID Design

• Solid Waste Reduction
• A recycling facility on land interests acquired
  from the County within the Great Park community
  to keep all green waste and construction waste
  onsite
• Transportation
• Right-of-way reservation for elevated
  people-mover connecting the Irvine Transit Center
  to the Great Park
• Entry roads to the Great Park to be Green
  Streets
• Water Quality
• A water treatment/recycling facility
  within/adjacent to the Wildlife Corridor or
  Riparian Corridor

17
Infrastructure Goals

• To create streets that are public places to be
  enjoyed by all and that are environmentally
  sustainable.
• To provide
• Cleaner water and air
• Higher biological value
• Lower energy use
• Resilience in the design of streets

18
Traditional Engineering Approach
19
Sustainable Engineering Approach
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
Heritage FieldsGreen Streets Infrastructure
24
(No Transcript)
25
(No Transcript)
26
Enhanced Tree Canopy

• Urban Forest vs. Linear Spacing
• Reduce Cooling/Heating demands
• Reduce Heat-Island Effect
• Air Quality Improvement

27
(No Transcript)
28
Low Volume Irrigation

• Weather Based Irrigation Controllers
• Reduce Water Usage
• Reduce Runoff Potential

29
Low Volume Irrigation
Spray (Incorrect)
Stream (Correct)
30
Permeable Pavements and Surfaces

• Reduce Stormwater Runoff
• Improve Water Quality
• Reduce Storm Drain Infrastructure
• Replenish Aquifer
• Cools Surface Temperature

31
(No Transcript)
32
Permeable Pavements
33
Use of Recycled Materials

• Concrete, Asphalt, Building Materials to Create
  Pavers, Soil Organics, Base Material, Walls
• Reduce Costs
• Transportation
• Disposal
• Energy
• Toro Tiles

34
Use of Recycled Materials
35
Use of Recycled Materials
Toro Tiles
36
Integrated Runoff Treatment

• Bio-Swales Recessed Planter Areas
• Localized Water Treatment
• Groundwater Replenishment

37
(No Transcript)
38
Integrated Runoff Treatment
39
(No Transcript)
40
Conservation Oriented Planting Palettes

• California Friendly Drought Tolerant Species
• Artificial and Genetically
• Engineered Grass
• Reduced Irrigation/
• Runoff
• Reduced Fertilizers/
• Pesticides

41
Conservation Oriented Planting Palettes
42
Structured Soil Preparation

• Blend Existing Fill with Engineered Soil
  Structure
• Increase Water Storage
• Optimize Aeration, Infiltration, and Organic
  Productivity
• Increase Survival Rate of Vegetation

Loading
43
Structured Soil Preparation
Planting palette chosen to optimize
evapotranspiration and nutrient uptake
Engineered topsoil for optimal organic
productivity
Engineered soil mixed with existing fill for
optimal infiltration
Reduced compaction requirements
44
Reflective Color/Light Values

• Concrete/AC Colorings and Applied
  Coatings
• Reduce Heat-Island Effect
• Improve Recognition of Street Features (ex.
  crosswalks, bus turnouts, bikeway etc.)
• Increase Road Durability

45
Reflective Color/Light Values
Conventional Asphalt Overlay Hot
Asphalt Lightened by Color Additives Cool
46
Integrated Transit / NEV Travelways

• Integrated Neighborhood Electric Vehicle (NEV)
  Paths
• Light Rail, Trolleys...
• Reduce Pollution, Noise, Traffic

47
(No Transcript)
48
Alternative Lighting

• Photovoltaic Lighting
• Full Cut-Off Fixtures
• Reduce Power Grid Demand
• Reduce Light Trespass

49
Traffic Calming Features

• Round-a-bouts, Medians, Chokers, Pavers,
  Vegetation
• Improved Driver and Pedestrian Safety
• Reduce Emissions/Noise Pollution
• Improve Fuel Conservation
• Improve Aesthetics
• Enhance Streets as Public Places

50
Traffic Calming Features
Surrounding Tall Vegetation
51
Traffic Calming Features
Surrounding Tall Vegetation
52
Short Median
53
Median with 45 Crosswalk
54
Reduced Pavement Widths

• Traffic Calming
• Reduce Emissions/ Noise Pollution
• Reduce Impervious Surfacing
• Allow More Area for Sustainable Features
• Enhances a Pedestrian Friendly Environment

55
(No Transcript)
56
(No Transcript)
57
(No Transcript)
58
(No Transcript)
59
(No Transcript)
60
(No Transcript)
61
(No Transcript)
62
(No Transcript)
63
Upstream BMP
64
Midstream BMP
65
Downstream BMP
66
(No Transcript)
67
(No Transcript)
68
(No Transcript)
69
(No Transcript)
70
(No Transcript)
71
Integrated LID Designs
Infiltration strip in parking lot
Porous concrete
Paver application - pedestrian plaza emergency
vehicle travelway at USC
Simple green roof
72
Integrated Landscaping WQ Designs
Infiltration swale with upstream curb cuts
Sodding over infiltration swale
Infiltration swale with curb cut
73
Integrated Landscaping WQ Designs
Inverted infiltration' parkway
Curb cuts enable run-off collection
Parkway swale between driveways
Turf block-vegetation alleys
74
Large-Scale Water Quality BMPsfor Residential
Low-flow swale within basin
Series of new WQ basins
Gabion check dam with low flow pipes
75
Large-Scale Water Quality BMPsfor Residential
Mature Wide bioswale adjacent to homes
Mature bioswale adjacent to travelway
Freshwater wetland buffer
Bioswale with weir control
76
(No Transcript)
77
(No Transcript)
78
