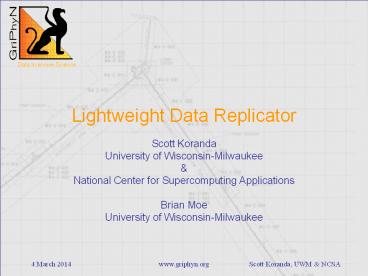

Lightweight Data Replicator

1
Lightweight Data Replicator

• Scott Koranda
• University of Wisconsin-Milwaukee
• National Center for Supercomputing Applications
• Brian Moe
• University of Wisconsin-Milwaukee

2
LIGO data replication needs

• Sites at Livingston, LA (LLO) and Hanford, WA
  (LHO)
• 2 interferometers at LHO, 1 at LLO
• 1000s of channels recorded at rates of 16 KHz,
  16 Hz, 1 Hz,
• Output is binary frame files holding 16 seconds
  data with GPS timestamp
• 100 MB from LHO
• 50 MB from LLO
• 1 TB/day in total
• S1 run 2 weeks
• S2 run 8 weeks

3
Networking to IFOs Limited

• LIGO IFOs remote, making bandwidth expensive
• Couple of T1 lines for email/administration only
• Ship tapes to Caltech (SAM-QFS)
• Reduced data sets (RDS) generated and stored on
  disk
• 20 size of raw data
• 200 GB/day

GridFedEx protocol
Bandwidth to LHO increases dramatically for S3!
Newsflash!
4
Replication to University Sites
Cardiff
MIT
LHO
AEI
UWM
PSU
CIT
UTB
5
Why Bulk Replication to University Sites?

• Each has compute resources (Linux clusters)
• Early plan was to provide one or two analysis
  centers
• Now everyone has a cluster
• Cheap storage is cheap
• 1/GB for drives
• TB RAID-5 lt 10K
• Throw more drives into your cluster
• Analysis applications read a lot of data
• Different ways to slice some problems, but most
  want access to large sets of data for a
  particular instance of search parameters

6
LIGO Data Replication Challenge

• Replicate 200 GB/day of data to multiple sites
  securely, efficiently, robustly (no babysitting)
• Support a number of storage models at sites
• CIT ? SAM-QFS (tape) and large IDE farms
• UWM ? 600 partitions on 300 cluster nodes
• PSU ? multiple 1 TB RAID-5 servers
• AEI ? 150 partitions on 150 nodes with redundancy
• Coherent mechanism for data discovery by users
  and their codes
• Know what data we have, where it is, and
  replicate it fast and easy

7
Prototyping Realizations

• Need to keep pipe full to achieve desired
  transfer rates
• Mindful of overhead of setting up connections
• Set up GridFTP connection with multiple channels,
  tuned TCP windows and I/O buffers and leave it
  open
• Sustained 10 MB/s between Caltech and UWM, peaks
  up to 21 MB/s
• Need cataloging that scales and performs
• Globus Replica Catalog (LDAP) lt 105 and not
  acceptable
• Need solution with relational database backend
  scales to 107 and fast updates/reads
• Not necessarily need reliable file transfer
  (RFT)
• Problem with any single transfer? Forget it, come
  back later
• Need robust mechanism for selecting collections
  of files
• Users/sites demand flexibility choosing what data
  to replicate

8
LIGO, err Lightweight Data Replicator (LDR)

• What data we have
• Globus Metadata Catalog Service (MCS)
• Where data is
• Globus Replica Location Service (RLS)
• Replicate it fast
• Globus GridFTP protocol
• What client to use? Right now we use our own
• Replicate it easy
• Logic we added
• Is there a better solution?

9
Lightweight Data Replicator

• Replicated gt 20 TB to UWM thus far
• Less to MIT, PSU
• Just deployed version 0.5.5 to MIT, PSU, AEI,
  CIT, UWM, LHO, LLO for LIGO/GEO S3 run
• Deployment in progress at Cardiff
• LDRdataFindServer running at UWM for S2, soon at
  all sites for S3

10
Lightweight Data Replicator

• Lightweight because we think it is the minimal
  collection of code needed to get the job done
• Logic coded in Python
• Use SWIG to wrap Globus RLS
• Use pyGlobus from LBL elsewhere
• Each site is any combination of publisher,
  provider, subscriber
• Publisher populates metadata catalog
• Provider populates location catalog (RLS)
• Subscriber replicates data using information
  provided by publishers and providers
• small, independent daemons that each do one thing
• LDRMaster, LDRMetadata, LDRSchedule, LDRTransfer,

11
Future?

• Held LDR face-to-face at UWM last summer
• CIT, MIT, PSU, UWM, AEI, Cardiff all represented
• LDR Needs
• Better/easier installation, configuration
• Dashboard for admins for insights into LDR
  state
• More robustness, especially with RLS server hangs
• Fixed with version 2.0.9
• API and templates for publishing

12
Future?

• LDR is a tool that works now for LIGO
• Still, we recognize a number of projects need
  bulk data replication
• There has to be common ground
• What middleware can be developed and shared?
• We are looking for opportunities
• Code for solve our problems for us
• Still want to investigate Stork, DiskRouter, ?
• Do contact me if you do bulk data replication
