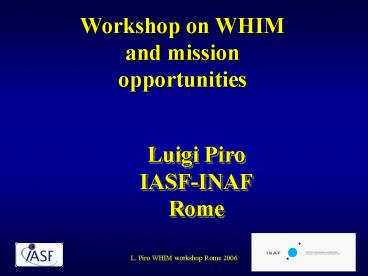

Luigi Piro IASF-INAF Rome

1
Luigi PiroIASF-INAFRome
Workshop on WHIM and mission opportunities
2
Workshop on WHIM and mission opportunities

• Scope of the meeting
• Take into account present (WHIM) mission
  profiles and related technology
• Discuss the status of the art in WHIM
  observations and theory and translate it in
• Derive requirements (organize a wg) to improve
  present profiles
• Discuss next steps and actions finilized to carry
  out a joint programme

3
Where are the baryons at zlt2 gone?

• Detailed calculation from Big Bang
  Nucleosynthesis indicate 0.02 lt h2Ob lt 0.06
• At z 3-4 the observations are in agreement Lya
  forest
• At z0 the baryon in stellar systems, neutral
  Hydrogen, X-ray emitting gas in cluster of
  galaxies is one order of magnitude less than the
  predictions.
• Where have the baryons gone?
• From models 50 of baryons in hot or warm
  ionized IGM
• In the current models at zgt2 the gas is diffuse.
  At zlt2 large potential wells are produced and the
  gas is shock-heated.
• The gas is trapped in filaments by the
  gravitational pull of DM

4
Experiments / missions for WHIM

• IMXS-IMBOSS (I-USA), MBE (USA)
• New proposals ESTREMO (I), DIOS (J), NEW(H),
  Pharos (USA)
• Large interest from international community (but
  so far not successful, to be discussed tomorrow)
• Italy WHIM science key interest not only of
  astrophysical community but also of INFN (dark
  matter). IMXS-IMBOSS large field / high
  resolution spectroscopy survey.

5
WHIM mission concepts
DIOS NEW ESTREMO MBE PHAROS
WHIM Emiss. Emiss. Abs. Abs. Emiss. Emiss. Abs.
Mitsuda, WHIM ws 2005
6

• Italy WHIM science key interest not only of
  astrophysical community but also of INFN (dark
  matter, S. Vitale).
• IMXS-IMBOSS large field (1sr) / high
  resolution (6 eV) spectroscopy survey of the sky.
  Grasp (AW 2000 cm2 deg2). Feasibility
  assessment for allocation to ISS carried out.
  Activities stopped in 2002 given the ISS
  situation

7
ESTREMOExtreme phySics in Transient and Evolving
cosMos The first observatory with very high
resolution X-raySpectroscopy, Polarimetry and
Fast repointing
?
8
History

• The concept of Next Generation GRB Observatory
  (NG-GRBO) born in a meeting on EXIST in 2000 in
  US
• Sister satellite led by European partners to
  perform very fast ( 1 min) follow-up observations
  of GRB transients localized by EXIST X-ray
  cosmology wityh GRB
• Included as mission concept for a Italian mission
  in the proposal to ASI 2003
• Evolved and expanded following two meetings in
  2003 in Rome (with participants from Mi, Bo,
  Pa), in the Netherlands (SRON), and Turin with
  Alenia Spazio (pre-feasibility assessment of
  spacecraft fast slewing capabilities)
• NEW derivation from SRON. Potential merging with
  NEW and DIOS (workshop in Japan, 2005)

9
Scientific drivers

• Evolution of cosmological structures and sources
  in the Universe X-Ray Cosmology GRB as beacons,
  WHIM and dark matter, formation of first
  structures in the Universe
• Extreme physics (e.g. test of general relativity
  in Black Holes, GRB engines and progenitors)

10
New X-ray cosmology with GRB

• Identify high-z GRB and their primordial host
  galaxies
• Study the evolution of metals star formation
  with z
• WHIM dark matter
• Dark energy and extension of SN results at zgt1

11
GRB as cosmological probes

• Map the metal evolution vs z

Simulations of X-ray edges produced by metals
(Si, S, Ar, Fe) by a medium with column density
NH5 1022 cm-2 and solar-like abundances in the
host galaxy of a bright GRB at z5., as observed
ESTREMO with an observation starting 60 s after
the main pulse and lasting 60 ksec
Ar
S
Fe
Si
12
Mission profile

•
• The mission is based on the combination of a
  wide field instrument, a narrow field instrument
  and fast pointing, i.e.
•         Fast (lt1 min) follow-up observations
  with
•         High resolution X-ray spectroscopy
  (De2-4 eV in the 0.1-10 keV range) and
•         High sensitivity X-ray polarimetry
  devices
•         of independently localized X-ray
  transient phenomena in the sky with a wide field
  monitor in the X/hard-X range.
•
• Each one is the state of the art in the field and
  the combination provides a unique and
  unprecedented capability.

13
WFC
TEScryo-system
Polarimeter
14
Scientific goals

• Estreme objects in our Universe characterized by
  very large energy release over short time scale
  (minutes-hours) Gamma-ray Bursts, Massive Black
  Holes, Neutron stars, Supernovae explosions,
  Flare stars
• Evolution of the Universe the new X-ray
  cosmology by using the brightest and most distant
  explosions, the Gamma-Ray Bursts

15
GRB (afterglows ) as bright background source for
WHIM absorption studies

• (Piro et al, ApJ 05)

16
WHIM absorption lines towards GRB afterglows
Fraction of the total fluence of the afterglow of
a GRB in the interval t060 s and t, for a decay
power law with slope 1.3
Similar numbers from SWIFT Corsis talk
17
Dark matter WHIM X-ray forest
Structure simulation from Cen Ostriker (1999)
?
Simulations of WHIM absorption features from OVII
as expected from filaments (at different z, with
EW0.2-0.5 eV) in the l.o.s. toward a GRB with
Fluence4 10-6 as observed with ESTREMO (in 100
ksec). About 10 of GRB (10 events per year per 3
sr) with 4 million counts in the TES focal plane
detector
18
Comparison of main parameters for WHIM absorption
line detection at 0.5 kev for this and present
and future missions
The relative fluence S/S0 of the afterglow is
derived assuming a decay slope of 1.3, with an
integration of about 100 ksec, starting at 60s
for this missions and at 11 hrs for the other
missions. M is the factor of merit Aeffh S/DE
for line detection EWmin Ks /k?M, when Ks is
the number of s required for the detection (Ks5)
19
WHIM in absorption and emission

• Focal lenght 4 m, (1.2 per mm), with pixel
  500um, and radial geometry would give radius of
  about 10 for 1000 pixels (4.5 for 200 pixels)
• Possibility to study the same WHIM filament first
  in absorption and then, when the GRB afterglow
  has disappeared, in emission

20
WHIM emission lines detection some estimates

• Filament completely filling the FOV NL ? (Aeff)
  x (FOV) x T
• The contribution of photons from XRB and
  Galactic emission is determined by the energy
  resolution ?E Nc ? ?E x (Aeff) x (FOV) x T
• S/N NL/Nc0.5 ? ((Aeff) x (FOV) x T) / ?E
  0.5 a larger Aeff x FOV increases the number
  of counts for a given integration time, but a
  higher energy resolution gives a better S/N.

Aeff x FOV (deg2cm2) ?E (eV) S/SXMM S/N/S/NXMM
XMM(pn) 230 60 1 1
Chandra 23 100 0.1 0.24
XEUS 8.3 (210) 1 (50) 0.04 (0.9) 1.5 (1.0)
Con-X 12 2 0.05 1.3
DIOS 55 2 0.2 2.7
ESTREMO 50 2 0.2 3.0
NEW 500 2 2 8.1
21
Baseline Requirements (I)

• Wide-field monitor Localization and study of
  GRB X-Ray transients
• 2-300 keV 2-3 arcmin resolution solid angle gt 2
  sr such that gt50-100 GRB per year and a similar
  number of transient sources)
• Detector Technologies CdZnTe, Si, Lobster
• Small omnidirectional spectrometer for GRB
  spectrum (Epeak)

22
Baseline Requirements (II)

• Autonomous fast follow-up 10-100 seconds
  following the transient position from on-board
  x-ray localizator (ala SWIFT)
• 1.5 ton class in low earth orbit (VEGA launcher,
  Malindi ground station)
• Launch in the 2012 frame
• - X-ray optics of 1000 cm2 eff.area (8xSWIFT)
• TES microcalorimeters (DE2 eV at 1 keV) AND KHz
  count rate (to observe Crab-like sources!!)
• For a typical X-ray afteglow, about 100.000 cts
  will be secured starting from 50 sec
• X-ray polarimeter with MDP 5 for Crab-like

23
Requirements for NFI-TES

• Energy range from 0.1 to 10 keV
• Energy resolution 2 eV below 1 keV (goal 1 eV),
  around 3-4 eV at 6 keV
• Number of imaging pixels gt100, with a goal of
  1000
• Size of pixel (depending on the plate scale)
  200-500 um
• Field of view (assuming a 4 meter focal length, a
  500 u pixel and radial geometry) 8 arcmin
  diameter for 200 pixels, 18 arcmin diameter for
  1000 pixels
• Count rate vs flux conversion for a power law
  with photon index2 and Nh2e20 cm-2, 1 mCrab
  source would give about 10 cts/s in the 0.1-5 keV
  range.
• Maximum count rate high enough to allow
  spectral measurements of a Crab-like source,
  corresponding to about 20.000 cts/s (for a
  low-energy absorption of 2e20 cm-2). Assuming a
  PSF with Half Energy Width of about 1 arcmin, and
  a pixel size of 250 um, the count rate per pixel
  would be about 400 cts/s, compatible with TES
  performance. The trade-off of pixel-size vs
  field of view is optimized with a detector in
  which the central part has pixels of 250 um
  size, and the outer region (devoted to background
  and WHIM emission line detection) has 500um pixel
  size.

24
Spacecraft, launcher and Orbit

• Time to to slew to 60 degrees 20 sec
• 3-axis stabilized, Pointing accuracy 1
• Post facto attititude reconstruction lt20
• Zone of sun avoidance TBD
• Orbit LEO preferred for lower bkg and payload
  mass, but HEO is not ruled out
• Launch mass 1500 kg
• P/L mass 600 kg
• P/L power 800 W
• on-board memory upto 250 Gb
• downlink in S and X bands upto 512 kbps and
  210Mbps respectively during the passage
• compatible with VEGA Soyuz, Delta and other
  launchers,

25
VEGA launch capability
26
Allocation in VEGA
27
New developments

• Merit of present configuration (extension to the
  7 kev range Fe line, polarimetry). WHIM in
  emission and absorption
• Increase the fov good for whim emission,
  (grasp), relax somewhat requirements on wfm .
  Price to pay Egt3 keV, complexity of TES central
  part (need smaller pixels to avoid pile up).
