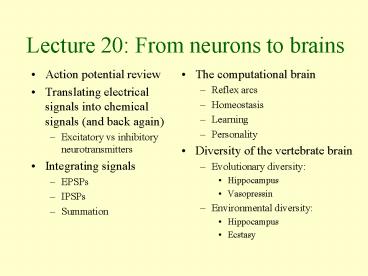

Lecture 20: From neurons to brains

1
Lecture 20 From neurons to brains

• The computational brain
• Reflex arcs
• Homeostasis
• Learning
• Personality
• Diversity of the vertebrate brain
• Evolutionary diversity
• Hippocampus
• Vasopressin
• Environmental diversity
• Hippocampus
• Ecstasy

• Action potential review
• Translating electrical signals into chemical
  signals (and back again)
• Excitatory vs inhibitory neurotransmitters
• Integrating signals
• EPSPs
• IPSPs
• Summation

2
Action potential

• Definition an all-or-none change in voltage
  that propagates itself down the axon

3
Action potential

• Definition an all-or-none change in voltage
  that propagates itself down the axon
• Naturally occurring action potentials begin at
  the axon hillock

4
Action potential

• Definition an all-or-none change in voltage
  that propagates itself down the axon
• Naturally occurring action potentials begin at
  the axon hillock
• Action potentials do not occur anywhere else in a
  neuron not in dendrites, not in cell bodies

5
Figure 48.9 The role of voltage-gated ion
channels in the action potential (Layer 5)
6
Figure 48.11 Saltatory conduction
7
How do you get from electrical signals to
chemical signals and back again?
8
Translating signals

• The action potential moves down the axon until it
  reaches the terminal (synapse)

9
Translating signals

• The action potential moves down the axon until it
  reaches the terminal (synapse)
• Its wave of depolarization opens
  voltage-activated Ca2 channels

10
Translating signals

• The action potential moves down the axon until it
  reaches the terminal (synapse)
• Its wave of depolarization opens
  voltage-activated Ca2 channels
• Influx of Ca2 causes vesicles to fuse with
  presynaptic cell membrane

11
Translating signals

• The action potential moves down the axon until it
  reaches the terminal (synapse)
• Its wave of depolarization opens
  voltage-activated Ca2 channels
• Influx of Ca2 causes vesicles to fuse with
  presynaptic cell membrane
• Transmitter diffuses across synaptic cleft and
  binds to receptors on post-synaptic cell

12
Excitatory and inhibitory neurotransmitters

• If a transmitter depolarizes the post-synaptic
  neuron, it is said to be excitatory

13
Excitatory and inhibitory neurotransmitters

• If a transmitter depolarizes the post-synaptic
  neuron, it is said to be excitatory
• If a transmitter hyperpolarizes the post-synaptic
  neuron, it is said to be inhibitory

14
Excitatory and inhibitory neurotransmitters

• If a transmitter depolarizes the post-synaptic
  neuron, it is said to be excitatory
• If a transmitter hyperpolarizes the post-synaptic
  neuron, it is said to be inhibitory
• Whether a transmitter is excitatory or inhibitory
  depends on its receptor

15
Figure 48.12 A chemical synapse
16
Excitatory and inhibitory neurotransmitters

• Acetylcholine is excitatory because its receptor
  is a ligand-gated Na channel

Fig 48.7
17
Excitatory and inhibitory neurotransmitters

• Acetylcholine is excitatory because its receptor
  is a ligand-gated Na channel
• GABA is inhibitory because its receptor is a
  ligand-gated Cl- channel

Fig 48.7
18
Excitatory and inhibitory neurotransmitters

• Acetylcholine is excitatory because its receptor
  is a ligand-gated Na channel
• GABA is inhibitory because its receptor is a
  ligand-gated Cl- channel
• Other transmitters (e.g. vasopressin) have
  G-protein-linked receptors

Fig 48.7
19
Excitatory and inhibitory neurotransmitters

• Acetylcholine is excitatory because its receptor
  is a ligand-gated Na channel
• GABA is inhibitory because its receptor is a
  ligand-gated Cl- channel
• Other transmitters (e.g. vasopressin, dopamine)
  have G-protein-linked receptors
• Effects depend on the signal transduction pathway
  and cell type

Fig 48.7
20

• Some synapses form on the dendrites, cell body,
  or the axon hillock.

Fig 48.13
21
How do post-synaptic neurons integrate
information from more than one pre-synaptic cell?
22
Summation of postsynaptic potentials

• The opening of a ligand-gated channel produces a
  post-synaptic potential either excitatory
  (EPSP) or inhibitory (IPSP)

23
Summation of postsynaptic potentials

• The opening of a ligand-gated channel produces a
  post-synaptic potential either excitatory
  (EPSP) or inhibitory (IPSP)
• If two post-synaptic potentials occur at the same
  time in different places, or at the same place in
  rapid succession, their effects add up.

24
Summation of postsynaptic potentials

• The opening of a ligand-gated channel produces a
  post-synaptic potential either excitatory
  (EPSP) or inhibitory (IPSP)
• If two post-synaptic potentials occur at the same
  time in different places, or at the same place in
  rapid succession, their effects add up.
• This adding up is called spatial or temporal
  summation

25

• Because voltage spreads along the dendrites and
  cell body without an action potential, the
  strength of PSPs decay with distance

Fig 48.13
26

• Because voltage spreads along the dendrites and
  cell body without an action potential, the
  strength of PSPs decay with distance
• The closer a synapse is to the axon hillock, the
  stronger its influence on post-synaptic firing.

Fig 48.13
27
The way in which a neurons EPSPs and IPSPs sum
to cause (or prevent) an action potential
represents a computation.
28
Figure 48.19 Embryonic development of the brain
29
Computational brain

• Some of its many computations include
• Reflex arcs
• Homeostasis
• Learning
• Personality

30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
Neural activity is thought itself.
36
Isnt it?
37
Diversity of the vertebrate brain

• Evolutionary diversity

38
Diversity of the vertebrate brain

• Evolutionary diversity
• Acquired diversity

39
Diversity of the vertebrate brain

• Evolutionary diversity
• Hippocampus of food-storing birds
• Acquired diversity

40
Prairie vole Montane vole

• Highly social
• Biparental
• Pair-bonds

• Solitary
• Minimally parental
• Promiscuous

41
Diversity of the vertebrate brain

• Evolutionary diversity
• Hippocampus of food-storing birds
• Vasopressin and monogamy
• Acquired diversity

42
Transgenic mouse expressing V1a receptor under
control of prairie vole promoter
pvV1a transgene
1
1623
pA
43
Diversity of the vertebrate brain

• Evolutionary diversity
• Hippocampus of food-storing birds
• Vasopressin and monogamy
• Acquired diversity
• Hippocampus in taxi drivers

Time as London taxi driver
Volume of hippocampus
44
Diversity of the vertebrate brain

• Evolutionary diversity
• Hippocampus of food-storing birds
• Vasopressin and monogamy
• Acquired diversity
• Hippocampus in taxi drivers
• Brains of ecstasy users

Serotonin in the brains of ecstasy users (top)
and non-users (bottom)
45
Is the brain an evolutionary hypothesis?
