A multi-scale three-dimensional variational data assimilation scheme

1

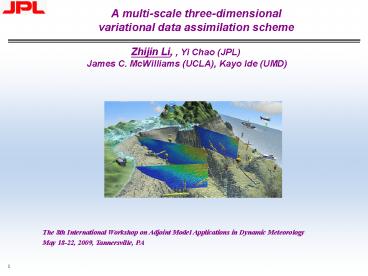

A multi-scale three-dimensional variational data
assimilation scheme

• Zhijin Li, , Yi Chao (JPL)
• James C. McWilliams (UCLA), Kayo Ide (UMD)

The 8th International Workshop on Adjoint Model
Applications in Dynamic Meteorology May 18-22,
2009, Tannersville, PA
2
Outline

• Motivations
• A multi-scale three-dimensional variational data
  assimilation (MS-3DVAR) scheme
• Applications and evaluations
• Summary

3
Data Assimilation and Forecast Cycle
Time scales comparable with those of the
atmosphere
4
Observations and Data assimilation

• T/S profiles from gliders
• Ship CTD profiles
• Aircraft SSTs
• AUV sections
• HF radar velocities

AOSN-II
5
TEMP(C)
Glider temperature/salinity profiles
(Chao et al., 2009, DSR)
6
Challenge An Example with SCCOOS
Model domain, the resolution of 1km
7
Southern California Coastal Ocean Observing
System (SCCOOS)
Aug 2008, simulation without DA
SIO Glider Tracks
Challenge How to assimilate sparse vertical
profiles along with high resolution observations
for a very high resolution model
8
Data Assimilation Formulation
9
Error Covariance and correlations
Correlations are the vehicle for spreading out
information of observations Correlation scales
are about 15-30km
10
Forecast Error Covariance BSingle Observation
Experiment
(increment)

One single observation of SSH
11
Southern California Coastal Ocean Observing
System (SCCOOS)
SIO Glider Tracks
Motivation assimilating sparse vertical profiles
along with high resolution observations for a
very high resolution model
12
Multi-Scale Data Assimilation Concept
SCCOOS Glider Tracks
(Boer, 1983, MWR)
13
Multi-Scale Data Assimilation Scheme
Low Resolution (LR)
SCCOOS Glider Tracks
Sparse Obs
High Resolution (HR)
High resolution HF radar
High Resolution Obs
14
Work Flowchart of MS-3DVAR
Satellite SST/SSH
HF Radar
Glider/Argo/Mooring
Smoothed
LR-3DVAR
HR-3DVAR
End
Smoothed
Forecast
Increment
Start
15
Glider Observations vs Analyses
Aug 2008
16
CALCOFI Observations
(not assimilated)
Aug 14-30, 2008
17
Monthly Means
Aug, 2008
18
Analysis vs HF Radar Observations
Taylor diagram
(Taylor, 2001, JGR)
19
Forecasts vs Analyses
20
Summary

• A multi-scale 3DVAR (MS-3DVAR) scheme has been
  formulated and developed.
• It has been implemented in support of SCCOOS and
  AOOS-PWS.
• The scheme has demonstrated the capability of
  assimilating sparse and high resolutions
  observations simultaneously, effectively and
  reliably.

21
Alaska Ocean Observing System -Prince William
SoundAOOS-PWS
3 nested levels L0 / L1 / L2. Resolution 10km
/ 3.6km / 1.2 km (L2 Prince William Sound)
22
Oil Spill 1989 Exxon Tanker Wreck Prince
William Sound, Alaska
March 24, 1989
From USGS
Today
23
Decomposition of Large and Small Scalesand
Estimation of Error Covariance

• Generate perturbations difference between 24h
  and 48h forecasts, valid at the same time.
• Decompose perturbations
• Large scales smoothed fields, with weight
  of
• where L25km, which is the decorrelation
  length scale from Russs estimation
• Small scales the residuals

24
Observational Errors Representativeness Errors

• Large scale observations T/S vertical profiles
  from SIO, mooring and Argo
• Observational errors at the depth of z
• Tentative values briefly and empirically
• estimated from the RMS profile of the small
• scale components

For temperature
For salinity
CALCOFI Section
25
Future Coastal Observing System
(National Research Council, 2003)

• Buoy and glider profiles are sparse, with
  distances between profiles
• larger than decorrelation scales
• Radar and satellite measurements may have very
  high resolutions,
• as high as the model resolution

26
Glider Temperature and Salinity Profiles
27
Surface Tidal Current Comparison (M2)
Length of Major Axis (cm/s)
Corr. RMS Mean Sept. 0.43
3.6 6.6 Oct. 0.44 3.8
6.6 Nov. 0.51 3.7 6.3
28
A There-Dimensional Variational Data Assimilation
(3DVAR)

• Real-time capability
• Implementation with sophisticated and high
  resolution model configurations
• Flexibility to assimilate various observation
  simultaneously
• Development for more advanced scheme

(Li et al., 2006, MWR Li et al., 2008, JGR, Li
et al., 2008, JAOT)
