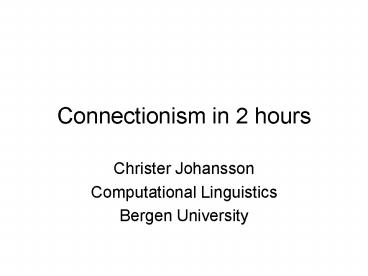

Connectionism in 2 hours

1
Connectionism in 2 hours

• Christer Johansson
• Computational Linguistics
• Bergen University

2
Why should Linguists be interested in
Connectionism?

• Alternative to good old AI (rules)
• Learning - knowledge is acquired
• Biological plausibility (?)
• Practical applications handles uncertain data,
  only needs representative exemplars.

3
The main point of Connectionism

• There is no central processor

4
Processing is interaction

• Each neuron is a simple processor that receives
  information from other neurons and sends out
  activation or deactivation to other neurons,
  depending on how much it was activated.
• Processing is an emergent phenomena from the
  activity of large quantities of such simple
  processors.

5
Hebbian Learning (1949)

• Neurons that fire togetherwire together

6
Processing is subsymbolic

• The information neurons work with is without
  (much) content.
• This allows for easy interaction between
  different modalities. (McGurk-effect).

7
Biological inspirations

• Some numbers
• The human brain contains about 10 billion nerve
  cells (neurons)
• Each neuron is connected to the others through
  10000 synapses (average some more some much
  less)
• Properties of the brain
• It can learn, reorganize itself from experience
• It adapts to the environment
• It is robust and fault tolerant

8
Connectionism vs AI
9
Connectionist Successes

• Graceful degradation
• Connectionist models can be damaged and still
  keep (some) functionality.
• Models of reaction time studies.
• Learning path emerges from complexity in the data
  and the learning law. U-shaped learning common.

10
Not so good (yet)

• Systematicity, information structure and
  encapsulation of information.
• If you understand the boy ate the fish you also
  understand the fish ate the boy.
• Typically a neural net would allow global
  information to affect the interpretation (thus
  disregarding structural information).
• The tomato ate the boy.
• I love apples.

11
Not so good (yet)

• Fast Mapping
• A child may observe the use of a word once or
  twice, and still be able to use the word
  correctly several weeks later.
• Sound is mapped to meaning fast
• The mapping degrades slowly
• Neural networks do not typically show these
  behaviors.
• Radial Basis Networks? Instance based learning.

12
Philosophical issues

• Is connectionism a better model of intelligence
  (mind) than symbolic AI?
• What do we mean by better? Researchers do not
  agree what intelligence is.
• None of the models correct?
• AI models handle symbolic information better but
  have little to say how symbolic behavior emerge.
• Connectionist models better at pattern
  recognition (noisy input, missing values,
  redundancy).

13
Other arguments for connectionism

• Many relevant phenomena has been modeled. The
  activity in itself leads to new knowledge, and
  some insights into possible mechanisms.
• Models of aphasia, dyslexia etc. Many with
  detailed predictions, and even implications for
  remedies.
• Interaction between information sources is taken
  seriously.

14
Connectionism in Linguistics

• Case Rule based behaviorPast Tense U-shaped
  learning

15
Chomsky Pinker

• Learning language is done by acquiring rules
  (setting the parameters in a fixed format), which
  are processed by a specific, fixed, mechanism and
  expressed in an internal language (compare
  machine language).
• Chomsky main interest description of language
  complexity.
• Pinker Tries to push the point that Language
  depends on innate machinerywe only acquire the
  data the machinery processes and set the
  parameters of the processor.
• (Neural networks have an innate mechanism for
  how to learn from input).

16
U-shaped Learning

• Children often use correct past tense forms,
  before over-generalizing the rule, and later
  recover to correct usage.
• Neural networks have a tendency for a similar
  behavior.
• At first the free capacity in the net allows
  memorization.
• When the regularity is discovered it is applied
  generally, and interacts with previous knowledge,
  which then gets an error signal that makes it
  possible to recover.

17
U-shaped learning

• On the downside for connectionism
• The input needs to contain a clear signal.
• Which means some preprocessing, and in effect
  building the solution into the representation.
• Still, the u-shaped learning seems a fairly
  robust characteristic of many different neural
  models.

18
U-shaped learning

• Pinker has proposed a so called dual route model.
  He argues that
• Regular forms are done by symbolic processing
• The irregular are done by association, a la
  connectionism.
• But this makes little sense if we are allowed to
  separate the regular from the irregular then a
  neural network can easily learn the regular
  alternations (as well as the irregulars but it
  cannot learn gaps).

19
Fodor Modularity

• Fodor, among others, argues that
  compositionality systematicity can only be
  made by symbolic machinery.
• /S//P//I//L/ gt spill ed(past) spilled.
• The kangaroo jumped over the elephant. gt
• The elephant jumped over the kangaroo.

20
Not Truth based

• Adam loves Eve.
• does NOT imply
• Eve loves Adam.
• But still if the first is understood, the second
  should also be understood. (Role of Syntax).

21
Fodor Modularity

• Information needs to be encapsulated.
• Different levels should not interact (each level
  is encapsulated).
• Leaky modules
• Modules in the brain. Are different anatomical
  areas specialized for
• Different general tasks?
• Functionally specific tasks (say syntactic
  processing)?

22
Outline

• The rest of the talk falls into two categories
• Biology Neurons, the Brain and Language Areas
• Technology Practical Applications of Neural
  Networks

23
Looking at the Brain

• What about the argument for specialized modules
  for language?
• Brocas area.

24
Biological neuron

• A neuron has
• input (via dendrites)
• output (via the axon)
• The information mediated from the dendrites to
  the axon via the cell body
• Axon connects to dendrites (of other neurons) via
  synapses
• Synapses vary in strength
• Synapses may be excitatory or inhibitory

25
Neurons
Cell machinery
Surface structure
26
Schematic Neuron
Summation function Input
Output Weights
27
Example Neurons
Neurons come in a variety of flavours.
28
Neuronal organisation
Neurons are organised into hierarchical
layers. Within each layer we often have
inhibitory connections.
29
The Brain
30
Outline
31
Neuroimaging ConfirmationYES

• reading complex sentences vs. letter strings

32
Points

• confirmation of left hemisphere dominance
• confirmation of classical language areas
• modification
• involvement of additional areas

33
Brocas area

• Brocas area is involved in the comprehension
  of complex sentences

34
Simple Sentences vs. Passive Fixation
35
The role of Brocas area?

• That Brocas area is involved does not mean that
  syntactic processing is located in the left
  inferior frontal lobe
• simple sentences do not reliably activate this
  area
• other tasks with similar cognitive components
  also activate this area

36
Wijers et al WM task
37
Wijers et al WM task
38
Wijers et al WM task
39
Conclusions

• Language Areas not specific for language.
• Language may depend on interaction
• Modules? (The brain is functionally structured)
• Neurons? (All neurons may contribute)

40
Technical Applications
41
Properties of Neural Networks

• Supervised networks are universal approximators
• Theorem Any limited function can be
  approximated by a neural network with a finite
  number of hidden neurons to an arbitrary
  precision.
• This could be useful )

42
Other properties

• Adaptivity
• Adapt weights to environment (examples)
• Easily retrainable
• Generalization ability
• May counteract lack of data
• Fault tolerance
• Graceful degradation of performances if damaged.
• damage might also be faulty input (noise,
  missing values etc.)
• The information is distributed within the entire
  net.

43
Classification (Discrimination)

• Estimation of the probability for a certain
  object to belong to a specific class
• Can be used for Data Mining
• Applications Economy, speech and visual pattern
  recognition, sociology, etc.

44
Example
Examples of handwritten postal codes drawn from
a database available from the US Postal service
45
What do we need to use NN ?

• Determination of input should be (what
  information is available, what info do we need )
• A representative Collection of data for the
  learning and testing phase of the neural network
• Find an optimum number of hidden nodes
• Estimate the parameters (Learning running the
  algorithm)
• Evaluate the performance of the network
• IF (when) performance is not satisfactory
  Review (all) the precedent points

46
What are NNs used for?

• Prediction
• The weather tomorrow
• Classification
• X-ray shows cancer or not?
• Association / error correction
• Associate a pattern with another pattern /
  itself.
• Filtering
• Take noise / echo out of telephone signal

47
What are NNs used for in Language Technology?

• Text-to-speech
• NetTalk
• Speech Recognition (as part of larger systems)
• Estimate probability distributions
• Word ltgt document association
• Information Retrieval
