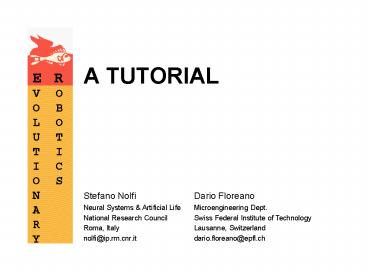

A TUTORIAL

1
A TUTORIAL
Stefano Nolfi Neural Systems Artificial Life National Research Council Roma, Italy nolfi_at_ip.rm.cnr.it Dario Floreano Microengineering Dept. Swiss Federal Institute of Technology Lausanne, Switzerland dario.floreano_at_epfl.ch
2
The method
3
Behavior-Based Robotics ER
4
Learning Robotics ER
5
Artificial Life ER
Menczer and Belew, 1997
6
How to Evolve Robots
Floreano and Nolfi, 1998
7
Evolution in the Real World
mechanical robustness
energy supply
analysis
Floreano and Mondada, 1994
8
Evolution in Simulation
Different physical sensors and actuators may
perform differently because of slight differences
in their electronics or mechanics.
Physical sensors deliver uncertain values and
commands to actuators have uncertain effects.
The body of the robot and the environment should
be accurately reproduced in the simulation.
Nolfi, Floreano, Miglino and Mondada 1994
Miglino, Lund, Nolfi, 1995
9
Designing the Fitness Function
Floreano et al, 2000
FEE functions that describe how the controller
should work (functional), rate the system on the
basis of several variables and constraints
(explicit), and employ precise external measuring
devices (external) are appropriate to optimize a
set of parameters for complex but well defined
control problem in a well-controlled environment.
BII functions that rate only the behavioral
outcome of an evolutionary controller
(behavioral), rely on few variables and
constraints (implicit) that be computed on-board
(internal) are suitable for developing adaptive
robots capable of autonomous operation in
partially unknown and unpredictable environments
without human intervention.
10
Genetic Encoding
Evolvability
Expressive power
Compactess
11
Adaptation is more Powerful than Decomposition
and Integration
The main strategy followed to develop mobile
robots has been that of Divide and Conquer
1) divide the problem into a list of hopefully
simpler sub-problems
2) build a set of modules or layers able to solve
each sub-problem
3) integrate the modules so to solve the whole
problem
Unfortunately, it is not clear how a desired
behavior should be broken down
12
Proximal and Distal Descriptions of Behaviors
Nolfi, 1997
13
Discrimination Task (1)
Nolfi, 1996,1999
14
Discrimination Task (2)
Nolfi, 1996
15
Discrimination Task (3)
Evolved robots act so to select sensory patterns
that are easy to discriminate
Scheier, Pfeifer, and Kuniyoshi, 1998
16
The Importance of Self-organization
Operating a decomposition at the level of the
distal description of behavior does not
necessarily simplify the challenge
By allowing individuals to self-organise,
artificial evolution tends to find simple
solutions that exploit the interaction between
the robot and the environment and between the
different internal mechanism of the control
system.
Nolfi, 1996,1997
17
Modularity and Behaviors
Is modularity useful in ER ?
What is the relation between self-organized
neural modules and behaviors ?
Nolfi, 1997
18
The Garbage Collecting Task (1)
Nolfi, 1997
19
The Garbage Collecting Task (2)
Nolfi, 1997
20
Evolving complex behaviors
Bootstrap problem selecting individuals directly
for their ability to solve a task only works for
simple tasks
Incremental Evolution starting with a simplified
version of the task and then progressively
increasing complexity
Including in the selection criterion also a
reward for sub-components of the desired behavior
Start with a simplified version of the task and
then progressively increase its complexity by
modifying the selection criterion
21
Visually-Guided Robots
Cliff et al. 1993 Harvey et al. 1994
22
Learning Evolution Interactions

• Different time scales, different mechanisms,
  similar effects
• Learning Advantages in Evolution Nolfi
  Floreano, 1999
• Adapt to changes that occur faster than a
  generation
• Extract information that might channel the course
  of evolution
• Help and guide evolution
• Reduce genetic complexity and increase population
  diversity
• Learning Costs in Evolution Mayley, 1997
• Delay in the ability to achieve fit behaviors
• Increased unreliability (learning wrong things)
• Physical damages, energy waste, tutoring
• Baldwin effect Baldwin, 1896 Morgan, 1896
  Waddington, 1942

23
Hinton Nowlan model 1987

• Learning samples space in the surrounding of the
  individual
• Fitness landscape is smoothed and evolution
  becomes faster
• Baldwin effect (assimilation of features normally
   learnt )
• Model constraints
• Learning task and evolutionary task are the same
• Learning is a random process
• Environment is static
• Genotype and Phenotype space are correlated

24
Different Tasks Nolfi, Elman, Parisi, 1994

• Evolving for food
• Learning predictions
• Learning mechanismBP

• Increased speed fitness
• Genetic assimilation

25
Perspectives on Landscape

• Correlated landscapes
• Parisi Nolfi, 1996

Relearning effects to compensate mutations
Harvey, 1997 (it may hold only in few cases)
26
Evolutionary Reinforcement Learning

• Evolving both action and evaluation connection
  strengths Ackley Littman, 1991
• Action module modifies weights during lifetime
  using CRBP
• ERL better better performance than E alone or RL
  alone
• Baldwin effect
• Method validated on mobile robots Medeen, 1996

27
Evolutionary Auto-teaching

• All weights genetically encoded, but one half
  teaches the other half using Delta rule Nolfi
  Parisi, 1991
• Individuals can live in one of two environments,
  randomly determined at birth
• Learning individuals adapt strategy to
  environment and display higher fitness

28
Evolution of Learning Mechanisms (1)

• Encoding learning rules, NOT learning weights
  Floreano Mondada, 1994
• Weights always initialized to random values
• Different weights can use different rules within
  same network
• Adaptive method can be applied to node encoding
  (short genotypes)

29
Sequential task unpredictable change

• Faster and better results Floreano Urzelai,
  2000
• Automatic decomposition of sequential task
• Synapses continuously change
• Evolved robots adapt online to upredictable
  change Urzelai Floreano, 2000
• Illumination
• From simulations to robots
• Environmental layout
• Different robotic platform
• Lesions to motor gears Eggenberge et al., 1999

30
Summary

• Learning is very useful for robotic evolution
• accelerates and boosts evolutionary performance
• can cope with fast changing environments
• can adapt to unpredictable sources of change
• Lamarck evolution (inherit learned properties)
  may provide short-term gains Lund, 1999, but it
  does not display all the advantages listed above
  Sasaki Tokoro, 1997, 1999
• Distinction between learning and adaptation
  Floreano Urzelai, 2000
• Adaptation does not necessary develops and
  capitalize upon new skills and knowledge
• Learning is an incremental process whereby new
  skills and knowledge are gradually acquired and
  integrated

31
Competitive Co-evolution

• Fitness of each population depends on fitness of
  opponent population. Examples
• Predator-prey
• Host-parasite
• It may increase adaptive power by producing an
  evolutionary arms race Dawkins Krebs, 1979
• More complex solutions may incrementally emerge
  as each population tries to win over the opponent
• It may be a solution to the boostrap problem
• Fitness function plays a less important role
• Continuously changing fitness landscape may help
  to prevent stagnation in local minima Hillis,
  1990

32
Co-evolutionary Pitfalls
Whereas in conventional evolution the
fitness landscape is static and fitness is a
monotonic function of progress, in competitive
co-evolution the fitness landscape can be
modified by the competitor and fitness function
is no longer an indicator of progress. Solution
Master Fitness (after evolution test each best
against all best), CIAO graphs (test each best
against all previous best).
The same set of solutions may be discovered
over and over again. This cycling behavior may
end up in very simple solutions. Solution
Retain best individuals of last few
gens (Hall-of-Fame-gtall gens).
33
Examples of Co-evolutionary Agents
Ball-catching agents Sims, 1994 Distance-based
fitness Rare good results
Simulated predator-prey Cliff Miller,
1997 Distance-based fitness 100s
generations CIAO method et al. Evolution of
sensors
34
Co-evolutionary Robots

• Energetically autonomous
• Predator-prey scenarion
• Time-based fitness
• Controllers downloaded to
• increase reaction speed
• Retain last best 5 controllers
• for testing individuals

• Predatorsvisionproximity
• Preyproximityfaster
• Predator genotype longer
• Prey has initial position
• advantage

35
Co-evolutionary Results
36
Increasing Environmental Complexity
prevents premature cycling Nolfi Floreano,
1999
37
Summary

• Competitive co-evolution is challenging because
• Fitness landscape is continuously changing
• Hard to monitor progress online
• Cycling local minima
• When environment is sufficiently complex, or
  Hall-of-Fame method is used, the system develops
  increasing more complex solutions
• It can work and capitalize on very implicit,
  internal, and behavioral fitness functions by
  exploring a large range of behaviors triggered by
  opponents
• When co-evolving adaptive mechanisms, prey resort
  to random actions whereas predators adapt online
  to the prey strategy and report better
  performance Floreano Nolfi, 1997

38
Evolvable Hardware

• Evolution of electronic circuits
  http//www.cogs.susx.ac.uk/users/adrianth/EHW_grou
  ps.html
• Evolution of body morphologies (including
  sensors)
• Why evolve hardware?
• Hardware choice constrains environmental
  interactions and the course of evolution
• Evolved solutions can be more efficient than
  those designed by humans
• Develope new adaptive materials with
  self-configuration and self-repair abilities

39
Evolutionary Control Circuits

• Thompsons unconstrained evolution
• Xilinx, family 6000, overwrite global
  synchronization
• Tone reproduction
• Robot control
• Fitness landscape studies (very rugged, neutral
  networks)

Evolvable Hardware Module for Khepera http//www.a
ai.ca
40
Evolutionary Control Circuits
41
Evolutionary Morphologies

• Evolution of Lego Structures Funes et al,,
  1997
• Bridges
• Cranes
• Extended to objects and robot bodies
• see www.demo.cs.brandeis.edu

• Example of evolved crane Funes et al,, 1997

42
Co-evolutionary Morphologies
Komosinski Ulatowski, 1999 http//www.frams.pozn
an.pl
Karl Sims, 1994
Effect of doubling sensor range on body/wheel
size Lund et al., 1997
43
Suggestions for Further Research

• Encoding and mapping of control systems
• Exploration of alternative building blocks
• Integration of growth, learning, and maturation
• Incremental and open-ended evolution
• Morphology and sensory co-evolution
• Application to large-scale circuits
• User-directed evolution
• Comparison with other adaptive techniques
• Further readings
• Nolfi, S. Floreano, D. Evolutionary Robotics.
  The Biology, Technoloy, and Intelligence of
  Self-Organizing Machines. MIT Press, October 2000
• Husbands, P. Meyer, J-A. (Eds.) Evolutionary
  Robotics. Proceedings of the 1st European
  Workshop, Springer Verlag, 1998
• Gomi, T. (Ed.) Evolutionary Robotics. Volume
  series I (1997), II (1998), III (2000), AAI
  Books.

44
Evorobot Simulator
Sources, binaries, and documentation files freely
available at http//gral.ip.rm.cnr.it/evorobot/si
mulator.html
Nolfi, 2000
