What is Engineering

1

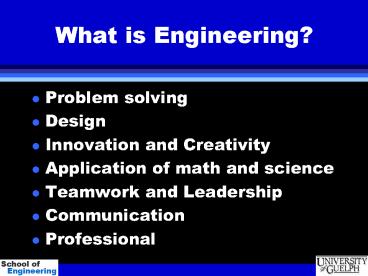

What is Engineering?

• Problem solving
• Design
• Innovation and Creativity
• Application of math and science
• Teamwork and Leadership
• Communication
• Professional

2
What do Engineers do?

• Work in industry, government or consulting
• Develop surgical instruments
• Design municipal infrastructure (water
  distribution lines, water treatment)
• Remediate a contaminated site
• Design a robotic systems for a production line in
  a factory

3
Engineer or Scientist Whats the difference?

• Science understand concepts, learn about theory
  and principles, have expertise
• Engineering applies principles of math and
  science to solve real-life problems
• Engineers and scientists often work together as
  part of a team
• Engineering is a profession P.Eng

4
Innovation in...

• Waste management
• Transportation
• Communication
• Production of food, tools, machinery
• Human health
• Space travel and exploration
• Computers in everyday life

5
Traditional Engineering Programs

• Civil Engineering
• Mechanical Engineering
• Electrical Engineering
• Chemical Engineering

6
Non-Traditional Engineering Programs

• Industrial Engineering
• Environmental Engineering
• Biological or Biomedical Engineering
• Engineering Systems Computing
• Computer or Software Engineering
• Water Resources Engineering
• Aerospace Engineering

7
Engineering at Guelph

• Biological Engineering (Biomedical or bio-process
  areas of interest)
• Engineering Systems Computing (Biomedical,
  software or mechatronics areas of interest)
• Environmental Engineering
• Water Resources Engineering

8
What do you need?
9
Design Engineering

• Design courses starting in first year
• First year - marble launcher
• Second year - windmill powered battery charger
• Third year - design of soccer playing robots
• Fourth year design courses

10
(No Transcript)
11
The Mission

• Design, build and test a device to transport a
  marble from less than a foot off the floor into a
  column of water
• Slow the descent of the marble to the greatest
  extent possible
• Maximum time under water, not touching the bottom

12
The Rules

• You may attach a device to the marble
• You may not change the marble
• Human energy can only supply potential energy to
  the launch mechanism
• If you add something to the water, it must be
  added with the marble
• No explosives can be used

13
More Rules

• Made entirely by recycled materials
• Constructed by the group
• Total equivalent cost less than 50
• Safe for a nine year old to use
• No animals may be used/harmed in the design

14
The column

• Column 4 feet high
• Water to within 2 of the top
• A shallow sheet metal funnel will be attached to
  provide a greater entry radius
• Launch mechanism can touch the metal funnel but
  not the column or the water

15
The Criteria

• How long does the marble take to descend to the
  bottom of the water column
• Cost (cheaper is better)
• Aesthetic appeal
• Simplicity of design
• Unique, innovative design

16
What is Engineering?

• Problem solving
• Design
• Innovation and Creativity
• Math and science
• Teamwork and Leadership
• Communication

17
Solution 1 Elastic launcher

• Launching arm on an elastic band, potential
  energy by drawing back the arm launches the
  marble
• Adjustable to change the range of the launcher
  and improve accuracy

18
Solution 1 Cork floater

• Marble attached to cork buoyant forces
  counteract the weight of the marble
• Flat piece of cork acts to provide drag in the
  water

19
Solution 2 Weight pulley on a ramp

• Weight (pop bottle filled with nails) attached by
  string to ½ popcan holding the marble flotation
  device over a pulley (old inline skate wheels)
• As weight falls, the can with the marble leaves
  the floor, rises to the column and tips the
  marble device into the column

20
Solution 2 Oil capsule

• Spherical capsule filled with canola oil (lighter
  than water)
• Fishing weights and paperclips to balance weight

21
Solution 3 Counter-weight lift device

• Elevator type lift wooden structure with a
  angled platform
• Free weights attached by string to the platform
• Once released from the top of the structure, the
  weights fall, and the platform rises, releasing
  the flotation device into the column

22
Solution 3 Water balloon

• Marble in a large water balloon, diameter
  slightly less than the diameter of the column
• Attached to a PVC pipe capsule containing
  alka-seltzer
• When balloon is released, water leaks into
  capsule through a drilled hole
• Reaction with alka-seltzer releases gas,
  increasing the balloon diameter

23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
The Winner

• Solution 3 Maximum suspension (5 min)
• Second runner up Solution 2 (4 min)

27
Robotic Arm Demonstration
28
(No Transcript)
29
Biological Engineering

• Applying engineering to biological systems
• Food engineering
• Biological processing
• Biomechanics or biomedical applications
• Ergonomic design applications
• Students can mix and match

30
4th Year Design Projects

• Project SOY has included projects involving
  food coatings, alternate food packaging, SOY
  substitutes
• Analysis and bioremediation of contaminated soils
• Pedobarograph
• Device for measuring forces during teeth
  grinding/Bruxism
• Surgical Instrument for back surgery

31
Engineering Systems Computing

• Computer engineering (hardware) and Software
  engineering and Systems engineering
• Embedded systems
• Elevators
• Microwaves
• VCR
• Car
• Interaction hardware, software, environment

32
4th Year Design Projects

• Portable MP3 music machine
• Robotic arm application where arms work in
  collaboration to complete a task
• Intelligent mechatronic aide for recovering
  stroke patients
• Voice recognition and translation
• Home robot controlled via the internet

33
Research Computer Vision Technologies

• Robot that has vision and interacts with and
  tracks people
• More sensitive than automated visual tracking
• Applications monitoring manufacturing, robotic
  arm routines and prevention of line shutdowns
• GM vehicle technology to prevent drivers from
  falling asleep, driver assistant for traffic
  surveillance

34
What is in our water?

• Our water originates from lakes, reservoirs,
  groundwater and must be treated before use
• Water recycling - Guelphs wastewater is
  Brantfords drinking water
• Escherichia coli (O157H7), Giardia lamblia,
  Cryptosporidium parvum

35
What is in our water?
36
UV Disinfection
37
What is UV light?
38
The First Year
