Distributed File Systems

1

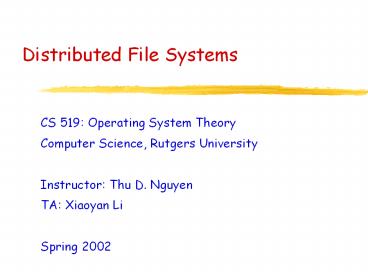

Distributed File Systems

• CS 519 Operating System Theory
• Computer Science, Rutgers University
• Instructor Thu D. Nguyen
• TA Xiaoyan Li
• Spring 2002

2
File Service

• Implemented by a user/kernel process called file
  server
• A system may have one or several file servers
  running at the same time
• Two models for file services
• upload/download files move between server and
  clients, few operations (read file write file),
  simple, requires storage at client, good if whole
  file is accessed
• remote memory access files stay at server, reach
  interface for many operations, less space at
  client, efficient for small accesses

3
Directory Service

• Provides naming usually within a hierarchical
  file system
• Clients can have the same view (global root
  directory) or different views of the file system
  (remote mounting)
• Location transparent location of the file
  doesnt appear in the name of the file
• ex /server1/dir1/file specifies the server but
  not where the server is located -gt server can
  move the file in the network without changing the
  path
• Location independence a single name space that
  looks the same on all machines, files can be
  moved between servers without changing their
  names -gt difficult

4
Two-Level Naming

• Symbolic name (external), e.g. prog.c binary
  name (internal), e.g. local i-node number as in
  Unix
• Directories provide the translation from symbolic
  to binary names
• Binary name format
• i-node no cross references among servers
• (server, i-node) a directory in one server can
  refer to a file on a different server
• Capability specifying address of server, number
  of file, access permissions, etc
• binary_name binary names refer to the
  original file and all of its backups

5
File Sharing Semantics

• UNIX semantics total ordering of R/W events
• easy to achieve in a non-distributed system
• in a distributed system with one server and
  multiple clients with no caching at client, total
  ordering is also easily achieved since R and W
  are immediately performed at server
• Session semantics writes are guaranteed to
  become visible only when the file is closed
• allow caching at client with lazy updating -gt
  better performance
• if two or more clients simultaneously write one
  file (last one or non-deterministically) replaces
  the other

6
File Sharing Semantics (contd)

• Immutable files create and read file operations
  (no write)
• writing a file means to create a new one and
  enter it into the directory replacing the
  previous one with the same name atomic
  operations
• collision in writing last copy or
  nondeterministically
• what happens if the old copy is being read
• Transaction semantics mutual exclusion on file
  accesses either all file operations are
  completed or none is. Good for banking systems

7
File System Properties

• Observed in a study by Satyanarayanan (1981)
• most files are small (lt 10K)
• reading is much more frequent than writing
• most RW accesses are sequential (random access
  is rare)
• most files have a short lifetime -gt create the
  file on the client
• file sharing is unusual -gt caching at client
• the average process uses only a few files

8
Server System Structure

• File directory service combined or not
• Cache directory hints at client to accelerate the
  path name look up directory and hints must be
  kept coherent
• State information about clients at the server
• stateless server no client information is kept
  between requests
• stateful server servers maintain state
  information about clients between requests

9
Stateless vs. Stateful
10
Caching

• Three possible places servers memory, clients
  disk, clients memory
• Caching in servers memory avoids disk access
  but still network access
• Caching at clients disk (if available) tradeoff
  between disk access and remote memory access
• Caching at client usually in main memory
• inside each process address space no sharing at
  client
• in the kernel kernel involvement on hits
• in a separate user-level cache manager flexible
  and efficient if paging can be controlled from
  user-level
• Server-side caching eliminates coherence problem.
  Client-side cache coherence? Next

11
Client Cache Coherence in DFS

• How to maintain coherence (according to a model,
  e.g. UNIX semantics or session semantics) of
  copies of the same file at various clients
• Write-through writes sent to the server as soon
  as they are performed at the client -gt high
  traffic, requires cache managers to check
  (modification time) with server before can
  provide cached content to any client
• Delayed write coalesces multiple writes better
  performance but ambiguous semantics
• Write-on-close implements session semantics
• Central control file server keeps a directory of
  open/cached files at clients -gt Unix semantics,
  but problems with robustness and scalability
  problem also with invalidation messages because
  clients did not solicit them

12
File Replication

• Multiple copies are maintained, each copy on a
  separate file server - multiple reasons
• Increase reliability file accessible even if a
  server is down
• Improve scalability reduce the contention by
  splitting the workload over multiple servers
• Replication transparency
• explicit file replication programmer controls
  replication
• lazy file replication copies made by the server
  in background
• use group communication all copies made at the
  same time in the foreground
• How replicas should be modified? Next

13
Modifying Replicas Voting Protocol

• Updating all replicas using a coordinator works
  but is not robust (if coordinator is down, no
  updates can be performed) gt Voting updates (and
  reads) can be performed if some specified of
  servers agree.
• Voting Protocol
• A version (incremented at write) is associated
  with each file
• To perform a read, a client has to assemble a
  read quorum of Nr servers similarly, a write
  quorum of Nw servers for a write
• If Nr Nw gt N, then any read quorum will contain
  at least one most recently updated file version
• For reading, client contacts Nr active servers
  and chooses the file with largest version
• For writing, client contacts Nw active servers
  asking them to write. Succeeds if they all say
  yes.

14
Modifying Replicas Voting Protocol

• Nr is usually small (reads are frequent), but Nw
  is usually close to N (want to make sure all
  replicas are updated). Problem with achieving a
  write quorum in the presence of server failures
• Voting with ghosts allows to establish a write
  quorum when several servers are down by
  temporarily creating dummy (ghost) servers (at
  least one must be real)
• Ghost servers are not permitted in a read quorum
  (they dont have any files)
• When server comes back it must restore its copy
  first by obtaining a read quorum

15
Network File System (NFS)

• A stateless DFS implemented at Sun
• An NFS server exports directories
• Clients access exported directories by mounting
  them
• Because NFS is stateless, OPEN and CLOSE
  operations are not needed in the server
  (implemented at the client)
• NFS provides file locking but UNIX file semantics
  is not achieved because of client caching
• Write through protocol, but delay is possible
  dirty cache blocks are sent back by clients in
  chunks, every 30 sec or at close
• a timer is associated with each cache block at
  the client (3 sec for data blocks, 30 sec for
  directory blocks). When the timer expires, the
  entry is discarded (if clean, of course)
• when a file is opened, the last modification time
  at the server is checked

16
Recent Research in DFS

• Petal Frangipani (DEC SRC) 2-layer DFS system

17
Petal Distributed Virtual Disks

• A distributed storage system that provides a
  virtual disk abstraction separate from the
  physical resource
• The virtual disk is globally accessible to all
  Petal clients on the network
• Virtual disks are implemented on a cluster of
  servers that cooperate to manage a pool of
  physical disks
• Advantages
• recover from any single failure
• transparent reconfiguration and expandability
• load and capacity balancing
• low-level service (lower than a DFS) that handles
  distribution problems

18
Petal
19
Virtual to Physical Translation

• ltvirtual disk, virtual offsetgt -gt ltserver,
  physical disk, physical offsetgt
• Three data structures virtual disk directory,
  global map, and physical map
• The virtual disk directory and global map are
  globally replicated and kept consistent
• Physical map is local to each server
• One level of indirection (virtual disk to global
  map) is necessary to allow transparent
  reconfiguration. Well discuss reconfiguration
  soon

20
Virtual to Physical Translation (contd)

• The virtual disk directory translates the virtual
  disk identifier (like volume id) into a global
  map identifier
• The global map determines the server responsible
  for translating the given offset (a virtual disk
  may be spread over multiple physical disks). The
  global map also specifies the redundancy scheme
  for the virtual disk
• The physical map at specific server translates
  global map identifier and the offset to a
  physical disk and an offset within that disk.
  Physical map is similar to a page table

21
Support for Backup

• Petal simplifies a clients backup procedure by
  providing a snapshot mechanism
• Petal generates snapshots of virtual disks using
  copy-on-write (backup files are pointing to old
  blocks with write protection). Creating a
  snapshot requires pausing the clients
  application to guarantee consistency
• A snapshot is a virtual disk that cannot be
  modified
• Snapshots require a modification to the
  translation scheme. The virtual disk directory
  translates a virtual disk id into a pair ltglobal
  map id, epoch gt where epoch is incremented at
  each snapshot
• At each snapshot a new tuple with a new epoch is
  created in the virtual disk directory. The
  snapshot takes the old epoch
• All accesses to the virtual disk are made using
  the new epoch , so that any write to the
  original disk create new entries in the new epoch
  rather than overwrite the blocks in the snapshot

22
Virtual Disk Reconfiguration

• Needed when a new server is added or the
  redundancy scheme is changed
• Steps to perform it at once (not incrementally)
  and in the absence of any other activity
• create a new global map with desired redundancy
  scheme and server mapping
• change all virtual disk directories to point to
  the new global map
• redistribute data to the severs according to the
  translation specified in the new global map
• The challenge is to perform it incrementally and
  concurrently with normal client requests

23
Incremental Reconfiguration

• First two steps as before step 3 done in
  background starting with the translations in the
  most recent epoch that have not yet been moved
• Old global map is used to perform read
  translations which are not found in the new
  global map
• A write request only accesses the new global map
  to avoid consistency problems
• Limitation the mapping of the entire virtual
  disk must be changed before any data is moved -gt
  lots of new global map misses on reads -gt high
  traffic. Solution relocate only a portion of
  the virtual disk at a time. Read requests for
  portion of virtual disk being relocated cause
  misses, but not requests to other areas

24
Redundancy with Chained Data Placement

• Petal uses chained-declustering data placement
• two copies of each data block are stored on
  neighboring servers
• every pair of neighboring servers has data blocks
  in common
• if server 1 fails, servers 0 and 2 will share
  servers read load (not server 3)

server 0 server 1 server 2 server 3 d0 d1
d2 d3 d3 d0 d1
d2 d4 d5 d6 d7 d7 d4
d5 d6
25
Chained Data Placement (contd)

• In case of failure, each server can offload some
  of its original read load to the next/previous
  server. Offloading can be cascaded across
  servers to uniformly balance load
• Advantage with a simple mirrored redundancy, the
  failure of a server would result in a 100 load
  increase to another server
• Disadvantage less reliable than simple mirroring
  - if a server fails, the failure of either one of
  its two neighbor servers will result in data
  becoming unavailable
• In Petal, one copy is called primary, the other
  secondary
• Read requests can be serviced by any of the two
  servers, while write requests must always try the
  primary first to prevent deadlock (blocks are
  locked before reading or writing, but writes
  require access to both servers)

26
Read Request

• The Petal client tries primary or secondary
  server depending on which one has the shorter
  queue length. (Each client maintains a small
  amount of high-level mapping information that is
  used to route requests to the most appropriate
  servers. If a request is sent to an
  inappropriate server, the server returns an error
  code, causing the client to update its hints and
  retry the request)
• The server that receives the request attempts to
  read the requested data
• If not successful, the client tries the other
  server

27
Write Request

• The Petal client tries the primary server first
• The primary server marks data busy and sends the
  request to its local copy and the secondary copy
• When both complete, the busy bit is cleared and
  the operation is acknowledged to the client
• If not successful, the client tries the secondary
  server
• If the secondary server detects that the primary
  server is down, it marks the data element as
  stale on stable storage before writing to its
  local disk
• When the primary server comes up, the primary
  server has to bring all data marked stale
  up-to-date during recovery
• Similar if secondary server is down

28
Petal Prototype
29
Petal Performance - Latency
Single client generates requests to random disk
offsets
30
Petal Performance - Throughput
Each of 4 clients making random requests to
single VD. Failed configuration one of 4
servers has crashed
31
Petal Performance - Scalability
32
Frangipani

• Petal provides disk interface -gt need a file
  system
• Frangipani is a file system designed to take full
  advantage of Petal
• Frangipanis main characteristics
• All users are given a consistent view of the same
  set of files
• Servers can be added without changing
  configuration of existing servers or interrupting
  their operation
• Tolerates and recovers from machine, network, and
  disk failures
• Very simple internally a set of cooperating
  machines that use a common store and synchronize
  access to that store with locks

33
Frangipani

• Petal takes much of the complexity out of
  Frangipani
• Petal provides highly available storage that can
  scale in throughput and capacity
• However, Frangipani improves on Petal, since
• Petal has no provision for sharing the storage
  among multiple clients
• Applications use a file-based interface rather
  than the disk-like interface provided by Petal
• Problems with Frangipani on top of Petal
• Some logging occurs twice (once in Frangipani and
  once in Petal)
• Cannot use disk location in placing data, because
  Petal virtualizes disks
• Frangipani locks entire files and directories as
  opposed to individual blocks

34
Frangipani Structure
35
Frangipani Disk Layout

• A Frangipani file system uses only 1 Petal
  virtual disk
• Petal provides a 264 bytes of virtual disk
  space
• Commits real disk space when actually used
  (written)
• Frangipani breaks disk into regions
• 1st region stores configuration parameters and
  housekeeping info
• 2nd region stores logs each Frangipani server
  uses a portion of this region for its log. Can
  have up to 256 logs.
• 3rd region holds allocation bitmaps, describing
  which blocks in the remaining regions are free.
  Each server locks a different portion.
• 4th region holds inodes
• 5th region holds small data blocks (4 Kbytes
  each)
• Remainder of Petal disk holds large data blocks
  (1 Tbyte each)

36
Frangipani File Structure

• First 16 blocks (64 KB) of a file are stored in
  small blocks
• If file becomes larger, store the rest in a 1 TB
  large block

37
Frangipani Dealing with Failures

• Write-ahead redo logging of metadata user data
  is not logged (but Petal takes care of that).
• Each Frangipani server has its own private log
• Only after a log record is written to Petal does
  the server modify the actual metadata in its
  permanent locations
• If a server crashes, the system detects the
  failure and another server uses the log to
  recover
• Because the log is on Petal, any server can get
  to it.

38
Frangipani Synchronization Coherence

• Frangipani has a lock for each log segment,
  allocation bitmap segment, and each file
• Multiple-reader/single-writer locks. In case of
  conflicting requests, the owner of the lock is
  asked to release or downgrade it to remove the
  conflict
• A read lock allows a server to read data from
  disk and cache it. If server is asked to release
  its read lock, it must invalidate the cache entry
  before complying
• A write lock allows a server to read or write
  data and cache it. If a server is asked to
  release its write lock, it must write dirty data
  to disk and invalidate the cache entry before
  complying. If a server is asked to downgrade the
  lock, it must write dirty data to disk before
  complying

39
Frangipani Lock Service

• Fully distributed lock service for fault
  tolerance and scalability
• How to release locks owned by a failed Frangipani
  server?
• The failure of a server is discovered when its
  lease expires. A lease is obtained by the
  server when it first contacts the lock service.
  All locks acquired are associated with the lease.
  Each lease has an expiration time (30 seconds)
  after its creation or last renewal. A server
  must renew its lease before it expires
• When a server fails, the locks that it owns
  cannot be released until its log is processed and
  any pending updates are written to Petal

40
Frangipani Performance
41
Frangipani Performance
42
Frangipani Scalability
43
Frangipani Scalability
44
Frangipani Scalability
