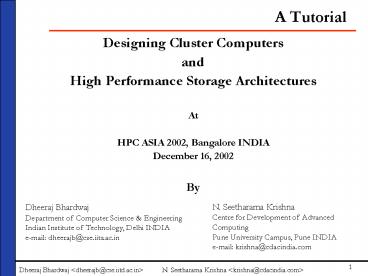

A Tutorial

1
A Tutorial

• Designing Cluster Computers
• and
• High Performance Storage Architectures
• At
• HPC ASIA 2002, Bangalore INDIA
• December 16, 2002
• By

N. Seetharama Krishna Centre for Development of
Advanced Computing Pune University Campus, Pune
INDIA e-mail krishna_at_cdacindia.com
Dheeraj Bhardwaj Department of Computer Science
Engineering Indian Institute of Technology,
Delhi INDIA e-mail dheerajb_at_cse.iits.ac.in
2
Acknowledgments

• All the contributors of LINUX
• All the contributors of Cluster Technology
• All the contributors in the art and science of
  parallel computing
• Department of Computer Science Engineering, IIT
  Delhi
• Centre for Development of Advanced Computing,
  (C-DAC) and collaborators

3
Disclaimer

• The information and examples provided are based
  on the Red Hat Linux 7.2 installation on the
  Intel PCs platforms ( our specific hardware
  specifications)
• Much of it should be applicable to other
  versions of Linux,
• There is no warranty that the materials are error
  free
• Authors will not be held responsible for any
  direct, indirect, special, incidental or
  consequential damages related to any use of these
  materials

4
Outline

• Introduction
• Overview of storage components
• Overview of Storage Models
• Files Systems
• I/O
• Designing the Storage Architectures
• Discussions

• Introduction
• Brief history of storage technologies
• Importance of storage subsystems
• Recent requirements and developments

5
Introduction
Brief History of Storage Technologies - Make 2-3
slides
6
Introduction
Importance of Storage Subsystems

• Greater Demand from Technical and commercial
  users for
• Higher capacity to meet the growing demands
• Higher performance for meeting the increased user
  base
• Very high performance to meet the balance between
  compute and I/O in technical computing.

7
Introduction
Importance of Storage Subsystems

• Greater Demand from Technical and commercial
  users for
• Manageability challenges for managing data
• A large user base demands
• Large capacity
• Ever increasing demand for through put
• Ever changing application configuration needs

8
Introduction

• Required Capabilities
• Meet the demands of Multi Tera Flop Compute power
• Scalable from 1 TF needs to 10 TF needs
• Network-centered Architecture
• Scalable in performance and capacity
• Centralized back up and archive and management

9
Introduction

• Required Capabilities
• In Built Parallel operation
• A Design Based on Standard Components
• Multiple Hierarchies and Class of Service
• Heterogeneous compute systems support
• Large file size support
• Balanced architecture for mixed work load

10
Introduction
Todays Storage Challenges

• Managing the increasing Volume of Data
• Providing continuous access to information
• Adopting an evolving set of Storage Technologies
• Investment protection on legacy resources
• Multi vendor Inter operability Issues

11
Introduction
Todays Storage Challenges

• Solution
• An open, standards-based approach to storage
  management must be the rule, not the exception
• Open standards address key concerns
• Supporting changing requirements
• Managing heterogeneous device topologies
• Incorporating best-of-breed products to create a
  complete storage solution.

12
Objective

• To create state of the art Scalable, Enterprise
  wide, Interoperable, Manageable, Modular and High
  Performance Storage involving
• Study of existing technologies
• Sizing the requirements capacity and
  performance
• Architecture to meet HPC and Non HPC user
  community.
• Meet the mixed and ever changing work load
  patterns.

13
Objective

• To create state of the art Scalable, Enterprise
  wide, Interoperable, Manageable, Modular and High
  Performance Storage involving
• Central storage facility accessible to authentic
  in house remote users.
• Central Back up facility to take backup of
  storage as well as local clients.
• Cost effective Storage Solution

14
Outline

• Introduction
• Overview of storage components
• Overview of Storage Models
• Files Systems
• Parallel I/O
• Storage management Software
• Security
• Designing the Storage Architectures
• Discussions

• Overview of Storage Components
• Disks
• Interfaces
• Protocols (SCSI,FC-AL,iSCSI,FC-IP)
• Secondary Storage (RAID)
• Tertiary Storage (Back tapes)

15
Storage Components - Disks
Please add at least one slide for one component
16
Storage Components - Interfaces
Please add at least one slide for one component
17
Storage Components - Protocols
Please add at least one slide for one component
18
Storage Components Secondary Storage (RAID)
Please add at least one slide for one component
19
Storage Components Tertiary Storage (Tape)
Please add at least one slide for one component
20
Outline

• Introduction
• Overview of storage components
• Overview of Storage Models
• Files Systems
• Parallel I/O
• Storage management Software
• Security
• Designing the Storage Architectures
• Discussions

• Overview of Storage Models
• DAS
• NAS
• SAN
• FAS (NAS SAN co-exists)

21
Overview of Storage Models - DAS

• Direct Attached Storage (DAS) Model

22
Direct Attached Storage
Please write Features. Advantages and
Disadvantages
23
Network Attached Storage (NAS)

• Network Attached Storage (NAS) Model

24
Network Attached Storage (NAS)
Please write Features. Advantages and
Disadvantages
25
Storage Area Network (SAN)

• Storage Area Network (SAN) Model

26
Storage Area Network (SAN)
Please write Features. Advantages and
Disadvantages
27
Fiber Attached Storage (FAS)

• Fiber Attached Storage (FAS) NAS and SAN
  co-exists

28
NAS and SAN co- exists
Justify NAS and SAN co-existence Pick up from
our papers
29
Advantages of FAS

• Centralizing management to improve staff
  efficiency for monitoring and administration
• Enabling storage to be more readily available to
  any servers on the network, making stored
  information a more valuable asset, and increasing
  the utility of the network itself.
• Improving the availability, usefulness, and
  distribution of business applications.
• Making automation simpler, and reducing IT
  operational costs and staffing requirements.
• Providing greater visibility into the
  availability and performance of storage
  components.
• Facilitating continuous availability
  requirements.

30
Outline

• Introduction
• Overview of storage components
• Overview of Storage Models
• Files Systems
• Parallel I/O
• Storage management Software
• Security
• Designing the Storage Architectures
• Discussions

• File Systems
• Overview
• File System Calculations
• VFS
• CFS
• PFS
• HPSS

31
File System Calculation
Aggregate Bandwidth Rates for One Parallel Job Aggregate Bandwidth Rates for One Parallel Job
Teraflops 1
Memory Size (GB) 700GB
I/O Rates (GB/s) 1.17 2

• Assumptions
• The lower estimates of memory it is assumed that
  for n teraflops machine n3/4 TB of memory is
  required.
• The higher estimates of memory it is assumed that
  for n teraflops machine 2/3n Terabytes is
  required.
• Reference
• Statement of Work SGS File System
• Report DOE National Nuclear Security
  Administration , USA , April 2001

32
Assumptions for File System Capacity Calculations

• The lower I/O rate estimates are based on the
  throughput needed to store one half of the
  smaller memory in five minutes.
• (1/2 700GB) / (5 60s) 1.17 GB/sec.
• The higher I/O rate estimates are assumed that
  applications will store one byte for every 500
  floating point operations. This is a common thumb
  rule used.
• 1TF / 500 Flops 2GB/sec

33
Assumptions for File System Capacity Calculations

• For number of directories it is assumed that very
  user will have approximately 5000 directories.
• 300 users 5000 directories 1.5106
•  For number of files it is assumed that minimum
  25 files per directory and maximum 2,00,000 files
  per directory.
• Minimum 1.5106 directories 25 files
  37.5 106
• Maximum 1.5106 directories 2105 files
  3 1011

34
Assumptions for File System capacity calculations

• File system size is derived using formula
• File system size 1.25 (7 to 18 Peak
  Performance) TB
• Minimum 1.25 (7 1 TF) 8.75 TB
• Minimum 37.5 106 256K 9.6TB
• Maximum 1.25 (18 1TF) 22.5 TB
• For number of devices/subsystem we are assuming
  that 72GB drives are used.
• 8.75 TB / 72GB ? 121 drives
• 22.5 TB / 72GB ? 312 drives

35
In Summary
File System Capacities File System Capacities
Teraflops 1
Number of Users 300
Number of Directories 1.5106
Number of Files 37.5 106 to 3 1011
File System size (TB) 8.75 22
Number of devices/subsystem 121 - 312 (72GB drives)
36
I/O Bandwidth

• The File system Maximum Sustained Bandwidth can
  be obtained by the formula
• Bfs N Bdrives E
•
•
• Minimum Bfs 121 100 MB/s 0.85
  10.28 GB/s
• Maximum Bfs 312 100 MB/s 0.85
  22.70 GB/s

Bfs File System Max Sustained Bandwidth
N Number of Drives
Bdrives Sustained bandwidth of the slowest disk
E File system efficiency factor (0.85)
37
Parallel File System

• PFS is designed as a client-server system with
  multiple I/O servers, which have disk/RAID
  attached to them. Each PFS file is striped across
  the disk on the I/O nodes.
• PFS also has a manager that handles only metadata
  operations such as permission checking for file
  creation, open, close and remove operations.
• Direct Parallel I/O
• All participating clients access the storage
  directly via request to parallel I/O server.
• This provides the maximum throughput as it by
  passes the overheads of intermediate file
  servers.

38
Cluster File System
39
Outline

• Introduction
• Overview of storage components
• Overview of Storage Models
• Files Systems
• Parallel I/O
• Storage management Software
• Security
• Designing the Storage Architectures
• Discussions

• Parallel I/O
• Introduction
• Parallel I/O Approaches
• (You can add some more)

40
Introduction
Parallel Serial I/O Write the basic differences
41
I/O Approaches

• Following four I/O approaches can be used for
  data distribution across the participating
  processors in the parallel program
•  UNIX I/O on NFS
• Parallel I/O on NFS
• PFS UNIX I/O with PFS support
• Parallel I/O with PFS support
• Direct Parallel I/O
• UNIX I/O on NFS
• UNIX I/O, process with rank zero reads the input
  file using standard UNIX read, partitions it and
  distributes it to other processors.
• The file is NFS mounted on the processor with
  process rank zero only.
• Parallel I/O on NFS
• All the processors open the file concurrently and
  read their required data blocks by moving offset
  pointer to the beginning of their corresponding
  data block in the input file.
• File is NFS mounted from server to all the
  compute nodes.

42
I/O Approaches

• UNIX I/O with PFS support
• Define these terms
• Parallel I/O with PFS support
• Define these terms
• Direct Parallel I/O

43
Outline

• Introduction
• Overview of storage components
• Overview of Storage Models
• Files Systems
• Parallel I/O
• Storage management Software
• Security
• Designing the Storage Architectures
• Discussions

• Storage Management Software
• Overview
• Features
• Details of available software and their features
• Etc

44
Storage Management Software
Please make few slides --- say 8-10
45
Outline

• Introduction
• Overview of storage components
• Overview of Storage Models
• Files Systems
• Parallel I/O
• Storage management Software
• Security
• Designing the Storage Architectures
• Discussions

• Storage Security
• Overview
• Other aspects

46
Storage Security
Make some slides on Security aspects of Storage
systems e.g. Kerberose etc
47
Outline

• Introduction
• Overview of storage components
• Overview of Storage Models
• Files Systems
• Parallel I/O
• Storage management Software
• Security
• Designing the Storage Architectures
• Discussions

• Design of Storage Architecture
• Approach
• Traditional
• Ideal
• Logical
• Proposed
• Etc

48
Approach on Architecture
Compute Nodes

• File Servers and File Systems
• To support a high bandwidth we have to use
  special purpose file systems rather than the
  traditional file systems such as UFS, CIFS.
• Cluster File System (CFS) is a highly available,
  distributed, cache-coherent file system that
  allows UFS file system to be concurrently
  accessed on multiple cluster nodes
• Parallel File System (PFS) is necessary to stripe
  the data file across the multiple disks to
  increase the total I/O throughput.
• A set of File Servers configured with cluster
  file system (CFS) and parallel file system (PFS)
  ensures the high availability and throughput of
  the data to the users
• Distribution Networks
• As of today, there are two networks (standard
  Ethernet and proprietary) available to be used to
  connect compute nodes to file servers for data
  transfer.
• A third approach, extending the SAN to directly
  to compute nodes and avoid file servers (Direct
  parallel I/O) will reduce the network bottleneck
  but an expensive option.

C1
C2
C35
PARAM System Area Network
C36
C37
C70
GigabitSwitch
Fiber Switch
Storage Array
49
Design of Architecture

• We propose an architecture, which is the mix of
  DAS, NAS and SAN connected together to the High
  Performance Computing Cluster.
• We have chosen Direct Attached Storage directly
  connected to the application server for catering
  its application development need such as
  compliers, tools, source codes etc.
• It is advisable to keep the application and data
  storage spaces separate to get the best
  performance and to avoid the single point of
  failure.
• To achieve a high throughput a massive scalable
  storage system by combining multiple disk arrays
  or a single large array with large number of
  FC-AL interfaces.
• To achieve the throughput of multi Gigabytes at
  file system level, we have to size the storage
  array output to twice the requirement.

50
Design of Architecture

• We also have to size the number of disks, which
  can deliver desired sustained performance.
• Our approach of keeping the applications data on
  to DAS and sequential users data on NAS and high
  performance computing data on SAN attached
  storage, will automatically separate the data
  from each other
• The highly automated tape library connected to
  the storage array, NAS and DAS with the Fiber
  channel interface and accompanied by the data
  acquisition backup master server, will help to
  take the online backup in the server free, and
  LAN free environment.
• This will free the CPUs of the file servers for
  the backup and restore jobs and focus on serving
  the high performance computing users.

51
Scalability

• The quantities, which should scale are
• Access
• Storage capacity
• SAN
• I/O bandwidth
• Access Parallel access to multiple devices.
• Storage Capacity This can be addressed in two
  ways
• Big Monolithic Storage Box Support several
  hundreds of disks but Realizing a large disk
  array may have limitations in terms of bandwidth
  scalability and reliability.
• Multiple RAID arraysconnected to the fiber
  channel SAN and configure them as a single
  storage unit to enhance the capacity without
  affecting the bandwidth.
• SAN Chassis based storage directors where they
  can scale from eight ports to few hundreds of
  ports. This will provide a non-blocking,
  full-fledged scalability in SAN.
• I/O bandwidth Parallel File System (PFS) that
  stripes the data file across the multiple disks
  in the array through the I/O nodes to increase
  the total I/O throughput.

52
Typical Storage Architecture
SystemAreaNetwork
Backup / Archive System
TapeSystem
Cluster A
StorageAreaNetwork
NFS/CIFSClients
Visualization
Cluster A File System
LAN
SystemAreaNetwork
WAN
TootherSites
Cluster B
NFS, CIFS Servers
Cluster B File System
53
Ideal Storage Architecture
SystemAreaNetwork
SystemAreaNetwork
Cluster A
Cluster B
File System Servers (CFS/PFS)
NFS/CIFSClients
Visualization
Gigabit LAN
GPFS
Storage AreaNetwork
Backup Archive Server
TootherSites
NFS, CIFS Servers
WAN
TapeSystem
54
Physical Storage Components connectivity
I/O Storage Nodes
I/O Spare, B/up Dev.,Storage Mgr
M0
32 Port Switch - A
32 Port Switch - B
Tape Library
Disk Subsystem
Disk Subsystem
Disk Subsystem
Disk Subsystem
55
Network Based Scalable High Performance Storage
Architecture
PARAM 20000
Cluster of File Servers running Cluster File
System
Miscellaneous Servers
Internet
C1
C2
C35
FS1
FS2
FS3
FS4
M0
M1
M2
M3
Router
PARAM System Area Network
FS5
FS6
FS7
FS8
M4
M5
M6
M7
C36
C37
C70
DAS
M0 SchedulerM1 Spare ServerM2
Developmental User Nodes M3 Storage Mgmt.
ServerM4 Visualization ServerM5 Gateway
Authentication ServerM6 Backup ServerM7
Spare Server FS1- FS8 File Servers C1 C70
Compute Nodes
Gigabit
Storage Area Network
FastEthernet
FC-AL SWITCH2 GBps
NAS Server
1TB 3TB
PARAM System Area Network
Project 1
Storage Array
BackupLibrary
Trunk Ethernet
..
Gigabit Ethernet
Project n
FC-AL
MIS
2TB 20TB
20TB 200 TB
Fast Ethernet
56
Outline

• Introduction
• Overview of storage components
• Overview of Storage Models
• Files Systems
• Parallel I/O
• Storage management Software
• Security
• Designing the Storage Architectures
• Discussions

• Discussions
• Suggested technologies
• Future
• Other aspects
• Conclusion

57
Recommended Technologies

• Disks Min 72 GB , Dual Port FC-AL ,10000 RPM
• Protocol SCSI
• Interface FC-AL Interface
• Storage Connectivity 2 Gb/s Multi-Path Fiber
  Switches
• Storage Array Host Intelligence Based with
  Modular and linear scale up Architecture
• File System Access Direct ,PFS and NFS V4
  thro Gigabit N/W
• File System POSIX Compliant IEEE/ANSI 1003.X
  Cluster File System with PFS
• Back Up Fiber tape Libraries with HSM
• Compute node Access through NFS and PFS on
  Gigabit Ethernet .
• Architecture FAS Based, Combination of DAS,
  NAS SAN

58
Futuristic C-DAC Enterprise File System by 2005
VisualizationWorkstation
RD Project SMP /Numa Systems
SpecialPurposeComputers
PARAM 20000
DB Servers
Suitable Architecture for GRID
