PFO update

1

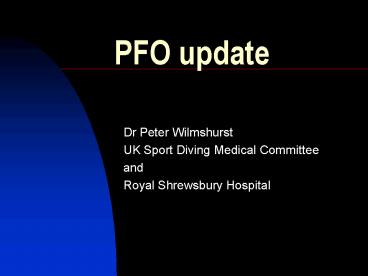

PFO update

• Dr Peter Wilmshurst
• UK Sport Diving Medical Committee
• and
• Royal Shrewsbury Hospital

2
Syndromes associated with right to left shunts
(PFO)

• Causal association
• Arterial hypoxaemia
• Paradoxical thromboembolism and stroke
• Paradoxical gas embolism and decompression
  illness
• Possible causal association
• Migraine with aura
• Transient global amnesia

3
Inter-relation of PFO syndromes

• Migraine and increased risk of stroke
• Migraine linked to transient global amnesia
  (Cromwell et al. Arch Neurol 19844175-9)
• Migraine and increases risk of decompression
  illness (Engel et al. War Medicine 19445304-14)
  and the link is a large PFO or other shunt
  (Clinical Science 2001100215-20)

4
(No Transcript)
5
Causes of decompression illness

• Missed decompression stops - causes excessive
  bubble formation, which overwhelms the pulmonary
  filter to reach the systemic circulation
  (Provocative dives)
• Lung disease and rapid ascent - causes pulmonary
  barotrauma with gas invasion of pulmonary veins
  (Often conservative dives)
• Right-to-left shunts venous bubbles by-pass the
  pulmonary filter (Dives intermediate severity)

6
PFOs and decompression illness

• A right to left shunt is usually across a foramen
  ovale (PFO).
• Paradoxical gas embolism causes neurological,
  cardiovascular and skin decompression illness
  (DCI).
• It causes 52 of neurological DCI. (Clinical
  Science 20009965-75)
• It causes 78 of skin DCI. (Clinical Science
  2001100539-542)

7
(No Transcript)
8
Causes of decompression illness
9
What is required for shunt mediated DCI?

• A large right to left shunt.
• Dive profile liberates venous bubble.
• Dive profile causes an appropriate inert gas load
  in critical tissues to amplify embolic bubbles.
  (Note -DCI does not occur after contrast
  echocardiography)

10
Prevalence and size of shunts

• 27.3 of population have a PFO. (Mayo Clin Proc
  19845917-20)
• Using our criteria/technique 27 .6 of controls
  have a shunt but only 7.3 are large - 4.9 at
  rest and 2.4 only with Valsalva. (Clinical
  Science 20009965-75)
• Risk of DCI is related to shunt size.

11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
Closing a PFO in a diver who had decompression
illness

• The shunt must be large and history specific.
• Confirm that DCI was not the result of lung
  disease or a provocative dive.
• The options are to stop diving or to have
  transcatheter closure of PFO (or ASD) or, if
  amateur, to modify diving to reduce nitrogen
  load.
• Check that there is no significant residual shunt
  before return to diving after PFO closure.

15
Sub-atmospheric decompression illness

• During hypobaric experiments 6-39 of subjects
  have heavy venous bubbling.
• Serious DCI (neurological, circulatory and
  cutaneous effects) is sometimes encountered.
  There is usually a resting PFO.
• Insufficient numbers to be sure about the role of
  PFO (or other shunts) in subatmospheric DCI, but
  enough evidence to advise that those with shunts
  should not be astronauts.

16
The link between migraine and decompression
illness

• Known since 1944 that individuals with migraine
  with aura have increased risk of neurological
  DCI. (War Medicine 19445304-14)
• Post dive migraine aura is virtually diagnostic
  of a large shunt and indicates increased risk of
  DCI. (Clinical Science 2001100215-200)
• Migraine with aura can occur after contrast
  echocardiography in those with a large shunt.

17
Right to left shunts and migraine with aura

• Using transcranial Doppler it was shown that
  right to left shunts are present in 41-48 of
  patients with migraine with aura, 23 of those
  with migraine without aura and 16-20 of controls
  (p lt 0.01).
• (Del Sette et al. Cerebrovasc Dis 19988327-330
  Anzola et al. Neurology 1999521622-1625.)

18
Migraine with aura linked to right-to left shunts

• 52.9 of divers with large shunts at rest have
  migraine with aura in every day life v 11.8 of
  divers without shunts.
• There is a size-prevalence relationship.
• Migraine without aura is not related to the
  presence of a shunt.
• Post dive migraine aura is virtually diagnostic
  of a large shunt.
• (Clinical Science 2005108 365-7)

19
Shunt size and migraine with aura
20
Inheritance of PFO and ASD and the relationship
to familial migraine with aura (MA)

• MA is commonly dominantly inherited.
• There are a few reports of familial ASDs.
• We investigated whether PFOs and small ASDs are
  inherited and whether this is related to the
  inheritance of MA in 20 families. (Heart
  2004901315-20)

21
Methods

• 20 families in which the probands had paradoxical
  embolism were studied.
• Contrast echocardiography blind to neurological
  history in family members.
• Migraine/headache history blind to contrast
  echocardiography.

22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
Findings

• Atrial shunts (large PFOs and ASDs) are
  dominantly inherited.
• When a proband had MA 71 of first degree
  relatives with significant shunt had MA compared
  with 21 without a significant shunt (plt0.02).
• Inheritance of MA is closely linked to
  inheritance of atrial shunts in some families.
• We have confirmed these findings in a further
  unreported series of families.

27
Effect of PFO closure on migraine
28
The MIST Trial

• A prospective, randomised, multicentre,
  double-blind, placebo controlled trial to
  evaluate the effectiveness of PFO closure with
  the STARFlex septal repair implant to prevent
  migraine headache.

29
Design of the MIST Trial

• Headache specialists enrolled patients with
  frequent migraine attacks not controlled with 2
  or more classes of prophylactic drugs.
• Diagnostic cardiologists referred if large PFO.
• Interventional cardiologists randomised under
  GA to transcatheter closure of PFO or sham
  intervention.
• Headache specialist blind to randomisation
  follow up for 6 months.

30
MIST preliminary shunt prevalence
31
MIST results

• Mean PFO diameter in patients randomised to
  closure was 9.21 3.27mm.
• A 50 reduction in migraine days was achieved in
  42 of those who had closure of a large PFO v in
  23 of patients having the sham intervention (p
  0.03).
• In the implant patients there was a 37 reduction
  of headache burden v 17 in the sham group (p
  0.03).

32
Conclusions

• PFO and other right to left shunts are common
  causes of certain types of decompression illness
  and migraine with aura.
• Transcatheter closure of a PFO is one option
  following shunt related decompression illness and
  may become an option for some migraine patients.
