Congenital Cytomegalovirus and Hearing Loss

1

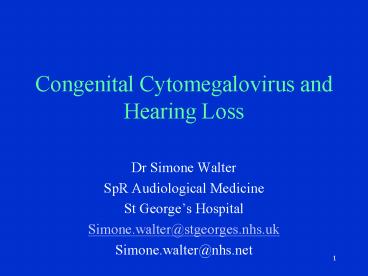

Congenital Cytomegalovirus and Hearing Loss

• Dr Simone Walter
• SpR Audiological Medicine
• St Georges Hospital
• Simone.walter_at_stgeorges.nhs.uk
• Simone.walter_at_nhs.net

2
CMV-Related SNHL

• Burden of Disease
• Diagnosis
• Pathogenesis
• Predictive factors
• Characteristics
• Management
• Prevention and Treatment
• Research
• Summary

Cytomegalovirus
3
CMV Definitions

• Congenital CMV
• CMV infection before birth, diagnosed on testing
  body fluids/tissue samples taken prior to Day 21
• May cause SNHL
• Perinatal CMV
• CMV infection acquired perinatally i.e acquired
  during or after birth (up to Day 28)
• Does not cause SNHL

4
Burden of Disease in the UK

• 1 in 200 births
• Major cause of neurodisability
• SNHL is the commonest sequel
• Proportion of Childhood SNHL due to CMV
• Retrospective studies 3 Das 1996
• But Prospective studies 12 Peckham 1987
• 75 not attributed to congenital CMV

5
Incidence of significant SNHL due to Congenital
CMV Copied from Pass 2005
108 children in England and Wales each year
Peckham1987
6
Why the discrepancy between retrospective and
prospective studies?
7
Diagnosis of CMV-Related SNHL is difficult

• Asymptomatic at birth
• Samples need to be taken before Day 21
• Presentation is too late
• Negative IgG exclude CMV
• Positive serology congenital or
  perinatal/acquired
• Clues Hx of IUGR, rash at birth, motor delay,
  neurological deficit, microcephaly, white matter
  lesions brain MRI
• But SNHL may be the only finding

Arav-Boger 2002, Griffiths 2005, Lee 2005
8
Differential diagnosis of isolated SNHL in a
healthy child
Symptomatic 1/3
Unknown ? Genetic
CMV
Asymptomatic 2/3
What proportion of these children have SNHL due
to CMV? How can we find out?
9
Retrospective Diagnosis on Dried Blood Spots
(Guthrie cards)

• Quantitative Polymerase Chain Reaction (PCR) for
  CMV DNA
• Sensitivity
• 75 of confirmed cases
• 85 of those destined to develop disease (BPSU)
• Parental consent

Shibata 1994, Barbi 2000, guidelineshttp//www.ic
h.ucl.ac.uk/newborn/resources/policies.htm
10
Diagnosis by Polymerase Chain Reaction (PCR) for
CMV DNA

• Barbi 2003
• 130 Guthrie cards unexplained SNHL
• Positive for
• 10 diagnosed age 0-2m
• 34.2 diagnosed in early childhood
• 42.7 with SNHLgt70dB
• 20-30 of SNHL due to CMV

• Also
• White matter lesions
• Cerebral palsy
• Developmental delay
• Blood, Urine, Amniotic fluid, Perilymph at
  Cochlear Implant
• van der Knaap 2004, Suigura 2004

11
Pathogenesis

• Intracellular pathogen
• Cell damage and death
• T cell response
• Inflammation
• CMV Immune escape mechanisms
• Reactivation

Large CMV infected cells in the Organ of Corti,
Photograph courtesy of Professor Leslie Michaels
12
Pathogenesis Unanswered Questions

• Host susceptibility
• Genetic factors
• Effect of timing of infection
• Mechanism of delayed onset and progression
• Site of lesion

13
Possible Predictive Factors

• Disseminated disease
• IUGR, petechiae, hepatosplenomegaly
• Rivera 2002
• Increased Viral Load
• Boppana 2005

14
Characteristics

• Any configuration on PTA
• Progressive-50
• Fluctuates-30
• High Frequency 20-30

Dahle 2000, Williamson 1992 Dahle 1979,
Fowler 1997
15
Onset

• Delayed Onset in up to 50
• Mostly pre-lingual
• Over half will be missed by NHSP
• Also missed by risk-based screening
• Fowler 1999, Hicks 1993

16
Cumulative Incidence

• Symptomatic Group Most occur by age 2y
• Asymptomatic Group
• Most occur by age 6y

Fowler 1999
17
CMV and the Vestibular System

• Vestibular abnormalities in 6/11
• Hypofunction/arreflexia
• Unilateral/bilateral
• May be independent of SNHL
• 3 cases Delayed endolymphatic hydrops
• Motor delay
• Pappas 1983 Huygen 1996

18
Management

• Risk of late-onset SNHL and of progression
• Unilaterals Risk to other ear
• Regular review till age 6y
• Early ref for CI
• Vision
• Motor delay
• Precautions

CMV Association http//mysite.freeserve.com/CMVsu
pport congenitalcmv.association_at_ntlworld.com
19
Primary Prevention of CMV-related SNHL

• Vaccines are currently in trial
• Women of child bearing age
• Adolescents
• Patients awaiting solid organ transplantation

20
Secondary Prevention of CMV-Related SNHL

• Antenatal screening
• Prenatal diagnosis
• Counselling
• Intravenous CMV hyperimmune globulin?
• Antiviral Rx in pregnancy?

21
Treatment of Congenital CMV to prevent SNHL

• Ganciclovir preserves hearing in symptomatic
  neonates with CNS involvement
• Kimberlin 2003
• Offered to neonates with symptomatic congenital
  CMV with CNS involvement

Ganciclovir is IV
22
Problems with Ganciclovir

• IV (via longline)
• Neutropenia
• Limited period of treatment
• Long term safety (and efficacy)?

Valganciclovir is oral
23
National Study of Symptomatic Congenital CMV
(BPSU)

• Incidence/disease burden/treatment
• Feb 2001-March 2003
• 54 confirmed and 26 possible cases
• In 11/51 cases maternal infection diagnosed
  prenatally U/S or flu illness
• 50 had CNS signs 8 given GCV
• 5 infants died

24
CMV in Hearing Impaired Children (CHIC) Study

• What is the relationship between the CMV viral
  load on DBS and hearing thresholds?

?
25
Future studies

• MRCT of Valganciclovir
• (Outcome hearing)
• Pilot screen /- NHSP
• Pathogenesis
• Predictive factors
• Site of lesion testing
• CAPD
• Role of OAEs
• CMV and the Vestibular System

Valganciclovir
26
Neonatal Screening for Congenital CMV

• Aim to allow early identification of sequelae
  including SNHL
• Follow up those at risk
• Early amplification, rehabilitation (and possibly
  treatment)
• Practicalities
• Cost-benefit? Barbi 2006, Nance 2006, Pass 2005

27
Summary CMV-related SNHL

• Accounts for 12-40 SNHL
• May be the only feature of cCMV
• Will be missed by the NHSP in 50
• Often progresses
• Can now be diagnosed by Guthrie PCR
• May be prevented by antiviral therapies and/or
  vaccine in the future

28
What can we do?

• Consider CMV in children with unexplained SNHL
• (including unilateral SNHL)
• Try to exclude CMV
• Consider Guthrie testing when CMV urine or
  serology positive
• Monitor any children known to have congenital CMV
  for SNHL till age 6y at least
• Ophthalmological and Vestibular assessment
• Inform families about the CMV Association

Thank you very much for listening
29
Acknowledgements

• Dr Mike Sharland, Supervisor, and Chief
  Investigator
• Professor Paul Griffiths, Virologist RFH
• Dr Ewa Raglan, Supervisor
• Claire Atkinson, Virologist RFH
• Dr Philip Rice, Virologist SGH
• Jan Poloniecki, Statistician, SGH
• Dr Deirdre Lucas, Local Principal Investigator ,
  RNTNEH
• Dr Tracey Davis, Local Principal Investigator,
  Northampton Gen Hospital
• Mr Kevin Gibbin, Local Principal Investigator,
  Queens Medical Centre
• Dr Jeff Baron and Julia Rider, Regional Infant
  Screening Service, ESH
• All participating families,Consultants, SpRs, and
  clinic/lab staff
• Keri Stephenson, Congenital CMV Association
• SGHSt Georges Hospital
• RFHRoyal Free Hospital
• ESHSt Helier Hospital
• RNTNEHRoyal National Throat Nose and Ear
  Hospital

30
Congenital CMV information for families

• Congenital CMV Association
• Carmen Burton, 32 Grosvenor Street Derby DE24
  8AU, Tel [phone] congenitalcmv.association_at_n
  tlworld.com
• http//mysite.freeserve.com/CMVsupport
• http//www.astdhpphe.org/infect/cytomegalo.html

31
References

• Das VK. 1996 Aetiology of bilateral sensorineural
  hearing impairment in children a 10 year study.
  Arch Dis Child. Jan74(1)8-12
• Peckham CS 1987, Stark O, Dudgeon JA, Martin JA,
  Hawkins G. Congenital cytomegalovirus infection
  a cause of sensorineural hearing loss. Arch Dis
  Child. Dec62(12)1233-7
• Harris S 1984, Ahlfors K, Ivarsson S, Lernmark B,
  Svanberg L. Congenital cytomegalovirus infection
  and sensorineural hearing loss. Ear Hear.
  Nov-Dec5(6)352-5
• Hicks T 1993, Fowler K, Richardson M, Dahle A,
  Adams L, Pass R Congenital cytomegalovirus
  infection and neonatal auditory screening. J
  Pediatr. Nov123(5)779-82.
• Arav-boger 2002 Pass RF Diagnosis and Management
  of Cytomegalovirus infection in the Newborn
  Paediatric annals Nov31,11 pg719-25

32
References

• Griffiths PD 2005 Walter S Cytomegalovirus Curr
  Opin Infect Dis. Jun 18(3) 241-5
• Lee DJ 2005, Lustig L, Sampson M, Chinnici J,
  Niparko JK. Effects of cytomegalovirus (CMV)
  related deafness on pediatric cochlear implant
  outcomes.Otolaryngol Head Neck Surg
  Dec133(6)900-5. Shibata M 1994, Takano H,
  Hironaka T, Hirai K. Detection of human
  cytomegalovirus DNA in dried newborn blood filter
  paper. J Virol Methods. Feb46(2)279-85
• Barbi M 2000, Binda S, Primache V, Caroppo S,
  Dido P, Guidotti P, Corbetta C, Melotti D.
  Cytomegalovirus DNA detection in Guthrie cards a
  powerful tool for diagnosing congenital
  infection. J Clin Virol. Sep 117(3)159-65.
• Barbi M 2003, Binda S, Caroppo S, Ambrosetti U,
  Corbetta C, Sergi P A wider role for congenital
  cytomegalovirus infection in sensorineural
  hearing loss. Pediatr Infect Dis J.
  Jan22(1)39-42.
•  .

33
References

• Dahle AJ (2000) Fowler KB, Wright JD, Boppana
  SB, Britt WJ, Pass RF Longitudinal Investigation
  of Hearing Disorders in Children with Congenital
  CMV. Journal of American Audiology 11 283-290
•   Fowler KB (1997) McCollister FP, Dahle AJ,
  Boppana S, Britt WJ, Pass RF. Progressive and
  fluctuating sensorineural hearing loss in
  children with asymptomatic congenital
  cytomegalovirus infection. J Pediatr 130(4)
  624-630
• Fowler KB (1999) Dahle AJ, Boppana SB, Pass RF.
  Newborn hearing screening will children with
  hearing loss caused by congenital cytomegalovirus
  infection be missed? J Pediatr 135(1) 60-64.
• Bradford RD (2005) Cloud G, Lakeman AD, Boppana
  S, Kimberlin DW,Jacobs R et al. Detection of
  cytomegalovirus (CMV) DNA by polymerase chain
  reaction is associated with hearing loss in
  newborns with symptomatic congenital CMV
  infection involving the central nervous system. J
  Infect Dis 191(2) 227-233.

34
References

• Boppana S (2005) Congenital CMV infection
  Association between virus burden in infancy and
  hearing loss Journal of Pediatrics June p817-823
• Rivera LB (2002) Boppana SB, Fowler KB, Britt WJ,
  Stagno S, Pass RF. Predictors of hearing loss in
  children with symptomatic congenital
  cytomegalovirus infection. Pediatrics 110(4)
  762-767.
• Kimberlin DW (2003) Lin CY, Sanchez PJ, Demmler
  GJ, Dankner W, Shelton M et al. Effect of
  ganciclovir therapy on hearing in symptomatic
  congenital cytomegalovirus disease involving the
  central nervous system a randomized, controlled
  trial. J Pediatr 143(1) 16-25.

35
References

• McCollister FP 1996, Simpson LC, Dahle AJ, Pass
  RF, Fowler KB, Amos CS, Boll TJ.Hearing loss and
  congenital symptomatic cytomegalovirus infection
  a case report of multidisciplinary longitudinal
  assessment and intervention. J Am Acad Audiol.
  1996 Apr7(2)57-62.
• Barbi M 2006 Binda S, Caroppo S, Primache V
  Neonatal screening for congenital cytomegalovirus
  infection and hearing loss. J Clin Virol. Feb
  35(2) 206-9. Epub 2005 Dec 27.
• J Nance WE 2006 Lim BG, Dodson KM Importance of
  congenital cytomegalovirus infections as a cause
  for pre-lingual hearing loss. Clin Virol.
  Feb35(2)221-5. Epub 2005 Dec 27.

36
Cumulative of SNHL according to Age
Dahle 2000
37
Degree of SNHL
Dahle 2000
38
860 children with Congenital CMV
Dahle 2000
39
Cochlear Implant in Congenital CMV

• High risk of progression and some risk to vision
• Additional difficulties
• Speech and language disorders
• Central auditory
• Learning disorders
• Developmental delay

Careful counselling tailored towards the
individual child. Benefit is seen in many. Lee
2005, Ramirez Inscoe 2004
40
Vision in Congenital CMV

• Symptomatic
• 22 mod/sev VI
• Optic atrophy 37
• Macular scars 13
• Cortical VI 50
• Strabismus 29

• Asymptomatic
• 1 mild unilateral VI
• Macular scar
• 1.2 strabismus
• Coats 2000

41
Information required to find the correct Guthrie
card

• Mothers address at the time of birth
• Mothers name
• All previous names for the baby
• DOB
• Birthweight
• Name of hospital if inpatient at Day 5-7
• Signed Informed consent
