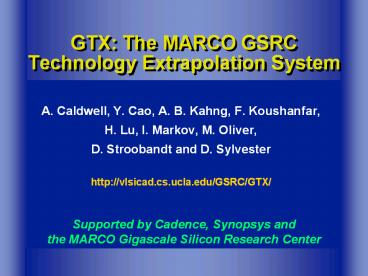

Title: GTX: The MARCO GSRC Technology Extrapolation System


1
GTX The MARCO GSRC Technology Extrapolation
System
  • A. Caldwell, Y. Cao, A. B. Kahng, F. Koushanfar,
  • H. Lu, I. Markov, M. Oliver,
  • D. Stroobandt and D. Sylvester
  • http//vlsicad.cs.ucla.edu/GSRC/GTX/

Supported by Cadence, Synopsys and the MARCO
Gigascale Silicon Research Center
2
Outline
  • Introduction
  • Previous efforts
  • Goals for an ideal system
  • GTX structure
  • Fundamental features of GTX
  • Example studies
  • Sensitivity analyses of cycle-time models
  • Evaluating new device models
  • Delay uncertainty study

3
Introduction Technology Extrapolation
What is the most power-efficient noise management
strategy?
  • Evaluates impact of
  • design technology
  • process technology
  • Evaluates impact on
  • achievable design
  • associated design problems
  • Questions to be addressed
  • Sets new requirements for CAD tools and
    methodologies
  • Roadmaps familiar and influential example

How and when do L, SOI, SER, etc. matter?
Will layout tools need to perform process
simulation to efficiently model cross-die and
cross-wafer manufacturing variation?
4
Sample Study 1 Optimization
  • Most commonly cited optimal buffer sizing
    expression (Bakoglu)
  • New study
  • Sweep repeater size for single stage in the chain
  • Examine both delay and energy-delay product

5
Sample Study 2 New Models
  • Five different interconnect models
  • Bakoglus model (RC)
  • Alpert, Devgan and Kashyap, ISPD 2000 (RC)
  • Ismail, Friedman and Neves, TCAD 19(1), 2000
    (RLC)
  • Kahng and Muddu, TCAD 1997 (RLC)
  • Extension of Alpert, Devgan and Kashyap, ISPD
    2000 (RLC)

6
What Do We Need?
  • Reuse of existing models, effort
  • Framework for adding new models to encompass new
    aspects of technology, new axes of achievable
    design
  • Ability to evaluate models (sanity, consistency
    checks)
  • Easy model substitution to compare between models
  • Sweeping ability to assess the impact of modeling
    choices
  • Constraints to allow elimination of infeasible
    solutions

7
What is Available?
  • Previous and ongoing efforts
  • ITRS Roadmaps
  • Tools SUSPENS, GENESYS, RIPE, BACPAC,
  • Numerous tools in industry
  • Observations
  • Predict same parameters but different
    assumptions, inputs
  • Lack of documentation and visibility of internal
    calculations
  • Single inference chain for a given output
    (hard-coded)
  • Inflexible user cannot define studies of related
    parameters
  • Near-total duplication of effort
  • Missing models of CAD tools and optimizations
    (what is really achievable?)
  • Missing scope, comprehensive coverage

8
Goals of A New Technology Extrapolation System
  • Flexibility
  • Edit or define new parameters and relations
    between them
  • Perform specific studies (but different studies
    at different times)
  • Quality
  • Continuous improvements
  • World-wide participation of experts
  • Transparency
  • Open-source mechanism
  • Models are visible to the user
  • Prevention of redundant effort
  • Permanent repository of first choice
  • Adoptability and maintainability

9
GTX GSRC Technology Extrapolation System
  • GTX is set up as a framework for technology
    extrapolation
  • Openness in grammar, parameters and rules
  • Easy sharing of data in research environment
  • Contributions from other groups

10
Knowledge Representation
  • Human-readable ASCII grammar

rule BACPAC_dl_chip description output double
m dl_chip inputs double m2 dA_chip body
sqrt(dA_chip) reference endrule
parameter dl_chip type double units
m default 1e-2 description chip side
length reference endparameter
11
Knowledge Representation
  • Human-readable ASCII grammar
  • Benefits
  • Easy creation/sharing of parameters/rules by
    multiple users
  • D. Sylvester and Y. Cao device and power, SOI
    modules that drop in to GTX
  • P.K. Nag Yield modeling
  • Extensible to models of arbitrary complexity
    (specialized prediction methods, technology data
    sets, optimization engines)
  • Avant! Apollo or Cadence SE PR tool just
    another wirelength estimator
  • Applies to any domain of work in semiconductors,
    VLSI CAD
  • Transistor sizing, single wire optimizations,
    system-level wiring predictions,

12
Parameters
  • Description of technology, circuit and design
    attributes
  • Importance of consistent naming cannot be
    overstated
  • Naming conventions for parameters
  • ltprepositiongt _ ltprincipalgt _ qualifier _
    ltplacegt _ ltqualifiergt _ ltadverbialgt _
    ltindexgt _ ltunitgt
  • Example r_int_tot_lyr_pu_dl
  • Requirements
  • Relatively easy to understand parameter from its
    name
  • Distinguishable (no two parameters should have
    the same name)
  • r_int (interconnect resistance) r_int
    (interconnect resistivity) ?
  • Unique (no two names for the same parameter)
  • R_int R_wire ?
  • Sortable (important literals come first)
  • Software to automatically check parameter naming

13
Rules
  • Methods to derive unknown from known parameters
  • ASCII rules
  • Laws of physics, models of electrical behavior,
    statistical models
  • Include closed-form expressions, vector
    operations, tables
  • Storing of calibration data (e.g., technology
    files) for known process and design points in
    lookup tables
  • Constraints, used to limit range during
    sweeping
  • External executable rules
  • Assume a callable executable (e.g., PERL script)
  • Use command-line interface and transfer through
    files
  • Allow complex semantics of a rule
  • Code rules
  • Implemented in C and linked into the inference
    engine

14
Rule Chains
  • Rule chains guide inference
  • Acyclic set of rules
  • Interactive specification and comparison of
    alternative modeling choices
  • Studies
  • Input values rules that make
  • a rule chain
  • User-controlled and savable
  • Sweeping of a rule chain
  • Evaluation of all combinations
  • of multi-valued inputs
  • Example clock frequency for
  • different Rent exponents and
  • varying logic depth

15
GTX Engine
  • Contains no domain-specific knowledge
  • Evaluates rules in topological order
  • Performs studies
  • Multiple values through sweeping
  • Runs on three platforms (Solaris, Windows and
    Linux)
  • URL http//vlsicad.cs.ucla.edu/GSRC/GTX/

16
Graphical User Interface (GUI)
  • Provides user interaction
  • Visualization (plotting, printing, saving to
    file)
  • 4 views
  • Parameters
  • Rules
  • Rule chain
  • Values in chain

17
GTX Current Status
  • Models implemented
  • Cycle-time models of SUSPENS (with extension by
    Takahashi), BACPAC (Sylvester, Berkeley), Fisher
    (ITRS)
  • Currently adding
  • GENESYS (with help from Georgia Inst. Tech.)
  • RIPE (with help from Rensselaer Univ.)
  • New device and power modules (Synopsys /
    Berkeley)
  • New SOI device model (Synopsys / Berkeley)
  • Inductance models (Silicon Graphics / Berkeley /
    Synopsys)
  • Yield model (CMU)
  • Studies performed in GTX
  • Model analysis
  • Study of the impact of parameters
  • Design optimization studies

18
Outline
  • Introduction
  • Previous efforts
  • Goals for an ideal system
  • GTX structure
  • Fundamental features
  • Example studies
  • Sensitivity analyses of cycle-time models
  • Evaluating new device models
  • Delay uncertainty study

19
Sensitivity Analysis of Cycle-time Models
Parameter Sensitivity
  • Change parameter values and observe resulting
    difference in outputs

20
Sensitivity Analysis of Cycle-time Models Model
Sensitivity
  • Replace rule in a models rule chain by another
    models rule and observe the difference in outputs

BACPAC with rule from Fisher
BACPAC
21
Bulk Si Versus SOI Device Models
  • New device models for bulk Si and
    Silicon-on-Insulator (SOI) devices
  • Provided by D. Sylvester (Synopsys) and Y. Cao
    (UCB)
  • SOI model assumes partially-depleted SOI (PD-SOI)
    technology and is based on popular BSIM3SOI
    models
  • Both modules compared to BSIM3 HSPICE runs
    results match within 10
  • General study
  • Floating body effect changes in vth and Idsat
  • Calculate range of possible Idsat values
  • Model ignores the impact of capacitive coupling
    on body voltage
  • Dynamic delay (due to coupling capacitances
    between same-layer interconnects)

22
Bulk Si Versus SOI Device Models (Cont.)
  • Influence of device technology on clock frequency
    and power
  • Best case largest Idsat (realizable due to
    floating body effect, only for SOI) and no
    effective coupling capacitance f from 1.03 GHz
    (bulk) to 1.31 GHz (SOI)
  • Worst case smallest Idsat and switching factor
    of 2 867 MHz and 1.05 GHz
  • Power results
  • SOI 16 increase in power versus Bulk but 24
    increase in frequency

Bulk Si SOI

P (W)

P (W)
43.91
28.99
46.18
26.20
Logic local wires
3.93
2.60
3.88
2.20
Global interconnects
20.22
13.35
20.65
11.71
I/O drivers pads
14.62
9.65
13.98
7.93
Clock distribution
1.31
0.86
1.66
0.94
Memory
15.47
10.21
13.54
7.68
Short circuit
0.54
0.36
0.12
0.07
Leakage
100.00
66.03
100.00
56.74
Total power
23
Bulk Si Versus SOI Device Models (Cont.)
  • Parameter sensitivity of both models
  • Several technology related parameters are varied
    by /- 10
  • SOI slightly less sensitive to input parameter
    changes
  • Process spread (between best-case and worst-case)
    larger for SOI

24
Delay Uncertainty Study
  • Staggered repeaters
  • First introduced in Kahng et al, VLSI Design 99
    to reduce delay and noise

25
Conclusion
  • GTX a new framework for technology extrapolation
  • Flexible and extensible
  • Enables easy reuse of models
  • Provides a common parameter base between all
    models
  • Provides user interaction
  • Relies on open-source and contributions by expert
    users
  • Living Roadmap
  • Technology extrapolation becomes easier
  • More principled understanding of requirements for
    CAD tools
  • URL http//vlsicad.cs.ucla.edu/GSRC/GTX/

26
GTX Project Information
  • Design A. Caldwell, A. B. Kahng, I. Markov, M.
    Oliver and D. Stroobandt
  • Implementation M. Oliver
  • Knowledge gathering and study implementation A.
    B. Kahng, F. Koushanfar, H. Lu and D. Stroobandt
  • Model extensions and new studies Y. Cao, X.
    Huang, S. Muddu, P.K. Nag and D. Sylvester
  • Detailed information and downloading of latest
    version of GTX http//vlsicad.cs.ucla.edu/GSRC/GT
    X/
  • To contact the developers, ask questions, send
    comments, or to contribute models to GTX, please
    send E-mail to GTX_at_cs.ucla.edu
