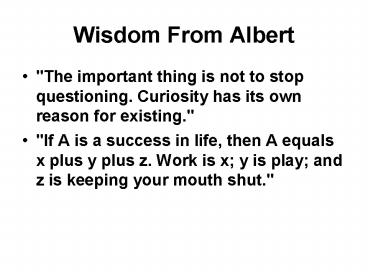

Wisdom From Albert

1
Wisdom From Albert

• "The important thing is not to stop questioning.
  Curiosity has its own reason for existing."
• "If A is a success in life, then A equals x plus
  y plus z. Work is x y is play and z is keeping
  your mouth shut."

2

• Proteins have a Hierarchy of structure Please
  describe that hierarchy and how each hierarchy
  fits into the next.

3
Bits of Chapter 5

• Hydrodynamics Covered in Biophysical
• CD spectra
• Circularly polarized light interacts with Chiral
  molecules
• Helices and Beta sheets are Chiral even if they
  are made out of glycine.
• Why
• helices more chiral than beta sheets
• why?

4
Bits of Chapter 5

• Fiberous proteins
• historically important
• First structures elucidated by x-rays
• Gave us terms Apha helix Beta sheet
• should review
• Take home Quiz/homwork 6. Based on their
  molecular structures why can you wash silk in hot
  water and have to wash wool in cold?

5
Protein structure

• How do we look at proteins

6
How do we determine the structure of proteins

• X ray Crystallography
• NMR
• Neutron diffraction
• Electron diffraction.

7
X-ray Crystallography

• About the Unit Cell
• Why are X-rays used ?
• Why X-ray diffraction ?
• Growing Crystals
• X-ray diffraction

8
About the Unit Cell

• Crystals are three dimensional ordered structures
  than can be described as a repetition of
  identical unit cells.
• The unit cell is made up of the smallest possible
  volume that when repeated, is representative of
  the entire crystal.
• This unit contains an integer number of protein
  molecules
• The dimensions of a unit cell can be described
  with 3 edge lengths (a,b,c) and 3 angles (alpha,
  beta, gamma).
• The 3D location of atoms within a unit cell can
  be listed as their x, y, z Cartesian Coordinates.

• Space groups describe the symmetry of a unit
  cell, of which there are 230 variations

9
(No Transcript)
10
Why are X-rays used ?

• Resolution is limited to ½ ? Atoms have
  dimensions in Å
• Visible light has wavelengths of 100s of
  nanometers
• X-Rays have wavelengths of Å

11
Why X-ray diffraction ?

• No known way to focus x-rays with a lens.
• Diffraction patterns can be interpreted
  mathematically.
• We use computers as a virtual lens, so on a
  monitor we can look at the structure of a
  molecule.
• The x-ray diffraction from one unit cell would
  not be significant. Crystals are important
  because by definition they have a repeated unit
  cell within them.
• The repetition of unit cells within a crystal
  amplifies the diffraction enough to give results
  that computers can turn into a picture

12
Growing Crystals

• Mostly a trial and error process
• Closely related proteins may require different
  conditions to crystallize
• Some consistent principles
• Protein must be relatively pure
• Requires some sort of small ion salt
• Precipitant usually involved.
• Some way of gradually increasing the ppt in the
  system.
• pH is usually close to the pI of the protein

13
Growing Crystals

• More general principles
• High concentration of protein
• Low temperature tends to favor crystallization
• Partial factorial screens now common
• Dumb Luck
• Numerous cases of finding conditions by accident
  during purifications on proteins

14
Methods of Crystal growth

• There are various methods of growing protein
  crystals
• Vapor Diffusion -(Hanging Drop Method) This is
  probably the most common ways of crystal growth.
  A drop of protein solution is suspended over a
  reservoir containing buffer and precipitant.
  Water diffuses from the drop to the solution
  leaving the drop with optimal crystal growth
  conditions.
• Batch crystallization A saturated protein
  solution left in a sealed container to let the
  crystals grow.
• Micro batch crystallization A drop of protein
  solution is put in inert oil and left to grow.
  Here there probably is some diffusion of proteins
  into the oil, lowering the saturation over time.

15
Methods of Crystal growth

• There are various methods of growing protein
  crystals
• Vapor Diffusion -(Hanging Drop Method) A drop
  of protein solution is suspended over a reservoir
  containing buffer and precipitant. Water diffuses
  from the drop to the solution leaving the drop
  with optimal crystal growth conditions.
• Batch crystallization A saturated protein
  solution left in a sealed container to let the
  crystals grow. (Almost always the way dumb luck
  works)
• Micro-batch crystallization A drop of protein
  solution is put in inert oil and left to grow.
  Here there probably is some diffusion of proteins
  into the oil, lowering the saturation over time.

16
Methods of Crystal growth

• Free interface diffusion A container has levels
  of varying saturation. Microcrystals/ppt form
  initially in the highly saturated part, but as
  the solution mixes, it eventually only supports
  crystal growth.
• Dialysis Similar to the previous, but with a
  semi-permeable membrane separating the layers.
• Macro-seeding A crystal is grown in a highly
  saturated solution and placed in a less saturated
  one where only growth of the crystal will occur.
• Micro-seeding A few crystals are grown, then
  crushed, and put into a final solution that
  combines them into a few nice crystals. This
  involves quite a bit of experimentation with
  solutions' concentrations to get the desired
  number of crystals.

17
X-ray diffraction

• Single Wavelength diffraction
• 1.542 Å most commen Resolution 0.771 Å
• Multiple exposures required
• Heavy atom derivitives required.
• Data is relatively easy to interprete.
• Ability to tell if the Data is worth anything
• Equipment fits in a regular lab

18
X-ray diffraction

• Laue Diffraction
• Multiple wavelengths used
• Requires a cyclotron to generate X-rays
• Data is much more complex
• Single good exposure often results in a structure
• Able to use poorer quality crystals
• Phase may be determined by over-tones
• Able to image transient structures.

19
X-ray diffraction

• Reflections occur in reciprocal space
• Reflections follow Braggs Law
• 2d sinTn n?
• Symmetry elements critical to solving the
  structure.
