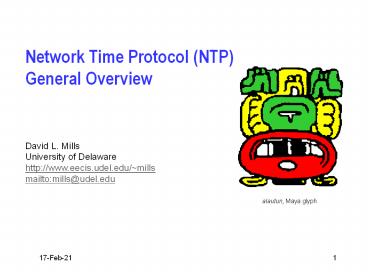

Network Time Protocol (NTP) General Overview

1
Network Time Protocol (NTP)General Overview

• David L. Mills
• University of Delaware
• http//www.eecis.udel.edu/mills
• mailtomills_at_udel.edu

2
Introduction

• Network Time Protocol (NTP) synchronizes clocks
  of hosts and routers in the Internet
• Well over 100,000 NTP peers deployed in the
  Internet and its tributaries all over the world
• Provides nominal accuracies of low tens of
  milliseconds on WANs, submilliseconds on LANs,
  and submicroseconds using a precision time source
  such as a cesium oscillator or GPS receiver
• Unix NTP daemon ported to almost every
  workstation and server platform available today -
  from PCs to Crays - Unix, Windows, VMS and
  embedded systems
• Following is a general overview of the NTP
  architecture, protocol and algorithms
• Data are included from a survey of NTP clients
  and servers in the Internet of 1997

3
Needs for synchronized time

• Stock market sale and buy orders and confirmation
  timestamps
• Network fault isolation, reporting and restoral
• Network monitoring, measurement and control
• Distributed multimedia stream synchronization
• RPC at-most-once transactions replay defenses
  sequence-number disambiguation
• Research experiment setup, measurement and
  control
• Cryptographic key management and lifetime control

4
NTP capsule summary

• Primary (stratum 1) servers synchronize to
  national time standards via radio, satellite and
  modem
• Secondary (stratum 2, ...) servers and clients
  synchronize to primary servers via hierarchical
  subnet
• Clients and servers operate in master/slave,
  symmetric or multicast modes with or without
  cryptographic authentication
• Reliability assured by redundant servers and
  diverse network paths
• Engineered algorithms reduce jitter, mitigate
  multiple sources and avoid improperly operating
  servers
• System clock is disciplined in time and frequency
  using an adaptive algorithm responsive to network
  time jitter and clock oscillator frequency wander

5
NTP configurations
S3
S3
S3
S2
S2
S2
S2


S4
S3
S3
Workstation (a)
Clients (b)
S1
S1
S1
S1
S1
S1



S2
S2
S2
to buddy (S2)
Clients (c)

• (a) Workstations use multicast mode with multiple
  department servers
• (b) Department servers use client/server modes
  with multiple campus servers and symmetric modes
  with each other
• (c) Campus servers use client/server modes with
  up to six different external primary servers and
  symmetric modes with each other and external
  secondary (buddy) servers

6
How NTP works
Peer 1
Filter 1
Intersection and Clustering Algorithms
Combining Algorithm
Peer 2
Filter 2
Loop Filter
P/F-Lock Loop
Peer 3
Filter 3
VFO
NTP Messages
Timestamps

• Multiple synchronization peers provide redundancy
  and diversity
• Clock filters select best from a window of eight
  clock offset samples
• Intersection and clustering algorithms pick best
  subset of servers believed to be accurate and
  fault-free
• Combining algorithm computes weighted average of
  offsets for best accuracy
• Phase/frequency-lock feedback loop disciplines
  local clock time and frequency to maximize
  accuracy and stability

7
NTP process decomposition (NTPv4)
Peer 1
Filter 1
Selection and Clustering Algorithms
Combining Algorithm
Peer 2
Filter 2
Loop Filter
Clock Adj. Proc.
Peer 3
Filter 3
SystemProcess
VFO
RemoteServers
PeerProcesses

• Each peer process runs independently at poll
  intervals determined by the system process and
  remote server
• System process runs at poll intervals determined
  by the measured network phase jitter and local
  clock oscillator frequency stability
• Clock adjust process runs at 1-s intervals to
  discipline the VFO phase and frequency

8
NTP dataflow analysis
Server 1 D, E
Peer 1 q, d, e, j
Selection and Combining Algorithms
Server 2 D, E
Peer 2 q, d, e , j
System Q, D, E, j
Server 3 D, E
Peer 3 q, d, e , j

• Each server calculates server variables offset Q,
  delay D and dispersion E relative to the root of
  the synchronization subtree
• At each NTP message arrival, the peer process
  updates peer offset q, delay d, dispersion e and
  filter error jr (NTPv4) from timestamps and clock
  filter algorithm
• At system poll intervals, the clock selection and
  combining algorithms update system variables Q,
  D, E, and j
• Dispersions e and E increase with time at a rate
  depending on specified frequency tolerance f

9
Clock filter algorithm
T3
T2
Server
x
q0
T1
T4
Client

• The most accurate offset q0 is measured at the
  lowest delay d0 (apex of the wedge scattergram).
• The correct time q must lie within the wedge q0
  (d - d0)/2.
• The d0 is estimated as the minimum of the last
  eight delay measurements and (d0 ,q0) becomes
  the offset and delay output.
• Each output can be used only once and must be
  more recent than the previous output.
• The distance metric l is based on delay,
  frequency tolerance and time since the last
  measurement.

10
Performance of clock filter algorithm

• These plots show the absolute clock offset in
  semilog coordinates for a path between the US
  east and west coasts over six days
• (left) Raw absolute data offset samples
• (right) Data offset samples processed by the
  clock filter algorithm
• The algorithm reduces offset errors by a factor
  of about ten
• The algorithm is particularly effective at
  removing spikes

11
Intersection algorithm
B
correctness interval q - l q0 q l m
number of clocks f number of presumed
falsetickers A, B, C are truechimers D is
falseticker
A
C
D
Correct DTS
Correct NTP

• DTS correctness interval is the intersection
  which contains points from the largest number of
  correctness intervals
• NTP algorithm requires the midpoint of the
  intervals to be in the intersection
• Initially, set falsetickers f and counters c and
  d to zero
• Scan from far left endpoint add one to c for
  every lower endpoint, subtract one for every
  upper endpoint, add one to d for every midpoint
• If c ³ m - f and d ³ m - f, declare success and
  exit procedure
• Do the same starting from the far right endpoint
• If success undeclared, increase f by one and try
  all over again
• if f ? m/2, declare failure

12
Clustering algorithm
Sort survivors of intersection algortihm by
increasing synchronization distance. Let n be the
number of survivors and nmin a lower limit.
For each survivor si, compute the select
dispersion (weighted sum of clock difference
squares) between si and all others.
Let smax be the survivor with maximum select
dispersion (relative to all other survivors) and
smin the survivor with minimum sample dispersion
(clock differences relative to past samples of
the same survivor).
yes
smax smin or n nmin?
no
Delete the survivor smax reduce n by one
The resulting survivors are processed by the
combining algorithm to produce a weighted average
used as the final offset adjustment
13
Error budget - notation

• System variablesQ clock offsetD root
  delayE root dispersionjs selection
  jitterj jitter t interval since last update
• Peer variablesq clock offsetd roundtrip
  delaye dispersionjr filter jittern filter
  stages 8t interval since last update

• Constants (peers A and B)r maximum reading
  errorf maximum frequency errorw dispersion
  normalize 0.5
• Packet variablesDB peer root delayEB peer root
  dispersion
• Sample variablesT1, T2, T3, T4 protocol
  timestampsx clock offsety roundtrip
  delayz dispersiont interval since last update

14
Error budget - calculations
Sample Variables
Peer Variables
System Variables
S
S
Peer A
S
Peer B
NTP Version 4 Error Budget
15
Clock discipline algorithm
qr
Vd
Vs
NTP
Clock Filter
Phase Detector
qc-
VFO
Loop Filter
x
Vc
Phase/FreqPrediction
ClockAdjust
y

• Vd is a function of the phase difference between
  NTP and the VFO
• Vs depends on the stage chosen on the clock
  filter shift register
• x and y are the phase update and frequency
  update, respectively, computed by the prediction
  functions
• Clock adjust process runs once per second to
  compute Vc, which controls the frequency of the
  local clock oscillator
• VFO phase is compared to NTP phase to close the
  feedback loop

16
NTP protocol header and timestamp formats
NTP Protocol Header Format (32 bits)
LI leap warning indicator VN version number
(4) Strat stratum (0-15) Poll poll interval
(log2) Prec precision (log2)
Strat
Poll
LI
Mode
VN
Prec
Root Delay
Root Dispersion
Reference Identifier
Reference Timestamp (64)
NTP Timestamp Format (64 bits)
Originate Timestamp (64)
Seconds (32)
Fraction (32)
Value is in seconds and fraction since 0h 1
January 1900
Receive Timestamp (64)
Cryptosum
Transmit Timestamp (64)
NTPv4 Extension Field
Extension Field 1 (optional)
Field Length
Field Type
Extension Field (padded to 32-bit boundary)
Extension Field 2 (optional)
Last field padded to 64-bit boundary
Key/Algorithm Identifier
NTP v3 and v4
Message Hash (64 or 128)
Authenticator (Optional)
NTP v4 only
authentication only
Authenticator uses DES-CBC or MD5 cryptosum of
NTP header plus extension fields (NTPv4)
17
Clients per server population by stratum (from
survey)
18
A day in the life of a busy NTP server

• NTP primary (stratum 1) server rackety is a Sun
  IPC running SunOS 4.1.3 and supporting 734
  clients scattered all over the world
• This machine supports NFS, NTP, RIP, IGMP and a
  mess of printers, radio clocks and an 8-port
  serial multiplexor
• The mean input packat rate is 6.4 packets/second,
  which corresponds to a mean poll interval of 157
  seconds for each client
• Each input packet generates an average of 0.64
  output packets and requires a total of 2.4 ms of
  CPU time for the input/output transaction
• In total, the NTP service requires 1.54 of the
  available CPU time and generates 10.5, 608-bit
  packets per second, or 0.41 of a T1 line
• The conclusion drawn is that even a slow machine
  can support substantial numbers of clients with
  no significant degradation on other network
  services

19
Server population by stratum (from survey)
20
Client population by stratum (from survey)
21
Typical local clock phase offsets (from survey)

• Histogram of local clock absolute phase offsets
• 19,873 Internet peers surveyed running NTP
  Version 2 and 3
• 530 offsets equal to zero deleted as probably
  unsynchronized
• 664 offsets greater than 128 ms deleted as
  probably unsynchronized
• Remaining 18,679 offsets median 7.45 ms, mean
  15.87 ms

22
Typical local clock frequency offsets (from
survey)

• Histogram of local clock absolute frequency
  offsets
• 19,873 Internet peers surveyed running NTP
  Version 2 and 3
• 396 offsets equal to zero deleted as probably
  spurious (self synchronized)
• 593 offsets greater than 500 PPM deleted as
  probably unsynchronized
• Remaining 18,884 offsets median 38.6 PPM, mean
  78.1 PPM

23
Reference clock sources

• In a survey of 36,479 peers, found 1,733 primary
  and backup external reference sources
• 231 radio/satellite/modem primary sources
• 47 GPS satellite (worldwide), GOES satellite
  (western hemisphere)
• 57 WWVB radio (US)
• 17 WWV radio (US)
• 63 DCF77 radio (Europe)
• 6 MSF radio (UK)
• 5 CHU radio (Canada)
• 7 modem time service (NIST and USNO (US), PTB
  (Germany), NPL (UK))
• 25 other (precision PPS sources, etc.)
• 1,502 local clock backup sources (used only if
  all other sources fail)
• For some reason or other, 88 of the 1,733 sources
  appeared down at the time of the survey

24
Performance of typical NTP servers in the global
Internet

• Table shows number days surveyed, mean absolute
  offset, RMS and maximum absolute error and number
  of days on which the maximum error exceeded 1, 5,
  10 and 50 ms at least once
• Servers represent LANs, domestic WANs and
  worldwide Internet
• Results show all causes, including software
  upgrades and reboots

25
The Sun never sets on NTP

• NTP is arguably the longest running, continuously
  operating, ubiquitously available protocol in the
  Internet
• USNO and NIST, as well as equivalents in other
  countries, provide multiple NTP primary servers
  directly synchronized to national standard cesium
  clock ensembles and GPS
• Over 230 Internet primary servers in Australia,
  Canada, Chile, France, Germany, Israel, Italy,
  Holland, Japan, Norway, Spain, Sweden,
  Switzerland, UK, and US - the list goes on
• Over 100,000 Internet secondary servers and
  clients all over the world
• National and regional service providers BBN, MCI,
  Sprint, Alternet, etc.
• Agencies and organizations US Weather Service,
  US Treasury Service, IRS, PBS, Merrill Lynch,
  Citicorp, GTE, Sun, DEC, HP, etc.
• Several private networks are reported to have
  over 10,000 NTP servers and clients one (GTE)
  reports in the order of 30,000 NTP-equipped
  workstations and PCs

26
Current progress and status

• NTP Version 4 protocol, architecture and
  algorithms
• Backwards compatible protocol algorithm
  implemented and tested
• Improved local clock model completed and tested
• Nanokernel precision time kernel modifications
  simulated, implemented and tested with SPARC,
  Alpha and Intel architectures
• IETF pulse-per-second application program
  interface implemented and tested for SPARC and
  Intel architectures
• Autonomous configuration autoconfigure
• Multicast discovery with propagation correction
  completed and tested
• Manycast discovery largely completed
• Distributed add/drop greedy heuristic designed
  and simulated
• Span-limited, hierarchical multicast groups using
  NTP distributed mode and add/drop heuristics
  under study
• Autonomous authentication autokey
• Implemented and in test

27
Future plans

• Complete autoconfigure and autokey implementation
  in NTP Version 4
• Deploy, test and evaluate NTP Version 4 daemon in
  DARTnet II testbed, then at friendly sites in the
  US, Europe and Asia
• Revise the NTP formal specification and launch on
  standards track
• Participate in deployment strategies with NIST,
  USNO, others
• Prosecute standards agenda in IETF, ANSI, ITU,
  POSIX
• Develop scenarios for other applications such as
  web caching, DNS servers and other multicast
  services

28
NTP online resources

• NTP specification documents
• Internet (Draft) NTP standard specification
  RFC-1305
• Simple NTP (SNTP) RFC-2030
• NTP Version 4 papers and reports at
  http//www.eecis.udel.edu/mills
• Under consideration in ANSI, ITU, POSIX
• NTP web page http//www.ntp.org/
• NTP Version 3 and Version 4 software and HTML
  documentation
• Utility programs for remote monitoring, control
  and performance evaluation
• Ported to over two dozen architectures and
  operating systems
• Supporting resources
• List of public NTP time servers (primary and
  secondary)
• NTP newsgroup and FAQ compendia
• Tutorials, hints and bibliographies
• Links to other NTP software

29
Further information

• Network Time Protocol (NTP) http//www.ntp.org/
• Current NTP Version 3 and 4 software and
  documentation
• FAQ and links to other sources and interesting
  places
• David L. Mills http//www.eecis.udel.edu/mills
• Papers, reports and memoranda in PostScript and
  PDF formats
• Briefings in HTML, PostScript, PowerPoint and PDF
  formats
• Collaboration resources hardware, software and
  documentation
• Songs, photo galleries and after-dinner speech
  scripts
• FTP server ftp.udel.edu (pub/ntp directory)
• Current NTP Version 3 and 4 software and
  documentation repository
• Collaboration resources repository
• Related project descriptions and briefings
• See Current Research Project Descriptions and
  Briefings at http//www.eecis.udel.edu/mills/sta
  tus.htm
