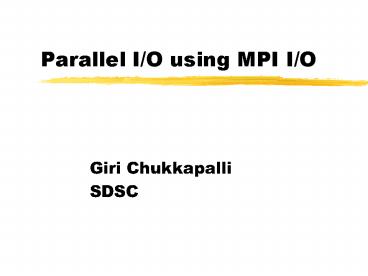

Parallel I/O using MPI I/O

• Giri Chukkapalli
• SDSC

2
Common I/O needs

• A set of processes
• Read input data from a single file
• Write output data to a single file
• Check point during computations
• Perform out of core computations

3
Need for parallel I/O

• Sequential I/O becomes a bottleneck
• Tedious pre- and post-processing is necessary to
  split and merge global files if parallel I/O is
  not used
• Standard unix I/O is not portable
• True parallel I/O requires multi-process access
  from a parallel file system

4
Advantages of MPI I/O

• Performance
• portability
• Convenience
• Public domain MPI I/O API ROMIO from ANL

5
Features of MPI I/O

• Parallel read/write
• non-contiguous data read/write
• non-blocking read/write
• collective read write
• portable data representation across platforms
• HPF style distributed array syntax

6
Derived data types

• New type is a combination of existing types and
  spaces
• Derived data types are used to communicate
  noncontiguous data
• Senders data type is mapped onto receivers data
  type
• writers data type is mapped onto fileview and
  vice versa in MPI I/O

7
Derived data types

• MPI_Type
• _contiguous
• _vector/_hvector
• _indexed/_hindexed
• _struct
• _subarray/_darray

8
Fileview

• Displacement, etype and filetype creates a
  fileview
• fileview allows simultaneous writing/reading of
  noncontiguous interleaved data by multiple
  processes
• MPI_File_set_view call
• each process has a different fileview of a single
  file

9
MPI I/O standard

• All calls start with MPI_File_
• open, read, write, seek, close
• Asynchronous modifier i iread etc.
• Absolute position modifier _at read_at
• Collective modifier _all read_all etc
• split collective modifier _begin _end
• shared file pointer modifier _shared
• MPI_Type to create derived data types

10
Examples of MPI I/O Usage

• Simple read/write of contiguous data
• read/write of noncontiguous data from a file to
  contiguous memory location
• Non-blocking read/write of data
• collective I/O to a single file
• read/write of distributed arrays
• look in /usr/local/apps/examples/UsingMPI2 on
  BlueHorizon

11
Blue Horizon Specific

• Always compile with thread safe compilers
• mpcc_r, mpxlf90_r etc.
• Use GPFS file system /gpfs/userid
• 5TB of disk and 12 I/O servers and can achieve
  1 GB/s bandwidth
• Not fully MPI I/O compliant yet.
• Look in /usr/lpp/ppe.poe/include/mpi.h for
  function call support
• Look in /usr/local/apps/examples/UsingMPI2 for
  example codes

12
MPI I/O performance issues

• To achieve good performance
• Write as large chunks as possible
• use derived data types to read/write
  non-contiguous data
• Use collective I/O calls
• use non-blocking I/O calls
• provide hints through info parameter
• provide complete picture of the total I/O
  operation on the whole file by all the processes

13
References

• Http//www.mcs.anl.gov/software MPI-2
  reference manual
• http//www.classes.cs.uchicago.edu/classes/archive
  /2000/fall/CS103-01/Lectures/mpi-io slides from
  a very good talk
• http//hpcf.nersc.gov/software/libs/io/mpiio.html
  Intro to MPI I/O at NERSC
• http//www.llnl.gov/asci/sc99fliers/mpi_io_pg1.htm
  l MPI I/O efforts at Livermore
• http//www-unix.mcs.anl.gov/romio/papers.html
  good papers on MPI I/O
• http//www.cs.dartmouth.edu/pario/ A
  comprehensive parallel I/O archive
