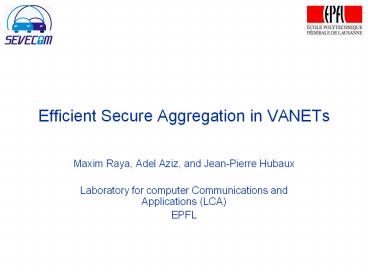

Efficient Secure Aggregation in VANETs

1
Efficient Secure Aggregation in VANETs

• Maxim Raya, Adel Aziz, and Jean-Pierre Hubaux
• Laboratory for computer Communications and
  Applications (LCA)
• EPFL

2
Outline

• Motivation
• Attacker model
• Secure group formation
• Secure aggregation mechanisms
• Simulation results
• Conclusion

3
Why efficient secure aggregation?

• VANET security is indispensable but expensive
• De facto security limited flooding of signed
  messages
• Since many vehicles broadcast the same event, why
  not try aggregation?
• Can we make it work in VANETs?
• And can we make it secure?
• The answer is in this presentation and it is YES


4
How to make aggregation efficient and secure?

• Requirements
• Channel efficiency
• Low delay
• Data correctness
• Non-repudiation
• We propose 3 solutions
• Combined signatures
• Overlapping groups
• Dynamic group key creation

5
Who is the attacker?

• Major threat false information dissemination
• Assumption

Any group of more than 2 vehicles should contain
a majority of honest nodes under normal density
conditions
6
The secret of efficient aggregation groups
Information is relayed between groups, not
individual vehicles
7
How to make a group?

• Preset groups efficient but not flexible
• On-the-fly groups flexible but not efficient
• Location-based groups efficient and flexible
• The keyword is where and not who a vehicles
  neighbors are
• Group formation step-by-step
• Dissect the map into small area cells, each
  defining a group
• Load map dissection function/dissected maps into
  vehicles
• Cells (groups) overlap to ensure handover
• One option for leader election group leader
  vehicle closest to center (with lowest ID if
  many), elected for a given duration
• A vehicle checks its GPS position to determine
  its cell (group)

8
Group formation
9
Group formation
Cell
Leader
Overlap
TX range 300 m
Cell size 400 m
Not to scale
10
Group formation
I am in cell X
11
SVGP (Secure VANET Group Protocol)

• Goal establishment of a symmetric group key
• Secure groups protect the network from outsiders
  only
• Concept group leader transports group key to
  members
• Subsequent messages include only a HMAC
• On leave, nothing needs to be done
• Vehicles at boundaries receive messages from 2
  groups

12
Aggregation mechanism 1Combined signatures

• Concept a group of vehicles reporting the same
  event combine their signatures
• Advantages
• Overhead is grouped in one message gt better
  channel efficiency
• A groups combined message gt the group agrees on
  the content
• Three types of combined signatures

m message, S Signature, C Certificate
13
Aggregation mechanism 2 Overlapping groups

• Concept vehicles in the intersections of groups
  make a bridge for data
• Group keys and messages are distributed using
  SVGP
• The good
• Cheap symmetric crypto
• The bad
• Need for position verification
• Need for honest majority
• Lack of non-repudiation

14
Aggregation mechanism 3Dynamic Group Key
Creation

• Conciliates low overhead (symmetric crypto) with
  non-repudiation (digital signatures)
• Dynamic group scenarios (e.g., platoon)
• Step-by-step

1. The leader sends a key request to the CA
   (Certificate Authority)
2. The CA generates an asymmetric group key pair and
   unique IDs for members (for non-repudiation)
3. Vehicles sign messages with the new group key and
   include their ID

15
Simulation results

• ns-2 simulator
• Rice scenario generator
• EPFL VANET patch (available at http//ivc.epfl.ch)

• Cell size 400 meters
• ECC with key size of 256 bits
• 100 simulations
• Simulated mechanism concatenated signatures
• Correctness level of messages number of
  supporting signatures to consider a message
  correct. It is 4 in our simulations

Scenario
Source
Destination
2400 m
2400 m
16
Effect of density on channel usage
17
Effect of density on message delay
18
Effect of speed on channel usage
19
Effect of speed on message delay
20
Efficiency vs. Security (correctness level)
Destination aggregation
Source aggregation
21
Conclusion

• Objective the tradeoff between efficiency and
  security
• Efficient secure aggregation is a feasible
  answer
• Combined signatures
• Overlapping groups
• Dynamic group key creation
• The advantages
• Better channel usage
• Lower message delivery delay
• Better data correctness and hence security
• Visit http//ivc.epfl.ch and http//www.sevecom.or
  g

22
SEVECOM (SEcure VEhicular COMmunication)

• Objectives Identification of threats and
  Specification of a security architecture
