Long Term digital preservation OAIS preservation perspectives

1

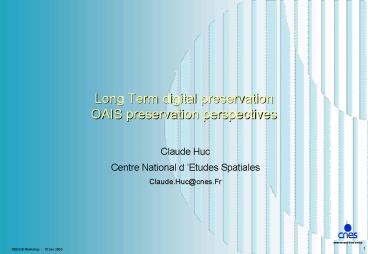

Long Term digital preservationOAIS preservation
perspectives

• Claude Huc
• Centre National d Etudes Spatiales
• Claude.Huc_at_cnes.Fr

2
Contents

• General characteristics of space data
• Preservation of space data the factors of
  difficulty
• Archiving systems architecture
• Physical storage
• Media and technologies
• The storage function
• The storage machine ?
• Rules applicable to information to be archived
• Independence of information with regard to
  systems
• Representation information
• Migrations

3
Characteristics of Digital Information in the
Space field

• Diversity
• Diversity of applications (scientific,
  operational, commercial)
• Diversity in the organization, structure and
  encoding of documents and data scientific
  observations, text documents describing missions,
  experiences and their context, technological
  information (spacecraft structure, thermic
  model)
• Complexity
• Related to the complexity of on-board instruments
• Volume
• Generally high
• May be as much as several hundred Terabytes for
  the earth observation missions

4
Characteristics and diversity of information to
be archived

• Data file collections
• - formats defined for each application integers,
  real numbers in encoded (ASCII) or binary (IEEE
  real) format
• - standard formats pour certain vocabulary
  research projects
• Images
• JPEG, GIF, TIFF, PS formats
• Text documents
• PDF, TXT, HTML, XML formats
• Occasional video documents
• MPEG formats
• Technological data (STEP)
• Links to other archives, etc.

5
Preservation of space data The factors of
difficulty

• Technical factors
• increasingly frequent technological changes
• non-independence of archived information with
  regard to systems
• insufficient semantic and syntactic descriptions
  of data
• control of the migration process
• Organizational factors
• space projects are not perpetual structures
• Scientific factors
• the know-how required to interpret data
• Most of these factors are not specific to the
  space field

6
Archiving systems architecture

• Compartmentalize technologies
• break down main functions into services which are
  as independent as possible ingest process,
  storage, metadata management, access,
• standardize interfaces between these services,
• Each service then becomes independent with regard
  to its evolutions,
• We are clearly evolving towards service-based
  architectures
• Minimize the number of systems to be developed
  and maintained search for genericity

7
Physical Storage Media and Technologies

• Incredible evolutions in storage capacities
• In 1975 35 Megabyte 1600 bpi magnetic tape
  (Compatible Computer Tape)
• In 1995 1 terabyte optic tape,
• Increasingly rapid obsolescence and changes of
  technologies now creates more difficulties than
  those created by media obsolescence
• Each change in storage technology led to
  relatively deep modifications in the archive
  system
• Therefore we must seek to minimize these
  consequences by developing a physical storage
  service for data which is as independent as
  possible of the other archive system functions
• This approach has been undergoing experimentation
  in CNES since 1995

8
Physical StorageExample of Storage Function

• STAF file archive and transfer service
  implemented at the CNES
• Mission
• Structured storage of data in tree format,
• Long term physical preservation of files,
• Transparent media management for users,
• Confidentiality and access rights
• Archiving and retrieval in a heterogeneous
  environment
• Service which is totally independent of all
  applications or projects
• The STAF has been operational since 1995. It
  operates 24 hours a day.
• Current storage 25 Terabytes, 2 million files,
  daily input 120 Gbytes

9
Physical Storage The Storage Machine?

• The STAF
• The data is in files which are stored on magnetic
  tape cartridges
• The cartridges are stored in mass storage
  facilities (StorageTek robots)
• There is no set position for a particular
  cartridge inside the facility
• Files are automatically changed from one
  cartridge to another
• Due to error corrector codes nearing saturation
• Due to the age of the cartridge (5 years old)
• To reorganize storage following the deletion of
  certain files
• To deal with the changes of cartriges
  technologies.
• gt Progressive suppression of the data - médium
  association

10
Rules applicable to information to be archived

• The digital information to preserve must be
• independent of technologies and systems
• independent of the software used to create or
  manage this information
• the files are seen as an abstract bit stream,
  totally independent of the machines
• only file structures which are completely known
• limited to standardized encoding

11
Rules applicable to information to be archived

• Describe data on the syntactic and semantic
  levels
• all these file bits must belong to fields with
  encoding and significance which is known to us
• the description of these fields must be
  exhaustive, comply with the data and validated
• For data files
• syntactic description with the EAST language
  http//east.cnes.fr
• semantic description with the DEDSL language
  http//www.ccsds.org/ccsds/red_books.html CCSDS
  647.1-R-2 Data Entity Dictionary Specification
  Language
• For text documents
• PDF and XML or SGML

12
Migrations (1)

• The CNES data migration program
• Undertaken from 1994 to late 1999
• Several tens of thousands of magnetic tapes
• Justified by the abandon at that time of the
  Control Data machines and all magnetic tape
  reading facilities and the obsolescence of this
  storage technology
• objective save existing data in a portable form
• existing data is saved gt no transformation of
  the information
• physical transfer of the data to a new perpetual
  storage service (STAF),
• transcoding - if necessary - at this stage

13
Migrations (2)

• Purely physical migrations (repackaging for the
  OAIS)
• files are not modified
• losses of less than 1
• this low figure is due to
• the monitoring and the quality of the media used
• the duplication of valuable data
• Migrations which include transcoding
  (transformation for the OAIS)
• applicable to non-portable files
• costly (avoidable) operation
• validation criticality

14
Conclusions

• There is still a long way to go.
• In the face of lack of knowledge, carelessness or
  irresponsibility, a number of documents in
  digital format will be lost in years to come,
• We hope that such losses will trigger the
  necessary awareness in the modern World who wish
  to keep our memory intact.
