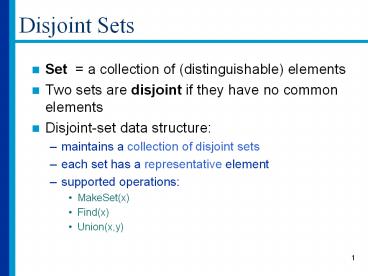

Disjoint Sets

• Set a collection of (distinguishable) elements
• Two sets are disjoint if they have no common
  elements
• Disjoint-set data structure
• maintains a collection of disjoint sets
• each set has a representative element
• supported operations
• MakeSet(x)
• Find(x)
• Union(x,y)

2
Disjoint Sets

• Used in applications requiring the partition of a
  set into equivalence classes.
• Maze generation
• Several graph algorithms
• (e.g. Kruskal's algorithm for minimum spanning
  trees)
• Compiler algorithms
• Equivalence of finite automata

3
Disjoint Sets

• Major operations
• MakeSet(x)
• Given an object x, create a set out of it. The
  representative of the set is x
• Find(x)
• Given an object x, return the representative of
  the set containing x
• Union(x)
• Given elements x, y, merge the sets they belong
  to.
• The original sets are destroyed.
• The new set has a new representative

4
Disjoint Sets

• In the discussion that follows
• n is the total number of elements (in all sets)
• m is the total number of operations performed (a
  mix of MakeSet, Union, Find operations)
• m is at least equal to n since there must be a
  MakeSet operation for each element.
• The maximum number of Union operations that may
  be performed is n-1.
• We will perform amortized analysis.

5
Disjoint Sets

• Implementation 1 Using linked lists
• The head of the list is also the representative
• Each node contains
• an element
• a pointer to the next node
• a pointer to the representative
• Why? Because this will speed up the Find operation

6
Disjoint Sets

• Implementation 1 Using linked lists
• MakeSet(x)
• Create a list with one node, x
• Time for one operation O(1)
• Find(x)
• Assuming we already have a pointer to x (), just
  return the pointer to the representative
• Time for one operation O(1)

() usually, we have a vector of pointers to the
individual nodes
7
Disjoint Sets

• Implementation 1 Using linked lists
• Union(x, y)
• Perform Find(x) to find x's representative, rx
• Perform Find(y) to find y's representative, ry
• Append ry's list to the end of rx's list
• rx becomes the representative of the new set.
• The elements that used to be in ry's list should
  have their pointers to the representative
  updated.
• Idea 1 Do a lazy update set ry's pointer to rx
  and leave the rest the way they are. This will
  make Union faster but will slow down the Find
  operation.
• Idea 2 Update all applicable pointers. This
  will maintain the constant Find() time.

8
Disjoint Sets

• Implementation 1 Using linked lists
• Union(x, y)
• A sequence of m operations may take O(mn2) time
• How? Given elements 1, 2, 3, ..., n, do Union(1,
  2), Union(3, 1), Union(4, 1), etc.At step i,
  we attach a list of length i to a list of length
  1, thus updating i pointers to the new
  representative. After n-1 unions, we'll have a
  single set and we will have performed O(n2)
  pointer updates.
• So let's be smart about it
• Keep track of the length of each list and always
  append the shorter list to the longer one.

9
Disjoint Sets

• Implementation 1 Using linked lists
• Union(x, y)
• A sequence of m operations where all unions
  append the shorter list to the longer one takes
  O(mnlgn) time
• Why? Because with each union we attach a list of
  length i to a list of length at least i, thus
  doubling the length of the list. By the time we
  get a single set containing all elements, each
  element's pointer to the representative will have
  been updated lgn times, thus giving us a total of
  nlgn pointer updates.

10
Disjoint Sets

• Implementation 2 Using arrays
• Maintain an array of size n
• Cell i of the array holds the representative of
  the set containing i.
• Similar to lists, simpler to implement if we know
  the number of elements in advance.

11
Disjoint Sets

• Implementation 3 Using trees
• Each set is represented by a tree structure where
  every node has a pointer to its parent.
• This tree is called an up-tree
• The root is the representative of the set
• The elements are not in any particular order.

12
Disjoint Sets

• Implementation 3 Using trees
• MakeSet(x)
• Create a tree containing only the root, x
• Time for one operation O(1)
• Find(x)
• Follow the parent pointers to the root.
• Time for one operation O(depth of node)
• Could be up to O(n)

13
Disjoint Sets
12
5
3
9
8
1
2
14
Disjoint Sets

• Implementation 3 Using trees
• Union(x, y)
• Perform Find(x) to locate the representative of
  x, sx
• Perform Find(y) to locate the representative of
  y, sy
• Make sy a child of sx
• Danger if we are not smart about it, our tree
  may end up looking like a list

1
1
1
2
1
2


3

4
2
2
3
3
4
15
Disjoint Sets

• Implementation 3 Using trees
• Union(x, y)
• Always make the smaller tree a child of the
  larger tree.
• How do we define "smaller"?
• Heuristic 1 Union-by-weight
• Smaller fewer nodes
• Store number of nodes at the representative
• Add the two weights when performing a union
• Heuristic 2 Union-by-height
• Smaller shorter
• Store height at the representative
• The height increases only when two trees of equal
  height are united.

16
Disjoint Sets

• Implementation 3 Using trees
• Union(x, y)
• The height of a tree is at most logn1 where n is
  the number of elements in the tree.
• We can do better than that!
• Optimizing the union through path compression.
• Our goal is to minimize the height of the tree
• Every time we perform a Find(z) operation, we
  make all nodes on the path from the root to z
  immediate children of the root.
• When path compression is performed, a sequence of
  m operations takes O(mlgn).

17
Disjoint Sets

• Implementation 3 Using trees
• Union(x, y)
• Path compression and union-by-weight can be
  performed at the same time.
• Path compression and union-by-height- can be
  performed at the same time.
• It's more complex since path compression changes
  the height of the tree.
• We usually prefer to estimate the height instead
  of computing it exactly. We then talk about
  union-by-rank with path compression.
• When we perform union-by-weight/height with path
  compression, a sequence of m operations is almost
  linear in m
