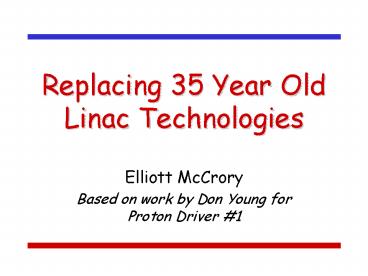

Replacing 35 Year Old Linac Technologies
  • Elliott McCrory
  • Based on work by Don Young for Proton Driver 1

2
Basic Idea
  • Replace all 35 year old components
  • 402 MHz, like SNS
  • Reuse 805 MHz systems
  • Can get 480 GeV in the same space
  • Some of it bought from AccSys Technologies
  • Potential collaborations?
  • Fermilabs NTF (Arlene Lennox)
  • Fermi Institute of Hadron Therapy
  • 50M from Hastert?!
  • National Taiwan University Hospital, Hsinchu
    Biomedical Science Park
  • Taipei, Taiwan
  • Gold Platedcan work backwards from this proposal

3
http//www.accsys.com
4
From The AccSys Web Site
  • LINSTAR systems are currently in use at several
    facilities around the world
  • A Model PL-2i has been operating at Loma Linda
    University Medical Center since 1990 as the
    injector to the high energy proton synchrotron
    cancer treatment facility. The synchrotron system
    operates 24 hours a day, 6 days a week and has
    been described in a number of technical
    publications. Complete proton therapy systems
    based on the Loma Linda installation are
    commercially available from Optivus Technology,
    Inc.
  • Two systems are now in operation in Japan a
    Model PL-3i is the injector to the proton
    synchrotron cancer treatment facility at the
    Shizouka Cancer Center, which was built by
    Mitsubishi Electric Company, and a Model PL-7i is
    the injector for the proton synchrotron cancer
    treatment facility installed by Hitachi, Ltd. at
    the Tsukuba Medical Center.
  • A Model PL-7i was operated at the Indiana
    University Cyclotron Facility from 1997 to 2002
    as the injector for the CIS compact synchrotron
    which is in turn the injector for the high energy
    physics cooler ring. This physics system was
    decommissioned. The injector for their cyclotron
    was converted from doing physics research to
    proton cancer therapy and the Model PL-7i linac
    is being upgraded for use as a neutron source for
    research. However, a Model PL-1 RFQ linac is now
    in operation at the facility.

5
Linac Replacement
  • 402 MHz front end
  • New ion source RFQ
  • Two RFQs with double-alpha injection
  • New DTL to 90 MeV
  • New Transition section
  • Gets the match RIGHT!
  • Can design to very low losses
  • One new 805 MHz Tank to 116 MeV
  • Probably room for one or two more 805 MHz tanks
  • Sliding existing tanks up one or two slots
  • Can get 480 MeV
  • Cost Estimate

6
Schematic Layout
Solid NEW
Hatched Existing
RGDTL
DTL Tank 2
DTL Tank 5
DTL Tank 3
DTL Tank 4
RFQ 2
RFQ 1
89 MeV

TransB
TransV
New Module 0
Existing Module 1
To Booster at 480 MeV
Existing Module 7
New Module 8
New Module 9
7
Suggested Parameters
8
Benefits
  • Replaces all 35-year-old Linac equipment
  • SOA technology
  • Increase beam brightness
  • Probably 2 to 4 X smaller transverse emittance
  • Existing technical staff Days are numbered
  • New technical staff can own this new machine
  • New machinery and new people might last another
    30 years
  • 402 MHz Klystrons exist
  • And our 805 MHz klystrons last forever
  • Significantly shorter than existing LEL
  • Could add more modules at the end to give an
    energy boost
  • Higher injection energy into Booster is better
  • Reduced losses/activation throughout the Linac
  • Transition section is our predominant loss now
  • Lower emittance would mean lower 400 MeV-line
    losses

9
Higher Energy Linac Benefits
  • The space charge limit for constant aperture at
    Booster injection scales like ß2?3

10
Pet Project (1996)
RFQs
11
Double a Magnet Del Larson
12
Trace-3D Run of PET MEBT
Longitudinal
RFQ 1
RFQ 2
13
From Larsons 96 MEBT paper
  • 6.1. Longitudinal Control.
  • some control over the longitudinal phase
    space can be exercised by using the trim quads
    located in the cross over arm. The MEBT has been
    designed to have a high dispersion in this
    region, and quadrupole variations in this region
    therefore have a large effect on the dispersion
    function. The dispersion is introduced in the
    first alpha magnet, and the magnet and optics
    have been nominally designed so that the
    dispersion function has zero gradient in the
    middle of the cross over arm. With zero
    dispersion gradient and transverse waists in the
    center of the cross over arm, the beam will have
    symmetric optics about this point, leading to
    zero dispersion and zero dispersion gradient at
    the end of the second alpha magnet. While the
    first goal of the trim quads is to ensure a
    symmetric dispersion function, so as to eliminate
    dispersion at the end of the MEBT, a second
    function can be to control the position of the
    longitudinal waist. Since small trim quad
    variations have a large effect on the dispersion
    and a small effect on the transverse beam optics,
    the longitudinal control exercised by the trim
    quads is largely independent of the transverse
    optics.
  • 6.2. Transverse Control.
  • Once dispersion has been minimized (by arranging
    for symmetric optics within and between the
    dipoles) the quadrupoles placed downstream of the
    dipoles will have no effect on the longitudinal
    optics and can therefore be used solely for
    transverse optics matching. Since there are three
    such quads, one can in principle exercise control
    over three linear combinations of the four
    independent transverse phase space variables.

14
Rough Cost Estimate
15
Conclusions
  • Gold Platedcan work backwards from this proposal
