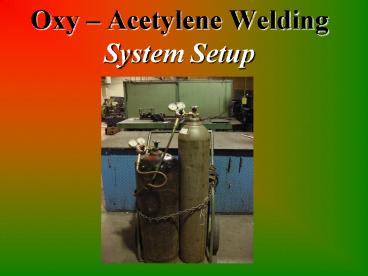

Oxy Acetylene WeldingSystem Setup
2
The oxy-acetylene system is predominantly used
for

• Heating and bending metal
• Heating metal for heat treatment
• Gas welding and brazing
• Cutting

3
Setup Procedure

• 1. Check to make sure that both needle or torch
  valves on the torch body are closed.

4

• 2. Check to make sure that both regulator
  adjusting screws are backed out and there is NO
  PRESSURE on the regulators.

5
Open the acetylene cylinder valve ¼ to ½ turn.
6
Turn the regulator adjusting screw in (clockwise)
to set the desired pressure.
7
Open the oxygen cylinder valve all the way.
8
Turn the regulator adjusting screw in (clockwise)
to set the desired pressure.
9
Shut Down

• Close acetylene cylinder valve.
• Open the acetylene needle valve on the torch
  until both the working and tank pressure drop to
  zero.
• Close the torch needle valve.
• Back out the regulator adjusting screw.
• Repeat steps 1 thru 4 for oxygen.

10
Presentation produced byMichael Turino

• Academic and Career Counselor Instructor
• Northern Michigan University
• October 26, 2004
