Recursion

1

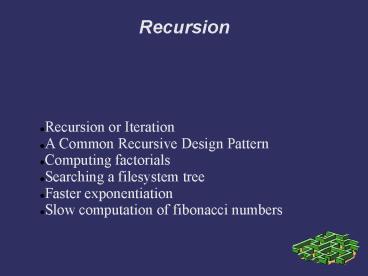

Recursion

• Recursion or Iteration
• A Common Recursive Design Pattern
• Computing factorials
• Searching a filesystem tree
• Faster exponentiation
• Slow computation of fibonacci numbers

2
Recursion or Iteration

• Iteration means doing the same action a number of
  times until some condition is met, e.g. reading a
  number of records from a file all the records are
  processed.
• Recursion means a function calling itself on
  successively smaller versions of a problem until
  the problem is small enough that it can be solved
  directly. Recursion can make heavy use of the
• program stack, where automatic variables of
  parent function calls are stored and return
  addresses for when a child call exits.

3
A common recursive design pattern

• solution recursive_func( problem )
• if (problem is trivial)?
• return the known solution
• else
• return some expression involving call/s to
• recursive_func(to solve smaller problem/s)?

4
Computing factorials 1

• We can define factorial(N) iteratively as
• 1 x 2 x 3 ... x N, where ... means keep doing
  the
• multiplication for all integers between 4 and
  N-1.
• Alternatively we can define factorial(N)
  recursively.
• IF N 1 Factorial(N) is 1
• IF N gt 1 Factorial(N) is Factorial(N-1) x N

5
Computing factorials 2

• int factorial(int n)
• if(n1) / trivial case, return result /
• return 1
• / we don't need an else here due
• to the return after the if clause /
• return factorial(n-1)n
• / reduce the problem to a smaller one /

6
Searching a file system tree

• Data structrures known as trees lend themselves
  to recursive processing, because a subtree has
  the same properties as the parent tree, but is
  smaller than the parent tree. You are already
  familiar with the use of a filesystem tree to
  store folders and files as a Windows drive, e.g
  C or a Unix mount point e.g. / .
• Searching such a tree, e.g. for a file with a
  particular name, involves comparing all of the
  local names and calling the same function on each
  of the subtrees.

7
Faster Exponentiation 1

• Cryptographic protocols are used to secure
  messages and create digital signatures of
  documents. These exponentiate and get remainders
  using very large prime numbers, e.g. with 1024
  binary digits, equivalent to about 300 decimal
  digits. Let's generate 3 such numbers, A, B and
  C. When we write AB mod C this means we multiply
  A to the power of B and get the remainder on
  dividing by C.
• In practice we can't multiply AB in one single
  operation or even directly, because A and B are
  too large, and to avoid this result using up more
  memory than we have, we can repeatedly get the
  remainder (mod C) to make intermediate results
  smaller, which avoids the numbers being
  multiplied becoming too large. This works
  because
• IF D E.F , THEN D mod G ((E mod G).(F mod
  G)) mod G
• E.G. making E23, F37 and G19, 23 19
  4, 37 19 18,
• 23 x 37 851, 851 19 (4 x 18) 19
  15

8
Faster Exponentiation 2

• We can't even multiply A by itself B times
  because B is too large. But we can divide B by 2
  using integer division Log2B times, and using to
  the order of this smaller number of operations we
  can obtain AB mod C.
• Ignoring the remaindering requirement, and to
  learn how to exponentiate AB using OLog2B
  operations, we are going to write a program to
  raise a floating point value for A to the power
  of integer B using the following simplifications
• IF B is even, AB is equal to A(B/2)x A(B/2).
• ELSE, B is odd, AB is equal to A(B/2)x A(B/2) x
  A. When
• obtaining B/2, we are using integer division.

9
Faster Exponentiation 3

• For example if the number were 2 and the power
  were 37 and we use sq() to represent the square
  function, this functionality could be expressed
  as follows
• 237 2 sq(218)?
• 218 sq(29)?
• 29 2 sq(24)?
• 24 sq(22)?
• 22 sq(2)?
• therefore 237 2 sq(sq(2sq(sq(sq(2))))).
• 2 37 137438953472 .

10
Faster Exponentiation 4

• Using this recursive method of calculating 237
  involves 7 multiplications instead of 36.
• Calculating 1.0000000110000000 recursively
  involves 35 instead of the 9,999,999
  multiplications which would be required in
  calculating this value iteratively. Repeatedly
  taking a remainder makes it possible to
  exponentiate randomly generated prime integers of
  cryptographic sizes.

11
Recursive Exponentiation Program 1
12
Recursive Exponentiation Program 2
13
Recursive Exponentiation Program 3

• Function power is called once from function main.
  Function power calls itself repeatedly until n
  1 when the function will return a value from each
  of the calls to the preceding call. Note that the
  context of each function call, i.e. local
  variable values for a particular level are
  preserved until the program returns from that
  level. The output from program fastmult.c is
  shown below
• Enter a number and a (positive int) power to
  raise it to
• 1.00001 1000000
• The result is
• 2.68677343000936241e43

14
Recursive Exponentiation Program 4

• The recursive function calls result in there
  being a number of instances of the automatic
  variable a and parameter variables x and n
  preserved on the program stack when recursion is
  at its deepest level.
• This will tend to defeat the use of a debugger
  with break points and watch variables. Which
  instance of a watched variable is being seen ? To
  help with debugging, it is possible to use the
  standard input facilities of the programming
  language to pause the program to simulate a
  breakpoint, and the standard output facilities to
  add extra output to view automatic variables and
  parameters. An instrumented version of power() is
  on the next slide. The instrumented version uses
  a global int variable level initialised to 0.

15
Recursive Exponentiation Program 5
16
Slow computation of fibonacci numbers 1

• Recursive algorithms are not always faster than
  the iterative equivalent.One example of a slower
  recursive algorithm involves computing fibonacci
  numbers. This will only be slower if using an
  old or small compiler that don't know how to
  optimise it.
• if n 1 or n2, fibonacci(n) 1.
• if n gt 2, fibonnaci(n) fibonacci(n-1)
  fibonacci(n-2).
• The fibonacci series is 1,1,2,3,5,8,13,21,34,55
  etc, with each number in the series after the
  first 2 being the sum of the previous 2.

17
Slow computation of fibonacci numbers 2
18
Tutorial Exercises

• To compute fib(n) where n is gt 8 how many times
  does fib have to be called to compute fib(n-1),
  fib(n-2) fib(n-3), fib(n-4), fib(n-5) and
  fib(n-6).
• Write and test a function ncfib(x) which returns
  the number of times fib() has to be called in
  order to compute fib(x) ?
• Write and test an iterative function ifib(x)
  which computes fibonacci(x) iteratively. How many
  operations does it need and why is it faster ?
