I/O Trap

1

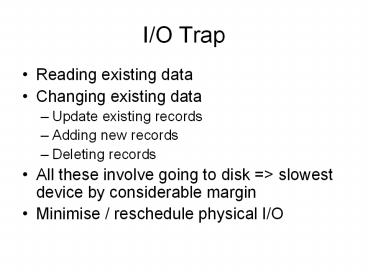

I/O Trap

• Reading existing data
• Changing existing data
• Update existing records
• Adding new records
• Deleting records
• All these involve going to disk gt slowest device
  by considerable margin
• Minimise / reschedule physical I/O

2
Issues in Database Performance

• Performance in Read / write are hardware issues
  gt throw money at it
• Performance of DB ability of engine to locate
  data
• Factors affecting speed of retrieval
• Cache (sizing of objects)
• Access method (table scan / indexes)
• Contention between processes
• Indirect processes (roll back, archiving)

3
Reading data in Oracle

• 1 determine how to access block where data is
  located
• read data dictionary stored in separate part of
  DB
• DD may be loaded up in cache (aka row cache) to
  limit I/O activity
• 2 - DD indicates preferred access method for
  block
• B tree index, partitioning, hash clusters etc
• 3 - Search begins either in full scan or with
  index until data found

4
Designing DB for reading

• Supply methods for high precision access to data
• But some queries will defeat the strategies
• E.g. credit cards transactions monthly report
  of scattered items
• No solution take off-line

5
Changing data

• Oracle makes hard work of changes
• Rollback data (immediate)
• Log files (long term)
• Changed blocks read and updated in buffer
• Released to disk as buffer is cleared
• But rollback info generate most I/O operations
• In sensitive environments, simultaneous archiving
  makes it worse (ARCHIVELOG mode)

6
Indexing Problems

• Super-fast indexes need updating as data is
  changed gt DB slows down.
• More complex index more complex update
  mechanism more rollback .
• DB physical structure degrades, so does index (eg
  split blocks)
• Performance decreases over time
• Rebuild needed (which interferes with operations)

INDEX_STATS tells you how big the index has grown
7
Side effects

• Definition of DB consistency
• A reading process may need an older version of
  the data
• Need to create a private version of the data
• Cl processes that should be Read only require
  writes
• Attempt to describe all required operations in
  finishing to execute query on old data

8
Effects of read consistency

• Must find an older version of data
• Must apply roll back
• Must find old roll back block (I/O)
• Roll back index (I/O)
• Find data (I/O)
• Roll back data
• Read old data
• Reverse all changes
• Significant I/O implications buffer full of old
  stuff

9
Conclusions

• Writers and readers DO interfere with each other
• The mechanisms used by Oracle to bypass locking
  have performance side effects
• Performance come with minimising I/O
• i.e. with good access techniques
• Precision of data location
• Physical proximity of related data (cf caching)
• However Techniques to reduce I/O numbers tend to
  reduce the speed of access!

10
Indexing example (see figure)

• Alphabetic search using B tree index for name
  Oscar Smith
• Split the table in sections and read until find
  start overshoot letter S Smith, N is the one
• Then look for page with Smith, N in header
• Then scan for actual entry in index
• Read pointer
• Move to table
• Read

11
About Btree indexes

• Root and Branch blocks approx 2 of index
  (small)
• In frequent hit situations, both blocks loaded in
  Data Buffer all the time
• Then only 2 I/O may be required
• One to read leaf block
• One to read the table
• In practice, read in index and in table may
  require reading several blocks
• E.g Several similar names
• Index spans two (or more) leaf blocks
• Each record is in a different data block

12
Creating and Using Indexes

• Important for live access, but even more for
  querying with multiple tables
• Value matching is costly process in RDB
• No pointers
• Connection purely on comparison basis only
• One row with all other rows
• If link between 2 huge tables, perf is low
• All RDBs use some form of indexing
• Some complexity involved as index can reduce
  physical I/O while increasing logical I/O (ie CPU
  time)

13
Btree indexing

• Creating an index means creating a table with X1
  columns
• X number of columns in index
• Rowid (added field) table block row
• Index is then copied into consecutive blocks
• PCTFREE function leaves space for growth of data
  (but high value will generate many leaf blocks)
• Pointer is added to previous and next leaf blocks
  in header of block

14
Btree indexing (2)

• Then branch layer is built
• If index gt one block
• Collect all first entries block address of each
  leaf block
• Write down into the first level branch block
  (packed)
• If branch block is full, initiates second level
  of branch blocks etc.
• Room is saved in branch blocks
• No forward and backward pointer in branch blocks
• Entries are trimmed to the bare minimum
• First entries are omitted
• See figure 6.1

15
Syntax

• CREATE INDEX name ON table name (field1, field2
  )
• PCTFREE 80
• Oracle has many utility programmes to assess the
  performance of indexes use INDEX_STATS (see
  handout)
• Practical problem is it easy to create a new
  index for a large table? NO!

16
Updating indexes

• Index entries are NEVER changed
• Marked as deleted and re-inserted
• Space made available cannot be used until after
  index is re-built
• Inserts that dont fit split the block (rarely
  50/50!)
• If a blocks becomes empty, it is marked as free,
  but is never removed
• Also, blocks never merge automatically

17
Some problems

• Some situations cannot be addressed with indexes
• e.g. In a FIFO processing situation (e.g. a
  queue), indexes will prove counterproductive
• Index may grow to stupid proportions even with
  small error rate (unsuccessful processing of
  data)
• Every time a transaction is added or processed
  (deleted) the index must change

18
Alternative Bitmap indexing

• Imagine following query in huge table
• Find customers living in London, with 2 cars and
  3 children occupying a 4 bed house
• Index not useful why?
• Too big
• If query changes in any way gtnew index needed
• Maintaining a set of indexes for each query would
  just be too costly
• Use a bitmap (see table 6.1, 6.2 and 6.3)

19
Bitmap indexes (2)

• Special for data warehouse type DBs
• Build one bitmap for each relevant parameter
• Combine bitmaps using the and SQL keyword
• Also possible to use noting of bitmap (see
  table 6.4, 6.5)

20
Key points to remember

• What is the key advantage of a bitmap index?
• What situation does it best suit ?
• Bitmaps can also be packed by Oracle compression
  features
• But size is unpredictable why?

21
Example

• Table with 1,000,000 rows
• Bitmap on one column that can contain one of 8
  different values (e.g. city names)
• Data is such that all same city together 125,000
  times
• Write the bitmap
• Imagine what compression can be achieved
• Data is such that cities are in random order, but
  same number of each
• Same questions

22
solution

• First scenario
• Bitmap for first city 125,000 ones and 875,000
  zeros trimmed off
• Size 125,000 bits or approx 18Kbytes
• Full bitmap 156 Kbytes
• Second scenario
• Bitmap for first city sequences of 1s and 7
  zeros, repeated 125,000 times
• Size 1,000,000 bits or approx 140 Kbytes
• Full bitmap 1.12 Mbytes
• But BTree index for such data would be around
  12MB

23
Conclusion

• Bitmap indexes work best when combined
• They are very quick to build
• Up to a million rows for 10 seconds
• Work best when limited number of values when
  high repetitions
• Best way to deal with huge volumes gt make
  drastic selection of interesting rows before
  reading the table
• Warning one entry in a Bitmap hundreds of
  records gt locking can be crazy (OLTP systems)
• gt for datawarehouse type applications (no
  contention)

24
What oracle says about it

• Use index for queries with low hit ratio or when
  queries access lt 2 - 4 of data
• Index maintenance is costly so index just in
  case is silly
• Must analyse the type of data when deciding what
  kind of index
• Do NOT use columns with loads of changes in an
  index
• Use indexed fields in where statement
• Can also write queries with NO_INDEX

25
Administering indexes

• Indexes degrade over time
• Should stabilise around 75 efficiency, but dont
• Run stats
• Analyse index NAME validate structure
• Analyse index NAME compute statistics
• Analyse index NAME estimate statistics sample 1
  percent

See table 6.6
26
Partitioned tables

• Partitions / partitioning / partitioned tables
• For very large tables
• Improve querying
• Easier admin
• Backup and recovery easier
• Optimiser knows when partitioning used
• Can use in SQL also

27
Creating a PT

• Create table FRED (
• ID number
• name varchar2(25)
• age number
• constraint fred_pk primary key (ID)
• )
• partition by range (age)
• (partition PART1 values less than (21)
• partition PART2 values less than (40)
• partition PART3 values less than (maxvalue)

28
Warning

• Specification of partition is exclusive
• E.g. partition by range (name)
• (partition part1 values less than (F) implies
  that f is excluded
• Maxvalue is a general term to pick up anything
  that failed so far
• Works for text as well as number

29
Hash partition

• Only in Oracle 8i and above
• Uses a numerical algorithm based on partition key
  to determine where to place data
• Range partition consecutive values together
• Hash consecutive values may be in different
  partitions
• Also gives more partitions reduces the risk of
  contention

30
What is Hash?

• Imagine 8GB table split in 8 / 1 GB
• No intuitively clever way to split data
• Or obvious way is totally imbalanced
• 1 partition 7BG 7 140MB
• Huge variations in performance
• Randomise breakdown of data so objects of similar
  size
• Select one column
• Select number of chuncks
• Oracle does the rest!

31
Mechanics of hashing

• Each record is allocated into a bucket based on
  key value e.g. Name Joe
• Applying the hashing function to the value Joe
  uniquely returns the bucket number where the
  record is located
• E.g. using prime number
• divide KEY by a prime number
• If text, translation into numeric value using
  ASCII code
• use remainder of the division address on the
  disk
• if record already at same address - pointer to
  overflow area.

32
Hash partition - SQL

• Create table FRED (
• Name varchar2(25) primary key,
• Age number,
• Years abroad number
• )
• Partition by hash (age)
• Partitions 2
• Store in (Part1_fred, Part2_fred)

(Not compulsory)
33
Sub-partitions

• Create table FRED (
• Name varchar2(25) primary key,
• Age number,
• Years abroad number
• )
• Partition by range (years abroad)
• Subpartition by hash (name)
• Subpartitions 5
• (partition Part1 values less than (1)
• partition Part2 values less than (3)
• partition Part3 values less than (6)
• partition Part4 values less than (MAXVALUE))

34
Indexing partitions

• Performance requirements may mean Partitioned
  tables should be indexed (separate issue)
• Create index FRED_NAME on FRED (name)
• Local
• Partitions (Part1, Part2, Part3, Part4)
• Local means create separate index for each
  partition of the table
• Alternative is to create a global index with
  values from different partitions
• Global indexes cannot be created for Hash
  partitions
