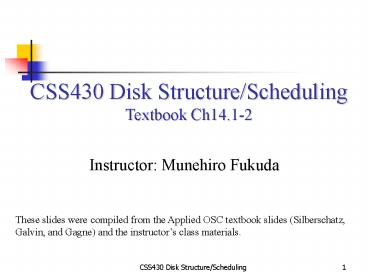

CSS430 Disk Structure/Scheduling Textbook Ch14.1-2
Instructor Munehiro Fukuda These slides were
compiled from the Applied OSC textbook slides
(Silberschatz, Galvin, and Gagne) and the
instructors class materials.
2
Review of Disk Structure

• File system interface provides applications with
  various system calls and commands such as open,
  write, read, seek, etc..
• File system maintains disk space in blocks and
  allocates available blocks to each
  stream-oriented file.
• Basic file system (BIOS) maintains data in
  physical blocks
• Disk driver reads from and writes to disk in a
  unit of block which consists of one (or more)
  sector(s).
• Disk maintains data locations with drive,
  cylinder, track and sector

track
sector
cylinder
3
Disk Scheduling

• Disk access time
• Seek time time for the disk arm to move the head
  to the cylinder
• Rotational latency time for the disk to rotate
  the desired sector to the disk head
• Disk scheduling
• First-come first-served (FCFS) Scheduling
• Shortest-Seek-Time-First (SSTF) Scheduling
• Scan Scheduling (or Elevator Algorithm)
• Circular Scan (C-Scan) Scheduling
• Look Scheduling
• Circular Look (C-Look) Scheduling

4
FCFS Scheduling

• Illustration shows total head movement of 640
  cylinders.

5
SSTF Scheduling

• Illustration shows total head movement of 236
  cylinders.

6
Elevator Algorithm (SCAN)

• Illustration shows total head movement of 208
  cylinders.

Go all the way to the end and reverse its
direction
7
Circular Scan (C-SCAN) Scheduling

• Illustration shows total head movement of 392
  cylinders.

The direction is always the same. When reaching
the end, the head restarts From 0.
8
LOOK Scheduling

• Illustration shows total head movement of 208
  cylinders.

Go only as far as the final request in each
direction and reverse its direction
9
Circular Look (C-LOOK) Scheduling

• Illustration shows total head movement of 322
  cylinders.

The direction is always the same. When reaching
only as far as the final request in this
direction, the head restarts as far as the
request in the other side.
10
Selecting a Disk-Scheduling Algorithm

• One request in a queue
• FCFS, SSTF, SCAN, and LOOK are all the same.
• Many requests in a queue
• SSTF performs best.
• SCAN/CSCAN perform better for the system but
  causes a heavy disk movement.
• Disk scheduling affected by file allocation
• The position of file blocks, FAT, and
  directories.
• Default algorithm
• SSTF or LOOK
• Problems in modern disk systems
• Block locations are not disclosed to OS
• Disk scheduling is performed by intelligent
  disks.
• Why should OS still schedule disks?

11
Exercises (No turn-in)

• While modern disk hardware performs disk
  scheduling by itself and does not disclose block
  locations to OS, why should OS still schedule
  disks?
• Solve the problem 14.1 on your textbook page 580
• Solve the problem 14.2 on your textbook page 580
