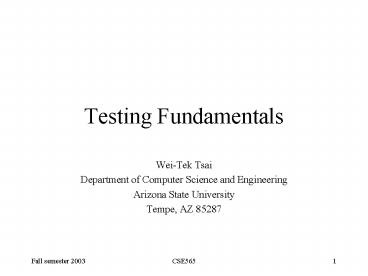

Testing Fundamentals

1
Testing Fundamentals

• Wei-Tek Tsai
• Department of Computer Science and Engineering
• Arizona State University
• Tempe, AZ 85287

2
Software Testing Key Terms and Definitions

• Verification
• - Are we building the product right ?
• Validation
• - Are we building the right product ?
• Reliability
• - Probability that a given software program
  performs as expected for a period of time
  without error.
• Testing
• - Examination of the behavior of a software
  program over a set of sample data.

3
Some Good Books on Testing

• Myers, The Art of Software Testing, 1979.
• B. Beizer, most of his books are good. His recent
  book on black-box testing is good.
• M. Ould and C. Unwin, Testing in Software
  Development, Cambridge University Press, 1987.
• R. C. Wilson, Software Rx Secrets of Engineering
  Quality Software, Prentice Hall, 1997.
• S. Kirani and W. T. Tsai, Testing
  Object-Oriented Software, TR, University of
  Minnesota, 1994.

4
Errors, Bugs and Failures

• Error A human mistake.
• Faults Bugs which appear in a give program
• Failure Running an input sequence that causes a
  bug, and/or the produces an output that is
  different from the specified output.
• One error can result in multiple bugs.
• Multiple errors can result in one bug.
• One bug can have one or more failures.
• Multiple bugs can lead to one or multiple
  failures.

5
Why Do We Need Software Testing ?

• No One can write Perfect Code all the time.
• Errors in Commercial Products cause Loss in
  Revenue.
• Failures in High Availability and Safety Critical
  Systems can cause serious irreversible damages.
• Misunderstanding user requirements can lead to
  development of perfectly good wrong products.

6
Objectives of Testing

• Testing does not mean Finding Bugs ONLY.
• The Objectives of Software Testing are
• - Find Errors.
• - Verify Requirements.
• - Make Prediction about the product(s).
• Of the above mentioned factors the last one is
  pretty
• difficult. Why ? Because it depends on several
• external factors in addition to the standard
  factors.

7
Some Testing Criteria

• Robustness Does the software component
  deteriorate gracefully as it approaches the
  limits specified in the specification.
• Completeness Does the software solving the
  problem completely.
• Consistency Does the software component perform
  consistently, i.e in the sense does it produce
  the same output each time for the same input(s).
• Usability Is the software easy to use.
• Testability Is the software easily testable.
• Safety If the software component is safety
  critical, is it safe to use.

8
Why is Testing Difficult ?

• Generate Test Inputs
• How many inputs to generate ?
• Provide all the setup, environment, databases
  similar to what the client has.
• Generate expected outputs
• Generally testing is done on a prototype. Will
  the actual system behave exactly as the
  prototype.
• Compare the test output with the expected output

9
Cost of Testing

• Cost of test input generation (positive)
• Cost of expected output generation (positive)
• Cost of running the test
• Cost of comparing test results and their expected
  outputs (positive)
• Cost of finding bugs (negative cost)
• Cost of missing bugs (positive and can be large)
• Cost of test management such as bug reporting,
  bug tracking, scheduling (positive)
• Most research papers do not consider all the
  factors.

10
Cost of Software Testing contd..

• Usually high, can be as high as 70 to 90 of the
  cost, especially for those projects which have a
  poor design and development phase.
• Cost of software testing can be reduced by
  automation (almost all the activities of testing
  can be automated, e.g., test input generation,
  expected output generation, test case reuse, and
  test running can be automated but many of these
  techniques are still highly manual).

11
Levels of Testing

• Unit/module/component test
• Test individual units separately.
• Deals with finding logic errors, syntax errors
  etc.
• Verify that component adheres to its
  specification.
• Integration test
• Find interface defects.
• Verify component interactions to make sure they
  are correct.

12
Levels of Testing contd..

• System test
• Verify the overall system functionality.
• Alpha testing
• Testing with select customers within the
  organization.
• Beta testing
• Testing with select customers external to the
• organization.

13
Attitude(s) That Make A Good Tester.

• Independent.
• Customer Perspective
• Testing intended functionalities.
• Testing unintended functionalities.
• Professionalism.

14
Attitude Of a Good Tester

• Independent
• - Independent from the developer. Why ?
• Developers tend to be biased towards their
  mistakes.
• Customer Perspective
• - Must be able to think from a customers
  perspective.
• Why ? Ultimately the customer is the one
  going to use the product. They bring in the
  revenue, so a good tester
• must be able to think from a customers
  perspective.

15
Attitude Of a Good Tester

• Testing Intended Functionality
• - This is one of the basic purpose of testing. A
  good tester is one who tests each and every
  intended functionality to make sure that the
  software is exactly what the client wanted.
• Testing Unintended Functionality
• - Sometimes called break-it testing (Dirty
  Testing). In this process the tester
  intentionally tries to make the code fail. Helps
  in detecting some special cases where the code
  may fail.

16
Formal Technical Reviews

• Objectives
• To uncover errors in function, logic or
  implementation
• To verify that the software under review meets
  its req.
• To ensure that the software has been represented
  according to predefined standards.
• To achieve software that is developed in a
  uniform manner.
• To make projects more manageable.

17
Formal Technical Reviews(contd)

• The FTR is actually a class of reviews
• Includes walkthroughs, inspections, round-robin
  reviews, and other small group technical
  assessments.
• Goal is to involve all the people involved in
  design, development and testing to understand the
  state of a software product.
• To be effective FTRs must be properly planned,
  controlled, and attended.

18
Inspection Process

• Planning
• Preparation
• Meeting activities
• Rework
• Following up

19
What is Inspection ?

• Formal statistical process control method for
  evaluating work products.
• What do these terms mean ?
• Formal follow a standard set of procedures and
  maintain a serious ambience during the inspection
  process.
• Statistical collate date and use use standard
  metrics.
• Process Control Method the decision that is made
  using the available metrics and statistics.

20
White-Box Testing

• A test case design method that uses the control
  structure of the procedural design to derive test
  cases.
• Guarantee that all independent paths within a
  module have been exercised at least once.
• Exercise all logical decision on their true and
  false values.
• Execute all loops at their boundaries and within
  their operational bounds.
• Exercise internal data structures to assure their
  validity.

21
Black-Box Testing

• Focuses on the functional requirements of the
  software. It is not an alternative approach to
  white-box testing. Instead it acts as a
  complement to the WB Testing technique.
• Runtime errors (Missing function definitions
  etc).
• Interface errors.
• Performance errors, and
• Initialization and termination errors.

22
Basis Path Testing

• Basis Path Testing is a technique that fulfils
  the requirements of Path Testing and also
  Independent Paths that can be used to construct
  an arbitrary path through a computer program.
• What is a Basis Path ?
• It is a unique path through the software with no
  loops, - all possible paths are a linear
  combination of them.

23
McCabes Basis Path Testing

• Draw a control flow graph.
• Calculate Cyclomatic Complexity.
• Choose a Basis Set of Paths.
• Generate Test Cases to test each of the paths
  selected above.

24
McCabe Number

• V(G) e2p n.
• e no. of edges.
• n no. of nodes.
• p no. of connected components.
• The higher the McCabe Number, the higher is
• the complexity of the software and the more
• error prone it becomes.

25
Data Flow Testing

• Tests the use of variables along different paths
  of program execution.
• Most common types of errors occur because of
  initialization before declaration or usage before
  declaration.
• Global variables cause more problems than local
  variables.
• Very Expensive to perform and is used mainly to
  test High Performance Applications and High Risk
  Applications.

26
Equivalence Partitioning

• Functional Testing Criteria.
• Applicable when the inputs are independent, that
  is there are no input combinations.
• How is EP done ?
• Divide the input space into finite partitions.
• For each partition defined, create a set of test
  cases. Develop test cases covering as many
  partitions as possible.
• For each invalid partition, develop additional
  test cases.
• Use Coverage Matrix to keep track of the test
  cases.

27
Boundary Value Analysis

• An important technique to detect errors occurring
  at component interfaces.
• Several errors tend to occur when components
  interact.
• Programmers tend to look how to implement their
  code correctly. Generally overlook how to handle
  exceptions that MAY occur.
• As an example consider an API that tests if a
  point lies in a rectangle or not.
• The CRect class has an API bool PtInRect(POINT
  p) that accepts a POINT type input parameter and
  returns a BOOL depending on the position of the
  point w.r.p to the rectangle.

28
Boundary Value Testing

• From a programmers point of view, the
  implementation is straightforward. Check if the
  point is within the co -ordinates of the
  rectangle and return an appropriate value.
• Some Special cases
• - Point is ON the rectangle.
• - Point is one of the vertices itself. (Spl case
  of above).
• What should happen in these cases. Have these
  cases been taken care of by the developer ? BT
  helps solve
• some problems of these types.

29
Random Testing

• Select a random input from a given domain
• can be either input or output domain, but most of
  the time, input domain is used.
• Paper by Duran and Ntafos in IEEE Transaction on
  Software Engineering on random testing in 1980s.
  Several topics about random testing were
  discussed.

30
Assumption Made in the Paper

• Finding a single failure is equivalent to finding
  a fault.
• Domains of faults do not interact with each
  other.
• Each domain contains at most one fault.
• Failure rate is assumed to be uniform.
• Pr Pp probabilities of finding one or more
  faults using random and partition testing
  respectively.
• Er Ep expected numbers of faults.

31
Interesting Facts

• Pr/Pp 90
• Er/Ep 90
• The authors also performed some (close to ten)
  real experiment on random testing, and found
  random testing was almost always as effective as
  partition testing.
• The authors concluded that the costs incurred to
  compare the results of running random testing are
  similar to those of running partition testing.
  However the cost of generating random test inputs
  is low when compared to test case generation in
  partition testing, thus we should be serious in
  random testing.
