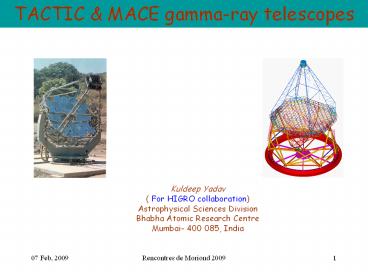

TACTIC MACE gamma-ray telescopes
  • Kuldeep Yadav
  • ( For HIGRO collaboration)
  • Astrophysical Sciences Division
  • Bhabha Atomic Research Centre
  • Mumbai- 400 085, India

2
TACTIC telescope(TeV Atmospheric Cherenkov
Telescope With Imaging Camera)
Control room
TACTIC console
3
TACTIC Parameters
  • Location Mt. Abu, Rajasthan
    (72.7dE,24.6dN, 1400m asl)
  • Light collector 9.5 sq. meter
  • Camera FoV 5.9d x 5.9d (349 pixels)
  • Trigger FoV 3.4d x 3.4d
  • Trigger Criteria 3NCT (Fast RAM based)
  • SPE threshold 7pe
  • Energy threshold 1 TeV
  • Distributed 4-node DAS using RTOS
  • Drive Control SM based (120Ncm)
  • Observations time 1170 hr/year( Oct-June)
  • NIM CAMAC

R.Koul et. al., Nucl. Instrum. and meth. A.,
578(2007) 548
4
Multi-node Data Acquisition System
5
Mrk 501 observations 1997
6
Crab Nebula Observations (2003-04)
7
(No Transcript)
8
TACTIC observation of MrK 421 (2005-06)
9
TACTIC light curve of Mrk 421 (2005-06)
10
Crab Mrk 421 concurrent Energy Spectra (2005-06)
K.K.Yadav et. al., Astroparticle Physics,
27(2007) 447
11
On-source alpha plot of 1ES2344 514 (60 h
data during 2004-05)
I(1.5 TeV) 3.84 x 10 -12 ph cm-2s-1
S.V.Godambe et. al., J.Phys.GNucl.Part.Phys.
34(2007) 1683
12
Mrk 501 observations (2006) 7.5 sigma in 69 h
2005 observation 46h
I(1 TeV) 4.62 x 10 -12 ph cm-2s-1
2006 observation 69h
13
Mrk 501 energy spectrum (2006)
f01.660.52 x 10-11cm-2s-1TeV-1 ? 2.8 0.27
S.V.Godambe et. al., J.Phys.GNucl.Part.Phys.
34(2008) 065202
14
H1426428 observations (2004,06,07) 150 h
K.K.Yadav et. al., submitted to
J.Phys.GNucl.Part.Phys.
15
TACTIC ASM light curves of H1426
16
Project HIGRO an introduction A New
Indian initiative in g- ray
astronomy
  • Project HIGRO ( Himalayan g- Ray
    Observatory)
  • Collaborators --- IIA, TIFR and
    BARC ..
  • 7 Element HAGAR wavefront
    sampling telescope
  • 21m dia. Stereo MACE ( Major Atmospheric
    Cerenkov


  • Experiment)
  • Each telescope element
    will use a cluster of 1408 PMTs
  • with a pixel resolution
    of 0.10 FoV 40 x 40.
  • Aim Study the sky
    in the unexplored energy
  • range E? gt 20
    GeV to bridge the gap between
  • the space-based
    and the ground based detectors.

17
Hanle, Ladakh (32.7d N, 79d E, 4200m asl)
18
Observatory site

Site Characteristics
IIA Campus, HANLE
Location
32.7 0 N, 78.90 E
Lat. And Long
4200 m asl ( 600 g cm -2 )
Altitude
260 Km
Nearest town
8 hrs
Leh- Hanle travel
full year
Accessibility
-20 C (at night)
Med. Temp.
-240 C (at night)
Min. Temp
2m HCT
HAGAR (1/7)
30
Med. Rel. Humidity
  1. kmph

Med. Wind speed
May - Oct
Time for out door work
High altitude related difficulties
19
Advantages of setting up MACE at
HANLE
  • Reduction in threshold energy by a
    factor of 2.5-3.5 at
  • Hanle ( 4200m asl ) compared
    to lower Altitudes sites like
    Gurushikhar ( 1700m asl).
  • Cloud free sky ---
    Spectroscopic Nights 260 nights / yr


  • Photometric Nights 190 night /yr
  • Year round sky coverage --
    Quite a few important sources
  • cannot be observed at
    Gurushikhar during June-Sept due to
    Monsoon.
  • Concurrent observations with
    HAGAR telescope (gt60GeV)
  • Coordinated multi-wavelength
    observations with the HCT at Hanle.
  • Improvement in sensitivity because
    of being closer to shower
  • maximum ( images become broader at
    higher altitudes).

20
Broad guide lines for designing the MACE
telescope
  • Lower the energy threshold to
    20GeV
  • (Observation altitude, Large light
    collection area, small coin. gate width,
  • appropriate pixel size, CPCs,
    Intelligent trigger generation scheme)
  • Employ GHz signal processing using
    Analog Ring Sampler
  • Install MACE in the close vicinity
    of the HAGAR array
  • Improve detection sensitivity by
    using coincident HAGAR data
  • Use central pixel for used for
    optical monitoring of the source ----

  • photometric observations
  • Fast repositioning of the telescope
    --- high energy tails of GRBs.
  • Operate PMTs at a gain of 20,000
    --- ( use partially moon lit nights)
  • Improve detection sensitivity
  • employ a stereo system in a phased
    manner

21
Increase in Cherenkov Photon density with altitude
  • .

22
Major mechanical sub-systems of the telescope
  • Telescope structure material --
  • Steel SA-333 Gr 6 (suitable
    for low temp. applications)
  • Mirror basket structure
  • Aluminum Honey comb panels for
    mounting mirror facets
  • Active Miror control (AMC)
    alignment system
  • Camera vessel for housing focal
    plane instrumentation Drive
    control system ( DC servo motors with 17 bit
    encoders)
  • Track and wheel design concept for
    azimuth motion (27 m dia)
  • Camera handling and maintenance
    structure
  • Total weight 150 MT
  • Overall height of the telescope
    45m
  • Operational/ Survival wind speed
    45 km/h // 150 km/h
  • Operating temp.
    -300C to 050C ( Winter)

  • 050C to 300 C (Summer)

Critical design issues Load (Self-weight, 1200 kg camera, Wind load) Deflection, Shadow region, Transportation
23
MACE telescope --- Light collector
design

Diameter (area) 2100 cm ( tessellated design 356 panels) 337 m2
Focal distance 2500 ( f/1.2 design)
Individual mirror facets Diamond Milled Al 4 x (050cm X 050cm ) 1 x (100cm X050cm )
Configuration Paraboloid with graded focal length panels
24
Expected PSF of the light collector

Plate scale 43.6mm 0.10
25
Imaging camera specifications

Requirement of a good camera design --- pixel size and camera FoV
Pixel size depends upon the differences in the characteristic size of gamma-ray and hadron generated Cerenkov images.
Imaging camera
Total pixels 1408
Pixels in trigger region 564
Total FoV 4 0 x 4 0
Trigger FoV 2.4 0 x 2. 4 0
Pixel size (at cpc) 45 mm
photo cathode dia 22/29 mm
Imaging camera Vessel Size 2m x 2m x
2.5m Mass 1200 kg
26
Signal Processing Hardware
  • 16 channel module
  • GHz Sampling
  • Integrated Camera
  • (all signal processing instrumentation housed
    within the camera structure of
  • 2mx2mx1.2m size)
  • Temperature control of the Camera during
  • operation and standby condition.

27
Monte Carlo simulation studies
28
Monte Carlo simulation studies Effective
collection area
29
Monte Carlo simulation studies Threshold
energy estimates
30
Preliminary calculations using Hillas parameters
Standard image
cleaning procedure picture
threshold 4.4pe Boundary threshold
2.2pe. Hillas parameters (
Length, Width, Frac2, Distance, Alpha )
( Dynamic
supercuts with Alphalt80 .)


Detection sensitivity for
Crab
Nebula _at_
5s significance

Tmin 13 mins

( _at_ Sizegt 530pe -- E? gt 200
GeV)

Tmin 43 mins

( _at_ Sizegt50 pe -- E? gt 55 GeV)
MACE sensitivity is still preliminary . We still have a long way to go to improve this figure !!
31
Implementation status
  • Funding for 1 MACE element already
    approved
  • ( 40 crores ) 8 M
  • Telescope mechanical design
  • ( DDR is completed )
  • First Light --- 2010 (Single MACE
    element )
  • Agenda for ongoing
    work
  • Prototype 256 pixel camera with ARS
    based instrumentation
  • being developed at BARC
  • Camera design optimization
  • ( FOV and Pixel size ---
    arrive at the most optimum configuration)
  • Use of WLS dyes for improving
    the QE of PMTs
  • Include PMT temporal response in
    MC simulations.
  • Use pulse profile information also
    for improving ? /h segregation
  • Achieve Tmin lt2 min _at_ E ?gt100 GeV
    using conventional analysis and
  • simultaneously use alternative ?
    /h segregation
  • methodologies for improving the
    sensitivity _at_ E ? lt 100 GeV

32
.
  • THANK YOU
