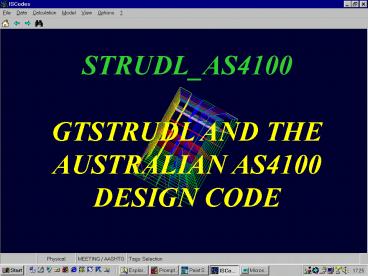

STRUDL_AS4100 GTSTRUDL AND THE AUSTRALIAN
AS4100 DESIGN CODE
2
DR. SONG JAN BECHTEL CORPORATION HOUSTON,
TX DR. A. J. FERRANTE STRUDL EUROPE srl MILAN,
ITALY
3

• THE CASE
• BECHTEL CORPORATION WON A VERY
• IMPORTANT DESIGN AND CONSTRUCTION
• PROJECT IN AUSTRALIA
• THE PROBLEM
• GTSTRUDL DOES NOT CURRENTLY INCLUDE
• THE AUSTRALIAN AS4100 DESIGN CODE AMONG
• ITS DESIGN PROCEDURES

4

• THE SOLUTION
• IMPLEMENT A GTSTRUDL POST-PROCESSOR
• THAT, WORKING FROM GTSTRUDL DBX FILES,
• CAN PERFORM CODE CHECK AND SELECTION
• OPERATIONS BASED ON THE AS4100 CODE
• THE IMPLEMENTATION TASK WAS ASSIGNED TO
• STRUDL EUROPE SRL, FROM MILAN, ITALY,
• THAT HAD ALREADY EXTENSIVE EXPERIENCE
• IN IMPLEMENTING GTSTRUDL POST-
• PROCESSORS

5

• THE BASIC SPECIFICATIONS
• MODELING AND ANALYSIS DONE IN GTSTRUDL
• DESIGN CHECK AND SELECTION DONE IN PROGRAM
• AS4100 DESIGN IMPLEMENTATION TO BE COMPLETE
• SENT UPDATED PROPERTIES BACK TO GTSTRUDL
• DEVELOPMENT, VALIDATION AND
• DOCUMENTATION IN BE DONE IN
• THREE MONTHS

6

• REQUESTED SHAPES
•
  1.0 I Shapes
• 1.1 S and H Shapes
• 1.2 HP Shapes
• 1.3 M Shapes
• 1.4 UB and UC Shapes
• 2.0 CHANNELS
• 3.0 SINGLE ANGLES
• 4.0 TEES
• 4. DOUBLE ANGLES
• 4.4 Equal legs back-to-back shapes
• 4.5 Long legs back-to-back shapes
• 4.6 Short legs back-to-back shapes
• 5.0 SOLID ROUND BARS
• 5.1 PIPES, CHS
• 6.1 SQUARE and RECTANGULAR BARS
• 6.2 STRUCTURAL TUBING, RHS, SHS

7

• THE GTSTRUDL STRUDL_AS4100 LINK
• FIRST STEP (GTSTRUDL )
• Structural Model Definition
• Structural Analysis
• Generation of DBX (ModelResults) Files
• SECOND STEP (STRUDL_AS4100 )
• Generation of DBX (ModelResults) Files
• Specification of Additional Design data
• Check and Select Design Operations
• Generation of Updated Properties File
• THIRD STEP (GTSTRUDL )
• Read Updated Properties File (and iterate, if
  needed)

8

• THE GTSTRUDL STRUDL_AS4100 LINK
• FIRST STEP (GTSTRUDL )
• Structural Model Definition
• Structural Analysis
• Generation of DBX (ModelResults) Files
• Joint attributes STDBX02
• Member attributes STDBX20
• Member properties STDBX22
• Material constants STDBX23
• Section Forces STDBX12
• Use of macros, Plugins ....................

9

• PRACTICAL
• ILLUSTRATION

10

• THE GTSTRUDL POST-PROCESSOR COLLECTION
• Italian UNI 10011 code (Physical)
• U.S.A. AISC code (Physical)
• Norwegian NORSOK code
• German DIN 18800 code
• Spanish EA-95 code
• AASHTO (Steel) code
• Brazilian NBR 8800 code
• Brazilian NBR 8800 Composite Beams code
• French CM66 code
• Tower (DIN, VDE) code
• AVAILABLE FROM STRUDL EUROPE SRL
• MILAN, ITALY

11
(No Transcript)
12
(No Transcript)
13

• INITIAL WINDOW
• DEFINE VERTICAL AXIS
• OPEN PROJECT
• CLOSE PROJECT
• EXIT

14

• DATA WINDOW
• MEMBER PARAMETERS
• DATA FILES
• LOADINGS
• SECTION TABLES
• UNITS

15
MEMBER PARAMETERS MENU
16

• THE DATA FILES MENU
• FOR TABULAR OR COMMAND SPECIFICATION OF Ky Kz,
  Lx Lz, MATERIAL CONSTANTS, AND FOR MODIFICATION
  OF ASSIGNED MEMBER PROPERTIES

17

• THE LOADINGS MENU
• DEFINITION OF ACTIVE LOADINGS AND PARAMETERS

18

• THE SECTION TABLES MENU
• SELECTION OF PROJECT SECTION TABLE

19

• THE DIMENSIONAL UNITS MENU
• SPECIFICATION OF THE PROJECT DIMENSIONAL UNITS

20

• THE DESIGN MENU
• TWO DESIGN PROCEDURES ARE AVAILABLE
• Code Check (PASS or FAIL)
• Select Shape Find Steel Section for Every Member
  Considered in the
• Design

21

• THE RESULTS OUTPUT MENU
• TWO OUTPUT FORMATS ARE AVAILABLE
• Summary Output
• Detailed Output

22

• SAMPLE OF SUMMARY OUTPUT

DATE 01-07-2003 TIME 162654 ----------------
--------------------------------------------------
--------------------------------------------------
- AS4100
CHECK/SELECT OPERATIONS SUMMARY OF RESULTS
(VALUES IN NEWTONS AND
MILLIMETERS) ------------------------------------
--------------------------------------------------
------------------------------- MEMBER TABLE
BENDINGY TENSION UN/BG-Z BIAXIAL WEB T.
M.C.C.IP M.C.C.O B.CAP.C UR-MAX SCT. LOADING
ITER.CAUSE PROFILE BENDINGZ COMPR.
UN/BG/Y WEB S. M.C.T.O B.CAP.T
-------------------------------------------------
--------------------------------------------------
------------------ 1 aust .0659
.0113 .0369 .0770 .2087 .0369 .0373
.0228 .2087 1 17 1 WEB THI. 310X96.8
.0357 .0451 .0671 .0135
.0338 .0100 ------
CRITICAL FORCES FX .572443E05 FY-.101246E03
FZ-.116023E04 MX
.126153E05 MY .554380E02 MZ-.128706E-08
PARAMETERS L .445000E04 LY
.445000E04 LZ .445000E04
KY .100000E01 KZ
.100000E01 ----------------------------
---------------------------------- 10 aust
.0328 .0000 .0405 .0431 .2087
.0405 .0405 .0112 .2087 1 17 1
WEB THI. 310X96.8 .0404 .0031
.0329 .0197 .0000 .0000
------ CRITICAL FORCES FX .137461E05
FY-.880664E03 FZ-.500823E-03
MX .000000E00 MY .100157E01
MZ-.176133E07 PARAMETERS L
.200000E04 LY .200000E04 LZ .200000E04
KY
.100000E01 KZ .100000E01
23

• SAMPLE OF DETAILED OUTPUT

--------------------------------------------------
------------------------------ PROCESSING
MEMBER 1 PARAMETERS ----------------------
-------- ANALYSIS TYPE LINEAR - FABRICATION
HR - BRACED/SWAY BRACED - RESTRAINTFL
DATA FY 450. - DATA FU 500. -
MATERIAL DATA - PHI .90 An/Ag 1.00
- SECTION 310X96.8 SECTION DATA
---------------------------- ITERATION NUMBER
1 ------------------------------------------------
--------- SECTION Ax Ay
Az Ix Iy Iz
310X96.8 .124000E05 .304920E04 .626267E04
.928000E06 .729000E08 O.223000E09
Sy Sz Ry Rz
.478000E06 .145000E07 .767000E02
.134000E03 BUCKLING MEMBER PARAMETERS Ky
1.00 Kz 1.00 Ly 4450.00
Lz 4450.00 KL/Ry 58.02 KL/Rz
33.21 gtParagraph 4.6.2 ELASTIC BUCKLING LOADS
Nomy.726671E07 Nomz.222288E08 gtParagraph
5.2.2 SECTION SLENDERNESS LAMBf.128545E02
LAMBw.375659E02 LAMBep.900000E01
LAMBeY.160000E02 FYW 450. FYF 450.
FUW 500. FUF 500. gtParagraph 5.2.3
EFFECTIVE SECTION MODULUS For Y-Axis
NON-COMPACT SECTION MODULUS - Zey .659424E06
For Y-Axis NON-COMPACT SECTION MODULUS - Zey
.160000E07 gtParagraph 5.2 SECTION MOMENT
CAPACITIES Msy .296741E09 Msz .720000E09
ZEY .659424E06 ZEZ .160000E07 FY
450.00 LOADING 17 -------------------------
-------------------------------------
--------------------------------------------------
----------- ALFAM COMPUTED USING FORMULA 5.6.1.1
(iii) IS 1.817376
ADOPTED 1.817376
--------------------------------------------------
-----------
24

• THE MODEL MENU
• DISPLAY OF
• Elements
• Columns
• Stress levels
• Properties
• Beta Angles

25

• STRESS LEVELS DISPLAY

26

• THE DISPLAY OPTIONS MENU
• Tags No tags
• Joint Tags
• Element Tags
• Properties Tags
• Columns Tags
• Beta Angle Tags
• Selection Tags Only
• Unit Ratio Tags
• ---------------------
• Projection Axonometric
• or Perspective
• Animation

27

• SELECTION TAG ONLY - PROPERTIES

28

• THE OPTIONS MENU
• Font Size Selection
• Background Color Selection

29
