Title: Data Abstraction Through Classes

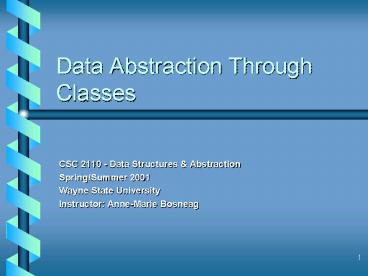

1
Data Abstraction Through Classes
  • CSC 2110 - Data Structures Abstraction
  • Spring/Summer 2001
  • Wayne State University
  • Instructor Anne-Marie Bosneag

2
Content
  • Definition of classes
  • Private public members
  • Instantiation of the class type
  • Specification, implementation, client modules
  • Constructor destructor
  • Member functions operators
  • Records vs. classes

3
Introduction
  • An Algorithm contains two elements
  • Data Information represented in different types
    and manipulated by the algorithm
  • Control flow the order in which the instructions
    are executed
  • Data abstraction
  • data-centered programming where control plays a
    supporting role
  • hide details
  • reduce complexity

4
Abstract Data types
  • Each built-in data type has two characteristics
  • a set of values
  • allowable operations
  • Example int, char, float
  • To design an abstract data type
  • data representation with existing data types
  • implement allowable operations

5
Object-Oriented Design
A technique for developing a program in which the
solution is expressed in terms of objects --
self- contained entities composed of data and
operations on that data.
ltlt
gtgt
setf
get
Private data
Private data
. . .
. . .
ignore
cout
cin
6
Familiar Class Instances and Member
Functions
  • The member selection operator ( . ) selects
    either data members or member functions.
  • Header files iostream and fstream declare the
    istream, ostream,and ifstream, ofstream I/O
    classes.
  • Both cin and cout are class objects and get is a
    member function cin.get (someChar)
  • The following statements declare myInfile as an
    instance of class ifstream and invoke member
    function open.
  • ifstream myInfile
  • myInfile.open ( A\\mydata.dat )

7
C class data type
  • A class is an unstructured type that encapsulates
    a fixed number of data components (data members)
    with the functions (member functions) that
    manipulate them.

8
class DateType Specification
  • // SPECIFICATION FILE ( datetype.h )
  • class DateType // declares a class data type
  • public // 4 public member functions
  • void Initialize ( int newMonth , int
    newDay , int newYear )
  • int YearIs( ) const //
    returns year
  • int MonthIs( ) const //
    returns month
  • int DayIs( ) const //
    returns day
  • private // 3 private data members
  • int year
  • int month
  • int day

8
9
Class declaration
  • The class declaration creates a data type and
    names the members of the class.
  • It does not allocate memory for any variables of
    that type!
  • Client code still needs to declare class
    variables.

10
Public and private components
  • Public components
  • define the interface of the class
  • provide a collection of operations
  • can be accessed directly by external operations
  • Private components
  • hidden from the client (but not the programmer)
  • can not be accessed directly from outside
  • only accessible to operations within the same
    class

11
Classes in C
  • A programmer-defined type
  • Components are called class members
  • can be variables or functions
  • Example in DatType class
  • private members variables year, month, day
  • public members functions YearIs, MonthIs, DayIs
    and Initialize

12
Classes in C
  • Class declarations must end in semicolons
  • Class members are private by default
  • note that in struct members are public by default
  • const keyword indicates that the function only
    inspects but does not modify the private
    variables
  • prevent the value from being modified by mistake

13
Class as a type
  • Once a class is defined, it can be used as a type
    to declared instances
  • also called create objects an object is an
    instance of a class
  • example
  • DateType startDate, endDate//declare 2
    //objects of //class DataType

14
Use of C data type class
  • Variables of a class type are called objects (or
    instances) of that particular class.
  • Software that declares and uses objects of the
    class is called a client.
  • Client code uses public member functions (called
    methods in OOP) to handle its class objects.
  • Sending a message means calling a public member
    function.

15
Operations on Classes
  • Built-in operations valid on class objects are
  • member selection using dot ( . ) operator ,
  • assignment to another class variable using (
    ),
  • pass to a function as parameter
  • (by value or by reference),
  • return as value of a function.
  • Other operations can be defined as class member
    functions.

16
Examples
  • DateType Date1, Date2
  • Date1.day3 //not allowed!
  • //day can be accessed only //through the
    public member //functions
  • Date1.YearIs()
  • Date1.Initialize(5, 24, 2001)
  • Date2Date1//aggregate assignment
  • //the left and right side of must be of
    the //same type

17
Class scope
  • The name of a class member is local to the class
  • If the same name if declared for a variable
    outside the class, they are unrelated
  • Example
  • class JarType
  • //public and private members
  • int numUnits
  • JarType jar1
  • There is no ambiguity between numUnits and
    jar1.numUnits

18
Information hiding through classes
  • Restrict the access of the client to the internal
    data of classes
  • Decide which components should be public and
    private
  • Typical pattern
  • data are made private
  • public part provides functions manipulating the
    data

19
Information hiding
  • Private members can not be accessed directly by
    dot notation
  • coutltltDate1.day//prohibited
  • To access them, corresponding functions need to
    be provided
  • cout ltlt jar1.DayIs()//allowed
  • hide (and protect) private data from the client

20
Specification and implementation
  • Specification describes the behavior of the data
    type
  • through class declaration
  • presents the public interface in the form of
    function prototypes
  • Implementation creates an abstraction barrier by
    hiding the concrete data representation and code
    for functions

21
2 separate files generally used for class
type
  • // SPECIFICATION FILE (
    datetype .h )
  • // Specifies the data and function members.
  • class DateType
  • public
  • . . .
  • private
  • . . .
  • // IMPLEMENTATION FILE (
    datetype.cpp )
  • // Implements the DateType member functions.
  • . . .

22
Implementation of DateType member functions
  • // IMPLEMENTATION FILE
    (datetype.cpp)
  • include datetype.h // also must appear
    in client code
  • void DateType Initialize ( int newMonth, int
    newDay,

  • int newYear )
  • // Post year is set to newYear.
  • // month is set to newMonth.
  • // day is set to newDay.
  • year newYear
  • month newMonth
  • day newDay

22
23
Implementation of DateType member functions
int DateType MonthIs ( ) const // Accessor
function for data member month return
month int DateType YearIs ( ) const //
Accessor function for data member year return
year int DateType DayIs ( ) const //
Accessor function for data member day return
day
24
Implementation issues
  • Contain the definitions (bodies) of the member
    functions
  • Class name and scope resolution operator ()
    must prefix the name of the member function
  • eliminate ambiguity
  • Members of a class reference each other without
    using the dot operator
  • Use const keyword to when the function does not
    intend to modify any member

25
Client Code Using DateType
  • include datetype // includes
    specification of the class
  • include bool
  • int main ( void )
  • DateType startDate // declares 2
    objects of DateType
  • DateType endDate
  • bool retired false
  • startDate.Initialize ( 6, 30, 1998 )
  • endDate.Initialize ( 10, 31, 2002 )
  • cout ltlt startDate.MonthIs( ) ltlt / ltlt
    startDate.DayIs( )
  • ltlt / ltlt startDate.YearIs( ) ltlt
    endl
  • while ( ! retired )
  • finishSomeTask( )
  • . . .

25
26

DateType Class Instance Diagrams
startDate endDate
Private data year month day
1998 6 30
27
Member functions
  • A class member function operates on a class
    instance (object), not on a class!!
  • Example
  • DateType Date1
  • Date1.Initialize(5, 24, 2001) //initializes
  • only Date1, not all instances of the class

28
Constructors
  • A class constructor is a member function whose
    purpose is to initialize the private data members
    of a class object.
  • The name of a constructor is always the name of
    the class, and there is no return type for the
    constructor.
  • A class may have several constructors with
    different parameter lists. A constructor with no
    parameters is the default constructor.
  • A constructor is implicitly invoked when a class
    object is declared. If there are parameters,
    their values are listed in parentheses in the
    declaration.

29
Specification of constructors
  • // SPECIFICATION FILE ( datetype.h )
  • class DateType // declares a class data type
  • public
  • DateType() //default constructor
  • DateType (int m, int d, int y) //parameterized
    constructor
  • void Initialize ( int newMonth , int
    newDay , int newYear )
  • int YearIs( ) const //
    returns year
  • int MonthIs( ) const //
    returns month
  • int DayIs( ) const //
    returns day
  • private // 3 private data members
  • int year
  • int month
  • int day

30
Implementation of constructor DateType()
  • DateType()
  • month 1
  • day 1
  • year 1900

31
Implementation of constructor DateType(m, d, y)
  • DateType (int m, int d, int y)
  • month m
  • day d
  • year y

32
Automatic invocation of constructors
  • DateType Date1 // default constructor
    invoked
  • DateType Date2 ( 5, 24, 2001 ) //
    parameterized constructor
  • Date1 Date2

Private data year 1900 month 1 day 1
33
More complex structures
  • Arrays of class objects
  • Structs as members of a class
  • Another class instance as member of a class

34
Array of class objects
  • const int MAX_SIZE 50
  • // declare array of class objects
  • DateType Date MAX_SIZE
  • The default constructor, if there is any
    constructor, is invoked for each element of the
    array.

35
Example of a class having another class instance
as member
  • class JarType
  • public
  • void Add (int n)
  • int Quantity() const
  • JarType(int n) //constructor
  • JarType() //constructor
  • private
  • int numUnits

36
Example (cont.)
  • class NewType
  • public
  • void Func(int n)
  • ...
  • NewType(int jarunits) //constructor
  • private
  • float privateFloat
  • JarType privateJar

37
Example - implementation
  • void NewTypeFunc (int n)
  • privateJar.Add(n)
  • if (privateJar.Quantity() gt 50)
  • privateFloat3.4float(n)
  • When a NewType instance is created, its
    private Jar member also must be created.
  • NewTypeNewType(int jarUnits)privateJar(jarUnits
    )
  • privateFloat 0.0

Constructor initializer list
38
Constructors
  • Suppose a class has two or more class
    instances as members
  • class MyClass
  • public
  • ...
  • MyClass(int n)
  • private
  • int privateVal
  • YourClass alpha
  • TheirClass beta

39
Constructor initializor list
  • MyClass MyClass (int n) alpha (n) ,
    beta(n5)
  • privateVal n
  • After the right paranthesis of the formal
    parameter list, the colon marks the beginning
    of the constructor initializer list.
  • Because alpha, a member of the MyClass class, is
    an instance of the YourClass class, the parameter
    n must be passed to the YourClass constructor.

40
Constructor initializor list
  • Therefore, YourClass is constructed before the
    body of the MyClass constructor is executed.
  • The order of constructor calls (YourClass,
    TheirClass) does not matter
  • The constructors are executed the order in which
    they appear in the declaration of MyClass

41
Friends
  • Operations on abstract data types often require
    two class instances as operands, such as equal
    (or ) operand
  • Can be done in two ways
  • As a member function of a class
  • As a friend of a class

42
An Equal Function as a Member of Class JarType
  • Specification
  • class JarType
  • public
  • Boolean Equal (JarType otherJar) const
  • // where Boolean is typedef int Boolean
  • ...
  • private
  • int numUnits

43
Function Equal (cont)
  • Client code
  • JarType jar1
  • JarType jar2
  • ...
  • if (jar1.Equal(jar2))
  • ...
  • Implementation
  • Boolean JarTypeEqual(JarType otherjar) const
  • return (numUnitsotherJar.Quantity())

44
An Equal Function as a Friend of Class JarType
  • Client code
  • if (Equal (jar1,jar2))
  • ...
  • Specification
  • class JarType
  • public
  • friend Boolean Equal (JarType firstjar,
  • JarType secondjar)
  • private
  • int numUnits
  • //Note Equal is not a member of the class

45
Function Equal as Friend
  • Implementation
  • Boolean Equal (JarType firstjar,
  • JarType secondjar)
  • return (firstjar.Quantity()secondjar.Quantity()
    )

46
Operators
  • Simply give a member (or friend) function the
    following name
  • operatorltsymbolgt
  • Example
  • operator

47
Specification of JarType, overloading the
operator
  • class JarType
  • public
  • Boolean operator(jarType otherJar) const
  • ...
  • private
  • int numUnits

48
Operator overloading (cont)
  • Implementation of operator function
  • identical to Equal, but change name to operator
  • Client can use either functional notation
  • if (jar1.operator(jar2))
  • ...
  • or operator notation
  • if (jar1jar2)
  • ...

49
Classes vs. Structs
  • classes and structs
  • data are private in classes by default while
    public in structs
  • external operations can manipulate data in
    structs directly
  • in classes, the access is much more restricted,
    where private data can only be manipulated
    through internal member functions

50
Classes vs. Structs
  • Structs - everyone has access to data
  • advantage flexibility and convenience
  • disadvantage risk of messing up
  • Classes - access to data is controlled by member
    functions
  • advantage security, detail-hiding
  • disadvantage restricted access, more efforts

51
Classes vs. Structs
  • In developing small programs, using structs is
    more convenient
  • The advantage of classes is illustrated in the
    development and maintenance of large projects
  • Comprehensibility
  • Security
  • Reusability
Write a Comment
User Comments (0)
About PowerShow.com
