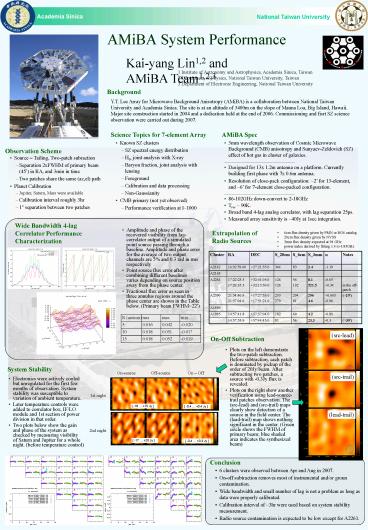

AMiBA System Performance
Kai-yang Lin1,2 and AMiBA Team1,2,3
1 Institute of Astronomy and Astrophysics,
Academia Sinica, Taiwan 2 Department of Physics,
National Taiwan University, Taiwan 3 Department
of Electronic Engineering, National Taiwan
University
Science Topics for 7-element Array
  • Known SZ clusters
  • SZ spectral energy distribution
  • H0, joint analysis with X-ray
  • Baryon fraction, joint analysis with lensing
  • Foreground
  • Calibration and data processing
  • Non-Gaussianity
  • CMB primary (not yet observed)
  • Performance verification at l1000

Observation Scheme
  • Source Tailing, Two-patch subraction
  • Separation 2xFWHM of primary beam (45) in RA,
    and 3min in time
  • Two patches share the same (az,el) path
  • Planet Calibration
  • Jupiter, Saturn, Mars were available
  • Calibration interval roughly 3hr
  • 1? separation between two patches

Wide Bandwidth 4-lag Correlator Performance
Characterization
  • Amplitude and phase of the recovered visibility
    from lag-correlator output of a simulated point
    source passing through a baseline. Amplitude and
    phase error for the average of two output
    channels are 5 and 0.3 rad in rms respectively
  • Point source flux error after combining different
    baselines varies depending on source position
    away from the phase center.
  • Fractional flux error as seen in three annulus
    regions around the phase center are shown in the
    Table below. (Primary beam FWHM22)

Extrapolation of Radio Sources
  • 6cm flux density given by PMN or BG6 catalog
  • 20cm flux density given by NVSS
  • 3mm flux density expected at 94 GHz
  • power index derived by fitting 1.4 to 4.85GHz

(src-lead)
On-Off Subtraction
  • Plots on the left demonstrate the two-patch
    subtraction. Before subtraction, each patch is
    dominated by pickup of the order of 20Jy/beam.
    After subtracting two patches, a source with
    -0.3Jy flux is revealed.
  • Plots on the right show another verification
    using lead-source-trail patches observation. The
    (src-lead) and (src-trail) maps clearly show
    detection of a source in the field center. The
    (lead-trail) map shows nothing significant in the
    center. (Green circle shows the FWHM of primary
    beam blue shaded area indicates the synthesized
    beam)

System Stability
(src-trail)
  • Electronics were actively cooled but unregulated
    for the first few months of observation. System
    stability was susceptible to variation of ambient
    temperature.
  • Later temperature controls were added to
    correlator box, IF/LO module and 1st section of
    power division in that order.
  • Two plots below show the gain and phase of the
    system as checked by measuring visibility of
    Saturn and Jupiter for a whole night. (before
    temperature control)

(lead-trail)
Conclusion
  • 6 clusters were observed between Apr and Aug in
    2007.
  • On-off subtraction removes most of instrumental
    and/or groun contamination.
  • Wide bandwidth and small number of lag is not a
    problem as long as data were properly calibrated.
  • Calibration interval of 3hr were used based on
    system stability measurement.
  • Radio source contamination is expected to be low
    except for A2261.
