Dr Phil King F207

1

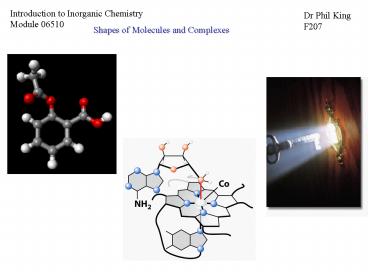

Introduction to Inorganic Chemistry Module 06510
Dr Phil KingF207
Shapes of Molecules and Complexes
2
Why Does The Shape of a Molecule Matter?

• The shape of a molecule determines the following
• What it smells like.
• What it tastes like.
• Its activity as a drug.
• Its role in the chemical processes occurring in
  our bodies.
• Its colour.
• Its solubility.
• Whether it is a gas, liquid or solid.

3

• The Lock and Key Hypothesis.
• Virtually all processes in living cells depend on
  enzymes.
• Enzymes speed up reactions by factors of at least
  a million.
• The active sites of enzymes are highly specific.

• Only molecules that are the correct shape to bind
  to the active site of the enzyme may do so.
• Taste and smell receptors in the body use a
  similar lock and key mechanism to bind specific
  molecules.

4

• The Lock and Key Hypothesis.
• Aspirin was discovered in 1899 and is derived
  from a compound found in the bark of a willow
  tree.
• The functionality of aspirin is due to its
  chemistry and its molecular shape.

• The aspirin molecule contains a six-membered
  organic ring (needed to cross the non-polar cell
  membrane).
• The acid and ester groups attached do the
  chemistry.

5

• The Lock and Key Hypothesis.
• The prostaglandin hormone initiates pain
  signalling in the body and causes inflamation.
• The first step in the synthesis of prostaglandin
  takes place at the active site of the enzyme
  Cyclooxygenase.
• Aspirin has the correct shape to approach and
  bind to the active site of cyclooxygenase.

• The aspirin molecule shields the active site and
  prevents the reagents needed for the synthesis of
  prostaglandin from approaching.

6

• The Lock and Key Hypothesis.
• Knowing the shape and structure of aspirin allows
  chemists to synthesise similar molecules and
  investigate their ability to inhibit pain.

7

• The Lock and Key Hypothesis.
• The vanilloids shown below are molecules with
  distinctive flavours that are widely used in
  cooking.

Vanillin
Zingerone
Caspaicin

• The molecules have similar chemical structures in
  that they all contain a benzene ring.
• Subtle changes in the sizes or positions of the
  groups attached to the ring change the compounds
  flavour.
• Effectively, we can taste and smell the different
  shapes of the molecules.

8

• The Lock and Key Hypothesis.
• Vanillin is a component of vanilla.

Vanillin

• Its low molecular weight and compact shape make
  it volatile, thus, vanilla has a strong aroma.
• When it comes into contact with its receptor in
  the body we experience the taste of vanilla.

9

• The Lock and Key Hypothesis.
• Zingerone puts the zing in ginger.

Zingerone

• Its higher molecular weight and less compact
  structure make it less volatile than vanillin so
  the odour of ginger isnt strong.
• The hydrocarbon chain attached to the benzene
  ring makes the zingerone better able to move
  across the non-polar cell membranes.
• The hydrocarbon chain gives the zingerone a more
  intense flavour when it comes into contact with
  its receptor.

10

• The Lock and Key Hypothesis.
• Capsaicin accounts for most (but not all) of the
  hot in hot peppers.

Caspaicin

• Very high molecular weight and linear shape make
  it odourless.
• Its intense flavour is due to the long
  hydrocarbon side chain which allows it to bind
  more effectively to its receptor and to pass
  through cell membranes.
• Its ability to pass through membranes makes the
  burning sensation more pervasive and persistent.

11
Predicting The Shapes of Main Group Compounds

• Valence Shell Electron Pair Repulsion Theory
  (VSEPR Theory)
• The electrons surrounding the central atom of a
  molecule are in pairs.
• The electron pairs can be of two types- bonding
  pairs or lone pairs.

• The shape of a molecule is determined by spacing
  the electron pairs as far apart as possible to
  minimise the repulsion between them.

12
What Shapes Can We Expect?
All of the shapes shown below minimise the
repulsions between the electron pairs.
13
The water molecule has four electron pairs (two
bonding and two lone pairs).
The greatest separation of the pairs is in a
tetrahedron. The lone pairs help determine the
shape but do not constitute part of the shape.
The shape is described as angular (or V-shaped).
14
How Do We Determine The Number of Electron Pairs
in a Molecule?
Consider the molecule AX2

• The number of bonding pairs of electrons equals
  the number of atoms attached to A (in this case,
  two).
• The number of lone pairs is given by the formula
• ½group number of A - valency of A.
• The group number needed is the old group number
  (i.e. boron is group 3 not group 13).
• The valency is the magnitude of the oxidation
  state (i.e. N3- and N3 both have a valency of 3).

15
Consider the molecule BCl3

• The number of bonding pairs of electrons equals
  the number of chlorine atoms attached to boron
  (in this case, three).
• The number of lone pairs is given by the formula
• ½group number of B - valency of B.
• ½3 - 3 0
• Three bonding pairs Zero lone pairs Three
  electron pairs in total.
• Therefore theBCl3 molecule has a trigonal-planar
  shape.

16
Excercises

• Determine and draw the shapes of the molecules
  listed below.

SO32-
PCl5
BrF5
17
Shapes of Transition Metal Complexes
18

• A transition metal complex comprises of a
  transition metal that has a number of
  ions/molecules attached to it.
• The molecules or ions attached to the metal are
  called ligands.
• The number of ligands attached is called the
  co-ordination number.
• Transition metal complexes generally have
  co-ordination numbers of six or four.

19
Octahedral Transition Metal Complexes.

• Co-ordination number 6.
• Six ligands surround the central transition metal
  atom.
• One example is the hexacyanoferrate(II) ion shown
  below.
• The octahedral arrangement minimises interactions
  between the ligands.

20
Tetrahedral Transition Metal Complexes.

• Co-ordination number 4.
• Four ligands surround the central transition
  metal atom.
• One example is the tetrachlorocobaltate(II) ion
  shown below.
• The tetrahedral arrangement minimises
  interactions between the ligands.

21
Square-Planar Transition Metal Complexes.

• Co-ordination number 4.
• Four ligands surround the central transition
  metal atom.
• One example is the tetrachloroplatinate(II) ion
  shown below.
• The square-planar arrangement does not minimise
  interactions between the ligands.

22
(No Transcript)
23
(No Transcript)
