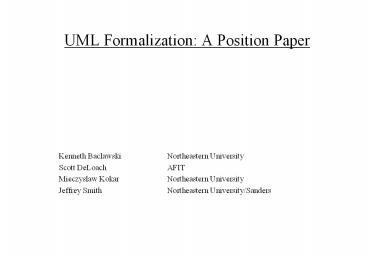

UML Formalization A Position Paper

• Kenneth Baclawski Northeastern University
• Scott DeLoach AFIT
• Mieczyslaw Kokar Northeastern University
• Jeffrey Smith Northeastern University/Sanders

2
Why Formalize UML?
Computer-aided formally-developed spec/sw
- Formalize common CASE spec language (UML), -
Automate transformation from UML to formal
representation
CASE-based spec/sw
disadvantages
advantages
disadvantages
advantages

• provably correct software
• code generation
• code refinement
• theorem proving
• spec/sw composition

• uniform graphical
• user interface
• modern SE methodo-
• logies (OO, state, etc)
• reverse engineering
• common large-scale
• dev. paradigm

• inconsistent
• specification
• shell sw only

• complex, diverse and
• unsupported tools
• complex languages/math
• lack of trained engineers
• unproven scalability

3
Math Foundation Alternatives
Competing mathematical theories Reference Categor
y theory S. DeLoach, Formal Transformations
from Graphically-Based OO
Representations to Theory Based
Specifications Stream theory R. Breu, U.
Hinkel, Towards a Formalism of UML ?-calculus
or process algebra G. Overgaard,The Semantics
of UML - Tutorial Algebraic approaches R.
Bourdeau, B. Cheng,A Formal Semantics for Object
Model Diagrams

• Algebraic Logic
• Hidden sorted algebras Algebraic/transformationa
  l (objects are terms)
• Dynamic and entity algebras Categorical/reactive
  (objects are theories)
• Processes
• Projection spaces

• Category Theory chosen because
• Successful application to
• Modal/temporal logic-based specs
• Formalization of OO techniques
• CASE support for software refinement,
  composition and code generation
• Ability to compose new formalizations form
  existing or created set

4
Theory-based Object Model

• Components of UML Domain Theory
• sort
• class type
• class sort
• abstract class
• concrete class
• attribute
• object valued attribute
• method
• operation
• axiom
• state attribute
• state sort
• state invariant
• event
• class set
• class event

• Meaning
• collection of values
• structure of object and response to stimuli
• all possible value representation of objects of
  the class
• class with no direct instances
• blueprint for instances
• function that returns data values/objects -
  observable class characteristic
• class attribute whose sort is set of objects
• function that modifies attribute values
• function that do not modify attribute values
• class attribute value invariant and semantic of
  functions
• function mapping from class to state sort
• current state of an object
• constraint on class attribute in a given state
• function that invokes methods, generates events
  and modifies state atttributes
• class whose class sort is previously defined
  objects (include class event)
• definition of each original class event

5
Theory-based example
class PERSON is import Sex, Natural class sort
Person sorts Person-State operations
person-attr-equal Person, Person ?
Boolean attributes age Person ? Integer
gender Person ? Sex state-attributes
person-state Person ? Person-State methods
create-person Sex ? Person increment-age
Person ? Person states old, young ?
Person-State events new-person Sex ? Person
birthday Person ? Person axioms old ? young
person-state(a) young ? age(a) lt 30
person-state(a) old ? age(a) ? 30
person-attr-equal(p, p1) ? gender(p) gender(p1)
? age(p) age(p1) age(create-person(s)) 0 ?
gender(create-person(s)) s
age(increment-age(p)) age(p) 1 ?
gender(increment-age(p)) gender(p)
person-attr-equal(birthday(p), increment-age(p))
person-attr-equal(new-person(s),
create-person(s)) end-class
6
Inheritance
Liskov substitution property - If for each object
o1 of type S there is an object o2 of type T such
that for all programs P defined in terms of T,
the behavior of P is unchanged when o1 is
substituted for o2, then S is a subtype of
T. In theory-based object model - When
specification morphism from superclass to
subclass and subclass class sort is a sub-sort of
the superclass class sort.
? Extension - add attributes/operations
Restriction - constrain attributes/operations

• In O-Slang, implemented with import
• For multiple inheritance, combine superclasses
  (with colimit), then import

7
Aggregation

• Part-of relationship between components and
  assemblies
• Modeled through object-valued attributes
• Aggregate class combines component classes via
  colimit, unifying component sorts and functions

Integer
Set
Set
Set
E ? CA-Link, Set ? Cust-Acct
E ? Acct, Set ? Acct-Class
E ? Customer, Set ? Cust-Class
E ? Account, Set ? Accounts
E ? Customer, Set ? Customers
Acct-Class
Cust-Acct
Cust-Class
C
C
C
Bank
8
Association

• Models relationship between potentially
  aggregate components
• Link - Connection between object instances -
  class (with link attributes and operations)
• using object-valued attributes to
  reference other objects
• Association - Set of links
• Multiplicities - number of links object can
  participate in - constructed by axioms defining
  link
• constraints

9
Object Communication

• Objects aware of own sending/receiving event set
• Generated and broadcast to entire system
• Event theory generating class sort, parameter
  sorts and event signature

Receiving class or class set
Event parameter sorts
Receiving class event signature

• Colimit between generating and receiving classes
  unify events and sort so invoking generating
  class
• corresponds to invoking receiving event(s)

10
UML Core Package
11
UML to Slang Translation Rules
UML Slang Aggregation diagram with colimit
ops (parts belong to whole) Association ops at
next higher level (parts belong to
diagram) Generalization morphism OCL axioms
defining constraints at next higher
level Component spec UML Diagram spec of
specs Collective of UML diagrams diagram of spec
of specs
12
Core Translation Example
morphism GeneralizableElement-to-Namespace Gener
alizableElement ? Namespace is n ? gn spec
Parameter is sorts defaultValue, kind, in, out,
inout, return sort-axiom kind in out inout
return op type pn ? Classifier end-spec spec
Classifier is sort crn end spec morphism
Classifier-to-GeneralizableElement Classifier ?
GeneralizableElement is crn -gt gn spec Feature
is sorts ownerScope, instance, classifier,
fname sort-axiom ownerScope instance
classifier sorts visibility, public, protected,
private sort-axiom visibility public
protected private op owner fname ?
classifier end-spec morphism Feature-to-ModelElem
ent Feature ? ModelElement is fname ? name
spec Namespace is sort name op unique name,
name ? Boolean axiom unique is (not (equal (n1
n2))) end-spec spec ModelElement is add
provision, requirement and namespace
op/axioms end-spec morphism ModelElement-to-Names
pace ModelElement ? Namespace is n ?
name spec Constraint is sort body op
wellformed ? Boolean end-spec spec
GeneralizableElement is sort gn op isAbstract
gn ? Boolean op isLeaf gn Boolean op isRoot
gn ? Boolean end-spec
13
Core Translation Example (cont.)
morphism Classifier-to-Class Classifier ?
Class is crn, cn spec Core is import
all components connect all associations with
predicates op type Parameter ? Classifier
op namespace ModelElement ?
Namespace end-spec
diagram Feature-diagram is nodes Feature,
Classifier arcs Feature ? Classifier fname ?
crn end-diagram spec Feature-agg is colimit of
Feature-diagram end-spec diagram
Parameter-diagram is nodes Parameter,
Classifier arcs Parameter ? Classifier is fname
? pn morphism ModelElement-to-Parameter ModelEl
ement ? Parameter is name ? pn spec Class
is op isActive cn ? Boolean end-spec
14
Next Steps/Issues

• Complete UML ? O-Slang script
• Continue to UMLize O-Slang
• Formalize UML - Slang version of abstract
  syntax and static/dynamic
• semantics at model and meta-model levels of
  abstraction
