Securing the Broker Pattern

1

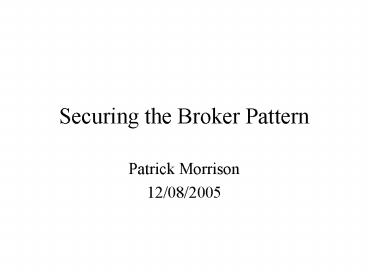

Securing the Broker Pattern

• Patrick Morrison
• 12/08/2005

2
Presentation Outline

• Present Broker
• Discuss security issues with Broker
• Survey CORBA as a Broker implementation that
  addresses security
• Abstract these ideas into Secure Broker

3
Broker Pattern

• The Broker architectural pattern can be used to
  structure distributing software systems with
  decoupled components that interact by remote
  service invocations. A broker component is
  responsible for coordinating communication, such
  as forwarding requests, as well as for
  transmitting results and exceptions. POSA1
• (e.g. WWW, CORBA)

4
Problem

• Broker decouples communications from application
  concerns, but does not address security issues
  un-addressed, these can compromise an
  applications usefulness.
• In addition to Brokers role in decoupling
  communications from applications, the Secure
  Broker must
• Protect Clients from illegitimate Servers and
  Brokers
• Protect Servers from illegitimate Clients and
  Brokers
• Protect Brokerss from illegitimate Clients and
  Servers

5
Problem in Stick Figures

• Forgery
• Client Im Bill Gates, please give me 1M
• Broker Im Bank of America, deposit your money
  here.
• Server Im Wells Fargo, I can carry those money
  bags away for you.
• Betrayal (by Trusted Server)
• Client Give me my Bank
• Broker Heres your Bank
• Bank (Actually the Bad Guys server)
• Denial (of Service)
• Client Id like to speak to my Bank.
• Broker What Bank?

6
Forces

• The existing Broker pattern does not address
  security concerns.
• Broker will typically require security
• Security is difficult to get right
• Implementations of Broker have addressed security
  concerns CORBA, WWW

7
(One Possible) Solution

• Find implementations of Broker that address
  security concerns
• Evaluate their security attributes
• Factor lessons learned back in to the original
  pattern.
• Motto Prefer discovery to invention.

8
Broker in Detail

• Class Diagram
• Sequence Diagrams
• Security issues in the Scenarios/Use Cases

9
Broker Class Diagram
10
Server Registration
11
Client Requests Service
12
Broker Forwards Request
13
Implementation EvaluationCORBA

• CORBA in Broker terms
• Security Architecture
• Lessons Learned

14
CORBA in Broker Terms
15
CORBA Security Threats Addressed

• An authorized user of the system gaining access
  to information that should be hidden from him.
• A user masquerading as someone else, directly or
  through delegation.
• Security controls being bypassed.
• Eavesdropping on a communication line
• Tampering with communication
• Lack of accountability due, for example, to
  inadequate identification of users.
• Source Corba Security Service v1.8, sect. 1.1.3

16
CORBA Security Overview

• Principals are the primary actors
• Principals have credentials indicating what their
  permissions are
• Credentials are issued by a trusted intermediary
  (Principal Authenticator)
• Targets are the primary resources requested
• A given object may be Principal and Target
• Policies relate credentials to Principals

17
CORBA Security Overview

• Secure Object Invocation
• Establish trust relationship between Principal
  and Target
• Authenticate each other
• Present Principal credentials to Target object
• Establish security context
• Determine whether Principal may execute the
  requested Target operation
• Audit the invocation
• Protect request and response from tampering and
  eavesdropping

18
CORBA Security Overview

• Access Control Model
• Object Invocation Access Policy
• Enforced by Proxies/ORB
• Enforced through Access Decision functions
• Binary result yes/no, allow/deny
• At Principal rules for invocation Can I ask
  Johnny to come out and play?
• At Target rules for accepting request Not after
  6.
• Policies built on top of access decision framework

19
Big Picture
Credentials
Credentials
Target
Client
Current
Current
Policy
Policy
Obj-Reference
Access Decision
Access Decision
Security Association
Security Association
ORB Core ORB Core
Secure Inter-operability
20
CORBA Invocation Security
Client Application (Message Sender)
Target Object
ORB
Security Enforcement Subsystem
Execution Context
Message
Domain
Credential
Policy Enforcement Code
Domain Policy
Identity
Privileges
21
CORBA Security Overview

• The Untold Story
• Policies
• Domains
• Non-Repudiation

22
CORBA in UML Credentials
23
CORBA in UML goes here

• Presentation status The glues not quite dry.
  Mea culpa.

24
CORBA Lessons

• Security begins with Identity Principals,
  authorization
• Implement access control in the proxies and
  Broker
• Implement mechanism, not policy
• Implement (optional) encryption when messages
  pass across bridges.

25
Secure Broker
Intent Provide secure interactions between
distributed components. Example Online Bank,
Customer makes withdrawal want to be sure that
the Customer gives his account only to the Bank,
and that the Bank distributes the Customers
money according to the Customers
wishes. Context Distributed computing systems,
homogeneous or heterogeneous.
26
Secure Broker

• Problem Broker decouples communications from
  application concerns, but does not address
  security issues un-addressed, these can
  compromise an applications usefulness.
• In addition to Brokers role in decoupling
  communications from applications, the Secure
  Broker must
• Protect Clients from illegitimate Servers and
  Brokers
• Protect Servers from illegitimate Clients and
  Brokers
• Protect Brokers from illegitimate Clients and
  Servers

27
Secure Broker

• Forces
• Broker distributes objects, but distribution does
  not imply trust
• Client access to Servers may need to be
  restricted
• Server access to Clients may need to be
  restricted
• Trust for an intermediary can be established

28
Secure Broker

• Solution Borrow CORBA security ideas for
  application to the Broker pattern
• Identity
• Credentials
• Access Decisions

29
Secure Broker Structure
30
Next Steps

• Sequence Diagrams
• Other implementations
• Other patterns Broker Revisited, Lookup
