Title: ENSC 412612 Week 5 Sampling and Measurement


1

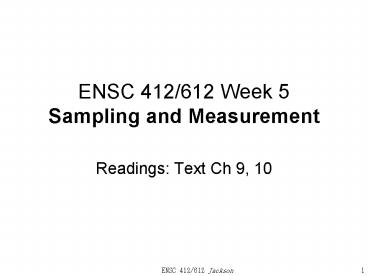

ENSC 412/612 Week 5Sampling and Measurement
  • Readings Text Ch 9, 10

2
Ambient Air Sampling
  • Objective of a sampling system is to obtain a
    sample that is representative of the atmosphere
    at a particular place and time and that can be
    evaluated as a mass or volume concentration.
  • System should not alter the sample in an
    undesirable way.
  • samples should be collected near ground level and
    close to receptors
  • samplers can be broadly categorized as either
    active in which air at a known flow rate is drawn
    through a sampling device or passive / static in
    which pollutants are passively sorbed or
    deposited on collector
  • active sampling is more accurate (but usually
    more costly) since the volume of air sampled is
    known more exactly and one doesn't need to
    estimate the diffusion of pollutants onto the
    collector as in passive sampling

3
Active sampling systems
  • An active sampling system usually consists of
  • an inlet manifold made of inert materials such
    as glass, Teflon, Stainless steel
  • an air mover or pump which creates a vacuum to
    draw in air
  • a collection medium may be a liquid or solid
    sorbent for dissolving gases. a filter surface
    for collecting particles or a chamber to collect
    air for analysis
  • a flow measurement device to measure the volume
    of air

4
Active sampling contd
  • A extractive sampling - e.g. SO2 in liquid
    sorbent
  • B open face'' filter exposed directly
  • C sample collection for lab analysis
  • D typical continuous monitor

5
Active sampling contd
  • there is a close similarity between engineering
    control methods and sampling / analysis both
    are trying to do the same thing (remove
    pollutants from the air)
  • Important sampling system characteristics
  • collection efficiency
  • sample stability
  • recovery (fraction of pollutant in the sample
    which is measured)
  • minimal chemical interference or transformation

6
Sampling systems for gaseous pollutants
  • collection medium is usually liquid or solid
    sorbents, or an evacuated flask
  • in liquid collection systems, bubblers maximize
    the gas-liquid interface and species react with
    water to form anions or cations
  • analytical techniques used often detect the
    anions or cations e.g. SO2NH3 ? HSO3- NH4
  • bubblers are low cost and portable
  • solid sorbents (e.g. Tenax, activated carbon) can
    sample by trapping species (e.g. HC) on active
    sites
  • before the sorbent becomes saturated, it is
    sealed and sent to a lab for analysis

7
Sampling systems for gaseous pollutants contd
  • the sorbed gas can be recovered by heating while
    passing through an inert gas
  • the de-sorbed species is concentrated and
    injected into a gas chromatograph for analysis
  • more commonly now, in-situ continuous monitoring
    and analysis is done
  • instruments are sophisticated enough that they
    can sample and measure/analyse at the same time
  • sample air is drawn in through an intake
    manifold, a small sample taken and analysed
    either discretely or continuously
  • the procedure is automated
  • in-situ monitors exist for SO2, NO, NO2, O3, CO,
    PM

8
Sampling systems for particulate matter
  • particles are inherently different from gases due
    to their size and mass
  • in sampling particulate matter, we want to know
  • mass concentration
  • size
  • chemical composition
  • more recently particle number is also of interest
    - ultrafines

9
Sampling systems for particulate matter contd
  • the primary approach is to separate particles
    from a known volume and weigh/analyse them ?
    filtration and impaction are most commonly used
  • sometimes particles behave unexpectedly near
    inlets, leading to sampling problems Overhead
    Fig 13-3 ? we want situation 13-3B

10
  • 13-3B represents isokinetic flow, when the wind
    speed is the same as the flow into the sampler

11
Sampling systems for particulate matter contd
  • airflow near the inlet is not a problem for gases
    because fractionation by different molecules does
    not occur
  • for particles, inertial effects may select the
    sample size ? inlets must be as short and
    bend-free as possible
  • inertial effects are less important when
    particles are lt 5 um in diameter
  • when a specific size range is required (i.e.
    PM10, PM2.5) this inertial separation can be used
    to pre-filter the sample ? the inlet manifold
    must be very carefully designed

12
Static sampling
  • there is no pump or active air moving component
    to these systems
  • examples might be dust-fall buckets (large
    particles) radon detectors, etc.
  • systems are exposed to ambient conditions for a
    specified period of time, then the collectors are
    sealed and analysed in the lab, and the analysis
    is related to the average concentration over the
    exposure period
  • systems can't usually quantify the amount of
    pollution present over a short period of time
  • these systems are low in cost, portable, and
    typically do not require power
  • collection is by diffusion of species through the
    air onto a collector, or by permeation through a
    membrane onto the collector

13
Diffusion collectors
  • diffusion collectors work by diffusion of the
    species down the gradient following a
    flux/gradient relationship Fick's Law
  • R - DA dC/dx
  • where R is the transport rate, D is a diffusion
    coefficient, A is the area of the inlet opening,
    and dC/dx is the concentration gradient through
    the inlet.

14
Diffusion collectors contd
  • if the collector removes all of the pollutant
    from the air it contacts, dC is simply equal to C
    the ambient concentration ? this is the principle
    of operation

15
Permeation collectors
  • in permeation collectors gas molecules pass
    through a membrane and are collected Overhead
    Fig 13-5
  • the membrane and collection medium are specific
    to the gas of interest

16
Air toxic sampling
  • often expensive due to low concentrations and
    reactivity of many toxics - VOC, PAH, Dioxins and
    Furans

17
Analysis and Measurement
  • in many older types of monitoring equipment,
    analysis and measurement are separate steps from
    sampling - this is not the case for in-situ
    continuous measurements
  • AQ measurement techniques usually pass through
    three technological stages
  • qualitative identification
  • separate collection and quantification (high lab
    costs, low installation costs)
  • concurrent collection and quantification (high
    installation costs)

18
Analysis of CO
  • non-dispersive infra-red (NDIR) photometry
    exploits the fact that CO preferentially absorbs
    IR
  • a hot filament IR source is passed through a
    reference cell of non-absorbing gas and a cell
    containing ambient air to a detector cell
    containing CO
  • differential energy absorbed on either side
    causes the membrane to move, generating AC
    current Overhead Fig 14-1
  • (must remove H2O vapour first)

19
(No Transcript)
20
Analysis of ozone
  • chemiluminescence is most commonly used
  • when ozone and ethylene react chemically ?
    excited electron state ? fluoresce releasing
    light which is amplified by a photomultiplier and
    measured - light emitted is proportional to O3
  • calibrated by putting a known O3 into the
    device

21
Analysis of NO2
  • also uses chemiluminescence
  • the NO2 is determined as the difference between
    NO and NOX
  • the reaction of NO with O3 releases light NO
    O3 ? NO2 O2 h?
  • the light signal is proportional to NO
  • this is a dual instrument - one side has a
    converter th change NO2 to NO Overhead Fig 14-4

22
(No Transcript)
23
Analysis of SO2
  • continuous methods involve many techniques such
    as flame photometry
  • air with SO2 is fed to an H2 flame and light
    emissions from electronically excited combustion
    products are detected by a photomultiplier

24
Analysis of particulate matter
  • Two systems are in common use in BC
  • HI-VOL - these systems are very simple,
    consisting of
  • an inlet which removes particles greater than 10
    or 2.5 um
  • a filter which traps the particles
  • a pump system which draws air through the inlet
    and filter
  • A known volume of air is drawn through the
    filter for a specified length of time. The
    particulate concentration is found as the mass
    difference of the filter before and after
    sampling divided by the total volume of air drawn
    through the filter. In BC there is a network of
    HI-VOL samplers which run for 24 hours on a six
    day cycle. (giving 24 h averages)
  • Also Partisol samplers are commonly used as the
    FRM (Federal Reference Method)

25
Partisol 2000 FRM Air Sampler
26
Analysis of particulate matter contd
  • 2. TEOM - (Tapered Element Oscillating
    Microbalance) - consists of the same three
    elements as the HI-VOL with the following
    additions
  • the filter rests on top of a tapered glass
    element which is forced to oscillate
  • the frequency of the oscillation is measured and
    its change depends on the change in mass of
    particulate on top of the element - this is the
    principle of measurement
  • TEOM's are capable of continuous real-time
    measurements, which makes them ideal for
    regulatory monitoring, and issuing air quality
    advisories, etc.

27
  • Thermoscientific
  • TEOM 1400ab

28
Analysis of particulate matter contd
  • HARVARD IMPACTOR used in wood-smoke study is a
    cascade impactor
  • Here sampler used for outdoor measurement in the
    Noullett et al (2006) study (with heat tape to
    avoid frost) is shown on left, and backpack
    arrangment for personal monitoring on right

29
  • 4. DATARAM is a light scattering nephelometer or
    photometer.
  • individual particles interact with a light beam
    in light sensing chamber intensity of light
    scattered over a forward angle of 45 to 90
    degrees is linearly proportional to to the
    concentration intensity of scattered light is a
    function of both diameter and refractive index of
    the particle.
  • pDR 1000 is a passive sampler and does not
    specifically select for a specific size range.
  • air surrounding the monitor circulates freely
    through the open sensing chamber by natural
    convection, diffusion and background air motion.
  • configuration produces optimal volume response to
    particles in the size range of 0.1 to 10
    micrometers but research shows best correlation
    is with 2.5 size fraction (Lui et al, 2002).
  • pDR results not directly comparable to filter
    based measurements and standards based on these
    methods.

30
Atmospheric Chemistry
  • Air Pollution chemistry refers to the subset of
    atmospheric chemical processes which have impact
    on life, vegetation, water or soil
  • can be anthropogenic or natural e.g. Mount St.
    Helens in 1980 was a gigantic point source of SO2
    and PM which was first a regional air pollution
    problem, then a global one

31
Chemistry contd
  • most chemical transformations in the atmosphere
    are oxidation processes ? those involving C, N, S
    are of most interest
  • in the troposphere there is oxidation of
    hydrocarbons, NO, SO2 to form aldehydes, NO2,
    H2SO4 (secondary pollutants) OH Fig 12-1

32
(No Transcript)
33
(No Transcript)
34
  • solar radiation interacts with some molecules ?
    free radicals formed by photodissociation (e.g.
    O, H, OH, HO2)
  • in areas with photochemical smog, the main
    photoacceptors are aldehydes, NO2, nitrous acid
    (HNO2) and O3

35
(No Transcript)
36
  • Ozone is formed following a cycle
  • NO2 h? ? NO O
  • O O2 M ? O3 M
  • NO O3 ? NO2 O2
  • (M is any third body molecule, like N2 or O2)
  • The photostationary state expression for O3 is
  • O3 k1NO2/NO
  • k1 is a rate constant that depends on location
    and time of year
  • Most NO must be converted to NO2 before O3 will
    build up in the atmosphere
  • Hydrocarbons (VOCs) increase the rate of
    conversion of NO to NO2, allowing O3 to build up
    further

37
Readings for next week
Write a Comment
User Comments (0)
About PowerShow.com
