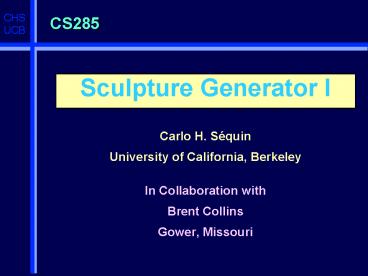

CS285

1
CS285

• Sculpture Generator I
• Carlo H. Séquin
• University of California, Berkeley
• In Collaboration with
• Brent Collins
• Gower, Missouri

2
Brent Collins

• Genesis Brent Collins at BRIDGES 2000

3
Leonardo -- Special Issue
On Knot-Spanning Surfaces An Illustrated Essay
on Topological Art With an Artists Statement by
Brent Collins
George K. Francis with Brent Collins
4
Brent Collins Early Sculptures
All photos by Phillip Geller
5
Collins Abstract Geometric Art

• Beautiful symmetries
• Graceful balance of the saddle surfaces
• Superb craftsmanship
• Intriguing run of the edges
• What type of knot is formed ?
• Mystery one-sided or two-sided ?
• gt Focus on Chains of Saddles

6
Brent Collins Stacked Saddles
7
Scherks 2nd Minimal Surface
Normal biped saddles
Generalization to higher-order saddles(monkey
saddle)
8
Hyperbolic Hexagon by B. Collins

• 6 saddles in a ring
• 6 holes passing through symmetry plane at 45º
• wound up 6-story
  Scherk tower
• What would happen,
• if we added more stories ?
• or introduced a twist before closing the ring ?

9
Closing the Loop
straight or twisted
10
Collins - Séquin Collaboration

• Discuss ideas on the phone
• Exchange sketches
• Vary the topological parameters
• But how do you know whether it is beautiful ?
  Need visual feedback.
• Making models from paper strips is not good
  enough.
• A key problem is making the sculpture look good
  from all sides !

11
Brent Collins Prototyping Process
Mockup for the "Saddle Trefoil"
Armature for the "Hyperbolic Heptagon"
Time-consuming ! (1-3 weeks)
12
Collins Fabrication Process

• Building the final sculpture (2-3 months)
• Take measurements from mock-up model,transfer
  parallel contours to 1 boards.
• Roughly precut boards, leaving registration
  marksand contiguous pillars for gluing boards
  together.
• Stack and glue together precut boards,remove
  auxiliary struts.
• Fine-tune overall shape,sand and polish the
  surface.
• A big investment of effort !

13
Collins Fabrication Process
Wood master patternfor sculpture
Layered laminated main shape
Example Vox Solis
14
The Need for a Prototyping Tool

• Intriguing Conceptual Idea Turn the
  Hyperbolic Hexagon into a Heptagon
• Goals Give it more variety
• Make different hole-angles visible from one
  direction by adding twist before closure.
• Results Surface becomes single-sided
• The four separate edges join into a torus knot.
• Question Will it look beautiful ?
• What can we do if it doesn t ?
• Perhaps more twist can save it ?
• What is the best size for the holes, the flanges
  ?
• How can we find out quickly ?

15
Sculpture Generator I

• Prototyping tool forScherk-Collins
  Saddle-Chains.
• Slider control for this one shape family,
• Control of about 12 parameters.
• Main goal Speed for interactive editing.
• Geometry part is about 5,000 lines of C
• 10,000 lines for display user interface.

16
Generated Scherk-Collins Shapes
17
The Basic Element
Scherks 2ndminimal surface
3-story tower,trimmed, thickened
180 degreesof twist added
18
Toroidal Warp into Collins Ring
8-story tower
warped into a ring
360º twist added
19
A Plethora of Shapes
20
Edge Treatment
square, flat cut
semi-circular
bulging out
21
Embellishment of Basic Shape
color
background
texture
22
Sculpture Generator, GUI
23
Some of the Parameters in SC1
24
Main Goal in Sculpture Generator I

• Real-time Interactive Speed !
• Cant afford surface optimizationto obtain true
  minimal surfaces
• also, this would be aesthetically too limited.
• ? Use closed-form hyperbolic approximation.

25
Base Geometry One Scherk Story

• Hyperbolic Slices gt Triangle Strips
• Pre-computed -- then warped into toroid

26
A Simple Scherk-Collins Toroid

• Parameters(genome)
• branches 2
• stories 1
• height 5.00
• flange 1.00
• thickness 0.10
• rim_bulge 1.00
• warp 360.00
• twist 90
• azimuth 90
• textr_tiles 3
• detail 8

27
Also a Scherk-Collins Toroid

• branches 1
• stories 5
• height 1.00
• flange 1.00
• thickness 0.04
• rim_bulge 1.01
• warp 360
• twist 900
• azimuth 90
• textr_tiles 1
• detail 20

28
A Scherk Tower (on its side)

• branches 7
• stories 3
• height 0.2
• flange 1.00
• thickness 0.04
• rim_bulge 0
• warp 0
• twist 0
• azimuth 0
• textr_tiles 2
• detail 6

29
1-story Scherk Tower

• branches 5
• stories 1
• height 1.35
• flange 1.00
• thickness 0.04
• rim_bulge 0
• warp 58.0
• twist 37.5
• azimuth 0
• textr_tiles 8
• detail 6

30
180º Arch Half a Scherk Toroid

• branches 8
• stories 1
• height 5
• flange 1.00
• thickness 0.06
• rim_bulge 1.25
• warp 180
• twist 0
• azimuth 0
• textr_tiles e
• detail 12

31
How to Obtain a Real Sculpture ?

• Prepare a set of cross-sectional blue printsat
  equally spaced height intervals,corresponding
  to the board thickness that Brent is using for
  the construction.

32
Slices through Minimal Trefoil
50
10
23
30
45
5
20
27
35
2
15
25
33
Profiled Slice through the Sculpture

• One thick slicethru Heptoroidfrom which Brent
  can cut boards and assemble a rough
  shape.Traces represent top and bottom,as
  well as cuts at 1/4, 1/2, 3/4of one board.

34
Our First Joint Sculpture

• Six monkey saddles in a ring with no twist
• (like Hyperbolic Hexagon)
• azimuth 30, flange 1.5
• (aesthetics)
• size, thickness
• (fabrication consideration)

35
Hyperbolic Hexagon II (wood)
Brent Collins
36
Heptoroid ( from Sculpture Generator I )
Cross-eye stereo pair
37
Emergence of the Heptoroid (1)
Assembly of the precut boards
38
Emergence of the Heptoroid (2)
Forming a continuous smooth edge
39
Emergence of the Heptoroid (3)
Smoothing the whole surface
40
Heptoroid
41
Advantages of CAD of Sculptures

• Exploration of a larger domain
• Instant visualization of results
• Eliminate need for prototyping
• Create virtual reality pictures
• Making more complex structures
• Better optimization of chosen form
• More precise implementation
• Rapid prototyping of maquettes

42
Sculpture Design

• branches 4
• storeys 11
• height 1.55
• flange 1.00
• thickness 0.06
• rim_bulge 1.00
• warp 330.00
• twist 247.50
• azimuth 56.25
• mesh_tiles 0
• textr_tiles 1
• detail 8
• bounding box
• xmax 6.01,
• ymax 1.14,
• zmax 5.55,
• xmin -7.93,
• ymin -1.14,
• zmin -8.41

43
FDM Maquette of Solar Arch
44
Breckenridge Competition

• 2nd place

45
We Can Try Again in L.A.
46
or in Washington D.C.
47
V-art
VirtualGlassScherkTowerwith MonkeySaddles(R
adiance 40 hours) Jane Yen
48
SFF (Solid Free-form Fabrication)
Monkey- Saddle Cinquefoil
49
Various Scherk-Collins Sculptures
50
Fused Deposition Modeling (FDM)
51
Zooming into the FDM Machine
52
Séquins Minimal Saddle Trefoil

• Stereo-lithography master

53
Séquins Minimal Saddle Trefoil

• bronze cast, gold plated

54
Minimal Trefoils -- cast and finished by Steve
Reinmuth
55
Brent Collins Trefoil
56
New Possibilities
Developing Parameterized, Procedurally Generated
Sculpture Families
57
Family of Symmetrical Trefoils
W2
W1
B1 B2 B3
B4
58
Close-up of Some Trefoils
B1 B2
B3
Varying the number of branches, the order of the
saddles.
59
Higher-order Trefoils (4th order saddles)
W1 (Warp)
W2 ?
60
Exploring New Ideas W2

• Going around the loop twice ...

resulting in an interwoven structure.
61
9-story Intertwined Double Toroid
Bronze investment casting from wax original
made on 3D SystemsThermojet
62
Stepwise Expansion of Horizon

• Playing with many different shapes and
• experimenting at the limit of the domain of the
  sculpture generator,
• stimulates new ideas for alternative shapes and
  generating paradigms.

Swiss Mountains
63
Note
The computer becomesan amplifier /
acceleratorfor the creative process.
64
Inspiration Brent Collins Pax Mundi
65
Keeping up with Brent ...

• Sculpture Generator I can only do warped Scherk
  towers,not able to describe a shape like Pax
  Mundi.
• Need a more general approach !
• Use the SLIDE modeling environment(developed at
  U.C. Berkeley by J. Smith)to capture the
  paradigm of such a sculpturein a procedural
  form.
• Express it as a computer program
• Insert parameters to change salient aspects /
  features of the sculpture
• First Need to understand what is going on ?

66
Sculptures by Naum Gabo

• Pathway on a sphere
• Edge of surface is like seam of tennis ball
• ? 2-period Gabo curve.

67
2-period Gabo curve

• Approximation with quartic B-splinewith 8
  control points per period,but only 3 DOF are
  used.

68
4-period Gabo curve

• Same construction as for as for 2-period curve

69
Pax Mundi Revisited

• Can be seen as Amplitude modulated, 4-period
  Gabo curve

70
SLIDE

• SLIDE Scene Language for Interactive Dynamic
  Environments
• Developed as a modular rendering pipelinefor our
  introductory graphics course.
• Primary Author Jordan Smith
• Based on OpenGL and Tcl/tk.
• Good combination of interactive 3D graphicsand
  parameterizable procedural constructs.

71
SLIDE Example Klein Bottle

• Final Project CS 184, Nerius Landys Shad
  Roundy

72
SLIDE Example Bugs Life

• Final Project CS 184, David Cheng and James Chow

73
SLIDE as a Design Tool

• SLIDE originally a modular rendering tool.
• Later enhanced to serve as a CAD tool
• Spline curves and surfaces
• Morphing sweeps along such curves
• 3D warping module (Sederberg, Rockwood)
• Many types of subdivision surfaces
• These are key elements for a 2nd Generation
  Sculpture Generator

74
SLIDE-UI for Knot Generation
75
SLIDE-UI for Pax Mundi Shapes
76
Via Globi 5 (Gold)
Wilmin Martono
77
Via Globi 3 (Stone)
Wilmin Martono
78
Viae Globi Family (Roads on a Sphere)
L2 L3 L4
L5
79
Conclusions (1)

• Procedural thinking about some art object adds a
  new and promising dimension.It allows the artist
  to increase the complexity, precision, and
  optimality of a particular piece of art.
• The computer must be seen as yet another
  power-tool at the artists disposition, --
  supplementing the pneumatic chisel, the
  airbrush, and the welding machine.

80
Conclusions (2)

• The computer is not only a great visualization
  and prototyping tool,
• it also is a generator for new ideas and
• an amplifier for an artists inspiration.

81
Conclusions (3)

• What makes a CAD tool productive for this kind
  of work ?
• Not just virtual clay,
• partly procedural
• fewer parameters that need to be set.
• Keep things aligned, joined
• guarantee symmetry, regularity,
• watertight surfaces.
• Interactivity is crucial !

82
Conclusions (4)

• Rapid prototyping (layered fabrication)must now
  be considered a new facetin the spectrum of MM
  technologies.
• It provides tangible (high-quality haptic)output
  for objects with which usersmay want to
  interact.
• Even for sculptures(intended primarily for
  visual enjoyment)the physical maquette
  disclosessubtle geometrical features that
  arenot visible in the virtual rendering.

83
Questions ?
THE END
