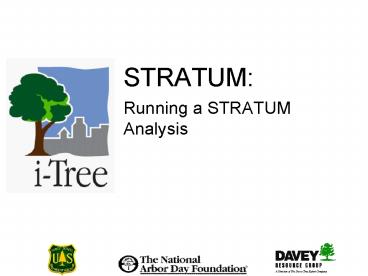

STRATUM:

1
STRATUM

• Running a STRATUM Analysis

2
Creating a STRATUM Project
3
OR
OR
4
Process Overview

• Creating a new STRATUM project
• Formatting your inventory database
• i-Tree Inventory PDA Utility
• Other inventories
• Converting Excel inventories to Access format
• STRATUM formatted spreadsheet
• Create Access table for STRATUM import
• Import Access database into STRATUM
• Define Unmatched Species Codes
• Define Inventory

5
Step 1 Formatting the Inventory Database

• i-Tree PDA Utility
• Do not require formatting
• Shared database w/MCTI
• A STRATUM-compatible Access table is
  automatically produced

6

• Other Inventories
• STRATUM can only run after a STRATUM-formatted MS
  Access inventory table has been imported.
• Formatting requirements
• MS Access (.mdb) table named STRATUM_Inventory
• Must have STRATUM field headings
• 17 field names order, spelling, case sensitive
• Format (i.e., numeric vs. alpha-numeric null
  value)

7
Step 2 Converting Excel inventories into Access
Tables for STRATUM

• Convert data to STRATUM format
• Create metadata sheet
• Create Access database and import inventory

8
Step 3 Import Access Database into STRATUM

• Launch STRATUM application
• Define inventory type (sample vs. full)
• Import STRATUM-formatted .mdb file
• Establish DBH value and Management Zones
• Select Climate Region

9
Step 4 Define Unmatched Species Codes

• STRATUM Limited to known predominant species by
  climate zone
• National Tree Database Codes
• 22 species modeled per Climate Zone
• Species Value Assignments
• Tree Types
• Non-tree Species Codes
• Used for stocking reports
• Wont be counted as trees in reports
• E.g., AVPSM Available Planting Space for Medium
  tree

10
Step 5 Define Inventory

• Data fields
• Default or Custom
• Units (DBH only)
• Tree Inventory by Record
• Edit existing records
• Insert new trees
• Define Sample Data
• Total number of Street Segments (Citywide or by
  Zone)
• Change numbered zones to area name

11
Define City Data
12
Define Cost Data
13
Define Benefit Price Data
14
Benefit Price Data

• Energy
• Heating and Cooling
• Air Pollution Emissions
• Transaction costs
• Wang Santini
• Carbon Dioxide
• eCO2.com
• Stormwater Runoff Reduction
• Detention/Retention
• Program Expenditures
• Sanitary Water Treatment
• Aesthetic and Other Benefits
• Median Home Sales Price

15
STRATUM

• Reporting Interpretation

16
Generating Interpreting Reports
OR
OR
17
(No Transcript)
18
Resource Structure Analysis 15 Basic Reports

• Maintenance Recommendation
• Maintenance Task
• Land Use
• Location
• Conflicts
• Canopy Cover
• Other
• Replacement Values

• Population Summary
• Species Distribution
• Relative Age Distribution
• Importance Values
• Condition
• Relative Performance Index (RPI)
• Stocking Level

19
Benefit-Cost Analysis Reports

• Annual Benefits
• Energy
• Stormwater
• Air Quality
• Carbon Dioxide
• Aesthetic/other
• All

• Management Costs
• Net Annual Benefits

20
STRATUM Reports

• Global Exports to Excel Spreadsheets
• Can interface with graphs and change them
• Manipulate data and select your own format type
• Screen Prints to PDF, Excel, Word and RTF files
• As viewed on screen - ready for reports,
  publications
• Fixed formatting on some reports

21
Generating Reports
22
Screen Tools for Viewing Reports
23
STRUCTURAL Reports
24
1. Population Summary

• Summaries or complete lists of inventoried
  species, their total numbers, numbers by Tree
  Type, numbers by default DBH size classes
• Basic understanding of species frequency
  citywide, Management Zone, and DBH size classes

25
2. Species Distribution

• Species composition - 10 most prevalent species
  displayed in of total numbers.
• Understanding of species dominance in terms of
  tree numbers

26
3. Relative Age Distribution

• Tree age, relative to DBH size class for 10
  prevalent species or by management zone.
• Use to determine current mgmt. Needs and how
  needs change based on total numbers and aging of
  individual species. Ideal distribution has high
  proportion of new transplants to offset
  mortality, while older trees declines with age.

27
4. Importance Values

• Mean of 3 relative values ( tree numbers, leaf
  area, canopy cover) for most prevalent species.
• Suggest communitys reliance on functional
  capacity of particular species
• IV 0 no reliance
• IV 100 total reliance

28
5. Condition

• Structural (woody) and functional (foliage)
  condition data for entire population and most
  prevalent species.
• Indicates how well trees are managed and relative
  performance given site-specific conditions

29
6. Relative Performance Index (RPI)

• Indices based on weighted proportion of each
  street trees condition classification for all
  species.
• Value gt 1 indicates species having better
  condition ratings.
• Value lt 1 are species with below average
  condition ratings compared with other inventoried
  trees.

30
7. Stocking Level

• Stocking levels and available planting sites for
  small, medium and large trees as defined in
  Unmatched Non-tree Species Codes
• Identify high priority planting areas, strategic
  plant purchasing and cost planning

31
8. Maintenance Recommendation

• Provides maintenance recommendation as defined in
  the Data Tree Inventory by Data Fields dialogue
  by species or DBH size class
• Assists managers in understanding actual pruning
  and maintenance needs of the street trees
• Assists in establishing programmed pruning

32
9. Maintenance Task

• Provides maintenance recommendation as defined in
  the Data Tree Inventory by Data Fields dialogue
  by species or DBH size class
• Assists managers in understanding actual pruning
  and maintenance needs of the street trees
• Assists in establishing programmed pruning

33
10. Land Use

• Land use associated with each population subset
• Comparison with tree conflicts, maintenance
  recommendations and tasks for understanding
  problem planting sites for specific species

34
11. Location

• Tree locations associated with each population
  subset
• Comparison with tree conflicts, conflicts,
  maintenance recommendations and tasks for
  understanding problem planting sites for specific
  species

35
12. Conflicts sidewalk heave

• Sidewalk heave associated displayed by species,
  total numbers, or of numbers
• Understanding current and potential
  infrastructure related conflicts by species and
  Management Zone location

36
12. Conflicts utility wire

• Overhead utility conflicts displayed by species,
  total numbers, or of numbers
• Understanding current and potential
  infrastructure related conflicts by species and
  Management Zone location

37
13. Canopy Cover

• CC over city land and street areas
• Current vs. desired CC in city
• Increased CC increased benefits
• Decrease pavement costs in some climate regions

38
14. Other

• 3 table formatted reports based on defined data
  fields unique to each city
• Defined as of total numbers
• Davis example Hazard Tree

39
15. Replacement Value

• Estimates the full cost of replacing trees
• Based on inventoried condition
• First order estimates (by DBH class Zone)

40
Benefits Costs

• Are street trees worth the investment?

41
Benefit-Cost Reporting
42
Energy

• Summer Savings
• kWh
• Winter Savings
• Btu

43
Carbon Dioxide (CO2)

• 4 components
• Sequestered
• Avoided
• Decomposition
• Maintenance

44
Air Quality

• Deposition
• O3
• NO2
• PM10
• SO2
• Avoided
• NO2
• PM10
• VOCs
• SO2
• BVOC emissions

45
Stormwater Interception

• Net interception
• Initial Abstraction

46
Aesthetic/Other

• Property value increase
• Aesthetics
• Social
• Psychological
• Retail sales
• Noise abatement

47
All Benefits

• per tree
• Total

48
Management Costs

• Annual Costs
• Internal program expenditures
• External program expenditure

49
Benefit-Cost Summary

• Annual
• Benefits
• Costs
• BCR
• /capita
• /tree

50
OR
OR
51
Management Considerations

• The average tree provides over 125 in annual
  benefits.
• Daviss street trees return 5 for every 1 spent
  on their management.

Can Daviss trees sustain this level of benefits?
52
Management Issues

• Needs to achieve

• Adequate structural complexity
• Adequate canopy cover
• Adequate pruning maintenance

53
Structural Complexity

• Goal
• Achieve adequate structural complexity focused on
  long-term benefits
• How?

• Plant species that are well adapted and
  long-lived
• Reduce over reliance on too few species
• Rejuvenation of areas where even, old-aged stands
  predominate

54
Stable Canopy Cover

• Goal
• Maximize Canopy Cover to offset detrimental
  effects of hardscape
• How?

• Perpetuate current canopy cover
• Selective removal and replacement where even,
  old-aged stands predominate
• Promote additional coverage
• Fill empty spaces
• Plant large-stature trees where feasible
• Select well adapted and long-lived species

55
Pruning Maintenance

• Goal
• Improve tree condition to increase benefits
  provided while reducing liability and long-term
  maintenance costs
• How?

• Improve young tree care
• Adjust pruning cycle 8 yrs to 4-5 yrs
• Target species in the poorest health

56
Conclusion

• Davis has approx. 24,000 street trees.
• Citywide, the publicly managed trees produce 3.1
  million in annual benefits for a total cost of
  560,000.
• Continuing this level of benefits will take
  strategic program planning
• Adequate young tree care.
• More frequent inspection and pruning.
• Rejuvenating aging populations.
• Planting areas void of trees.

57
STRATUM in Practice

• Municipal BCA
• Municipal Tree Resource Assessments/State of the
  Urban Forest
• Community Forest Management Plans
• City of Davis
• Program Advocacy
• City of N. Vancouver

58
Street Tree Resource Analysis/State of the Urban
Forest Report

• Executive Summary
• The Tree Resource
• Management Costs
• Annual Benefits
• Management Implications
• Resource complexity
• Resource extent
• Maintenance needs
• Appendices

59
Davis Community Forest Management Plan

• Overview
• Context Existing Conditions
• History of Tree Management
• Administration and Management
• State of the Community Forest
• Community Forest Goals, Policies, Standards and
  Actions
• Glossary
• Appendices
• http//www.cityofdavis.org/pcs/trees/cfmp.cfm

60
STRATUM Street Tree Master Plans

• Provide the best SERVICE possible
• Most efficient use of resources
• Maximize net benefits of trees
• Increase customer Satisfaction
• Cornerstone of compelling case for program funding

61
Level of Service Analysis

• Quantifiable measures of capacity or work
  performed
• Identify measures for each program area
• Tree planting ( full stocking)
• Young tree care (cycle)
• Large tree care (cycle)
• Hazard tree abatement ( dead or dying)
• Administration (/tree)
• Compare Current LOS with Standard and Optimal LOS

62
Identify Funding Sources

• Tree planting grants
• Public awareness and volunteer training grants
• Local measures
• Assessment districts
• Parcel tax
• Other revenue sources
• Carbon dioxide emission reduction credits
• Shade tree programs for energy conservation
• Stormwater management
• Air pollution mitigation

63
Advocacy
