Microscopie holographique

1

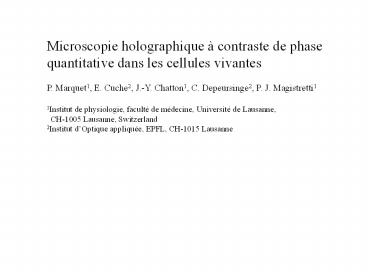

Microscopie holographique à contraste de phase
quantitative dans les cellules vivantes P.
Marquet1, E. Cuche2, J.-Y. Chatton1, C.
Depeursinge2, P. J. Magistretti1 1Institut de
physiologie, faculté de médecine, Université de
Lausanne, CH-1005 Lausanne, Switzerland 2Instit
ut dOptique appliquée, EPFL, CH-1015 Lausanne
2
Electromagnetic waves
d
Mathematical expression
? -gt ?(d, n, ?)
3
Light coherence
A) coherent source
d
B) non coherent source
random phase
d
4
Sample illumination
Dimension detected IntensityJ/Sm2
(Intensity contrast microscopy)
5
Origin of the Phase Shift
? --gt ?(d, next, nint)
nextlt nint
6
Youngs interference
Phase and amplitude are recorded
7
Principe of phase recording
8
hologram
9
Hologram reconstruction
Digital reconstruction
Numerical simulation of reference wave
diffraction by the hologram 1) intensity
contrast images 2) Quantitative phase contrast
images
10
Holography set up
Characteristics Lateral resolution ? 400 nm
(0.75?/NA) z-Axis resolution ? 1..10 nm
11
Applications
3D morphology and volume measurements in living
cells
Astrocyte in culture
12
