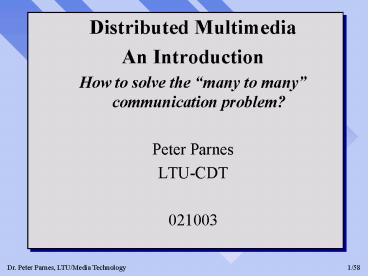

Title: Distributed Multimedia


1
  • Distributed Multimedia
  • An Introduction
  • How to solve the many to many communication
    problem?
  • Peter Parnes
  • LTU-CDT
  • 021003

2
Who am I?
  • Dr Peter Parnes Assistant Professor
  • peppar_at_cdt.luth.se
  • http//www.cdt.luth.se/peppar/
  • Founder Marratech AB
  • Research manager Media Technology
  • Holds 5 patents in the area of distributed
    multimedia
  • SkÃ¥ning in exile

3
Overview
  • Many to Many data distribution
  • Data transmission and IP-multicast
  • Applications
  • Protocols
  • Reliable Multicast
  • Scalable media distribution in heterogeneous
    environments

4
Many to Many
  • How to implement many-to-many traffic?
  • 1. Central server Have a central server that
    duplicates packets to all other members.
  • 2. (Fully) connected mesh Let every member have
    a connection to all/some other members.
  • 3. Multicasting Let the network duplicate the
    packet when needed.
  • 1 and 2 wastes bandwidth!!!!

5
IP Addressing
  • The TCP/IP family includes four types of
    distribution of a packet from a single host
  • Unicast To one host
  • Normal IP-traffic
  • The packet is seen only by the receiving host
  • Broadcast To all hosts on a network
  • When trying to find another host
  • The packet is seen by all hosts on the local
    network

6
IP Addressing
  • Anycast To one host of a group of hosts
  • To access a resource that is served by several
    computers
  • IP6
  • The packet is seen by one off the receiving
    hosts
  • Multicast To a group of hosts
  • The packet is seen by all hosts in the group
  • The packet is only duplicated when needed

7
Multicast vs. Unicast

8
Multicast Applications
  • Broadcasting conferences, meetings, seminars,
    concerts and radio-stations are multicasted
    daily.
  • Conferencing Multicast is used for traditional
    video-conferencing (but MUCH cheaper!!)
  • News Distribution of Usenet-News
  • M-FTP Multi-user File Transfer

9
More Applications
  • Software-distribution Forget the very costly
    procedure of new software CDs for each new
    release and bug-fix! Just supply the latest
    version in a known multicast-group.
  • Mirroring Instead of letting each client fetch
    all new files from a server, send out the changed
    files using multicast!

10
Even More Applications
  • Real News All news is transmitted on the net.
    Indexed and ready. (Reuters have this since
    1996!)
  • TV Why not watch your favourite TV-channel over
    the network?
  • File-Caches If all file-requests are issued
    using multicasting its much easier to cache them
    locally!
  • And much much much.......

11
Example Desktop audio/video
12
Handheld Audio/Video
13
MPEG-4 Video
14
Design Issues
  • Scalable The environment should scale to a very
    large number of users - IP-Multicast is the
    solution!
  • Robust The environment should survive network
    failures and not be dependent on any central
    services
  • Accessible Users should be able to participate
    from their desktop
  • Network based No need for any special ISDN
    connections, just the standard local network and
    the Internet.

15
(No Transcript)
16
Protocols
  • MANY different protocols involved with Media
    distribution
  • UDP User Datagram Protocol
  • Unreliable Packets can be lost
  • The applications has to take care of reliability
  • TCP Transport Control Protocol
  • The OS helps out
  • Only point-to-point

17
RTP
  • RTP - Real-Time Transfer Protocol
  • Developed by the IETF (RFC1889/90) and later
    copied into ITU/H.225.
  • End-to-End transport functionality for real-time
    data
  • Designed for real-time media
  • Completely network layer independent

18
Reliable Multicasting
  • Scalable Reliable Multicasting - SRM
  • NACK based - every member participates in repairs
    and not only the original sender of a packet
  • Used in the Marratech Pro
  • I have designed a RTP-extension to include SRM.

19
Summary
  • IP multicast provides a scalable solution for
    many-to-many communication.
  • A number of tools are being deployed on the
    Internet today to utilize the power of IP
    multicast.
  • Native multicast is slowly being deployed around
    the world.

20
  • Media Scaling over
  • Heterogeneous Networks

21
Overview
  • Background
  • Current Problem
  • Proposed Solutions
  • Layered Multicast
  • Current Status in the Internet
  • Summary

22
Challenges
  • Broadcasts of real-time media on the Internet
    is becoming more and more important.
  • QoS, Best effort networks
  • Heterogeneity in terms of
  • bandwidth availability
  • CPU-power
  • End-user equipment
  • Scalability to large sessions and global networks

23
Requirements and Restrictions
  • Best-effort delivery
  • Reliability not required
  • Applications have to be adaptive, i.e. have to
    adapt to network congestion and be able to handle
    different configurations.

24
Heterogeneous Environment
Narrowband Access
Broadband Access
Internet
Broadband Access
Wireless Access
25
  • Which bandwidth should be used when transmitting
    a real-time media stream over heterogeneous
    networks?

Sender
100Mbps
Internet
26
Proposed solutions
  • Max/Min client bandwidth
  • Simulcast
  • Network transcoders
  • Bandwidth Guessing - TCP friendly
  • Active Networks
  • Active Services
  • Layered Multicast

27
Max/Min client bandwidth
  • Just ignore some set of receivers
  • Send the stream with high bandwidth
  • Ignore low bandwidth receivers
  • Send the stream with low bandwidth
  • Force high bandwidth receivers to use low quality
  • Does not take congestion into account

28
Simulcast
  • Send the same stream with different encodings
    from the sender and let the receivers choose what
    they want to receive.
  • Can be very expensive CPU wise
  • Wastes bandwidth on shared links
  • Does not take congestion into account in the way
    it is being used today.

29
Network Transcoders
  • A common approach is to deploy transcoders on the
    boundaries between different networks.
  • Transcoding
  • Mixing
  • Downscaling

30
Transcoding Media Gateways

31
Transcoding
  • Transcoding
  • transcode MJPEG to H.261 when the traffic leaves
    a campus (high bandwidth network). -gt high CPU
    requirement!
  • Trancode from high bw to low bw
  • Used in SIRAM media gateway

32
Downscaling
  • Downscaling
  • Throw away parts of the mediadata
  • Lower CPU than transcoding but worse result
  • Used in mTunnel

33
Mixing
  • Mixing
  • Generate one stream from several active streams.
  • Mix audio
  • Combine video

34
Bandwidth Guessing
  • In early 97 a proposal called TCP-Friendly was
    distributed.
  • Describes a way of estimating the bandwidth
    between a sender and a receiver based on RTT and
    current packet drop.
  • Takes TCP into account and will be a nice
    participant in the network

35
BW Guessing Problems
  • Hard to calculate RTT accurately
  • Works only for broadcast situations
  • Not very tested yet

36
Active Networks
  • Basic idea
  • Allow injection of small programs into network
    nodes
  • Network nodes perform computations on user data

37
Active Networks...
  • Two Different Approaches
  • Code and control is handled out-of-band
  • Each packet carries miniature programs (capsules)
  • Allows networks to be modified on-demand
  • Opens a completely new area for real-time media
    scaling

38
Active Networks...
  • Issues
  • Safety, fairness, appropriate architecture,
    common programming model, robustness
  • Status
  • At the very beginning
  • A very political problem

39
Active Services
  • Deploy user controllable programs-pads in the
    network.
  • Users can deploy their own transcoding programs
    and can easily up-grade these when needed
  • A system for this is currently being deployed and
    tested on Berkeley Campus

40
Layered Multicast
  • Layered (hierarchical) media encodings
  • Multi resolution representations of media
  • Incremental decoding / refinement
  • Layered multicast transmission
  • True leaf-initiated join mechanism
  • Scalable to large groups
  • Receiver-driven flow control algorithm
  • Congestion avoidance

41
Scenario
Low quality
Leased Line
Internet (multicast enabled)
Medium quality
Leased Line
Low quality
Dial-up access
Leased Line
R
Multicast Router
High-speed LAN
Video
Transmitter
High quality
42
Layered Video Encoding
  • Temporal layering
  • Increased number of refinement layers correspond
    to higher frame-rate
  • Spatial layering
  • Increased number of refinement layers correspond
    to higher image resolution
  • Layered quantization
  • Increased number of refinement layers correspond
    to finer quantization

43
Temporal Layering
Images of a video sequence
Transmission channels that can be received
independently
44
Spatial Layering
Transform
Base layer signal refinement signals
Original image
45
Layered Multicast
  • The layers of the hierarchically encoded media
    are transmitted to a set of IP multicast group
    addresses
  • Each receiver subscribe to an appropriate number
    of multicast groups depending on the network and
    CPU resources available

46
Example - Wavelet based
224.3.4.5
Base layer
224.3.4.6
Refinement layers
224.3.4.7
224.3.4.8
Four subbands, four multicast groups
One iteration of the wavelet transform
47
Algorithm for Flow Control
  • loop
  • if (no_congestion) then
  • join next group to get higher layer
  • else
  • leave group to drop highest layer

48
(No Transcript)
49
(No Transcript)
50
(No Transcript)
51
(No Transcript)
52
(No Transcript)
53
(No Transcript)
54
Layered Multicast Problems
  • How to detect congestion caused by my tests or by
    others
  • Shared learning proposed
  • Does it scale?
  • Today long timeout in mcast forwarding trees
  • Might lead to false interpretation of the current
    situation
  • Dynamic Layers
  • Is not nice to TCP

55
Dynamic Layers
  • Lower the bandwidth for each layer over time
  • The receiver has to join new layers to keep the
    same total bandwidth
  • Based on congestion

56
Status in Internet
  • Almost all traffic is still sent using Unicast -
    transcoding at the server
  • Network transcoders probably most common
  • Simulcast less common than one could imagine
    (lack of good support in todays applications).

57
Summary
  • A number of more or less proposed solutions
  • Max/Min client bandwidth
  • Simulcast
  • Network transcoders
  • Bandwidth Guessing - TCP friendly
  • Active Networks
  • Active Services
  • Layered Multicast
  • Still a lot of research needed

58
Questions?
  • peppar_at_cdt.luth.se
  • http//www.cdt.luth.se/peppar/
