Title: Medical Image Segmentation


1

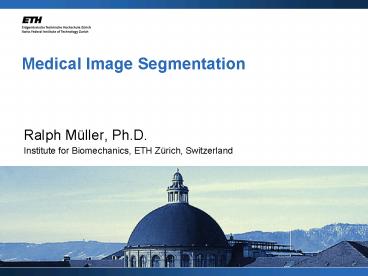

Medical Image Segmentation
  • Ralph Müller, Ph.D.
  • Institute for Biomechanics, ETH Zürich,
    Switzerland

2
Adapted from
  • Pham DL, Xu C, Prince JL.Current methods in
    medical image segmentation.Annu Rev Biomed Eng.
    20002315-37

3
Image Segmentation
  • Group similar components (such as, pixels in an
    image, image frames in a video) to obtain a
    compact representation.
  • Applications Finding tumors, veins, etc. in
    medical images, finding targets in
    satellite/aerial images, finding people in
    surveillance images, summarizing video, etc.
  • Methods Thresholding, Clustering, etc.

4
Image Segmentation
  • Segmentation algorithms for monochrome images
    generally are based on one of two basic
    properties of gray-scale values
  • Discontinuity
  • The approach is to partition an image based on
    abrupt changes in gray-scale levels.
  • The principal areas of interest within this
    category are detection of isolated points, lines,
    and edges in an image.
  • Similarity
  • The principal approaches in this category are
    based on thresholding, region growing, and region
    splitting/merging.

5
Definitions
  • Image segmentation is the partitioning of an
    image into nonoverlapping, constituent regions
    that are homogeneous with respect to some
    characteristics

6
Definitions
7
Definitions
  • When the constraint of connected regions is
    removed, then determining the sets Sk is called
    pixel classification.
  • Desirable when disconnected regions belonging to
    the same tissue class require identification.
  • Determining the total number of classes K in
    pixel classification can be a difficult problem.
  • Mostly based on apriori knowledge of anatomy.

8
Definitions
  • Labeling is the process of assigning a meaningful
    designation to each region or class.
  • Often performed separately from segmentation.
  • In medical imaging, labels are often visually
    obvious and determined on inspection by a
    physician or technician.
  • Computer-automated labeling is desirable when
    labels are not obvious or in automat. processes.

9
Dimensionality
  • Dimensionality refers to whether a segmentation
    method operates in a 2D or 3d image domain.
  • Methods that rely solely on image intensities are
    independent of the image domain.
  • Generally, 2D methods are applied to 2D images,
    and 3D methods are applied to 3D img.
  • In some cases, 2D methods are applied
    sequentially to the slices of a 3D image.

10
Soft Segm. and Partial-Volume Effects
  • Partial-volume effects are artifacts that occur
    where multiple tissues types contribute to a
    single pixel, resulting in blurring of
    intensities.

11
Soft Segm. and Partial-Volume Effects
  • The most common approach to addressing
    partial-volume effects is to produce
    segmentations that allow regions or classes to
    overlap, called soft segmentations.
  • Soft segmentations retain more information than
    typical hard segmentation from the original image
    by allowing uncertainty in the location of the
    object boundaries.

12
Characteristic and Membership Function
13
Membership Functions
  • Membership functions can be derived from
  • Fuzzy clustering
  • Classifier algorithms
  • Statistical algorithms using probability
    functions
  • Estimates of partial-volume fractions
  • Soft segmentations based on membership functions
    can be easily converted to hard segmentations by
    assigning a pixel to the class with the highest
    membership value.

14
Intensity Inhomogeneities
  • Major difficulty of MR imaging is the intensity
    inhomogeneity artifact.
  • Degrades performance of methods that assume the
    constant tissue intensity value over image.
  • Some methods suggest a prefiltering operation.
  • Methods that simultaneously segment the image and
    estimate inhomogeneity off the advantage of being
    able to use intermediate information.

15
Intensity Inhomogeneities
  • Two prevailing approaches
  • Assumes that mean intensity for each tissue class
    is spatially varied and independent of one
    another.
  • Models the inhomogeneities as a multiplicative
    gain field or additive bias field.
  • The second approach can also be used for removing
    inhomogeneities by simply multiplication of the
    acquired image by the reciprocal of the estimated
    gain field.

16
(No Transcript)
17
Interaction
  • The tradeoff between manual interaction and the
    performance is important consideration in segm.
  • Manual interaction can improve accuracy.
  • The type of interaction can vary from completely
    manual delineation of an anatomical structure to
    the selection of a seed point for region growing.
  • Even automated segmentation requires
    specification of some initial parameters.

18
Validation
  • Validation experiments are necessary to quantify
    the performance of a segmentation method.
  • This is typically performed with one of two types
    of truth models
  • Compare automated segmentation with manually
    obtained segmentations.
  • The use of physical or computational phantoms.

19
Phantom Limitations
  • Manually obtained segmentations do not guarantee
    perfect truth model because of inherent operator
    flaws
  • Physical phantoms provide accurate depiction of
    image acquisition process but typically do not
    present a realistic representation of anatomy.
  • Computational phantoms represent anatomy
    realistically, but usually simulate the image
    acquisition process by using simplified models.

20
Figure of Merit
  • Once a truth model is available, a figure of
    merit must be defined for quantifying accuracy
    and precision.
  • Typical definitions include
  • Region information, such as number of pixels
    misclassified.
  • Boundary information, such as distance to the
    true boundary.

21
Segmentation Methods
  • Thresholding approaches
  • Region Growing approaches
  • Classifiers
  • Clustering approaches
  • Markov random fields (MRF) models
  • Artificial neural networks
  • Deformable models
  • Atlas-guided approaches

22
Thresholding
  • Suppose that an image, f(x,y), is composed of
    light objects on a dark background, and the
    following figure is the histogram of the image.
  • Then, the objects can be extracted by comparing
    pixel values with a threshold T.

23
Thresholding
  • It is also possible to extract objects that have
    a specific intensity range using multiple
    thresholds -gt multipthresholding.

24
Thresholding
  • Non-uniform image acquisition may change the
    histogram in a way that it becomes impossible to
    segment the image using a single global
    threshold.
  • Choosing local threshold values may help.

25
Thresholding
26
Adaptive Thresholding
27
Adaptive Thresholding
Almost constant illumination ?Separation of
objects
28
Region-Oriented Segmentation
  • Region Growing
  • Region growing is a procedure that groups pixels
    or subregions into larger regions.
  • The simplest of these approaches is pixel
    aggregation, which starts with a set of seed
    points and from these grows regions by appending
    to each seed points those neighboring pixels that
    have similar properties (such as gray level,
    texture, color, shape).
  • Region growing based techniques are better than
    the edge-based techniques in noisy images where
    edges are difficult to detect.

29
Region-Oriented Segmentation
  • Segment the image in different regions Ri
  • The regions cover the whole image
  • Two regions do not have the same elements
  • A region fulfils some property P
  • The union of two regions does not satisfy the P

30
Region Growing
Element in L
Seed points
  • Define seed point
  • Add n-neighbors to list L
  • Get and remove top of L
  • Test n-neighbors pif p not treatedif
    P(p,R)True then p?L and add p to region else p
    marked boundary
  • Go to 2 until L is empty
  • Two Regions R and R

Border element
Region element
31
Region Growing
  • P is a predicate that defines whether an element
    belongs to a region, i.e.
  • Compares the new element with the mean value of
    region.
  • Compares the new element with the neighbor value.
  • L is ordered, for example, according to P
  • We can define several seed points
  • If a point touches more than one Ri, a measure
    defines to which region it belongs to.

32
Region Growing
  • Current region dominates the growth process.
  • Ambiguities around edges of adjacent regions may
    not be resolved correctly.
  • Different choices of seeds may give different
    segmentation results.
  • Results are completely dependent on the choice of
    the predicate P.

33
Classifiers
  • Classifier methods are pattern recognition
    techniques that seek to partition a feature space
    derived from the image by using data with know
    labels
  • A feature space is any function of the image
  • most commonly this is the image intensity
  • Classifiers are known as supervised method
    because they require training data

34
Types of classifiers
  • Nearest-neighbor classifier
  • k-nearest-neighbor classifier
  • same class as majority of k-closest training set
  • Parzen window
  • Maximum-likelihood or Bayes classifiers

35
Classifiers
  • Structure to be segmented possesses distinct
    quantifiable features
  • Being noniterative, classifiers are relatively
    computationally efficient
  • Can be applied to multichannel images
  • Disadvantage is
  • that they do not perform any spatial modeling
  • that they require manual interaction to obtain
    training data

36
Examples
Extract fish from background
Extract ROI with tumor
Volume, circularity, moments ...
length, width, lightness, weight ...
Salmon
Malign
Sea Bass
Benign
37
Classifier
  • Model
  • Different models for each class (sea bass longer
    than salmon, benign tumor is smooth circular)
  • Take noise out of the sensed data to identify the
    model
  • Training samples look at the feature

Salmon/Benign
Sea bass/Malign
t ?
38
Classifier
Salmon/Benign
Sea bass/Malign
t1
t2
  • Costs per decision
  • Equal - minimum misclassification error t1
  • Different costs t2
  • Better some salmon with sea bass than otherwise
  • Wrong classification of malign tumor is worse
    than benign tumor

39
Feature Extraction
  • Multidimensional features improve performance

How many features are necessary?
Salmon/Benign
Sea bass/ Malign
40
Decision Boundary
Salmon/Benign
  • Tune decision boundary model
  • Complexity
  • Overfitting
  • Less performance in training data better
    performance in novel patterns

Decision Boundary
Sea bass/ Malign
41
Feature Extraction vs. Classification
  • Small number of features ? simpler decision
    regions, easier to train and quicker response
  • Ideal Feature Extraction ? Trivial Classifier
  • Perfect Classifier ? Simple Features
  • General purpose recognition system is a very
    difficult challenge
  • Practice defines what is the best approach

42
Clustering
  • Perform the same function as classifier methods
    without the use of training data
  • Unsupervised methods
  • Three commonly used clustering algorithms
  • K-means or ISODATA algorithm
  • Fuzzy c-means algorithm
  • Expectation-maximization (EM) algorithm

43
K-means
  • Assumes a fixed number of classes
  • Iteratively computes a mean intensity for each
    class
  • Segments the image by classifying each pixel in
    the class with the closest mean
  • No incorporation of spatial modeling and are
    therefore sensitive to noise

44
Figure 4. Segmentation of a magnetic resonance
brain image. (a) Original image. (b)
Segmentation using the K-means algorithm. (c)
Segmentation using the K-means algorithm with a
Markov random field.
45
Markov random field (MRF) models
  • Not a segmentation method but statistical model
    that can be used within segmentation methods
  • MRF models the spatial interactions between
    neighboring or nearby pixels
  • In medical images most pixels belong to the same
    class as their neighboring pixels
  • MRF is often incorporated into clustering
    segmentations such as K-means

46
Deformable Models
  • Segmentation methods until now (no knowledge of
    shape
  • Thresholding
  • Edge based
  • Region based
  • Deformable models
  • Knowledge of the shape of the object

47
Deformable Models
  • Initial shape (curve or surface)
  • Move the shape according
  • Internal forces (curve/surface properties)E.g.
    Curvature to keep the object smooth
  • External forces (image properties)E.g. To track
    the object to the boundary
  • 2D Snakes Kass, Witkin and Terzopoulos 1987

48
Example
  • Animation with a 2D countour adapting to the edge

49
Deformable Models
  • Various names for the same
  • 2D snakes, active contours, and deformable
    contours ...
  • 3D ballons, active surfaces, and deformable
    surfaces ...
  • Two main groups
  • Parametric deformable models (based on parametric
    form of models)
  • Geometric deformable models (curve evolution or
    level sets)

50
Figure 6 An example of using a deformable surface
in the reconstruction of the cerebral cortex.
51
Figure 7 A view of the intersection between the
deformable surface and orthogonal slices of the
MR image.
52
Atlas-Guided Approaches
  • Atlas is generated by compiling information on
    the anatomy that requires segmentation
  • Atlas is then used as a reference frame for
    segmenting new images
  • Conceptually similar to classifier methods but
    implemented in spatial domain rather than feature
    space

53
Atlas-Guided Approaches
  • Standard atlas-guided approach treats
    segmentation as registration problem
  • Finds one-to-one transformation that maps a
    presegmented atlas image to the target image
  • Atlas warping uses sequential application of
    linear and non-linear transformations
  • Advantage is that
  • labels are transferred with the segmentation
  • they provide standard system for morphometry

54
(No Transcript)
55
(No Transcript)
56
Watershed Segmentation Algorithm
  • Visualize an image in 3D spatial coordinates and
    gray levels.
  • In such a topographic interpretation, there are 3
    types of points
  • Points belonging to a regional minimum
  • Points at which a drop of water would fall to a
    single minimum. (?The catchment basin or
    watershed of that minimum.)
  • Points at which a drop of water would be equally
    likely to fall to more than one minimum. (?The
    divide lines or watershed lines.)

57
Watershed Segmentation Algorithm
  • The objective is to find watershed lines.
  • The idea is simple
  • Suppose that a hole is punched in each regional
    minimum and that the entire topography is flooded
    from below by letting water rise through the
    holes at a uniform rate.
  • When rising water in distinct catchment basins is
    about the merge, a dam is built to prevent
    merging. These dam boundaries correspond to the
    watershed lines.

58
Watershed Segmentation Algorithm
59
Watershed Segmentation Algorithm
  • Start with all pixels with the lowest possible
    value.
  • These form the basis for initial watersheds
  • For each intensity level k
  • For each group of pixels of intensity k
  • If adjacent to exactly one existing region, add
    these pixels to that region
  • Else if adjacent to more than one existing
    regions, mark as boundary
  • Else start a new region

60
Watershed Segmentation Algorithm
Watershed algorithm might be used on the gradient
image instead of the original image.
61
Watershed Segmentation Algorithm
Due to noise and other local irregularities of
the gradient, oversegmentation might occur.
62
Watershed Segmentation Algorithm
A solution is to limit the number of regional
minima. Use markers to specify the only allowed
regional minima.
63
Watershed Segmentation Algorithm
A solution is to limit the number of regional
minima. Use markers to specify the only allowed
regional minima. (For example, gray-level values
might be used as a marker.)
64
Figure 10 Segmentation in digital mammography.
(a) Digitized mammogram and radiologists
boundary for biopsy-proven malignant tumor. (b)
Result of watershed algorithm. (c) Suspicious
regions determined by automated method. (Images
provided courtesy of CE Priebe.)
65
Conclusions
  • Future research will strive towards improving
  • accuracy and precision
  • computational speed
  • automation and reduction of manual interaction
  • The big question is whether these system will be
    more often used in the clinical setting
  • extensive validation is required
  • demonstrate significant performance advantage
  • Will not replace physicians but be valuable tools
    i.e. image-guided surgery
Write a Comment
User Comments (0)
About PowerShow.com
