Chapter 9a Systems of Particles

1

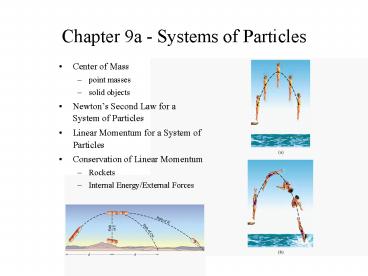

Chapter 9a - Systems of Particles

• Center of Mass
• point masses
• solid objects
• Newtons Second Law for a System of Particles
• Linear Momentum for a System of Particles
• Conservation of Linear Momentum
• Rockets
• Internal Energy/External Forces

2
Calculating the center of mass point objects
1 D
3
Calculating the center of mass point objects
2 D
4
Problem 1

• Three masses located in the x-y plane have the
  following coordinates
• 2 kg at (3,-2)
• 3 kg at (-2,4)
• 1 kg at (2,2)
• Find the location of the center of mass

5
Calculating the center of mass solid objects
1 D
6
Calculating the center of mass solid objects
2 D
7
Finding the COM
8
Problem 2

• What is the center of mass of the Letter F
  shown if it has uniform density and thickness?

2cm
2cm
20cm
5cm
10 cm
2cm
15cm
9
Problem 3
The blue disk has a radius 2R The white area is
a hole in the Disk with radius R. Where is the
center of mass?
10
COM and translational motion
First time derivative
COM Momentum
Second time derivative
Newtons 2nd Law
11
What this means.

• The sum of all forces acting on the system is
  equal to the total mass of the system times the
  acceleration of the center of mass.
• The center of mass of a system of particles with
  total mass M moves like a single particle of mass
  M acted upon by the same net external force.

12
Conservation of Linear Momentum

• If 2 (or more) particles of masses m1, m2,
  form an isolated system (zero net external
  force), then total momentum of the system is
  conserved regardless of the nature of the force
  between them.

13
Problem 1

• An astronaut finds himself at rest in space after
  breaking his lifeline. With only a space tool in
  his hand, how can he get back to his ship which
  is only 10 m away and out of his reach.

14
Variable mass Rocket propulsion
small
15
Rocket thrust
Find Thrust, initial net force, net force as
all fuel expended
